Everything You Need to Know

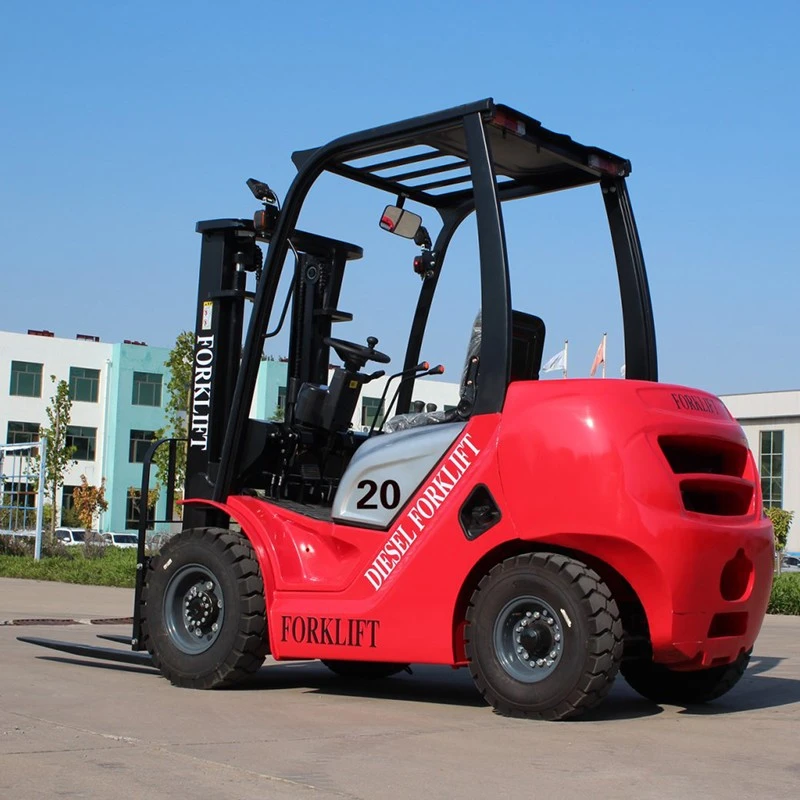

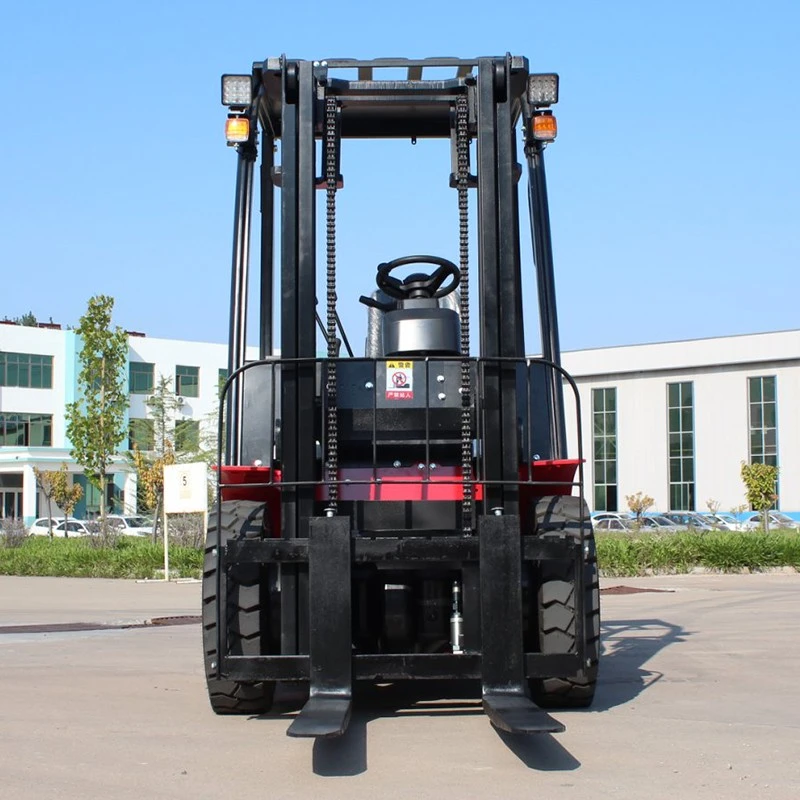

The 2-ton diesel forklift is the outdoor workhorse : no charging infrastructure required, low fuel consumption for high-frequency yard duty, and a low-overhead profile that works inside 20ft/40ft containers.
Shipping Container Stuffing / Unstuffing
Driving directly inside 20ft/40ft containers with a low-overhead guard and 3-stage full free-lift mast.
Narrow Outdoor Yards & Light Manufacturing
Moving timber, light machinery, or agricultural cargo in tight gravel or paved yards.
Textile, Paper & Light Freight Logistics
High-frequency outdoor handling of 1.0–1.5-ton standard pallets with minimum fuel consumption.
Receiving & Unloading Cycles
Palletized goods from trucks to staging areas and into the warehouse, in high-volume daily cycles with consistent single-load weights.
Technical Specifications
Basic & Performance

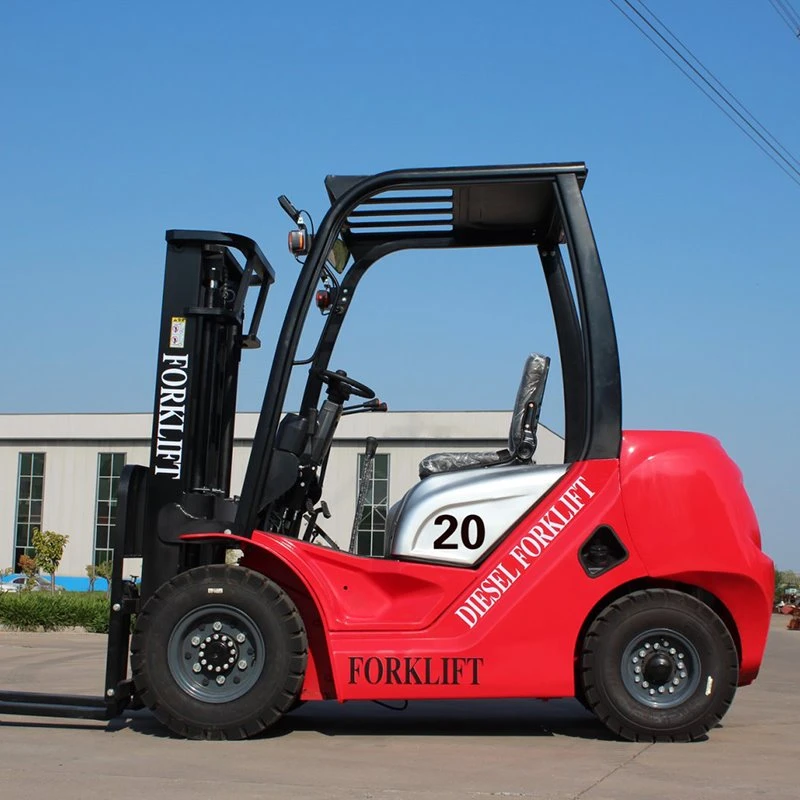

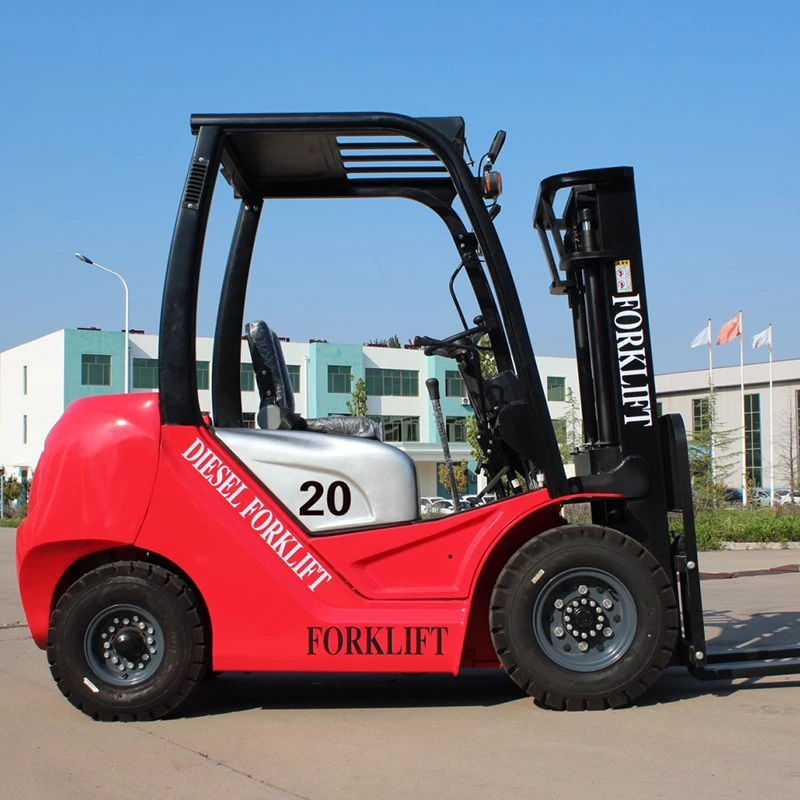

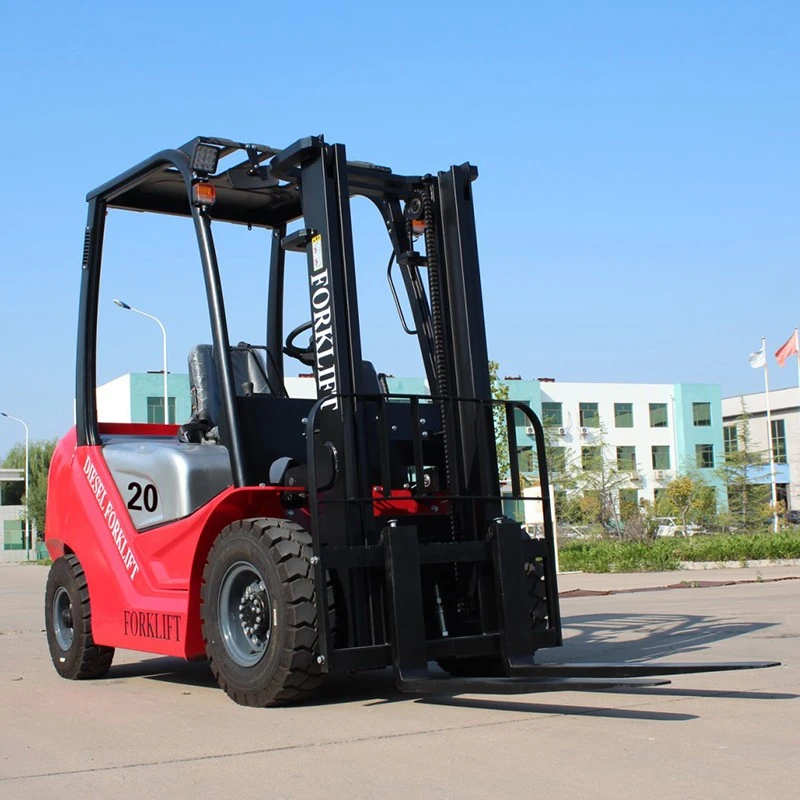

Model: CPC20-K
Power Type: Diesel
Rated Load Capacity: 2,000 kg
Load Center: 500 mm
Travel Speed (Unladen): 19 km/h
Lifting Speed (Laden): 540 mm/s
Lowering Speed (Laden): 450 mm/s
Max. Gradeability: 20%
Max. Drawbar Pull: 17 / 14.5 kN
Dimensions & Operating Capacity
Standard Lift Height: 3,000 mm
Free Lift Height: 130 mm
Mast Tilt Angle (Forward / Backward): 6° / 12°
Mast Height, Lowered: 1,980 mm
Mast Height, Extended: 4,050 mm
Overall Length (without forks): 2,595 mm
Overall Width: 1,160 mm
Fork Dimensions (L x W x T): 1,070 x 100 x 40 mm
Min. Turning Radius : 2,480 mm
Weight & Axle Loads
Service Weight: 3,260 kg
Axle Load (Laden, Front / Rear): 4,890 kg / 570 kg
Axle Load (Unladen, Front / Rear): 1,510 kg / 1,750 kg
Engine, Chassis & Electrical
Engine Model: QC490BPG (4-Cylinder Diesel)
Rated Output: 39 kW @ 2,650 rpm
Max. Torque: 160 Nm @ 1,980 rpm
Fuel Tank Capacity: 60 L
Battery Voltage / Capacity: 12V / 80 Ah
Wheelbase: 1,650 mm
Key Features

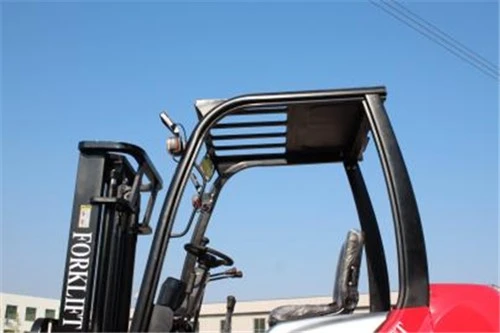

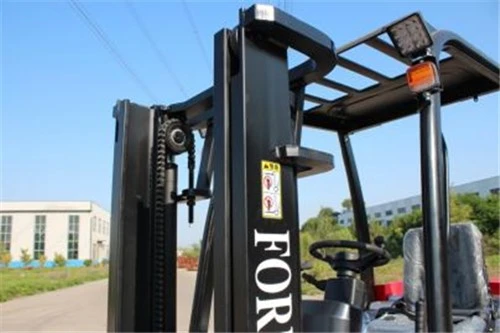

Low-Overhead Profile & Container-Ready Mast Option
An optional compact overhead guard and 3-stage full free-lift mast provide full hydraulic lift capability inside standard 2.2m shipping container ceilings.

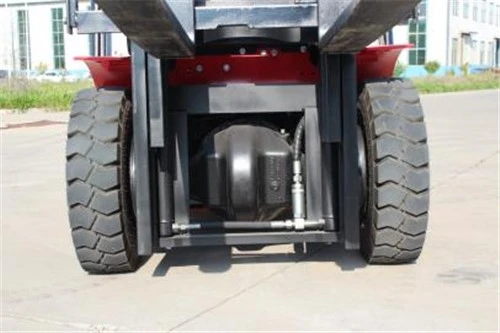

Short Wheelbase Chassis for Tight Turning Radius
An optimized front-to-rear axle ratio reduces the outer turning radius, allowing sharp turns in tight storage corridors without clipping rack edges.

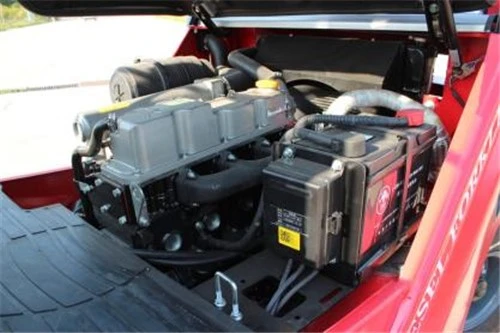

High-Efficiency Diesel Drive
Fuel-efficient Isuzu or Xinchai diesel engines with tuned torque delivery cut hourly fuel consumption by up to 10% compared with standard engines of the same class.

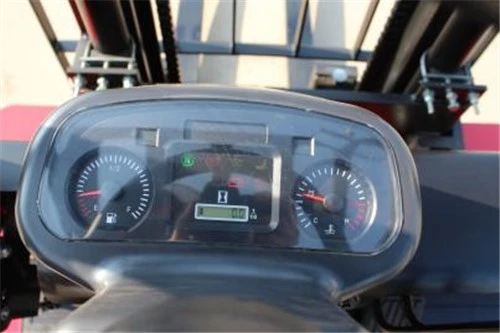

Vibration-Isolated Operator Cabin & High-Visibility Dash
Fully floating rubber cabin mounts and a low-slung dashboard absorb engine vibration while providing clear sightlines to the fork tips during container loading.
A Practical Footprint for Everyday Handling
01
1160 mm overall width
02
2480 mm turning radius
03
1650 mm wheelbase

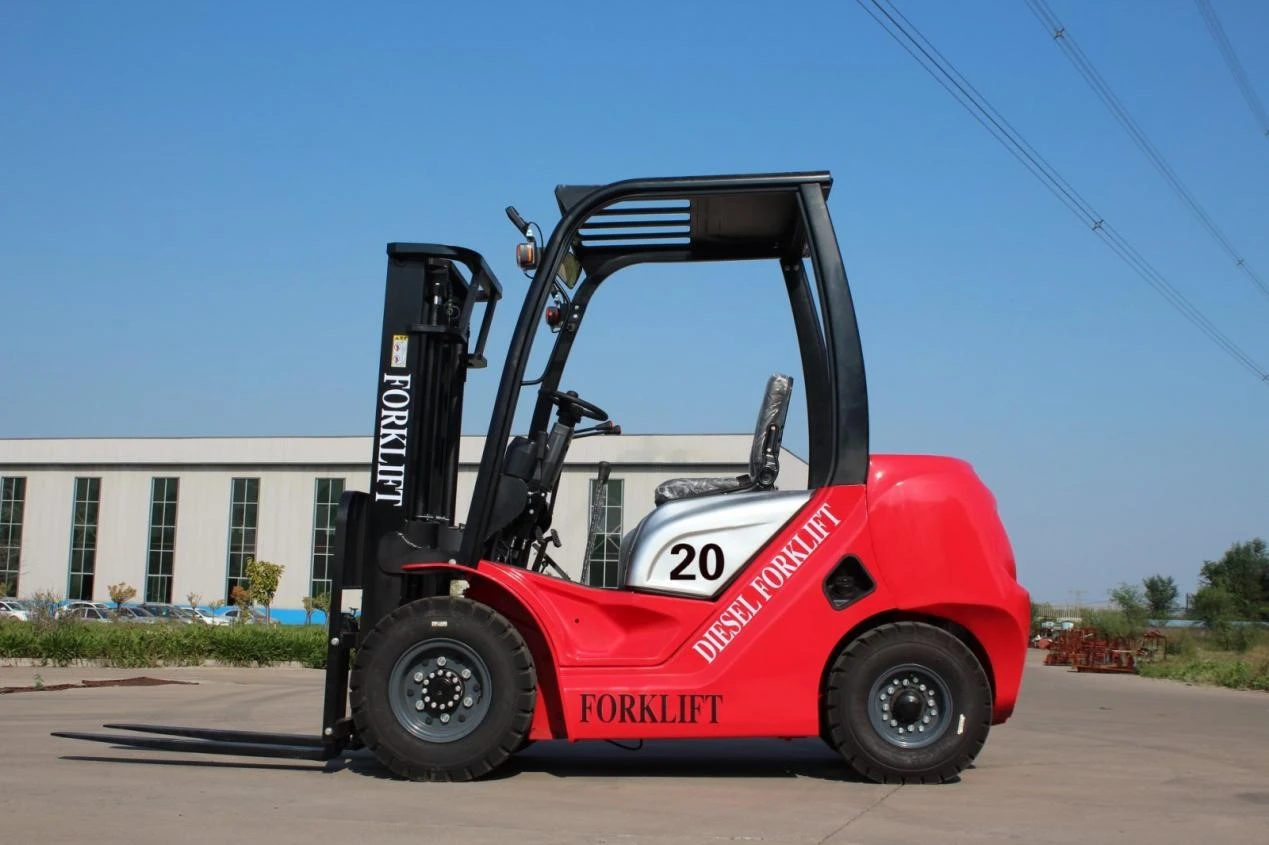

The CPC20-K uses a conventional counterbalance layout while keeping the overall width at 1,160 mm. For warehouses that need a general-purpose forklift rather than a specialized narrow-aisle truck, this gives buyers a practical balance between load capacity and maneuverability.
Frequently Asked Questions
Why Choose a 2-Ton Diesel Forklift for Yard & Container Handling?
+
-
Deploying a 2.5-ton or 3-ton diesel forklift inside tight container ramps leads to sluggish maneuvering and excessive fuel consumption. The 2-ton compact model offers the exact capacity needed for 1.2–1.5 ton containerized pallets while shaving off 200kg of unnecessary machine weight, saving up to 300 liters of diesel annually per machine.
Can this 2-ton diesel forklift drive directly inside a shipping container?
+
-
Yes. When configured with our optional low-overhead guard and 3-stage full free-lift mast (Triplex Container Mast), the machine seamlessly enters 20GP and 40HQ containers to unload pallets without hitting the roof.
Is the 2-ton diesel forklift sufficient for standard outdoor pallet handling?
Absolutely. For standard 1.0–1.5 ton pallets of goods like timber, paper rolls, or boxed cargo, the 2-ton model provides plenty of capacity reserve while offering superior maneuverability in small yards.
How does this 2-ton model differ from your 2.5-ton diesel model?
+
-
The 2-ton model is engineered specifically for compact turning, lower service weight, and container entry. If you handle heavy stone/cement pallets over 1.8 tons or plan to install heavy hydraulic attachments like side shifters or brick clamps, view our [2.5-Ton Diesel Forklift].
Why choose diesel instead of electric?
+
-
Diesel can be a practical choice for frequent handling and indoor-outdoor operations where battery charging infrastructure may be inconvenient.
Not Sure If 2 Tons Is Enough?
