Suitable For Heavy Industry Scenarios
Steel & metal handling (billets, thick plates)・Heavy machinery manufacturing (large castings, machine bases)・Shipbuilding & large components (ship sections, large pipelines)
Port Terminals & Container Freight Stations
Lifting steel coils, heavy machinery crates, and oversized breakbulk cargo; high residual capacity and heavy axle loads support demanding port operations.
Granite Quarries & Stone Processing
Transporting multi-ton raw stone blocks across unpaved quarry grounds; generous ground clearance and a rugged drive axle handle rough quarry terrain.
Steel Mills & Heavy Structural Handling
Moving hot-rolled coils, steel billets, and heavy structural beams; a high-torque engine combined with heavy attachments (C-hooks, pole rams) prevents stall under load.
Extended Forks: Timber & Precast Concrete
Handling massive raw logs and pre-cast concrete pillars; extended fork lengths and a wide carriage ensure longitudinal load stability.
Product Parameters
- Basic Specifications

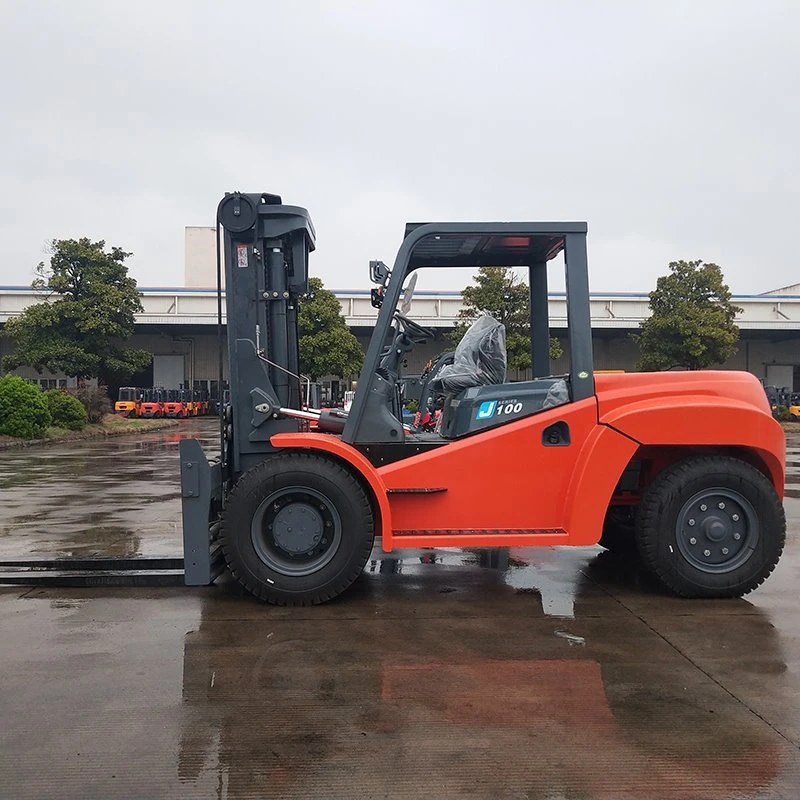

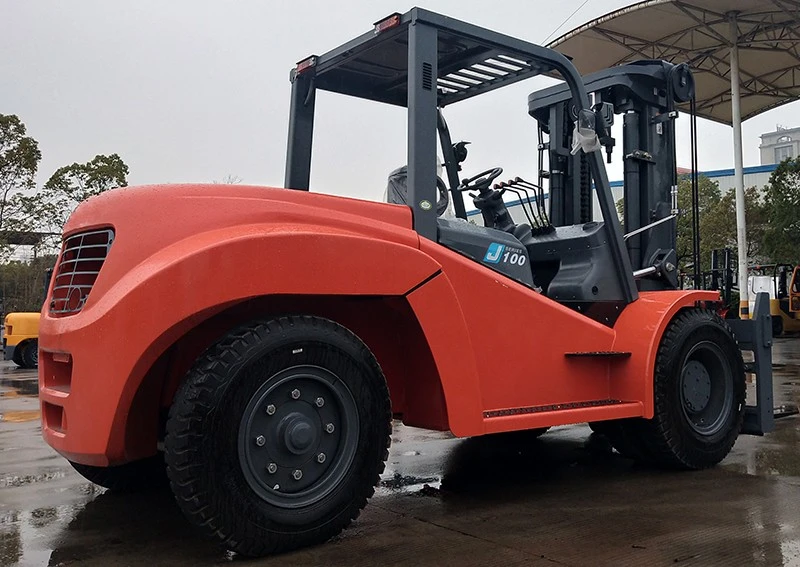

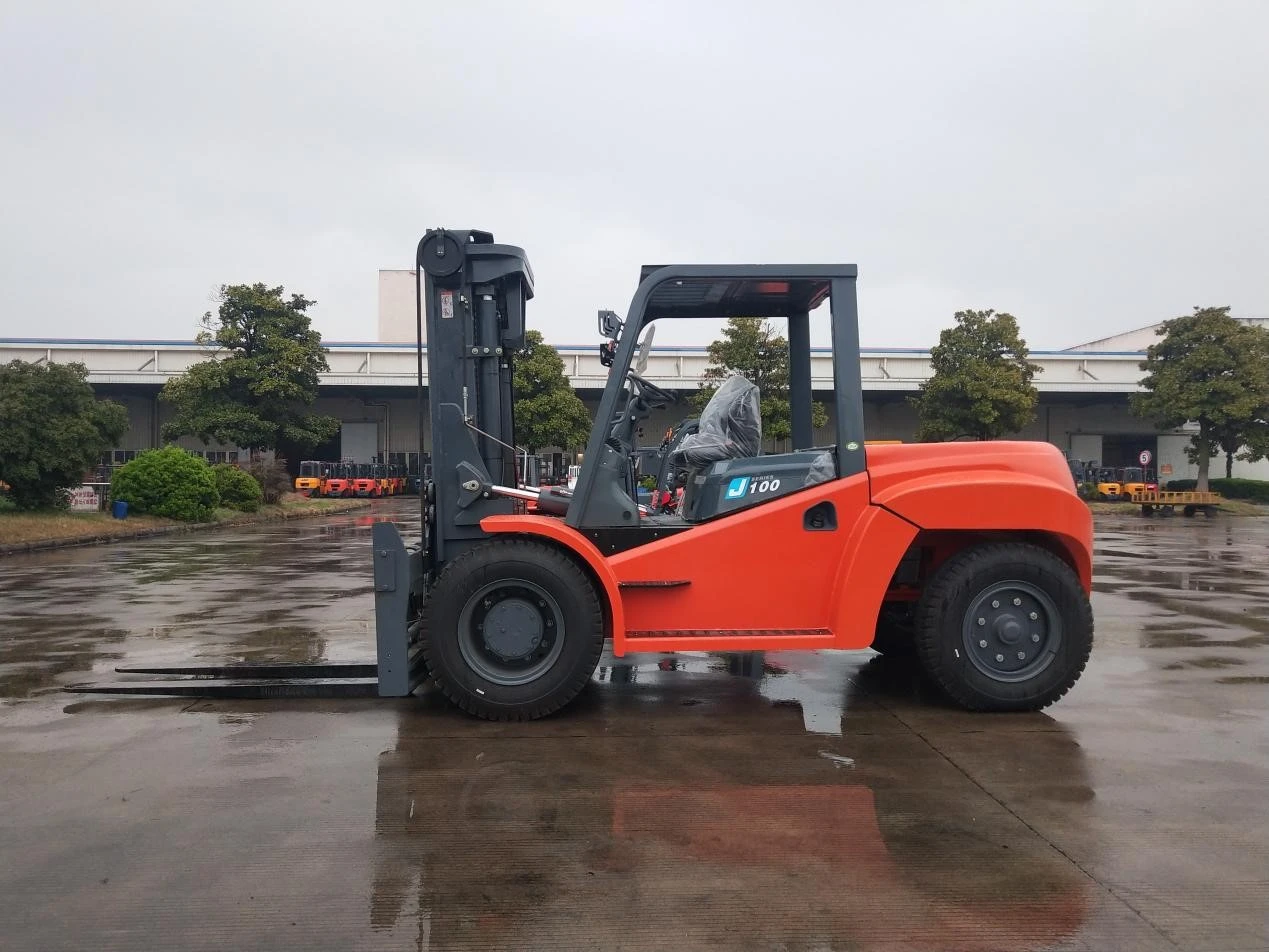

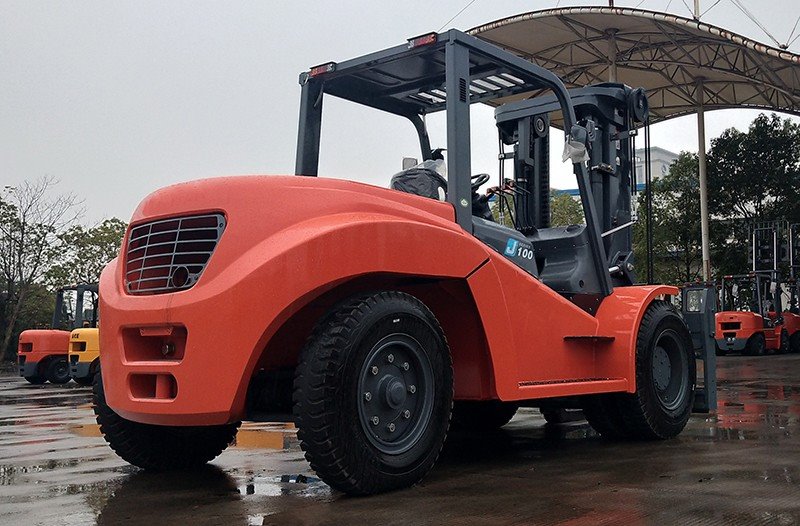

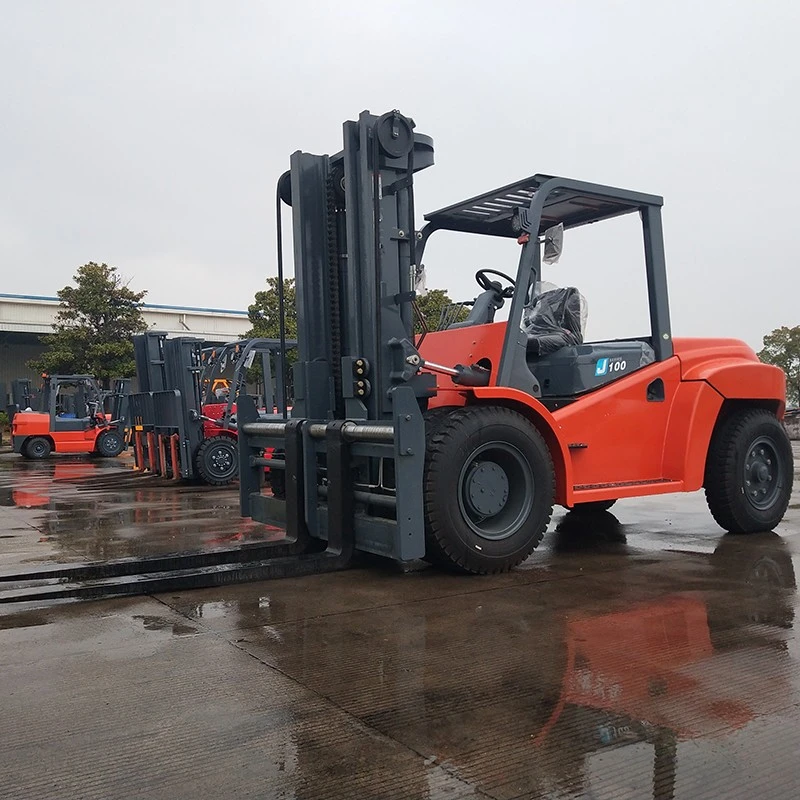

Model: CPC100‑K
Power Type: Diesel
Rated Capacity: 10000 kg
Load Center: 600 mm
Max. Lift Height: 3000 mm
Free Lift Height: 150 mm
Fork Size (L×W×T): 1370 × 175 × 85 mm
Mast Tilt Angle (Forward / Rearward): 8° / 10°
Self Weight: 16000 kg
- Powertrain
Engine Model: YC4A125‑T300
Engine Brand: Quanchai / Xinchai
Rated Output: 92 kW @ 2200 rpm
Rated Torque: 480 N·m @ 1600‑1800 rpm
Cylinders: 4
Fuel Tank Capacity: 200 L
Transmission Type: Mechanical / Hydraulic
Gears (F/R): 2/2
Starting Battery: 24V / 160Ah
- Dimensions & Chassis
Length to face of fork (without fork): 4252 mm
Front Overhang: 727 mm
Min. Ground Clearance: 232 mm
Front / Rear Tyre: 9.00‑20‑14PR
Wheelbase: 2800 mm
Front Tread: 1600 mm
Rear Tread: 1700 mm
Overall Width: 2268 mm
Mast Lowered Height: 2275 mm
Mast Extended Height (with backrest): 4280 mm

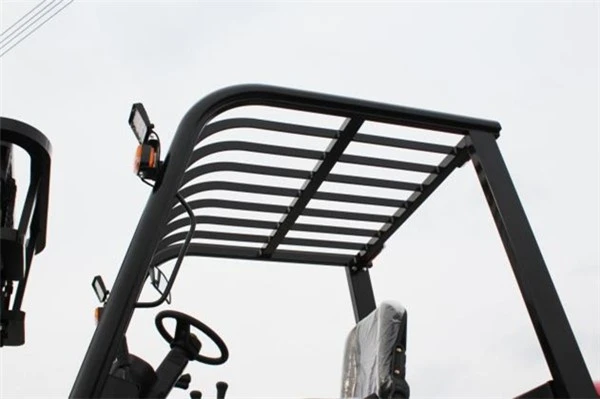

Overhead Guard Height: 2600 mm
Min. Turning Radius: 4280 mm
Min. Right‑Angle Stacking Aisle Width: 6307 mm
- Performance
Travel Speed (Laden / Unladen): 20 km/h / 24 km/h
Lifting Speed (Laden / Unladen): 350 mm/s / 370 mm/s
Lowering Speed (Laden / Unladen): 410 mm/s / 320 mm/s
Max Drawbar Pull (Laden / Unladen): 24 kN / 20 kN
Max Gradeability (Laden): 20%
Get a Heavy Load Capacity Curve & Attachment Selection Guide
Key Features & Highlights
The 10-ton-class heavy-duty diesel forklift engineered around large cargo: high-tensile mast construction, a standard hydraulic fork positioner with side shifter, dual-cooling powertrain protection, and wet disc braking for sustained heavy outdoor duty.

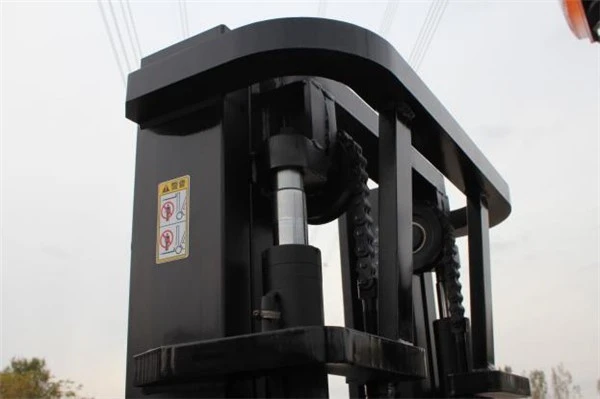

High-Tensile Mast & Anti-Deformation Chassis

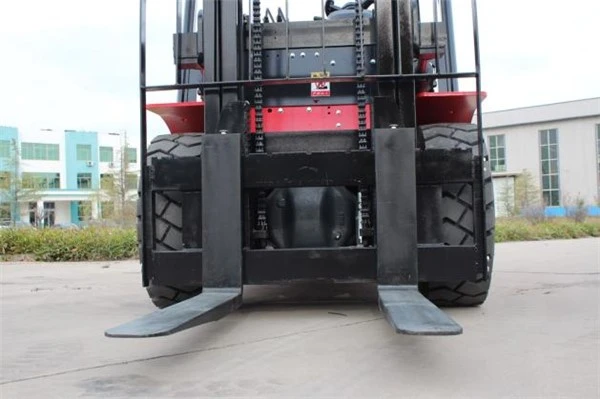

Standard Hydraulic Fork Positioner & Side Shifter

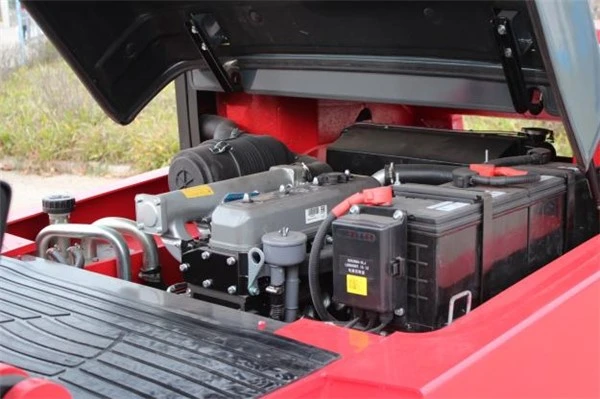

Heavy Industrial Engines & Dual Cooling Architecture
Rugged Drive Axle & Wet Disc Braking
Check the Working Site Before Ordering
Load
Weight + dimensions + center of gravity
Lift
Required lifting height + mast configuration
Space
Aisle width + turning space + overhead clearance
Ground
Concrete / paved / uneven yard / grade conditions
Send these four details before quotation so the forklift configuration can be reviewed against your actual operation.
Frequently Asked Questions
Why is a hydraulic fork positioner included as standard on 5–18 ton models?
+
-
Heavy-duty forks on 5t–18t forklifts weigh hundreds of kilograms, making manual adjustment impossible for operators. The hydraulic fork positioner enables quick, safe width adjustments directly from the cabin seat.
Can this heavy forklift operate continuously in extreme high-temperature environments?
+
-
Yes. Designed with dual high-capacity aluminum radiators and independent hydraulic oil cooling circuits, our 5–18t series is engineered to maintain normal operating temperatures even in continuous +50°C summer outdoor shifts.
What load center is used to rate capacity on these heavy forklifts?
+
-
Models from 5.0t to 7.0t are rated at a 600mm load center. Larger 10.0t to 18.0t models are rated at 600mm or 900mm load centers to accommodate wide industrial cargo like steel coils and lumber bundles.
Why does load center matter on the 10-ton forklift?
+
-
Rated capacity is specified at a defined load center. If the cargo's center of gravity is farther from the fork face, the actual load requirement changes. Long or oversized cargo should therefore be reviewed before ordering.
What industries is the 10-ton diesel forklift used in?
+
-
Typical applications include steel and metal handling, heavy machinery manufacturing, shipbuilding, port cargo handling and other industrial operations involving large loads.
