Where the 2.5 Ton Forklift Makes Sense
Building materials yards・Brick & tile distribution・Metal components & dense loads・High-temperature outdoor freight hubs

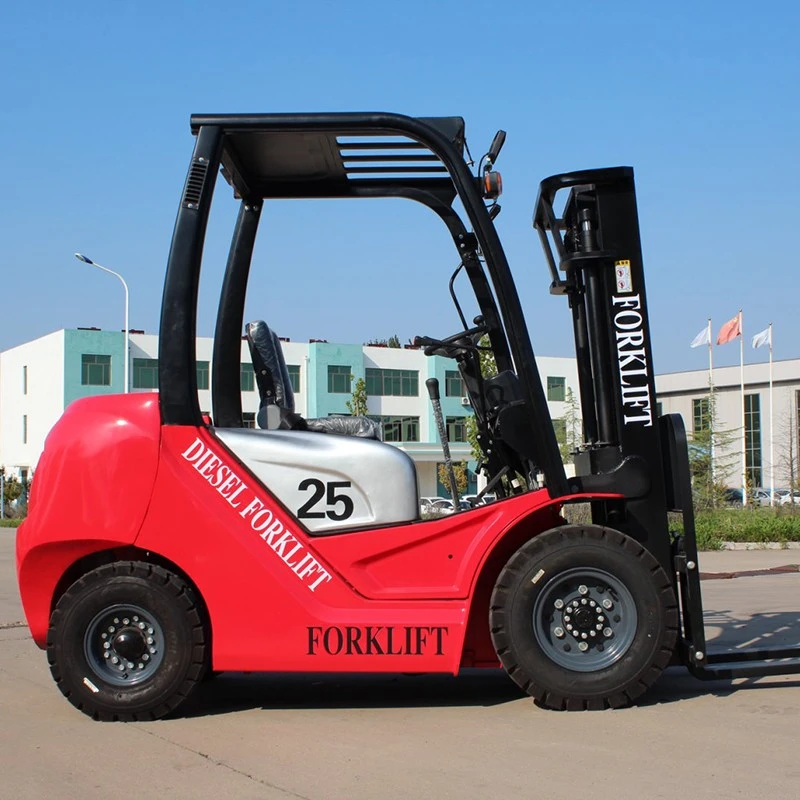

Building Materials & Heavy Pallets (1.2–1.8t)
Handling dense blocks, cement, timber, tiles, and stone slabs on outdoor gravel or concrete yards.
Attachment-Heavy Operations (Side Shifter / Clamps)
Side shifters, brick clamps, or paper roll clamps without sacrificing lift capacity.
High-Temperature Outdoor Freight Hubs
Continuous shift work in dusty, tropical outdoor climates (Middle East, Africa, Southeast Asia, South America).
Technical Specifications
Basic & Performance
Model: CPC25-K
Power Type: Diesel
Rated Load Capacity: 2,500 kg
Load Center Distance : 500 mm
Travel Speed (Unladen): 19 km/h
Lifting Speed (Laden): 540 mm/s
Max. Gradeability (Laden): 20%
Max. Drawbar Pull: 17 / 14.5 kN
Dimensions
Standard Lift Height: 3,000 mm
Free Lift Height: 130 mm
Mast Tilt Angle (Forward / Backward): 6° / 12°
Overhead Guard Height: 2,220 mm
Overall Length (without forks): 2,595 mm
Overall Width: 1,160 mm
Fork Dimensions (L x W x T): 1,070 x 122 x 40 mm
Min. Ground Clearance (Under Mast): 115 mm
Engine, Transmission
Engine Model: QC490BPG (4-Cylinder Diesel)
Rated Output: 39 kW @ 2,650 rpm
Max. Torque: 160 Nm @ 1,980 rpm
Transmission Type: Mechanical / Hydraulic Powershift (Stages: 1/1 or 2/2)
System Operating Pressure (for attachments): 17.5 MPa

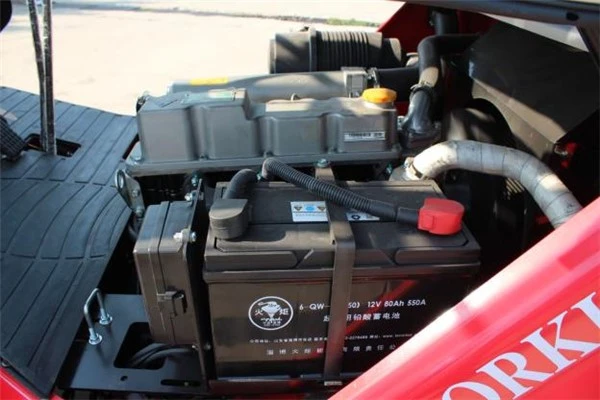

Battery Voltage / Capacity: 12V / 80 Ah
Weight
Service Weight: 3,510 kg
Key Features
The 2.5-ton diesel forklift steps up from general-purpose yard duty: heavier building-material pallets (1.2–1.8t), hydraulic attachments without sacrificing lift capacity, and a powertrain built for hot, dusty, multi-shift climates. When daily loads drift past 2 tons but don't justify a 3-ton truck, the 2.5-ton diesel keeps outdoor operations on one machine.
Engineered Counterweight for High Attachment Residual Capacity
An optimized rear counterweight balance maintains rated stability when operating with integral side shifters, bale clamps, or block clamps without de-rating capacity.
Tropicalized Cooling & High Ground Clearance Chassis
A large-capacity aluminum radiator, heat dissipation fan, and high ground clearance frame prevent engine overheating and underbody scraping on uneven gravel or dirt yards.

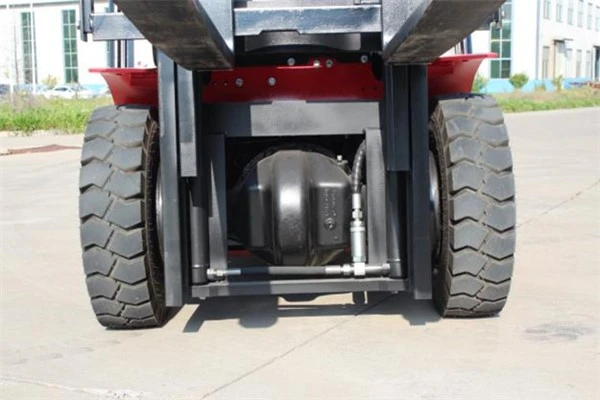

Heavy-Duty Cast Steering Axle & Rigid Mast Rails
A heavy-duty cast steel steering axle and reinforced wide-view mast channels minimize mast flex and shock load during rough-terrain transport.
Globally Proven Industrial Diesel Powertrain
High-torque, easily serviceable industrial diesel engines (Isuzu C240/4JG2 or Xinchai 4D27) ensure ready availability of spare parts and low long-term maintenance costs worldwide.
2,500 kg Does Not Mean Every Load Can Be 2,500 kg
Rated capacity depends on the specified load center and lifting conditions. Load weight, dimensions, center of gravity and lift height should be considered together before selecting the forklift.
Frequently Asked Questions
What is the 2.5 ton diesel forklift used for?
+
-
It is designed for palletized loads and material handling applications where the load can reach up to the 2.5-ton rated capacity, including industrial components, building materials and mixed warehouse loads.
Why is the 2.5-Ton Diesel Forklift the Ultimate Fleet Standard?
+
-
Standardizing on 2.5-ton diesel forklifts gives fleet managers the highest versatility and resale value. Unlike 2.0-ton models that struggle when fitted with heavy attachments, or 3.0-ton models that consume more fuel, the 2.5-ton hits the sweet spot-handling 90% of global standardized pallet loads with low maintenance downtime and max fleet flexibility.
Will adding a side shifter lower the lifting capacity of this 2.5-ton forklift?
+
-
No. Thanks to our heavy-duty counterweight engineering, this machine retains its full 2500 kg nominal capacity at standard 3.0m lift heights even when equipped with an integrated side shifter.
Can this 2.5-ton diesel forklift handle rough outdoor yards and unpaved slopes?
+
-
A: Yes. With high underbody ground clearance, pneumatic deep-tread tires, and 20%+ gradeability, it is purpose-built for mud, gravel, and rough outdoor building material sites.
Does the 2.5 ton forklift need more space?
+
-
The CPC25-K listed dimensions are 1,160 mm overall width and 2,480 mm outside turning radius. Site layout should still be checked against the actual aisle and turning requirements.
Is 2.5 Tons the Right Capacity for Your Operation?
DAWNSHINE leverages decades of industry experience, product innovation and service network to identify client requirements and deliver high-efficiency solutions that create tangible value.
Our mature production system and optimized supply chain support high-volume orders. Custom forklift solutions are available to suit diverse working conditions. Full-process quality control ensures reliable performance and long service life for every unit.
