Everything You Need to Know
Medium-load warehouse operations・Manufacturing workshops (castings, molds, machinery components)・Building materials depots (pipes, stone pallets)
Container Entry at Docks & Depots
Driving inside 20ft/40ft shipping containers at logistics hubs; a low collapsed mast option enables direct entry and internal stacking.
Building Materials & Lumber Depots
Transporting palletized bricks, cement bags, and timber across outdoor yards; pneumatic tires and generous clearance handle uneven gravel or paved surfaces.
Manufacturing & Assembly Plant Shuttle
Shuttle operations between indoor production lines and outdoor trucks; precise hydraulic control supports smooth indoor/outdoor transition.
Agri-Logistics & Wholesale Produce Markets
High-speed seasonal loading of heavy produce crates and grain pallets; reliable cold-start performance and continuous multi-shift endurance
Product Parameters
- Core Specifications
Model: CPC35‑K / CPC38‑K
Power Type: Diesel
Rated Capacity: 3500 kg / 3800 kg
Load Center: 500 mm
Max. Lift Height: 3000 mm
Free Lift Height: 145 mm / 150 mm
Fork Size (L×W×T): 1070 × 122 × 50 mm
Mast Tilt Angle (F/R): 6° / 12°
- Powertrain

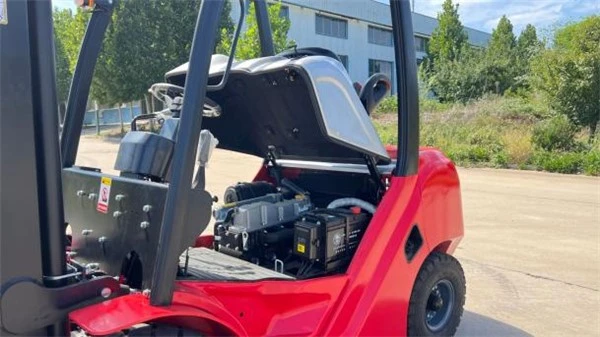

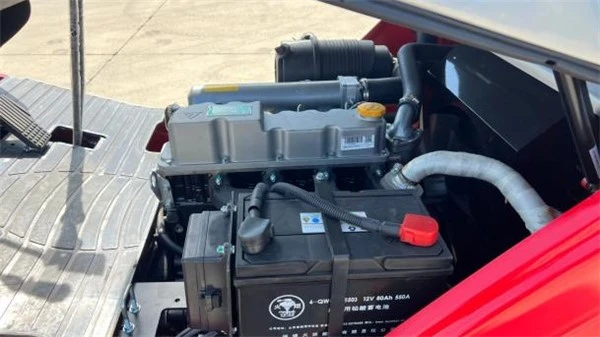

Engine Model: QC490BPG
Engine Brand: Quanchai / Xinchai
Rated Output: 39 kW @ 2650 rpm
Rated Torque: 160 N·m @1980 rpm
Cylinders: 4
Fuel Tank Capacity: 60 L
Transmission Type: Mechanical / Hydraulic
Gears (F/R): 1/1 (Optional 2/2)
Starting Battery: 12V / 80Ah
Displacement:2,540cc
- Dimensions & Chassis
Length to face of fork (without fork): 2750 mm / 2820 mm
Overall Width: 1240 mm
Mast Lowered Height: 2070 mm
Mast Extended Height (with backrest): 4065 mm
Overhead Guard Height: 2220 mm
Outside Turning Radius: 2600 mm / 2650 mm
Min. Ground Clearance: 135 mm
Front/Rear Overhang: 465/550 mm / 485/590 mm
Front Tyre: 28×9‑15‑12PR
Rear Tyre: 6.50‑10‑10PR
Wheelbase: 1750 mm
Front / Rear Tread: 1000 mm / 980 mm
Self Weight: 4390 kg / 4550 kg
- Performance Data
Travel Speed (Unladen): 19 km/h
Lifting Speed (Laden): 400 mm/s
Lowering Speed (Laden): 450 mm/s
Max Drawbar Pull (Laden/Unladen): 18 kN / 18 kN
Max Gradeability (Laden): 18% / 16%
The 3.5-3.8-ton fuel forklift has outstanding load-bearing capacity and can stably handle medium to heavy loads of 3.5-3.8 tons. It has a wider range of applications than the 3-ton forklift and is more flexible than larger tonnage models. It can shuttle between medium-sized warehouses, workshops, and outdoors. The fuel driven range is not limited, and it can continue to operate after refueling, suitable for high-frequency handling. Adapt to diverse environments such as dust and humidity, maintain no charging facilities, balance load capacity and flexibility, high cost-effectiveness, and meet the diverse needs of medium and heavy loads.
Key Features
Two-High In-Container Stacking

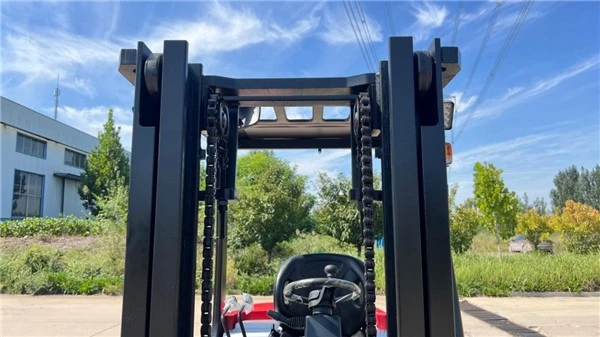

With the optional triplex full-free-lift mast, collapsed height drops below 2,150 mm, letting the truck enter 20ft and 40ft HQ containers and stack pallets two-high without mast-to-roof contact.
Proven Global Engine Options & Fuel Savings
Factory options include Isuzu, Yanmar, and Mitsubishi Tier 4 / Stage V compliant engines; electronic/mechanical fuel injection delivers up to 15% fuel savings per operating hour compared with older-generation engines under comparable duty cycles.
Dual Air Filtration & Heavy-Duty Heat Dissipation
Engineered for dusty outdoor environments (lumber yards, construction supply depots) with an enlarged aluminum radiator and dual-element air filters to prevent overheating during continuous summer shifts.

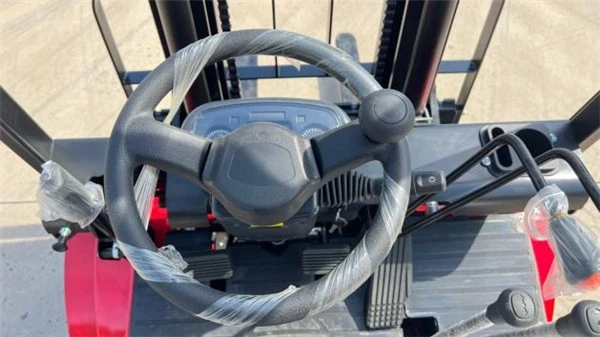

Powertrain Vibration Isolation & Low-Fatigue Cab
Integrated floating powertrain suspension separates engine vibration from the operator compartment, reducing driver fatigue during long 8-hour outdoor loading shifts.
The rated capacity of a forklift is specified at a defined load center. This means a 3,500–3,800kg rating should not be interpreted as unrestricted capacity for every cargo size or center of gravity.If the load is longer, deeper or its center of gravity is positioned farther from the fork face, the actual capacity requirement may change.For unusual cargo such as long pipes, machinery parts or large molds, provide the cargo dimensions and center of gravity when requesting a quotation.
Frequently Asked Questions
Can this 3.5-ton diesel forklift drive inside a standard shipping container?
+
-
Yes. When ordered with our 3-stage (Triplex) Full Free Mast option, the overall collapsed height is under 2,150 mm, allowing the forklift to drive directly through 20ft and 40ft container doors to load and stack pallets.
Which engine option should I choose for my local market?
+
-
For Europe and North America, we recommend EPA Tier 4 / Euro Stage V engines (such as Yanmar or Kubota). For regions without strict emission regulations, Isuzu C240 and Mitsubishi S4S offer exceptional durability and low maintenance costs with easily available spare parts.
What is the average fuel consumption of this 3.5t model?
+
-
Depending on working conditions and engine choice, fuel consumption averages between 2.2 to 2.8 liters per operating hour under standard load cycles.
Can this forklift handle steel coils?
+
-
It can be considered for steel coils when the load weight, load center and attachment configuration are within the forklift's rated operating conditions. For coils or other concentrated loads, provide the cargo dimensions and center of gravity before selecting the configuration.
What information should I provide before requesting a quotation?
+
-
Please provide the load weight, load dimensions, load center, required lifting height, working environment and available operating space. For special loads, include the cargo shape and center of gravity if available.
Large-scale intelligent manufacturing & scenario customization for your agile supply chain.
DAWNSHINE delivers reliable forklifts with flexible custom options for varied site conditions. Our factory achieves 10,000+ annual output via mature production and optimized supply chain. Full QC ensures solid performance and durability.
