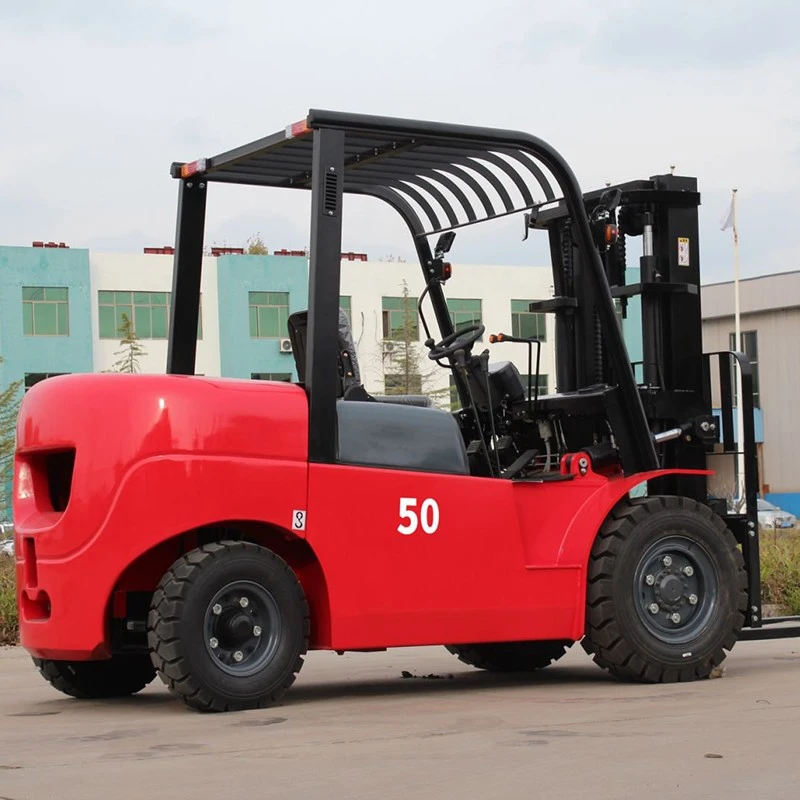

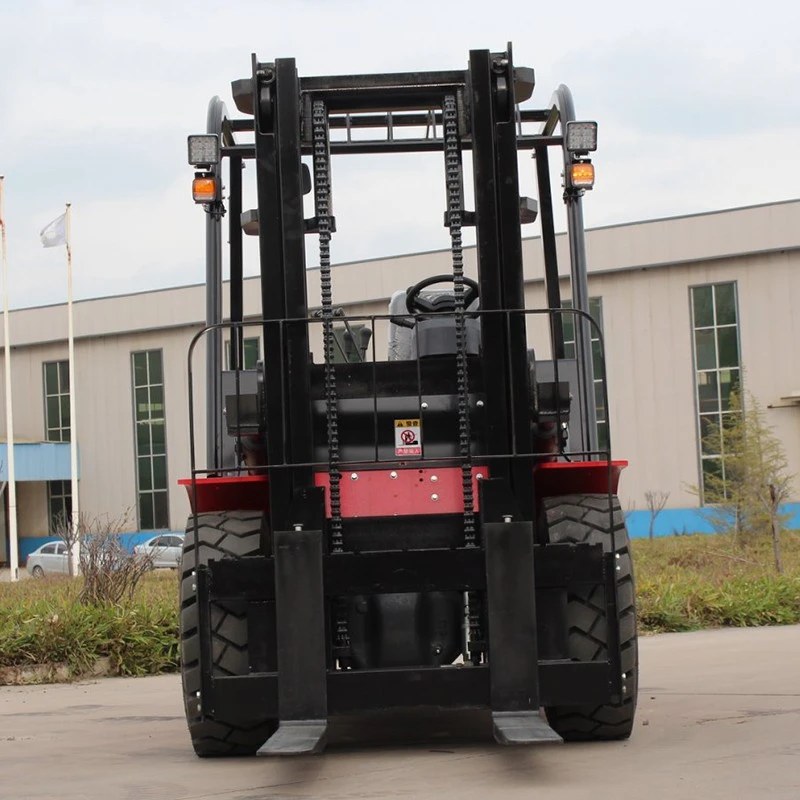

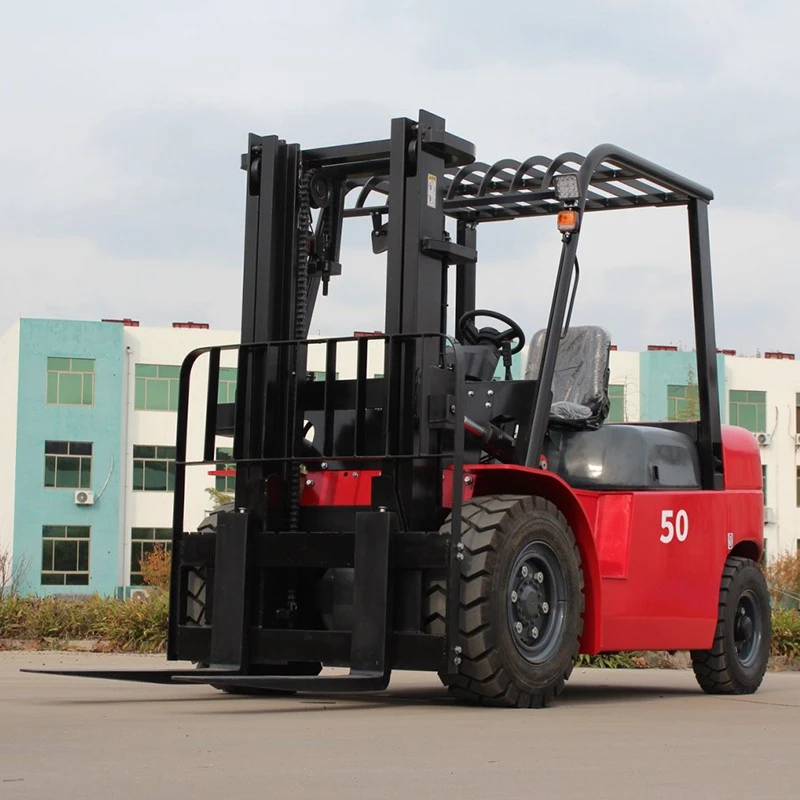

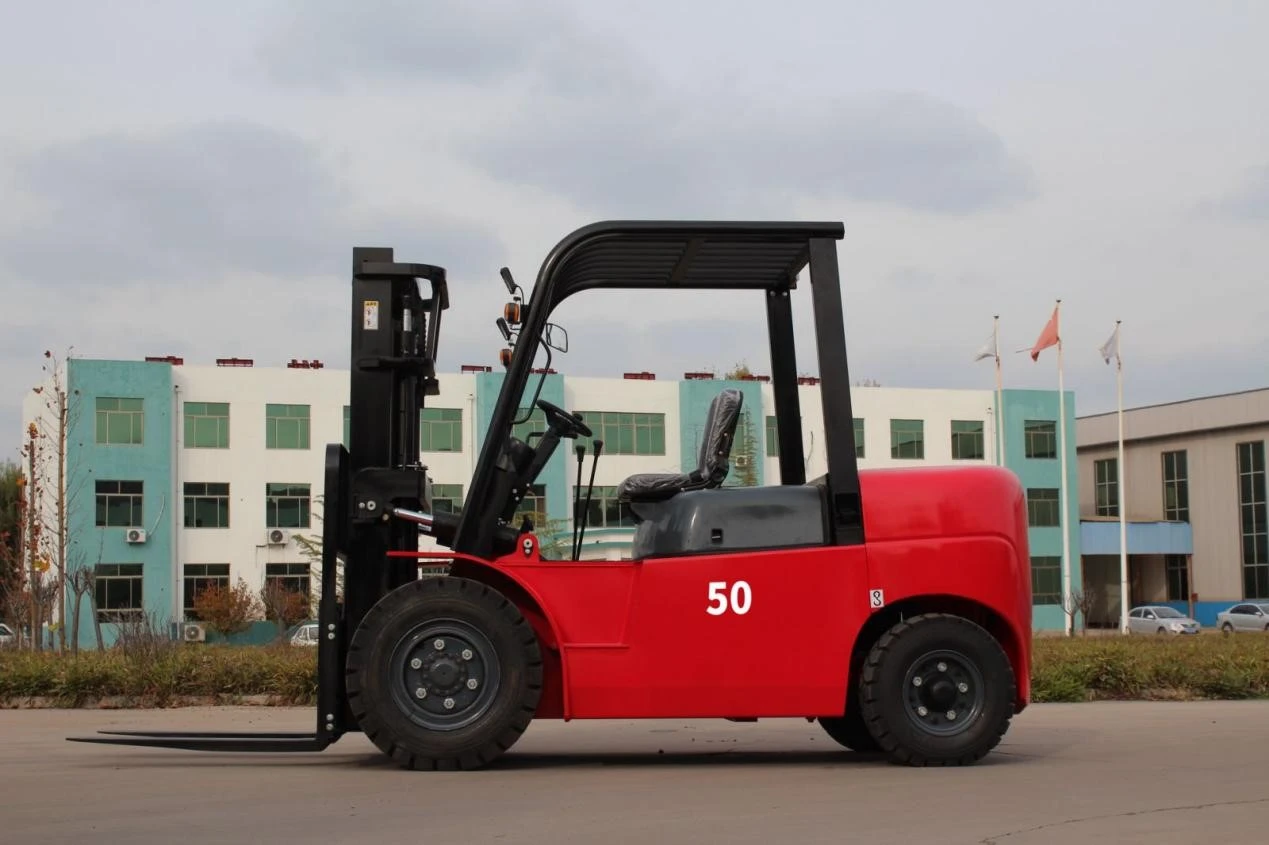

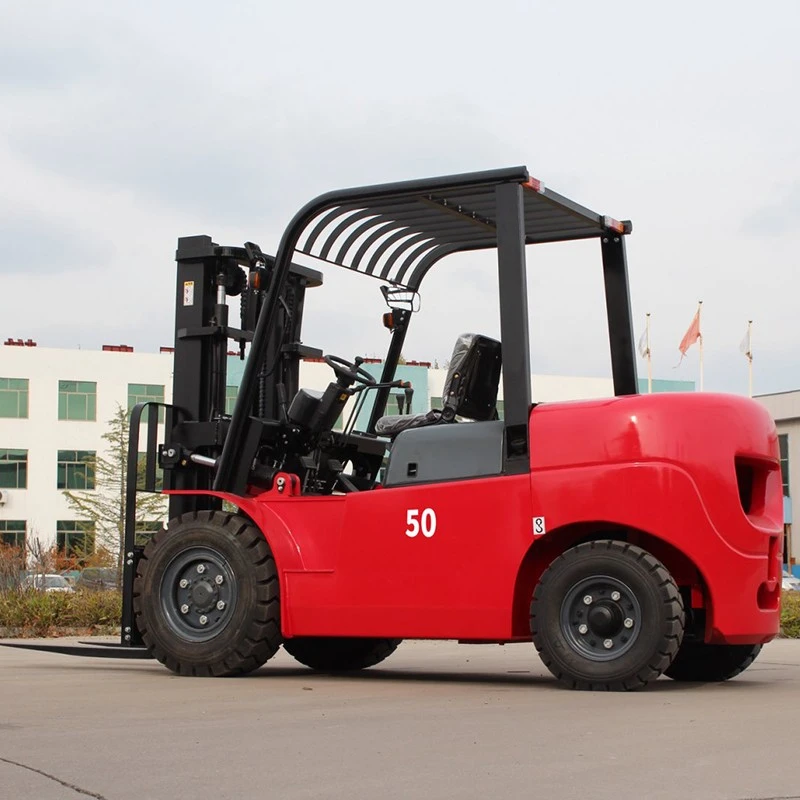

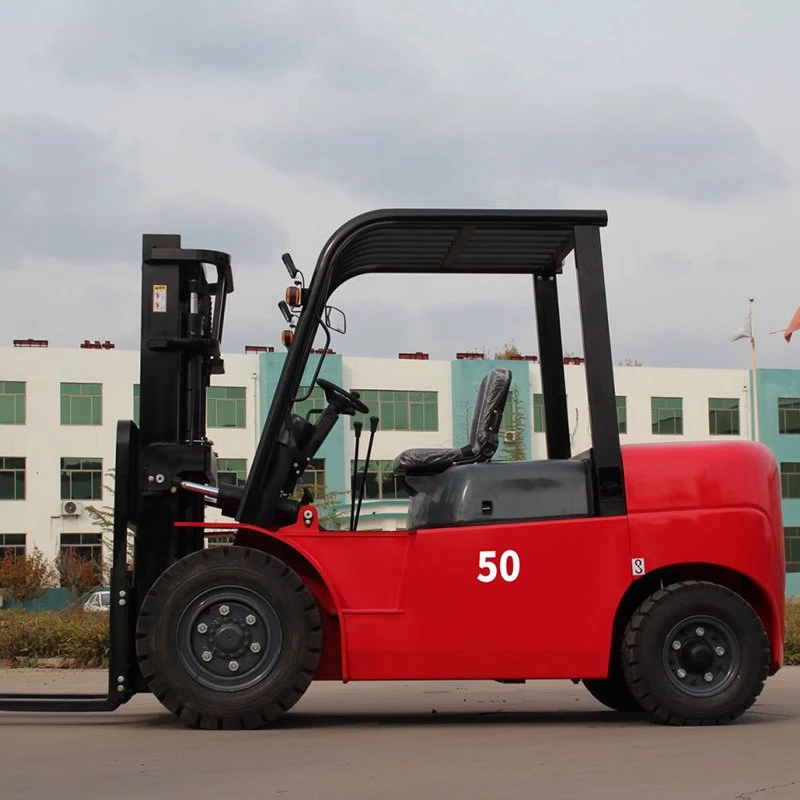

5 Ton Diesel Forklift for Heavy-Duty Industrial & Outdoor Handling: CPC50-K
The CPC50-H is designed for heavy industrial handling where conventional 2–3 ton forklifts are no longer sufficient. With a 5,000 kg rated capacity, 500 mm load center and heavy-duty chassis configuration, it is suited to moving metal products, moulds, machinery components, construction materials and other dense loads.
5,000 kg Rated Capacity | 500 mm Load Center | 3,000 mm Lift Height | 6,660 kg Service Weight
5,000 kg Rated Capacity at a 500 mm Load Center
The CPC50-H is rated for 5,000 kg at a 500 mm load center. This does not mean that every 5,000 kg load can be lifted at every dimension or height. Long, tall or irregular loads can move the center of gravity forward and affect the available lifting capacity.
For unusual loads, provide the load weight, dimensions, center of gravity and required lifting height before ordering.
Built Around Heavy Loads
The CPC50-H has a listed service weight of 6,660 kg and a 2,100 mm wheelbase, reflecting its position in the 5-ton forklift class. Its 1,480 mm overall width and 3,050 mm turning radius should also be considered when planning warehouse aisles, loading areas and site access.
Technical Specifications
|
Item |
Specification |
|
Model |
CPC50-H |
|
Power Type |
Diesel |
|
Rated Capacity |
5,000 kg |
|
Load Center |
500 mm |
|

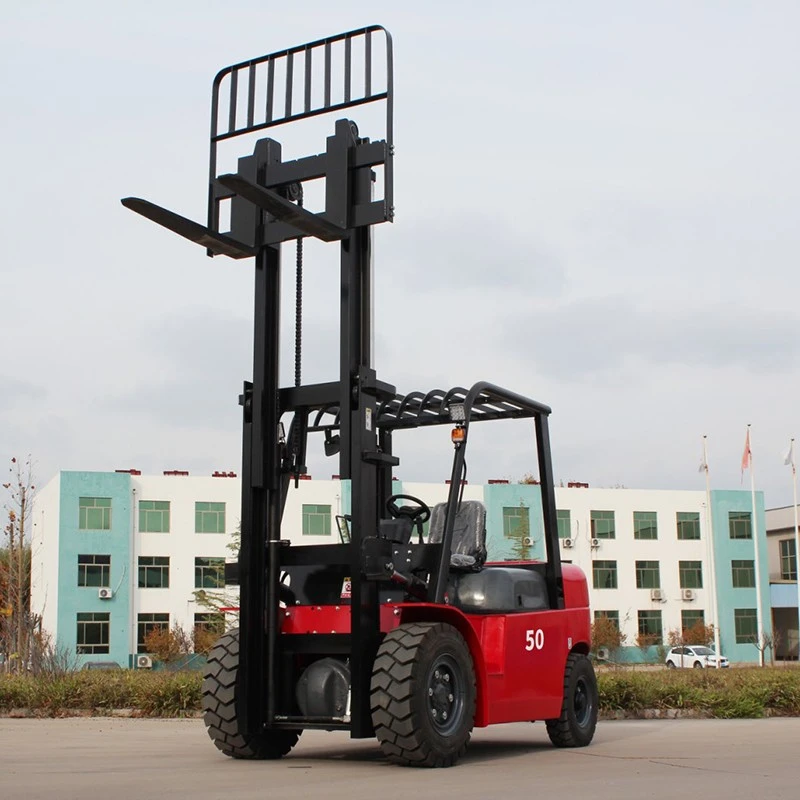

Lift Height |
3,000 mm |
|
Free Lift Height |
150 mm |
|

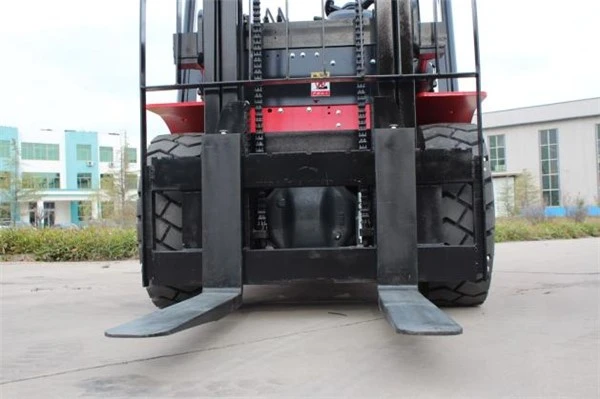

Fork Size |
1070 × 150 × 50 mm |
|
Mast Tilt |
6° / 12° |
|
Overall Width |
1,480 mm |
|
Wheelbase |
2,100 mm |
|
Turning Radius |
3,050 mm |
|
Ground Clearance |
175 mm |
|

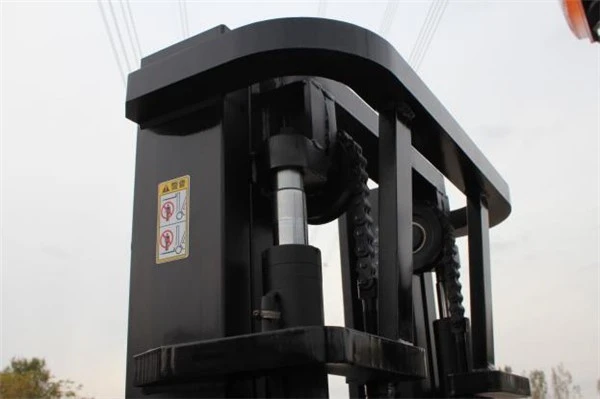

Mast Lowered Height |
2,275 mm |
|
Mast Extended Height |
4,310 mm |
|

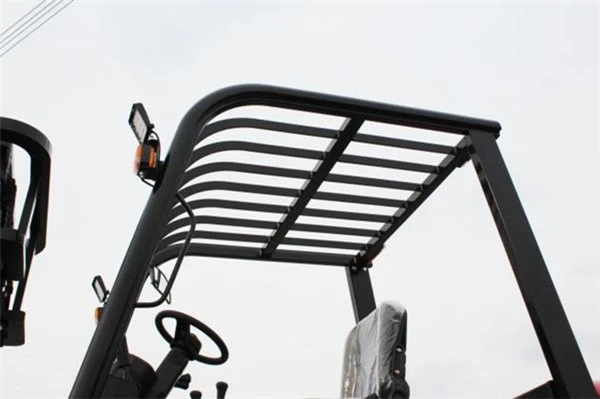

Overhead Guard Height |
2,350 mm |
|
Travel Speed |
18.5 km/h |
|
Lifting Speed |
400 mm/s |
|
Lowering Speed |
450 mm/s |
|
Gradeability |
20% |
|
Drawbar Pull |
24 / 20 kN |
|
Engine |
4D35G |
|
Output |
48 kW / 2,300 rpm |
|
Torque |
230 Nm / 1,600 rpm |
|
Cylinders |
4 |
|
Displacement |
2,540 cc |
|
Fuel Tank |
90 L |
|
Self weight |
6660 kg |
|
Type |
Mechanical / Hydraulic |
48 kW Diesel Power for Heavy Industrial Handling

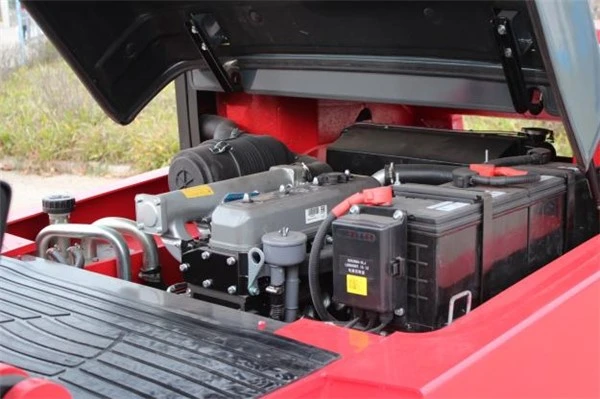

The CPC50-H is equipped with a 4D35G diesel engine rated at 48 kW and 230 Nm of torque. The engine configuration is matched to the forklift's 5-ton load class and intended for demanding industrial material handling.
90 L Fuel Tank for Extended Operating Cycles
The 90-liter fuel tank provides a larger fuel reserve for operations involving frequent heavy-load handling and outdoor loading work. Actual operating time depends on workload, operating hours and site conditions.
|
Item |
Specification |
|
Front overhang |
560 mm |
|
Rear overhang |
580 mm |
|
Min ground clearance(Bottom of most) |
175 mm |
|
Length to face of fork(without fork) |
3240 mm |
|
Tyre Front |
300-15-18PR |
|
Tyre Rear |
700-12-14PR |
|
Tread Front |
1180 mm |
|
Tread Rear |
1190 mm |
|
Front Axle(Laden) |
9680 kg |
|
Rear Axle(Laden) |
1480 kg |
|
Front Axle(Unladen) |
2865 kg |
|
Rear Axle(Unladen) |
3795 kg |
|
Voltage/Capacity |
24V / 80Ah |
|
Manufacture |
quanchai / xinchai |
|
Manufacture |
CHINA |
|
Stage(F/R) |
1/1(2/2) |
|
Operating pressure(For attachments) |
17.5 Mpa |
175 mm Ground Clearance for Industrial Outdoor Work
The listed 175 mm minimum ground clearance provides additional clearance for industrial yards and outdoor loading areas where surfaces may be less uniform than standard warehouse floors.Actual suitability depends on ground conditions, slope, load and operating environment.
Heavy-Duty Tire Configuration
The CPC50-H uses 300-15-18PR front tires and 700-12-14PR rear tires as part of its heavy-load industrial configuration.
Typical Applications
Steel & Metal Handling
Metal coils, steel products and reinforcing bars.

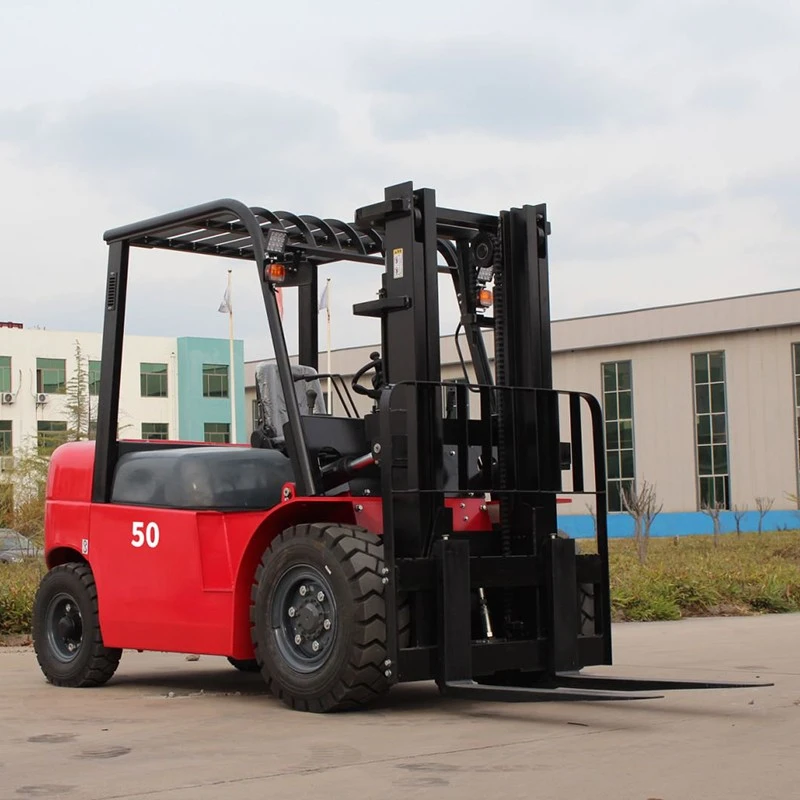

Mould & Machinery Handling
Large moulds, machinery components and heavy industrial parts.
Construction Materials
Precast panels and other heavy building materials.
Ports & Logistics Yards
Heavy palletized goods, wooden crates and loading/unloading work.
Industrial Outdoor Handling
Material transfer between production areas, yards and loading zones.
What Should You Confirm Before Buying a 5 Ton Forklift?
1. Maximum Load Weight
What is the maximum conventional operating load?
2. Load Dimensions
Is the cargo exceeding the permitted length, width, or height limits?
3. Load Center
Is it close to 500 mm?
4. Required Lift Height
Does it need to exceed 3 m?
5. Working Surface
Warehouse floor – concrete floor or outdoor industrial site?
Send us these details before quotation so we can check whether the CPC50-H configuration matches your application.
Why Diesel for Heavy-Duty Operations?
Heavy industrial forklifts may spend long periods moving between loading areas, workshops, yards and storage zones. Diesel power is practical for this type of high-load operation, particularly where battery charging infrastructure is inconvenient.
Heavy-load operation
Outdoor industrial work
Long operating cycles
Frequently Asked Questions
What is a 5 ton diesel forklift used for?
+
-
It is commonly used for heavy industrial materials such as steel products, metal coils, moulds, machinery components, construction materials and heavy palletized cargo.
Can the CPC50-H lift 5 tons?
+
-
Its rated capacity is 5,000 kg at a 500 mm load center. Actual allowable capacity depends on load center, load dimensions, lift height and configuration.
Is the 5 ton forklift suitable for outdoor use?
+
-
The CPC50-H is positioned for industrial outdoor handling and has a listed 175 mm minimum ground clearance. Actual suitability depends on the site surface, slope and operating conditions.
What is the turning radius of the CPC50-H?
+
-
The listed outside turning radius is 3,050 mm.
How much does the 5 ton forklift weigh?
+
-
The listed service weight is 6,660 kg.
What engine does the CPC50-H use?
+
-
It uses a 4D35G diesel engine rated at 48 kW and 230 Nm.
Should I choose a 3 ton or 5 ton forklift?
+
-
If your regular loads remain within 3 tons, a 3-ton model may be more practical. If heavy loads frequently approach 5 tons, the 5-ton class is more appropriate.
