Typical Applications
The 1-ton LPG forklift is the compact indoor-outdoor workhorse for small operations: no charging infrastructure, instant refueling from a swappable gas cylinder, cleaner exhaust than diesel for enclosed spaces, and a small footprint that turns in tight aisles.
Mezzanine Floors & Freight Elevators
Multi-story warehouses or mezzanine racking where lower machine weight is required to meet floor load limits-and where installing charging infrastructure upstairs isn't practical.
Narrow Aisle & Small Parts Logistics
E-commerce packing hubs, auto repair shops, and light electronics assembly lines with tight turning limits.
Enclosed Indoor Spaces Requiring Cleaner Exhaust
Facilities needing LPG's clean-burning exhaust and low seat/overhead-guard clearance for low doorway passage.
Packaging & Finished-Goods Handling
Cartons, packaged products, and light pallets moved short distances between storage, packaging, and loading areas.
Technical Specifications
Basic & Performance
Model: CPQ10-H
Power Type: LPG / Gasoline Dual Fuel
Rated Load Capacity: 1,000 kg
Load Center: 500 mm
Max Travel Speed (Loaded / Unloaded): 15 / 15 km/h
Transmission Type: 1/1 Manual Shift (Powershift optional)
Dimensions & Operating Capacity
Standard Lift Height: 3,000 mm
Mast Tilt Angle (Forward / Backward): 6° / 12°
Mast Height, Lowered: 2,010 mm
Mast Height, Extended: 3,930 mm

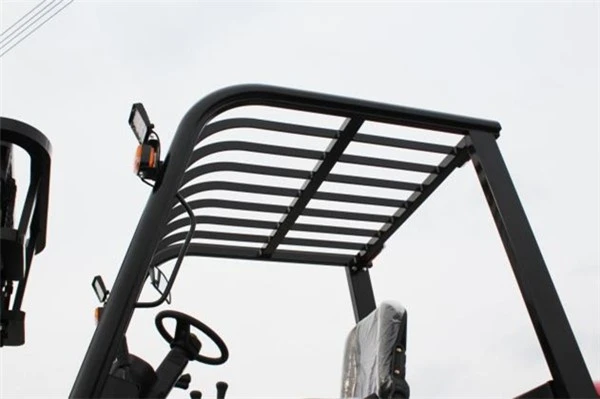

Overhead Guard Height: 2,060 mm
Overall Width: 1,080 mm
Min. Ground Clearance (Under Mast): 110 mm
Min. Turning Radius: 1,880 mm
Engine, Chassis & Fuel System

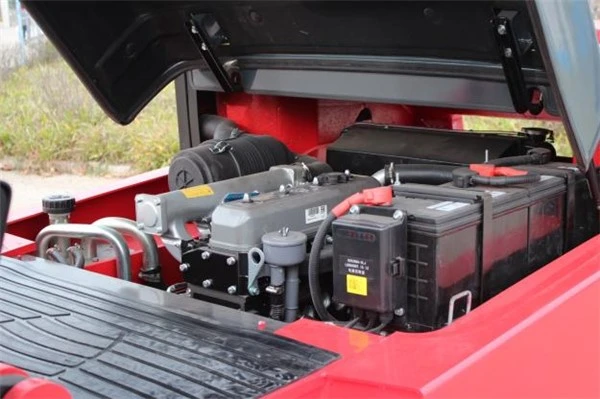

Engine Brands/Models: GCT GK21 (Nissan) / PSI 2.4 / GCK GT25
Rated Output: 33.1 kW @ 2,600 rpm
Max. Torque: 145 Nm @ 1,800–2,000 rpm
Fuel Tank Capacity: 49 L (LPG Bracket Included)
Track Width (Front / Rear): 891 mm / 920 mm
Weight
Service Weight: 2,430 kg
Key Features
Low Service Weight for Floor & Elevator Safety
A lightweight structural frame (approx. 2,100–2,200 kg service weight) distributes low wheel pressure for safe operation on upper-floor mezzanines and inside freight elevators.
Ultra-Tight Turning Radius for Narrow Corridors
A compact rear-axle pivot and short wheelbase deliver a mini turning radius (approx. 1,850 mm) for easy maneuvering through crowded storage aisles.
Low-Emission Nissan/GK Engine with Dual-Fuel Option
Clean-burning LPG/gasoline engines meeting EPA/Euro V standards deliver soot-free exhaust and low noise suitable for enclosed workspace environments.
High-Precision Inching Control & Low Step-In Height
An ultra-sensitive hydraulic inching pedal enables millimeter-exact positioning in tight spaces, with a low floorboard height for quick, low-fatigue mounting.
Frequently Asked Questions
Why Choose the 1.0-Ton Micro LPG Forklift Over Standard Sizes?
+
-
Forcing the 1.5-ton or 2.0-ton forklift into narrow storage lanes leads to frequent frame scrapes, slow maneuvering, and potential floor loading violations on mezzanine levels. The 1.0-ton micro LPG model delivers the exact maneuverability needed for light-to-medium indoor pallets while keeping machine weight minimal and maintaining clean air compliance.
Is this 1-ton LPG forklift safe to use on mezzanine floors and inside freight elevators?
+
-
Yes. With a low service weight of approximately 2,150 kg, it exerts significantly less point pressure on flooring, making it ideal for multi-story logistics hubs and mezzanine rack platforms.
Can this machine operate in narrow storage corridors?
+
-
Absolutely. With an overall width of around 1.0 meter and an outer turning radius of under 1.9 meters, it operates comfortably in tight lanes where standard 1.5t/2t forklifts cannot turn.
How does this 1.0-ton LPG model differ from your 1.5-ton LPG model?
+
-
The 1.0-ton model focuses on ultra-compact dimensions, low service weight for floor protection, and high maneuverability in restricted spaces. If your daily operations involve standard 1.2t–1.5t palletized goods or high-frequency multi-shift warehousing, view our [1.5-Ton LPG Forklift].
Is LPG suitable for indoor use?
+
-
Suitability depends on ventilation, emissions requirements, local regulations and the specific workplace. Confirm the operating environment before selecting LPG.
Looking for a Compact LPG Forklift for Light Loads?
Tell us your typical load weight, lift height requirement, working environment and destination market. We can help confirm whether the CPQ10-H is suitable for your operation.
Request a 1 Ton LPG Forklift Quote
