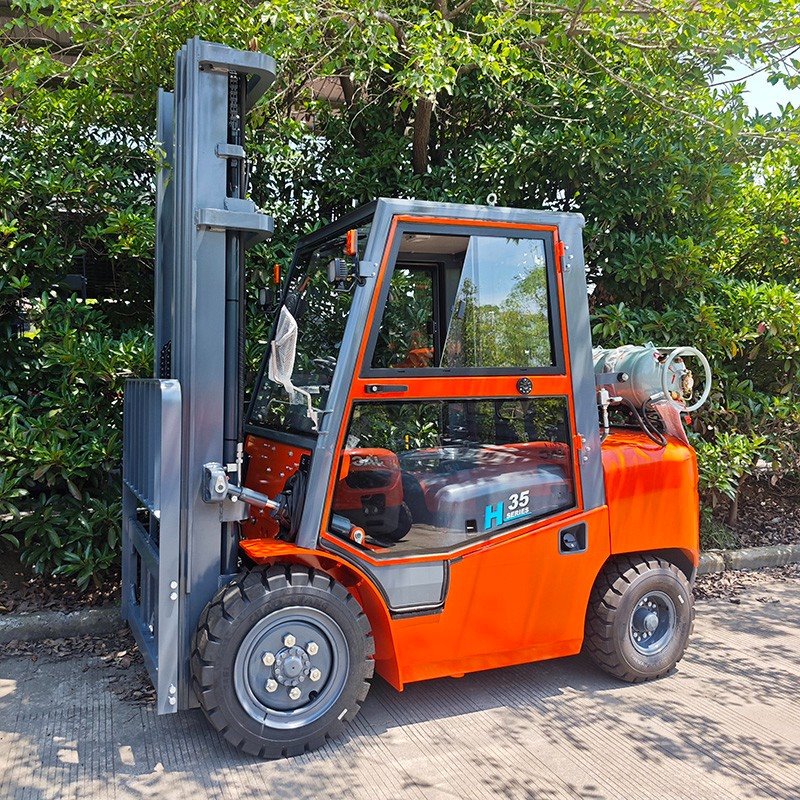

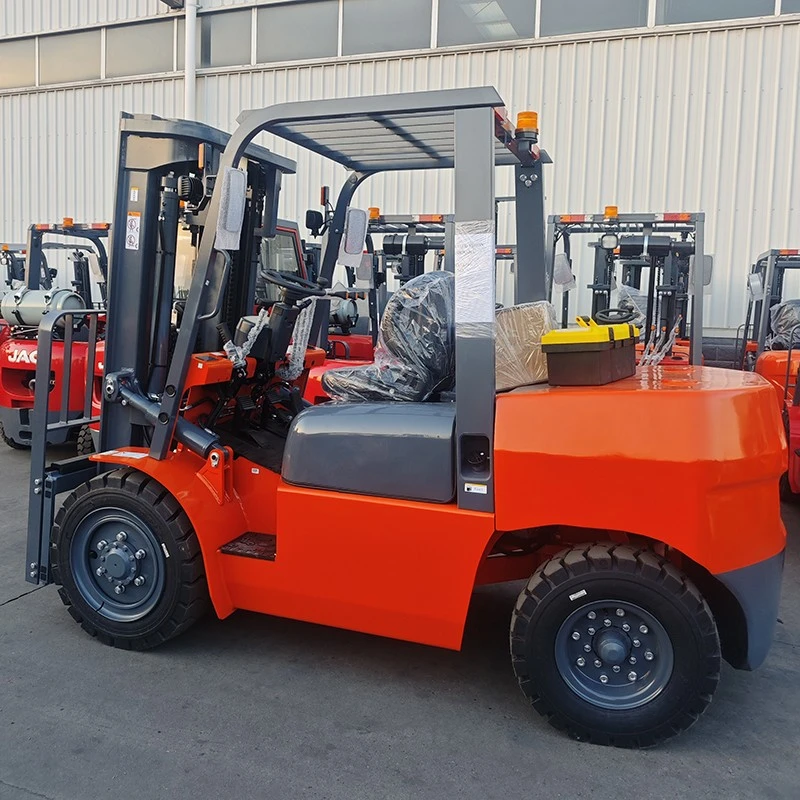

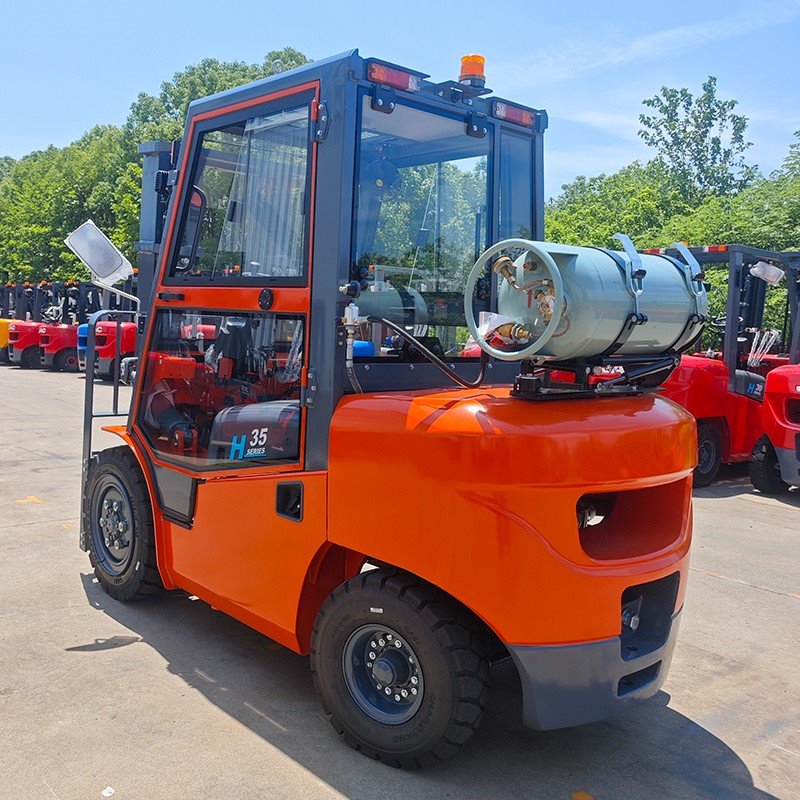

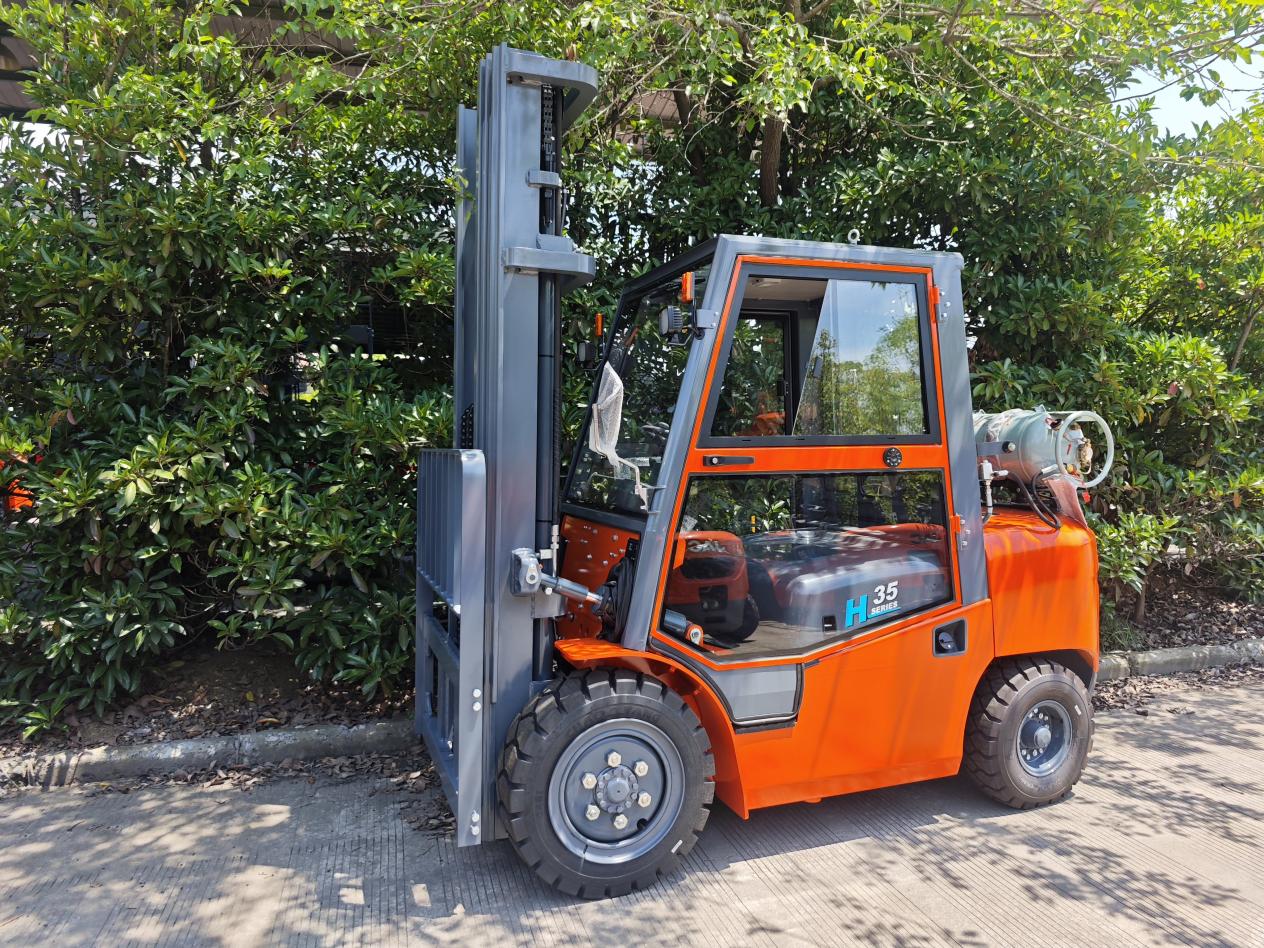

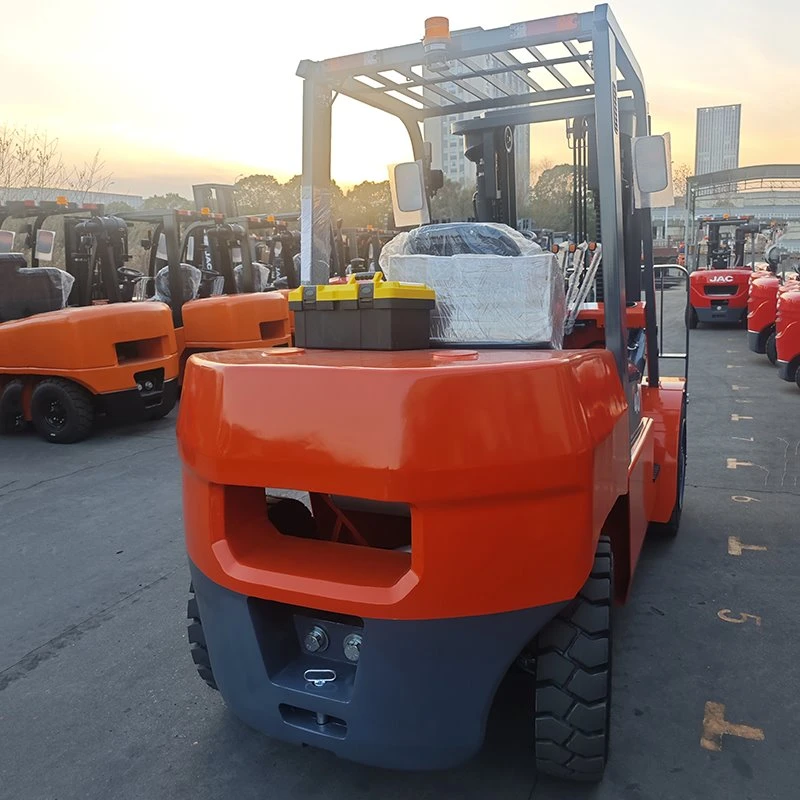

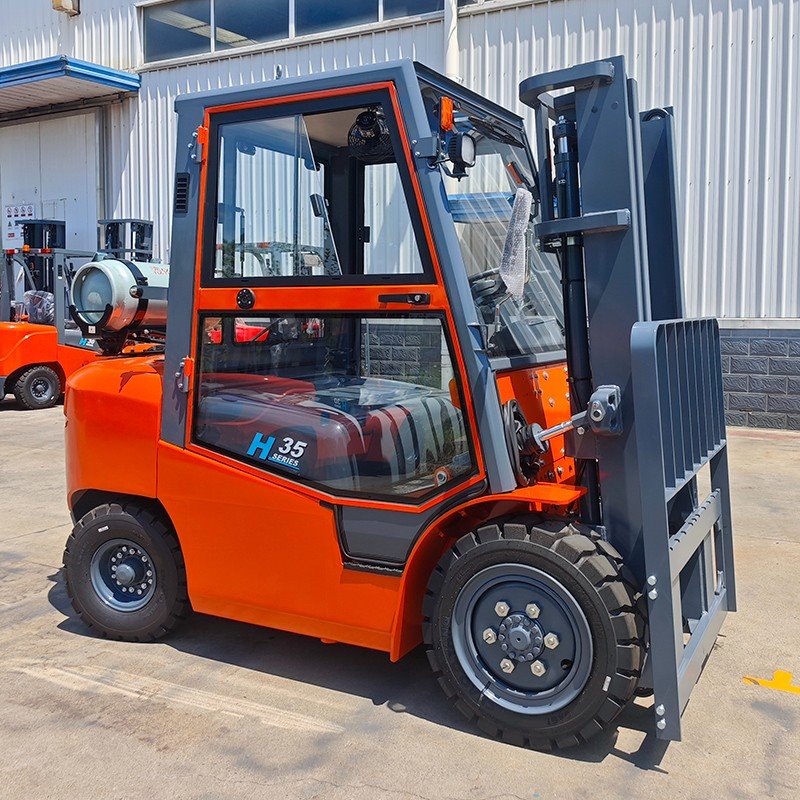

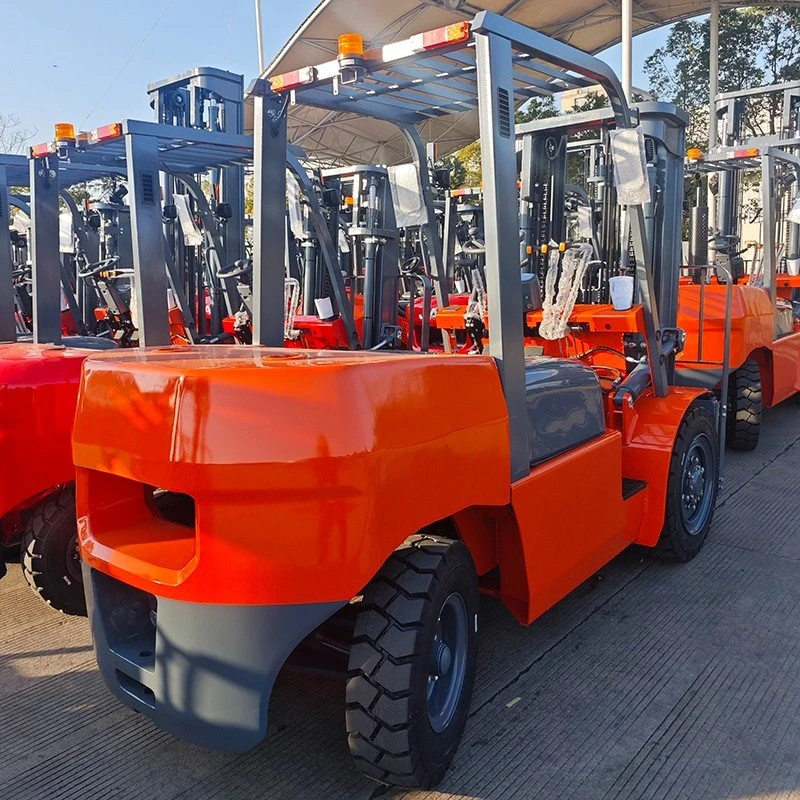

Where the CPQ35-H Fits into Industrial Handling Workflows
The CPQ35-H is a 3,500 kg LPG forklift built for attachment-heavy and higher-load industries - paper rolls, drum clamps, and metal stamping - with a high counterweight buffer for stable, precise placement and clean indoor LPG operation.
Paper, Packaging & Printing Plants
Paper mills and packaging plants handling heavy paper rolls or bale clamps; smooth clamp operation without forward pitching during transport.
Chemical & Drum Storage
Chemical plants and liquid storage using rotating drum clamps; clean indoor LPG operation combined with precise hydraulic clamping and rotating.
Metal Stamping & Machinery Parts
Transporting heavy metal coils, die molds, and heavy castings (2.8–3.2 t); the high counterweight buffer prevents rear-wheel lifting during precision placement.
High-Bay Racking & Heavy Stacking
Warehouses requiring heavy pallet stacking above 4.5 m; stable lifting at upper rack levels with minimized load sway.
Product Parameters
- Basic & Performance
Model: CPQ35-H
Power Type: LPG / Dual Fuel (LPG & Gasoline)
Rated Load Capacity: 3,500 kg
Load Center : 500 mm
Travel Speed (Laden / Unladen): 19 / 20 km/h
Transmission Type: 1/1 Manual Shift / Automatic Powershift (Optional)
Service Weight: 4,600 kg
- Power
Engine Brand / Model: GCT GK21 / GCT GK25 / PSI 2.4L
Rated Output: 36.8 kW @ 2,500 rpm
Max. Torque: 165 Nm @ 1,600–1,800 rpm
Fuel Tank Capacity: 55 L
- Dimensions
Standard Lift Height: 3,000 mm
Free Lift Height: 155 mm
Mast Tilt Angle (Forward / Backward): 8° / 10°
Mast Height, Lowered: 2,075 mm
Mast Height, Extended: 4,260 mm

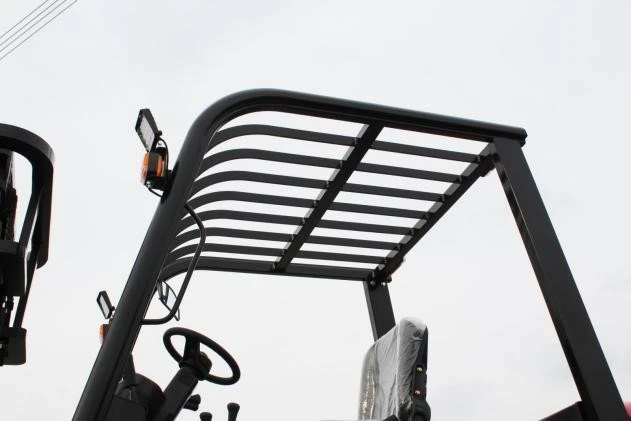

Overhead Guard Height: 2,090 mm
Overall Length (without forks): 2,810 mm
Overall Width: 1,230 mm
Min. Turning Radius: 2,570 mm
Min. Ground Clearance (Under Mast): 130 mm
Wheelbase: 1,760 mm
Track Width / Tread (Front / Rear): 1,000 mm / 970 mm
Operating Pressure：18.5MPa
Key Features
Attachment Residual Capacity
Hydraulic attachments add weight and push the load center forward; the 3.5-ton structural design compensates for this derating, allowing safe handling of full 2.8–3.0 t loads with clamps installed.
Heavy-Duty Drive Axle & Reinforced Chassis

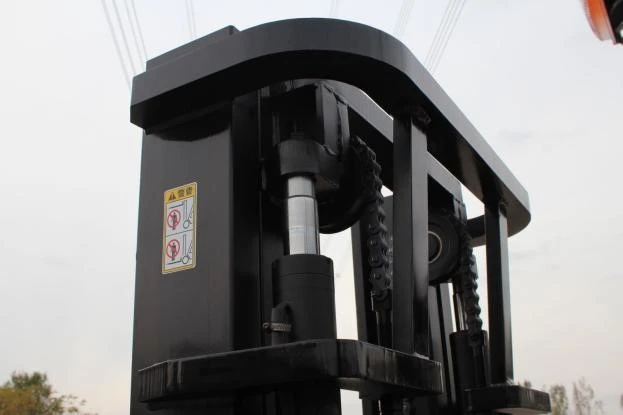

A wide-track drive axle, reinforced mast channels, and an enlarged counterweight suppress forward pitching and load sway when maneuvering at full capacity or high lift heights.
Standard Dual-Auxiliary Hydraulic Package
High-flow valves with dual auxiliary piping as standard provide smooth multi-function oil delivery for fast clamping, rotating, and side-shifting operations.
Heavy-Duty Cooling & Rapid Refueling
An upgraded cooling package is designed for continuous high-load operation in warm environments, paired with rapid LPG cylinder swaps to keep multi-shift work running.
Outstanding environmental friendliness, suitable for enclosed spaces
- Pneumatic forklifts run on compressed air and produce zero exhaust emissions during operation, unlike diesel or gasoline internal combustion forklifts. They also eliminate risks of battery electrolyte leakage common with electric forklifts. Well suited for indoor warehouses, food & pharmaceutical workshops and cleanrooms with strict air quality standards, they prevent contamination and safeguard operator health.
Low maintenance cost and high reliability
- The structure of the pneumatic system is relatively simple, and the core components (such as cylinders and valves) have no complex circuits or fuel injection systems, resulting in a low failure rate. Daily maintenance only requires basic operations such as cleaning the air filter and checking the sealing of the trachea. The cost of replacing parts is low, which can reduce downtime and overall operating costs.
Excellent safety, suitable for special environments
- Compressed air, as a power source, poses no risk of flammability or explosion (compared to fuel leaks in fuel powered forklifts and battery short circuits in electric forklifts). In places with fire and explosion prevention requirements such as chemical warehouses, gas stations, and dust workshops, its safety is significantly better than other types of forklifts. At the same time, pneumatic components have strong resistance to dust and moisture, and have higher stability in harsh environments.
Flexible operation and user-friendly human-machine interface
- The pneumatic system responds quickly, with precise and smooth operations such as lifting, lowering, and turning. It is easy for operators to handle and can reduce cargo damage or safety accidents caused by operational errors. In addition, the operating noise of pneumatic forklifts is lower than that of internal combustion forklifts, which can improve the working environment and reduce the noise fatigue of operators.
Frequently Asked Questions
Why do I need a 3.5-ton forklift if my goods only weigh 2.8 tons?
+
-
When you install a hydraulic attachment (like a side-shifter or paper roll clamp), the attachment adds 200–400 kg of weight and pushes the load center forward. This causes "capacity derating." A 3.5t forklift provides the necessary safety buffer to lift 2.8t safely without tipping.
What hydraulic attachments can be factory-fitted to this 3.5-ton model?
+
-
We offer factory pre-installed 3-spool or 4-spool hydraulic piping to support Side Shifters, Paper Roll Clamps, Rotating Drum Clamps, Hinged Forks, and Block Clamps.
Is the cooling system upgraded for continuous heavy-duty work?
+
-
Yes. The 3.5t model comes standard with an oversized high-capacity aluminum radiator and an optimized airflow shroud to prevent engine overheating during continuous high-load hydraulic operation.
What is the minimum turning radius?
+
-
The minimum turning radius listed for the CPQ35-H is 2,570mm. Buyers should also consider the overall length, aisle width, cargo dimensions and turning conditions when evaluating site suitability.
What engine options are available?
+
-
The listed engine options include GCT GK21, GCK GT25 and PSI 2.4. The final engine configuration should be confirmed based on the target market, emissions requirements and available sup
