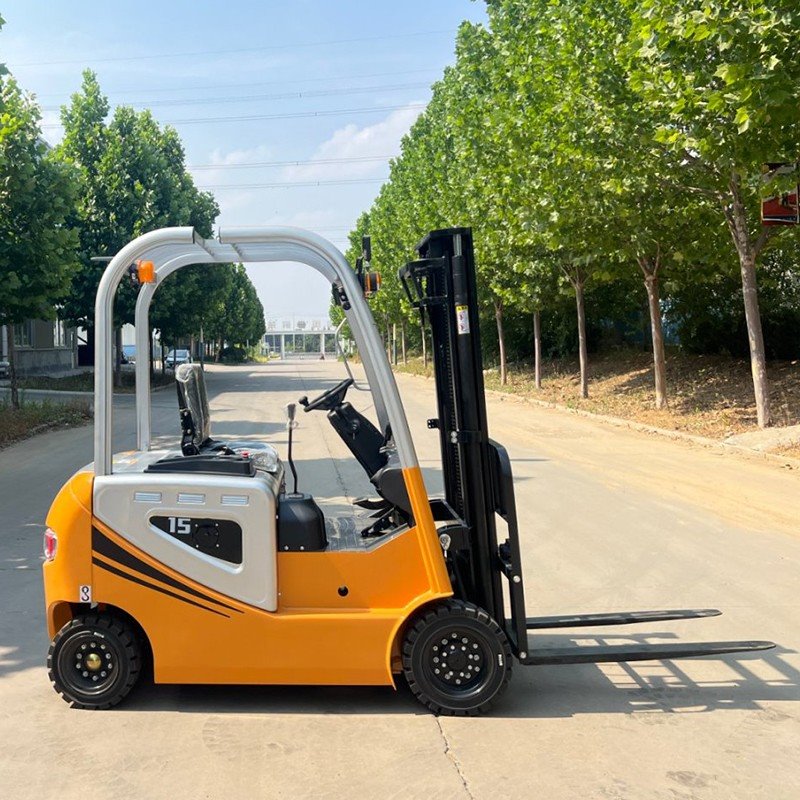

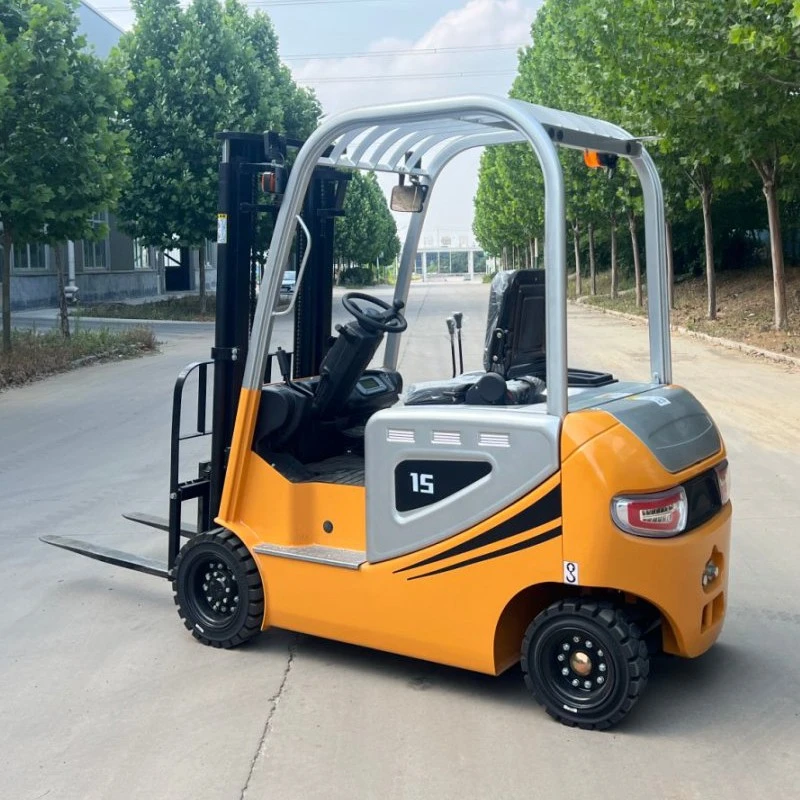

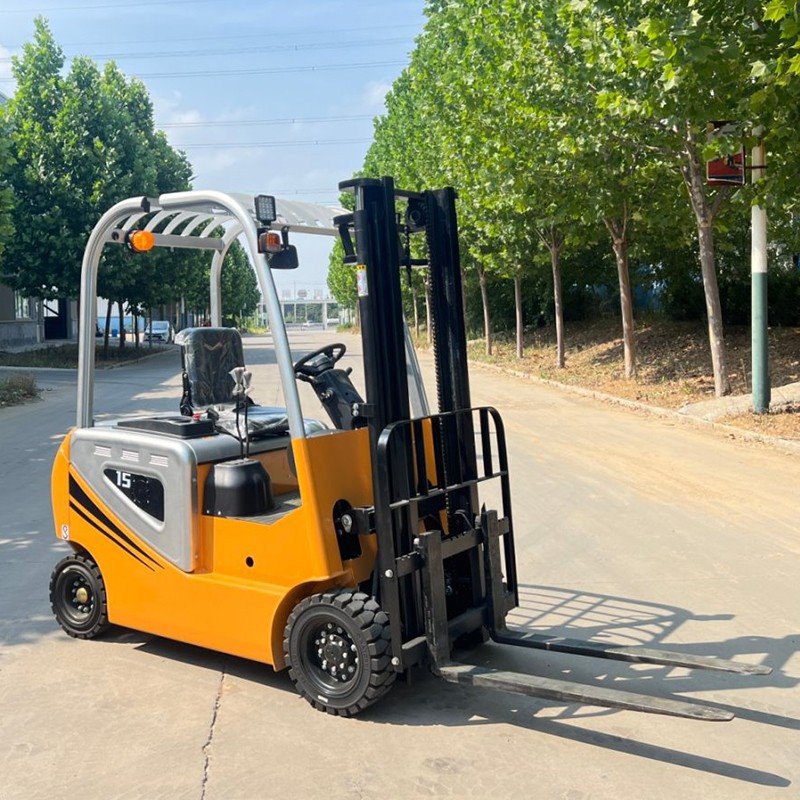

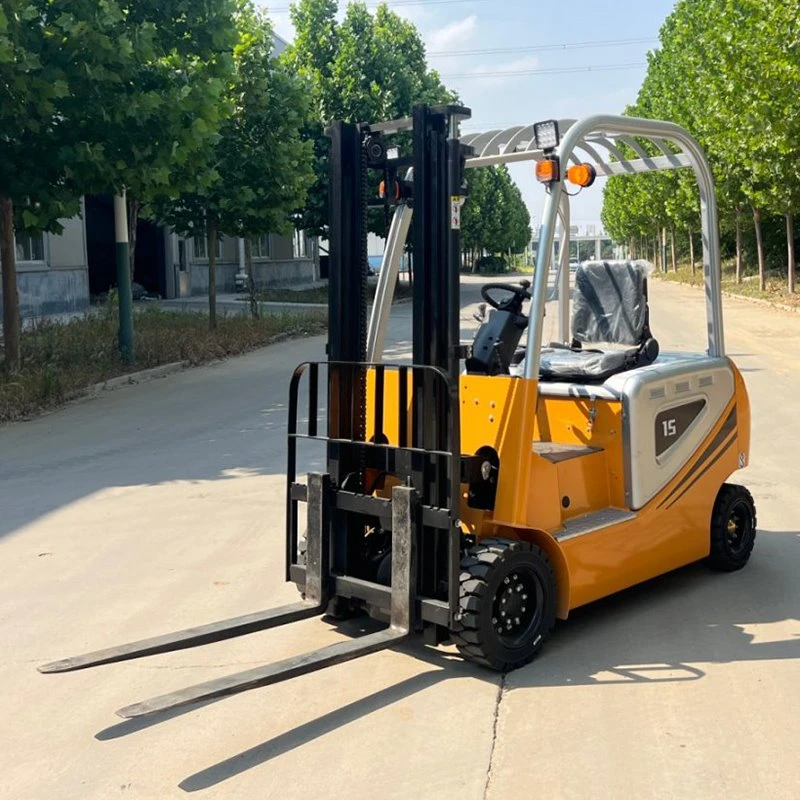

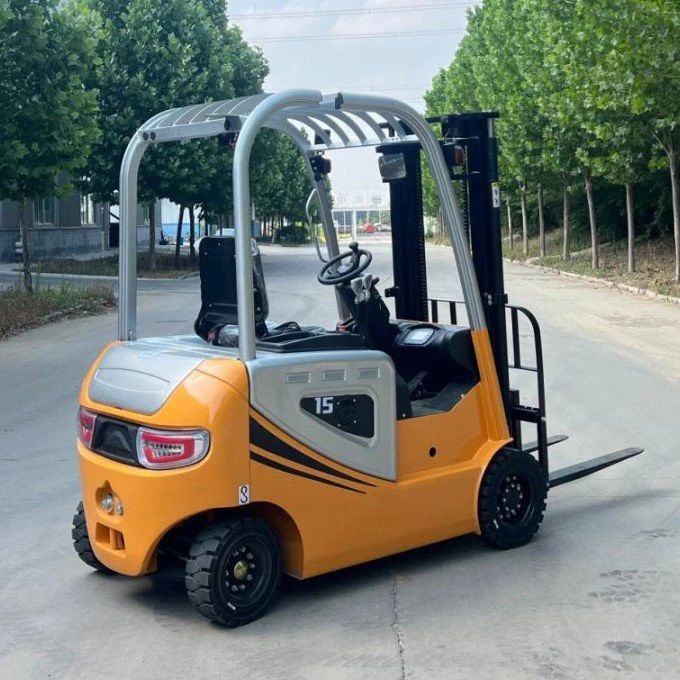

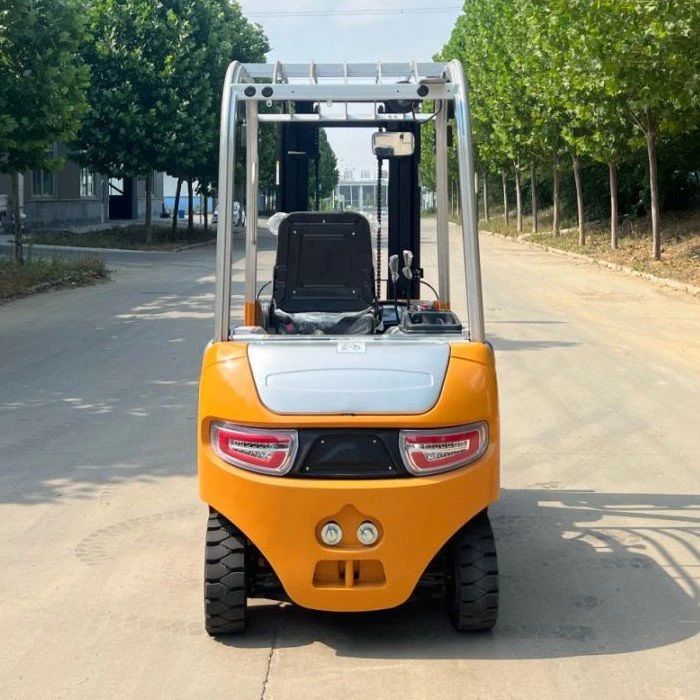

1.5 Ton Electric Forklift: CPD15-B



In the production workshop, a 1.5-ton electric forklift can be used for raw material distribution, semi-finished product transportation, and finished product handling. The workshop has numerous equipment, complex processes, and relatively limited space. The compact size of the forklift allows it to move flexibly between equipment without affecting the normal production process. Moreover, it has low noise during operation and will not cause excessive interference to the production environment and workers' work in the workshop. For some tasks that require precise positioning, such as accurately delivering components to specific locations on the production line, this forklift can also complete them with good maneuverability. During the homework process, special attention should be paid to avoiding workers and operating equipment, and driving strictly according to the passage signs in the workshop.Its rated carrying capacity is 1500kg, which can meet the handling needs of most medium weight goods in the warehouse, such as boxes of goods, components, etc.



In the context of the rapid development of industries such as logistics, warehousing, and manufacturing, the 1.5-ton electric forklift is playing an increasingly critical role as a reliable tool for cargo handling. With the growing emphasis on environmental protection and the rapid expansion of the logistics industry, the market demand for electric forklifts has been steadily increasing year by year. This 1.5-ton electric forklift, with its outstanding performance, flexible operation, and eco-friendly features, has become the preferred choice for many businesses in material handling operations.



Product Parameters



  • Characteristic

Model: CPD15-B

Driving mode: Seated

Rated capacity(kg): 1500

Load center distance(mm): 500

Power mode: Lead-acid battery

Wheelbase: 1430mm



  • Performance

Travel speed, laden/unladen(km/h): 11/12

Lifting speed, laden/unladen(km/h): 250/260

Lowering speed, laden/unladen(mm/s): 450

Max negoniable gradient, laden/unladen(%): 15/20



  • Weight

Service mass(with battery)(kg): 2430

Axle load: unload, front/rear: /

Axle load: load, front/rear: /

Battery voltage/nominal capacity(V/Ah): 48V 180/220/300/400Ah

Battery weight(kg): 400kg



  • Electrical configuration

Driving motor power-60min(kw): 5.5PMSM

Lift motor power-15min(kw): 5PMSM

Driving motor controlling mode: MOSFET/PMSM

Lifting motor controlling mode: MOSFET/PMSM

Service brake/parking brake: Hydraulic/Mechanial





  • Type

Tyre type: Solid tire

Wheels number(front/rear): 2/2

Front track(mm): 920

Rear track(mm): 898

Tyre(front): 18*7-10

Tyre(rear): 16*6-8



  • Size

Front overhang(mm): 325

Tilt of the mast, front/rear(°): 5/10

Height, mast retraction(mm): 2030

Free lift height(mm): /

Overall max lift height(mm): 3000

Height, mast extended(mm): 4055

Overhead guard height(mm): 2110

Lateral Fork Adjustment(outside of Forks)max/min(mm): 970/200

Fork size(L*W*T)(mm): 35*100*920

Truck body length(fork excluded)(mm): 2063

Truck body width(mm): 1096

Turning radius(mm): 2070

Ground clearance under mast(mm): 88

Ground clearance at center of wheelbase(laden)(mm): 110

Width of aisle right-angle stacking(pallet 1000*1000mm clearance 200mm)(mm): 3655

Width of aisle right-angle stacking(pallet 1200*1200mm clearance 200mm)(mm): 3855

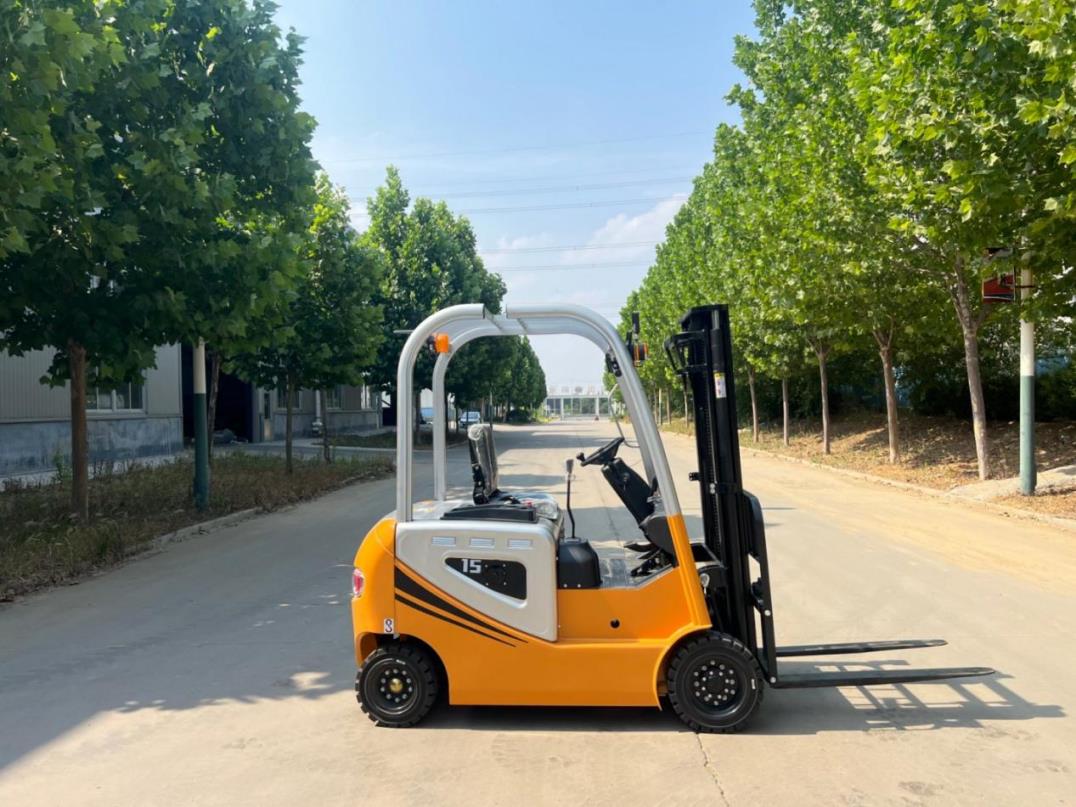

1



The 1.5-ton electric forklift is a modern logistics handling device that combines environmental friendliness, efficiency, and precise control. It is tailor-made for small and medium-sized cargo transfer scenarios and redefines the efficiency standards for short-distance material handling.

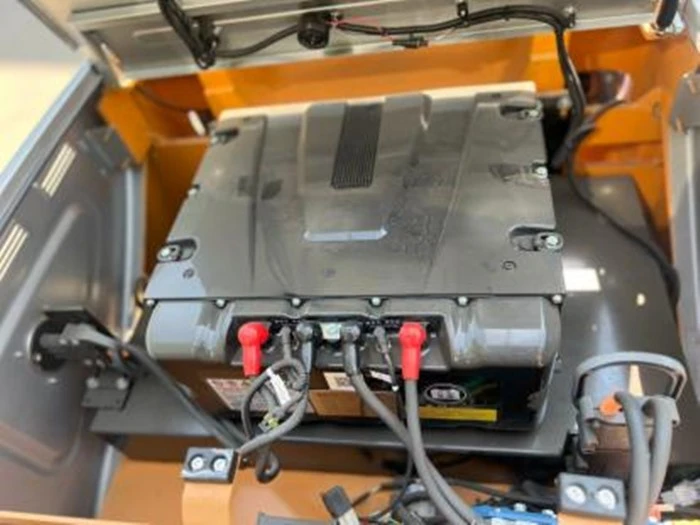

  • 1. In terms of the power system, it is equipped with high-performance lead-acid batteries or lithium-ion battery packs, which drive DC motors with clean energy, achieving zero emissions and low-noise operation. Compared to traditional fuel-powered forklifts, it operates without exhaust emissions and keeps noise levels below 70 decibels, meeting the stringent hygiene standards of industries such as food and pharmaceuticals while providing operators with a more comfortable working environment. It is particularly suitable for enclosed warehouses, indoor workshops, and other areas with limited ventilation.



  • 2. In terms of performance, this electric forklift retains the load-bearing advantages of a 1.5-tonne forklift, with a rated lifting capacity of 1.5 tonnes, capable of reliably handling the lifting and transportation of goods such as cardboard boxes, plastic pallets, and small mechanical parts. Its drive system responds quickly and accelerates smoothly, maintaining precise speed control even when fully loaded. Combined with the hydraulic system's fine-tuning functionality, it can achieve millimetre-level lifting positioning, preventing cargo damage caused by shaking. Additionally, its climbing ability reaches 15%-20%, ensuring stable operation on slightly inclined factory grounds or warehouse ramps.



  • 3. In terms of design details, it prioritises ergonomics to create a comfortable and efficient operating space. The adjustable shock-absorbing seat conforms to the contours of the human body, reducing fatigue in the waist and back during prolonged use. The control handle integrates buttons for forward, reverse, lifting, and lowering functions, with a clear operating logic that even new users can master quickly. The instrument panel displays real-time information such as battery level, speed, and fault codes, enabling operators to monitor the equipment's status at any time. Additionally, the chassis is constructed from high-strength steel, with wear-resistant and corrosion-resistant treatments applied to critical areas, extending the equipment's service life and enabling it to withstand complex operating conditions such as humidity and dust.



  • 4. In terms of range and maintenance, it demonstrates exceptional practicality. When equipped with a lithium-ion battery, a single charge supports 8–10 hours of continuous operation, meeting the requirements of a single shift, with a charging time of just 2–3 hours; lead-acid batteries can ensure operational range through scheduled charging. Due to the relatively simple structure of the electric system, which eliminates complex components such as engines and transmissions found in fuel-powered forklifts, routine maintenance only requires regular inspections of batteries, motors, and hydraulic oil, resulting in maintenance costs reduced by over 30% compared to fuel-powered forklifts, significantly alleviating operational maintenance pressure for businesses.



  • 5. Its wide range of applications is another major highlight. During peak periods in e-commerce warehouses, it can efficiently complete goods turnover in conjunction with sorting lines; in automotive parts workshops, it can precisely transport precision components such as transmissions and instrument panels; in supermarket logistics centres, it can easily handle boxed goods such as beverages and daily necessities.



Whether it's cargo loading and unloading at urban distribution centres or equipment transfer in laboratories, this 1.5-tonne electric forklift can enhance logistics efficiency with its flexible manoeuvrability and reliable performance.

The 1.5-tonne electric forklift, powered by clean energy for efficient handling, featuring intelligent design to simplify operational processes, and ensuring operational safety with stable performance, is the ideal choice for modern businesses seeking to achieve green logistics and cost-effective efficiency improvements.



Inventory And Product Condition



DAWNSHINE Forklift Factory demonstrates significant advantages in inventory management and product condition. In terms of inventory, the factory leverages intelligent systems for precise control. By integrating the Manufacturing Execution System (MES) with the warehouse management system, it tracks real-time inventory data for components and finished products, ensuring that the turnover rate of core components remains at an industry-leading level. This approach prevents production interruptions caused by stockouts while minimising capital tied up in excess inventory. Through an industrial collaboration network, the factory can swiftly allocate resources across the supply chain, reducing emergency inventory response times to within 48 hours, thereby ensuring efficient order delivery.


Products exhibit diverse and high-quality characteristics. The product range covers multiple power types, including internal combustion, electric, and hydrogen, with tonnages ranging from 1 tonne to 45 tonnes, suitable for special scenarios such as warehousing, ports, and explosion-proof environments. Among these, AGV intelligent forklifts have achieved autonomous operation across multiple scenarios. All products undergo rigorous quality inspection processes, with key components such as engines and hydraulic systems sourced from renowned brands. The overall vehicle failure rate is 15% lower than the industry average. Additionally, for customised client requirements, configurations can be swiftly adjusted based on standard models, with customised product delivery cycles controlled within 15 working days, balancing standardisation and flexibility.
