Applicable Scenarios
Cross-border freight hubs・E-commerce storage & staging・Wholesale distribution
Cross-Border Logistics & US Pallet Warehousing
Stacking bottom-board (GMA / American standard) double-deck pallets; straddle legs reach around the pallet, preventing base legs from crushing bottom boards.
Custom Machinery & Crate Assembly
Handling non-standard wooden crates, machinery skids, and varied box widths; width-adjustable forks adapt to uneven pallet entry points.
General Factory Inventory Racking
Stacking raw materials and finished goods on standard 2.5–3.5 m racks; a cost-effective lifting option for routine rack storage.
Retail Distribution & Wholesale Depots
Mixed-pallet handling in medium-traffic retail storage rooms; intuitive controls require minimal operator training.
Product Parameters
- Basic Information
Model: CDD20 (Reach Stacker)
Power Type: Full Electric
Operator Type: Stand-on (with Pedal)
Rated Load Capacity: 2,000 kg
Load Center Distance: 500 mm
- Drive, Battery & Electrics
Drive Control Type: CURTIS AC
Drive Motor (60 min rating): AC 2.5 kW
Lift Motor Rating (S3 15%): 3.0 kW

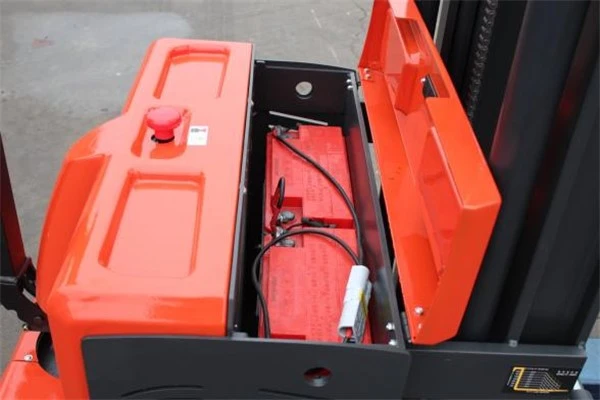

Battery Voltage / Capacity: 24V / 280Ah (Optional 400Ah available)
- Performance Parameters
Travel Speed (Laden / Unladen): 5.2 / 5.5 km/h
Lowering Speed (Laden / Unladen): 160 / 210 mm/s
Max. Gradeability (Laden / Unladen): 5% / 8%
Service Brake: Electromagnetic Braking
- Dimensions & Structure
Overall Length: 2,540 mm
Length to Fork Face: 1,470 mm
Overall Width: 940 / 1,106 mm
Wheelbase: 1,550 mm
Turning Radius: 1,800 mm
Reach Distance (Forward): 500 mm
Mast / Fork Tilt (Forward / Backward): 3° / 5°
Fork Dimensions (T × W × L): 40 × 120 × 1,070 mm
Adjustable Fork Width: 240 – 715 mm
Lowered Fork Height: 40 mm
Tire Material: Polyurethane (PU)
| Max. Lift Height | Lowered Mast Height | Extended Mast Height | Service Weight |
| 2,500 mm | 1,740 mm | 3,360 mm | 2,720 kg |
| 3,000 mm | 1,990 mm | 3,860 mm | 2,750 kg |
| 3,700 mm | 2,340 mm | 4,560 mm | 2,790 kg |
| 4,000 mm | 2,490 mm | 4,860 mm | 2,807 kg |
| 4,500 mm | 2,190 mm | 5,420 mm | 3,070 kg |
| 5,500 mm | 2,523 mm | 6,420 mm | 3,123 kg |
| 6,000 mm | 2,690 mm | 6,920 mm | 3,150 kg |
The 2.0-ton electric forklift with EPS has outstanding advantages: EPS electric power steering makes frequent turns more effortless, significantly reduces operational fatigue, and provides precise and flexible steering.
Move forward design to adapt to narrow channels, save storage space, and improve the utilization rate of dense shelves. Electric drive is environmentally friendly and low-noise, with efficient operation. It is suitable for most goods with a load capacity of 2.0 tons, balancing load-bearing and mobility, and is suitable for efficient warehousing operations.
Request a Reach Configuration Review
Key Features
Universal Double-Deck Pallet Compatibility

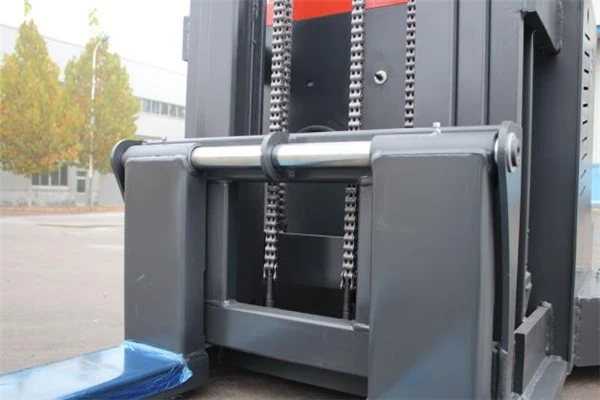

Width-Adjustable ISO Fork Carriage
Cost-Effective Mid-Lift Performance

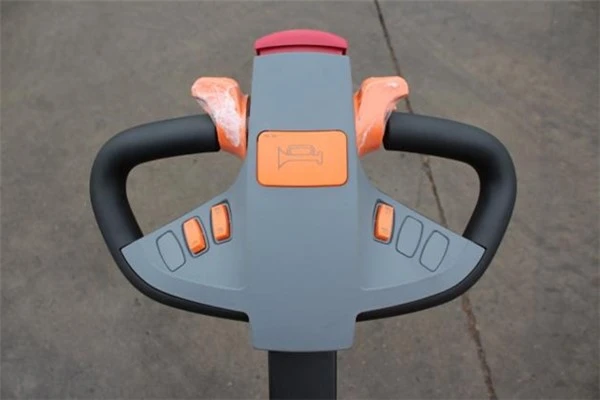

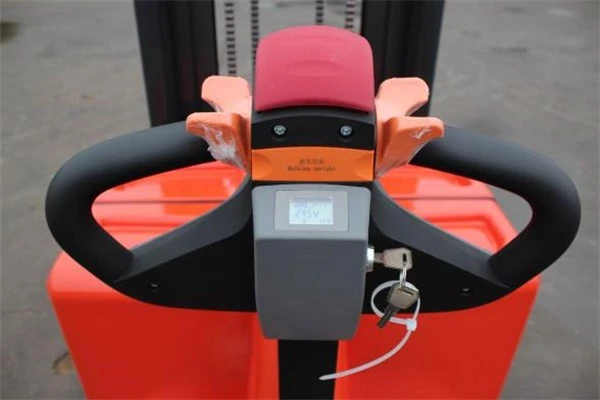

Long-Mounted Ergonomic Tiller
Frequently Asked Questions
Why do I need a straddle-leg stacker instead of a standard stacker?
+
-
Standard stackers have base legs that sit directly under the forks, meaning they can only lift open-bottom (Euro) pallets. If you try to lift a double-deck (closed-bottom) pallet with a standard stacker, the base legs will crush the bottom boards. A straddle-leg stacker has wider legs that go around the pallet, allowing safe lifting of any pallet type.
What is the maximum width of pallet this straddle stacker can handle?
+
-
Our standard straddle inner width options are 1,000mm, 1,100mm, and 1,200mm, accommodating standard 1,200 x 1,000mm or 1,200 x 1,200mm double-deck pallets. Custom straddle widths are also available upon request.
Is this stacker suitable for high-bay racking over 4.5 meters?
+
-
No. This model is optimized for high-efficiency mid-lift stacking up to 3.5 meters. For high-bay vertical racking above 4.5 meters or container entry, please refer to our 3-Stage Triplex Mast Stacker.
Is the EPS steering system standard?
+
-
The product is presented as an EPS configuration. The exact steering system, standard equipment and optional configurations should be confirmed with our sales team before quotation.
What information is needed for a quotation?
+
-
Please provide the pallet weight, pallet dimensions, required lifting height, rack layout, available aisle width and expected handling frequency. These details help us review the appropriate configuration.
Inventory And Product Condition
Large-scale intelligent manufacturing & scenario customization - your agile supply chain partner.With years of industry experience and a global service network, DAWNSHINE delivers practical forklift solutions aligned with your site needs.
Supporting steady orders and custom builds for varied working scenarios. Full-process quality control ensures reliable performance and durability.
