Where It Works Best
Warehouse & Distribution・General Manufacturing・Industrial Consumables & Packaged Goods
E-Commerce & Retail Warehousing
Fast high-frequency stacking and moving of standard 1.0–1.8-ton timber/plastic pallets in rack aisles.
Food, Beverage & Pharmaceutical Storage
Zero-emission, ultra-quiet operation required in temperature-controlled or hygienic indoor environments.
Manufacturing Staging & Cross-Docking
Transporting components between production lines and staging bays with narrow-aisle turning.

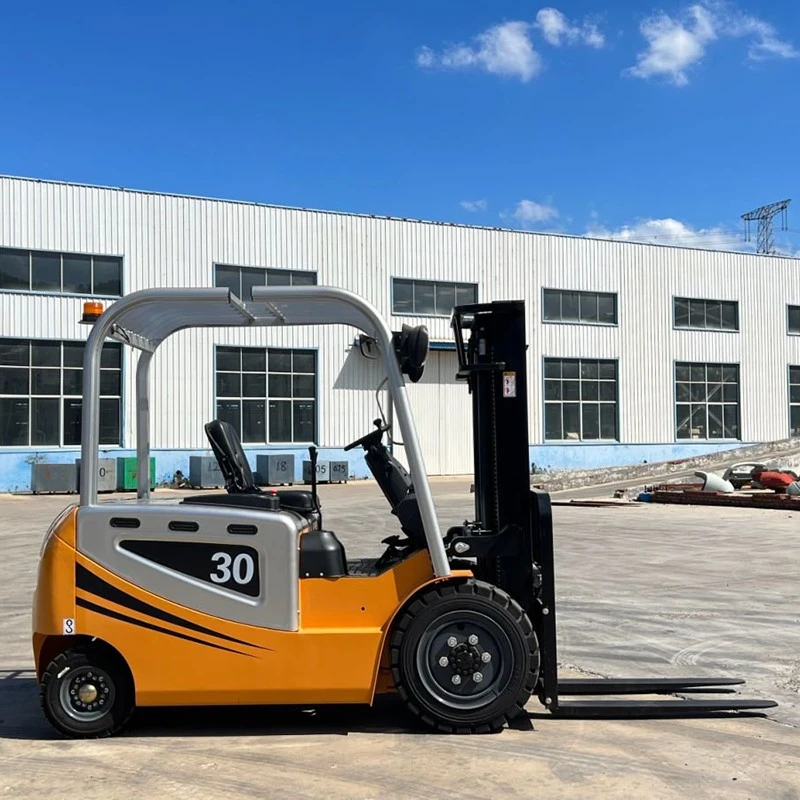

Automotive Parts & Component Handling
Palletized engines, transmissions, and cast housings fall in the medium-to-heavy range; 3-ton capacity covers them without stepping up to a larger truck when working conditions don't require it.
Product Parameters
- Basic & Performance

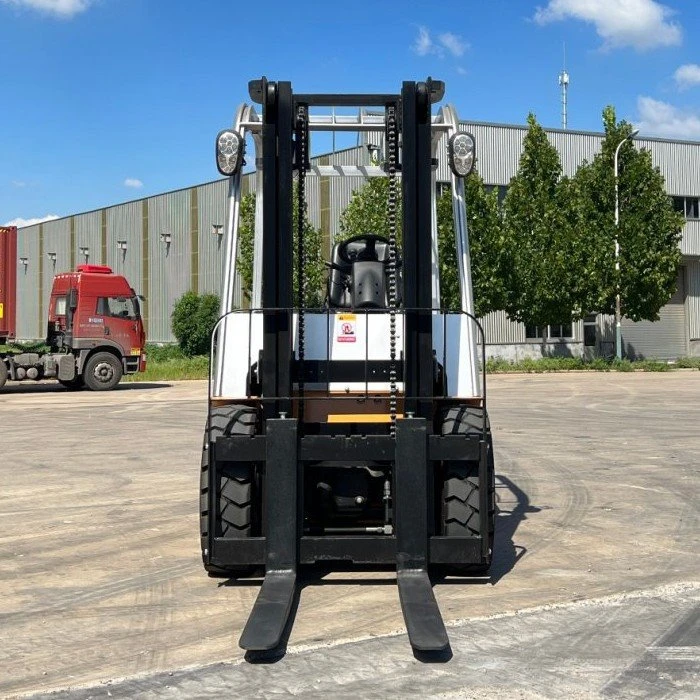

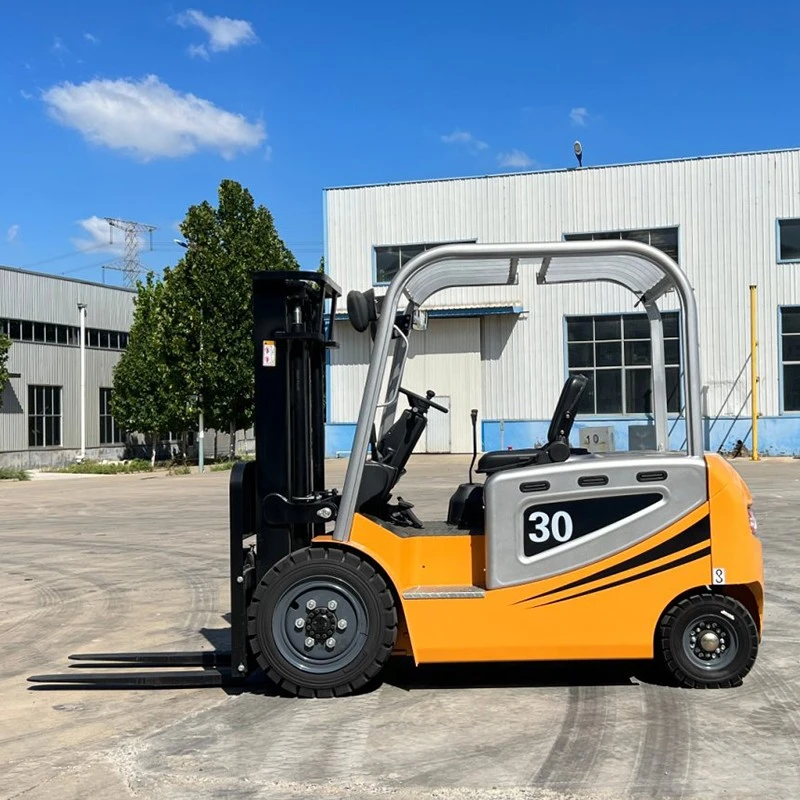

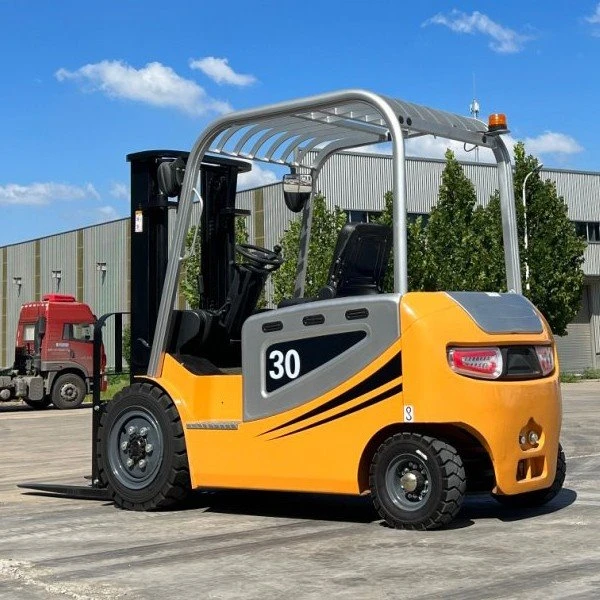

Model: CPD30-B
Rated Load Capacity: 3,000 kg
Load Center : 500 mm
Travel Speed (Laden / Unladen): 11 / 12 km/h
Lifting Speed (Laden / Unladen): 280 / 350 mm/s
Lowering Speed (Laden / Unladen): 450 / 450 mm/s
Max. Gradeability (Laden / Unladen): 12% / 15%
Service Brake / Parking Brake: Hydraulic / Mechanical
- Electrical Drive, Chassis & Tires

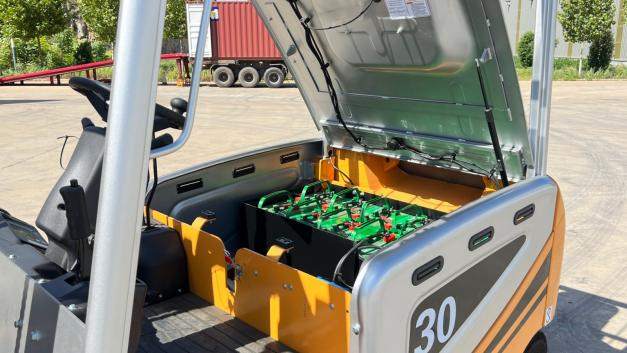

Battery Voltage / Nominal Capacity: 80V / 300Ah (Optional: 350Ah / 400Ah)
Battery Weight: 830 kg
Drive Motor Rating (AC, 60min): 11 kW
Controller Type (Drive / Lift): AC MOSFET Controller
Tire Type: Pneumatic / Inflatable Tires
- Dimensions & Operating Capacity
Standard Lift Height: 3,000 mm
Mast Tilt Angle (Forward / Backward): 5° / 10°
Mast Height, Retracted: 2,057 mm
Mast Height, Extended: 4,200 mm
Overall Width: 1,225 mm
Overhead Guard Height: 2,200 mm
Fork Dimensions (L x W x T): 1,070 x 122 x 45 mm (Adjustment range: 244 - 1,100 mm)
Right-Angle Aisle Width (Pallet 1000x1000 mm, +200mm clearance): 4,100 mm
Right-Angle Aisle Width (Pallet 1200x1200 mm, +200mm clearance): 4,300 mm
- Weight
Service Weight (with battery): 4,150 kg
Key Features
The 3-ton model isn't about looking large at maximum load-it's built to cover everyday 2–3-ton class cargo with margin. Zero-emission, ultra-quiet, and compact enough for standard 3.8 m rack aisles: the indoor warehousing sweet spot.

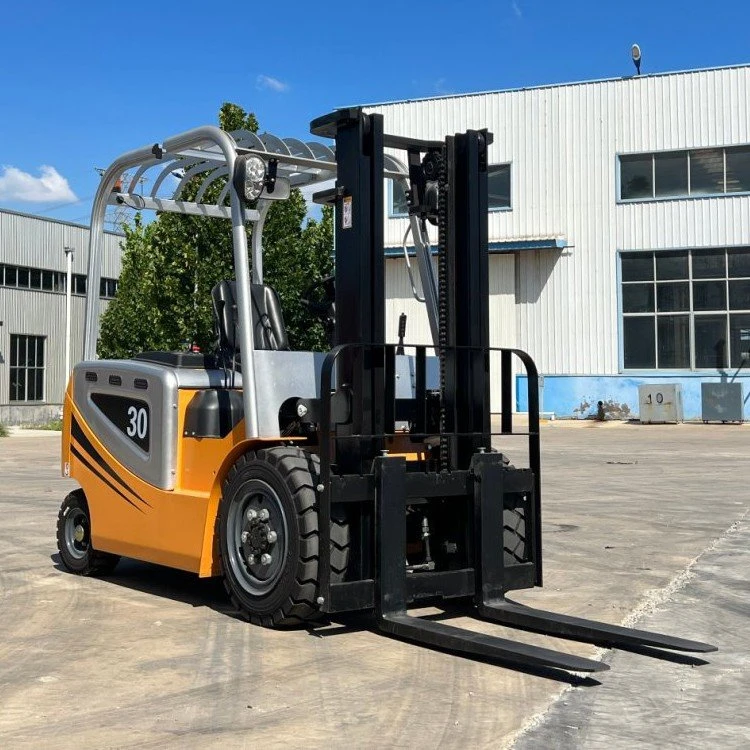

Compact Chassis & Tight Right-Angle Stacking (AST)
Optimized frame geometry and a 78° rear steer axle deliver a minimal turning radius (2,310 mm) with a 1,225 mm truck width, for seamless operation in standard 3.8 m rack aisles.
High-Efficiency Dual-AC Drive & Regenerative Braking
AC motor controllers feed power back to the battery during deceleration, reducing brake wear and extending daily operating hours by up to 15% per charge cycle.

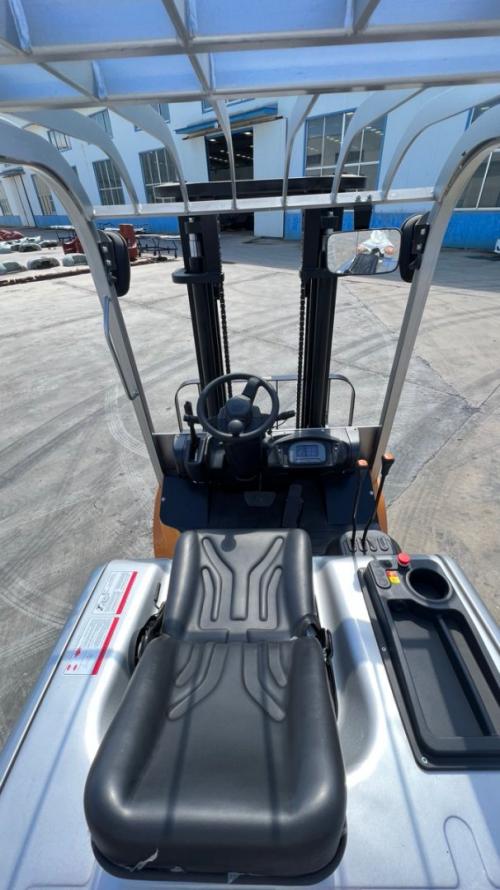

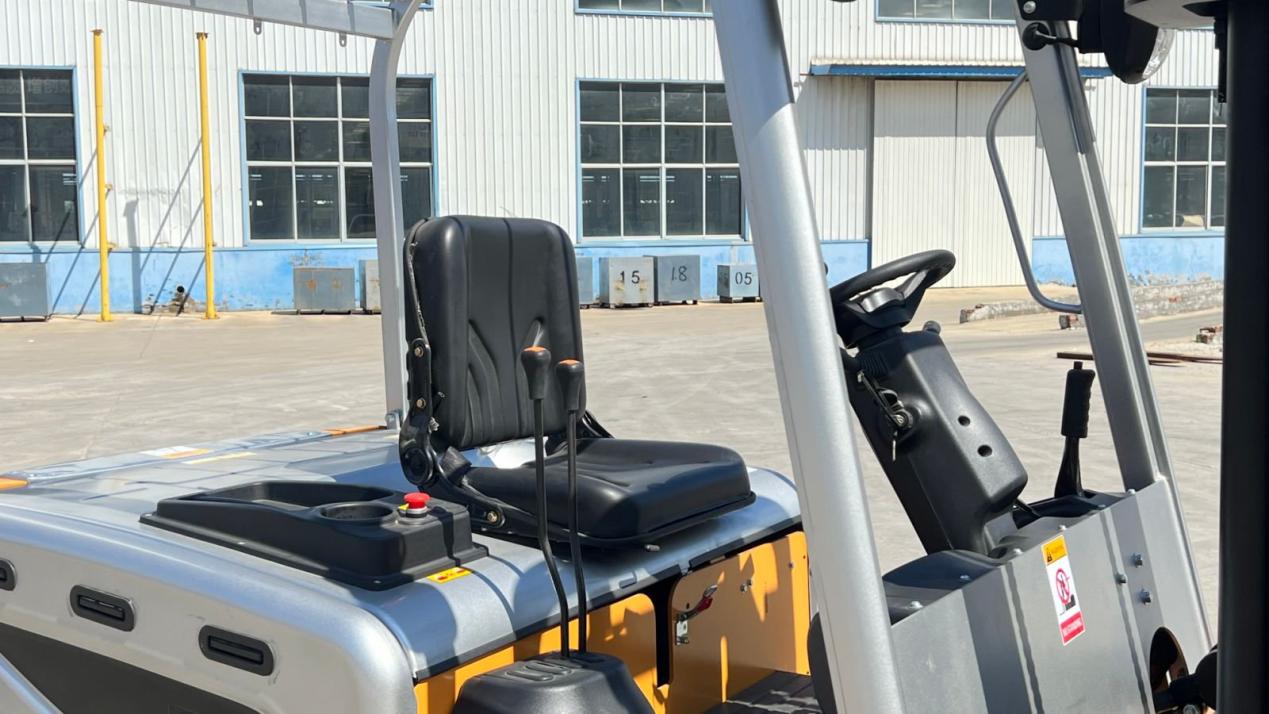

Ergonomic Operator Compartment for High-Frequency Shifts
Low step-in height, fully adjustable suspension seat, and fingertip hydraulic controls reduce fatigue during repetitive indoor stacking.
Quick-Charge LiFePO4 Battery System
Maintenance-free lithium iron phosphate with zero off-gassing-safe for indoor cleanroom environments-supporting opportunity charging during operator lunch breaks.
POWER & CONFIGURATION
Practical Electric Power for Daily Operations
80V battery
11kW drive motor
12kW lift motor
pneumatic tyres
Frequently Asked Questions
Is a 3-ton electric forklift sufficient for standard warehouse racking systems?
+
-
Yes. For standard pallets weighing between 1.0 and 2.0 tons, a 3-ton forklift provides the ideal balance of maneuverability, lifting speed, and cost-efficiency in aisles as narrow as 3.8 meters.
When should I upgrade from a 3-ton model to a 3.5-ton model?
+
-
If your average load approaches 2.5 tons, if you plan to install heavy hydraulic attachments (like side-shifters or paper clamps), or if you frequently lift loads above 4.5 meters, choose our [3.5-Ton Electric Forklift] to avoid capacity derating.
Can this 3-ton model operate on smooth epoxy or concrete warehouse floors?
+
-
Absolutely. It comes standard with high-traction, non-marking solid tires engineered specifically to protect indoor epoxy floors while eliminating tire scuff marks.
What battery options are available?
+
-
The standard configuration uses a lead-acid battery. Lithium-ion options can be offered where available and should be confirmed according to operating hours, charging conditions and application requirements.

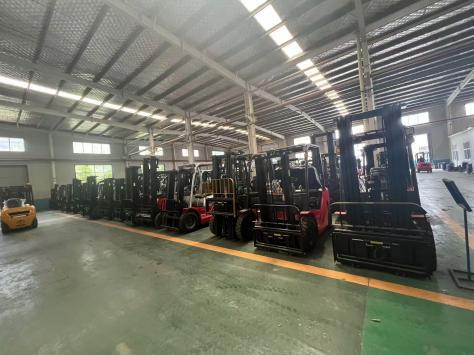

Large‑scale smart manufacturing and scenario‑specific customization from DAWNSHINE. We supply high‑quality standard & custom forklifts with full‑range quality control. High‑volume production supports urgent delivery within 20 days.
