Application Scenario
Construction Material Manufacturers・Equipment Manufacturers・Industrial Distributors・Large Fabrication Companies・Metal Products & Fabrication
Paper & Packaging Mills
Continuous handling of massive paper rolls with 360° rotating paper roll clamps.

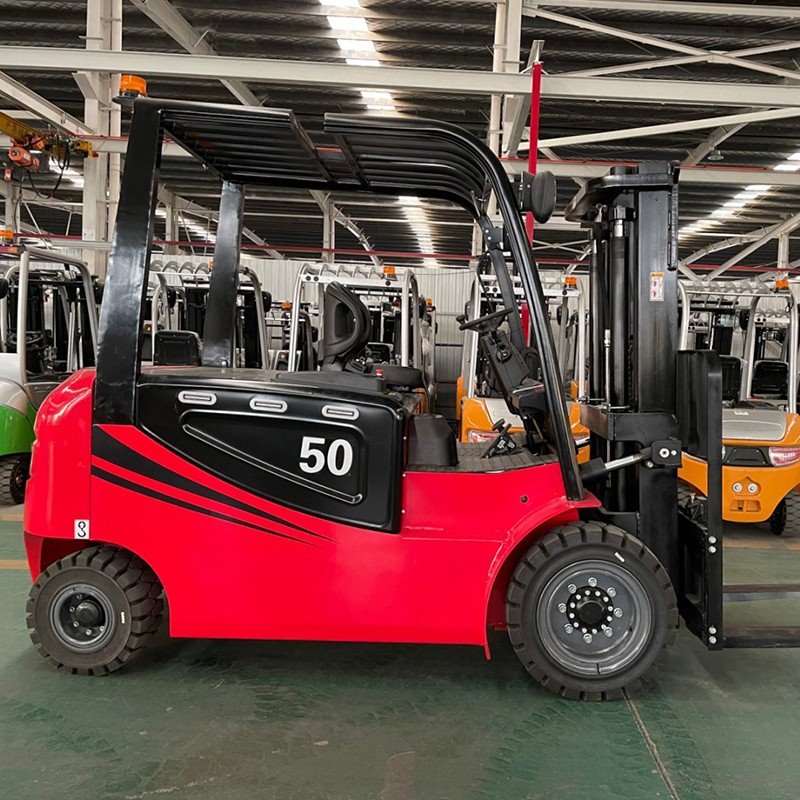

Metals & Foundry Operations
Carrying steel coils, heavy castings, and metal scrap bins with hydraulic rotators or coil rams.
Lumber Yards & Heavy Manufacturing
Moving large timber bundles, concrete pipes, and heavy machinery components across outdoor yards.

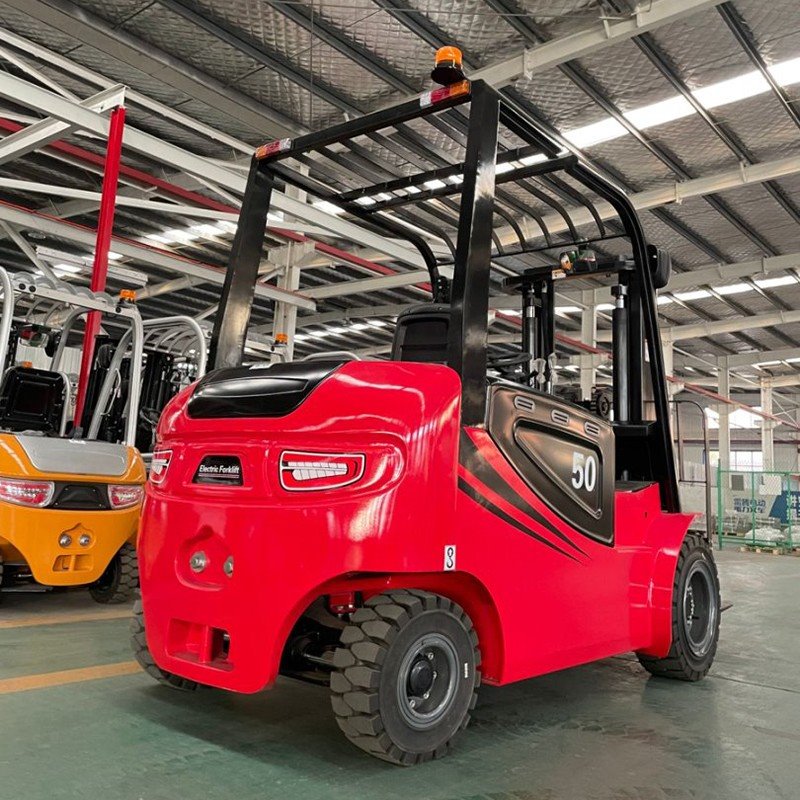

Heavy Machinery Manufacturing
Repeated movement of engine components, machinery assemblies, and heavy fabricated parts between production, assembly, and storage areas.
Heavy Industrial Warehousing
High-load pallets, machinery parts, and heavy inbound/outbound materials across production inventory flows.
Product Parameters
- Basic & Performance
Model: CPD50-B
Rated Load Capacity: 5,000 kg
Load Center Distance : 500 mm
Travel Speed (Laden / Unladen): 12 / 13 km/h
Lifting Speed (Laden / Unladen): 250 / 280 mm/s
Max. Gradeability (Laden / Unladen): 12% / 20%
Service Brake / Parking Brake: Hydraulic / Mechanical
- Electrical Drive, Chassis & Tires
Battery Voltage / Nominal Capacity: 80V / 500 Ah
Battery Weight: 1,100 kg (±5%)
Drive Motor Rating (AC, 60min): 18 kW
Lift Motor Rating (AC, 15min): 25 kW
Controller Type (Drive / Lift): AC MOSFET Controller
Tire Type: Solid Tires
- Dimensions & Operating Capacity
Standard Lift Height: 3,000 mm
Mast Tilt Angle (Forward / Backward): 6° / 12°
Mast Height, Retracted: 2,340 mm
Mast Height, Extended (with / without backrest): 4,220 / 3,790 mm
Free Lift Height: 120 mm
Overall Width: 1,585 mm
Overhead Guard Height: 2,350 mm
Fork Dimensions (L x W x T): 1,070 x 150 x 55 mm (Adjustment range: 300 - 1,240 mm)
Right-Angle Aisle Width (Pallet 1000x1000 mm, +200mm clearance): 4,543 mm
Right-Angle Aisle Width (Pallet 1200x1200 mm, +200mm clearance): 4,673 mm
- Weight
Service Weight (with battery): 7,100 kg
Key Features
The 5-ton electric forklift isn't a bigger motor bolted onto a smaller chassis. Every subsystem-battery, lift motor, frame, axle, forks-is sized around sustained heavy lifting: an 80V/500Ah LiFePO4 pack, a 25 kW AC lift motor, a boxed high-tensile frame with cast-iron steer axle for stability at rated load.
High-Flow Hydraulics for Heavy Attachments
Premium high-flow hydraulic pumps and multi-spool control valves deliver the pressure and oil flow to drive heavy paper clamps, rotators, and side-shifters without sluggish response.
Liquid/Air Cooling & Anti-Derating Technology
Heavy 5-ton lifting creates high electrical stress; integrated cooling protects the BMS, motor controllers, and battery cells from overheating during continuous max-load cycles.
Heavy-Duty Boxed Chassis & Cast Axle
Reinforced high-tensile steel frame with a heavy cast-iron steer axle absorbs shocks and lateral torque when maneuvering bulky, unevenly balanced loads like paper rolls or timber.
High-Voltage LiFePO4 for Sustained Torque
80V/500Ah high-capacity lithium keeps constant hydraulic power and travel speed even when battery level drops below 20%.
Key Components & Attachments

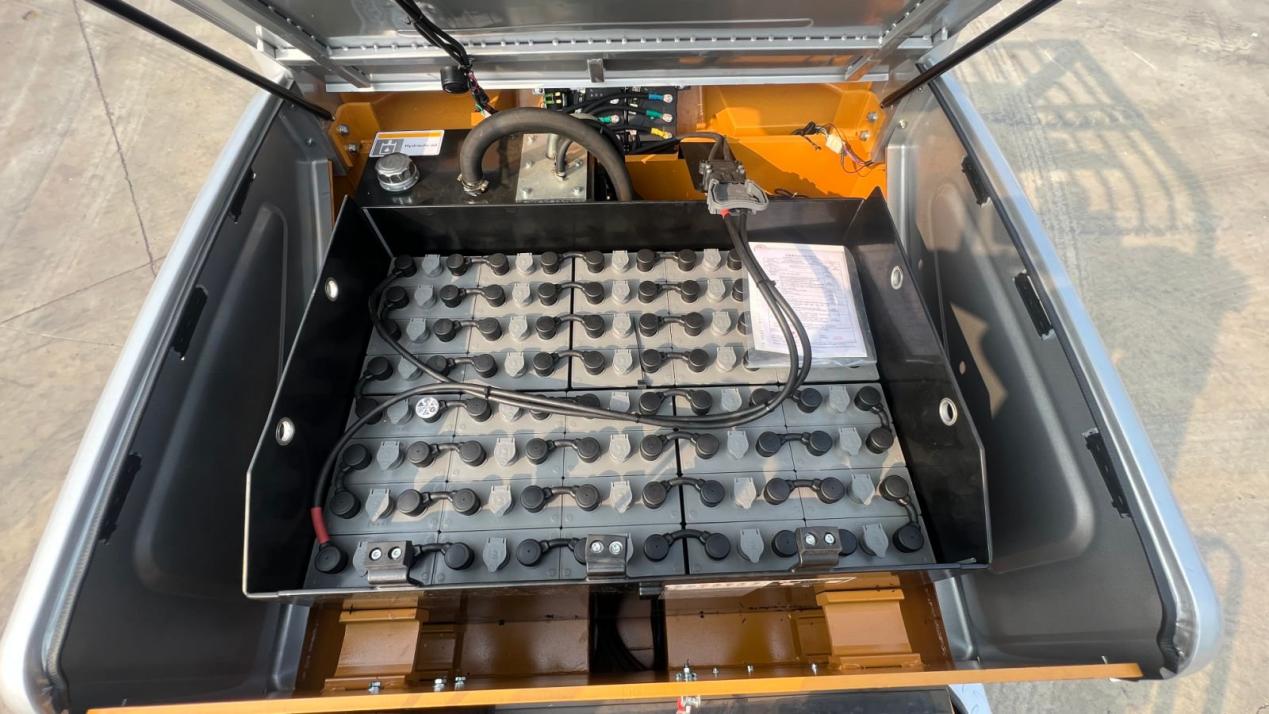

Battery System
80V / 500Ah battery - supports the power demand of heavy-load operations.
01
Lifting System
25 kW AC lift motor - provides the power required for high-capacity lifting.
02
Chassis & Axle
Heavy-duty chassis and axle system - built to support frequent high-load material handling.
03

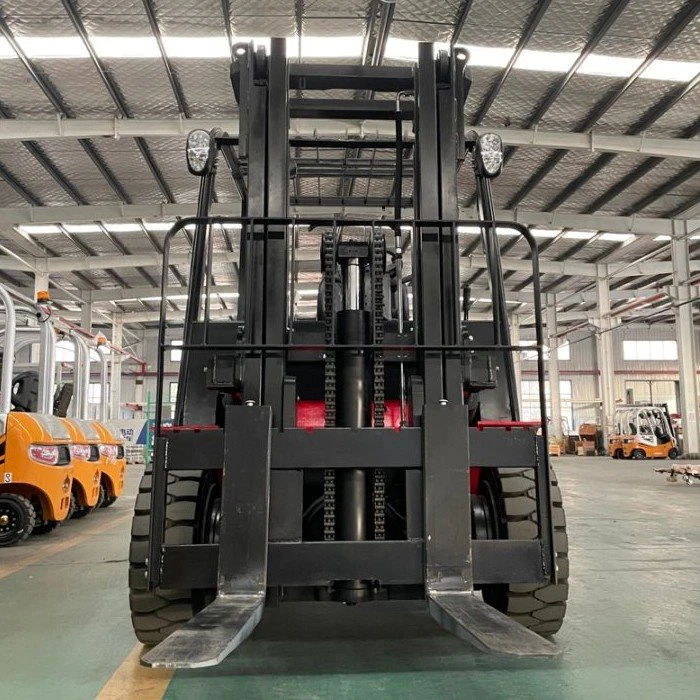

Forks & Attachments
Forks and optional attachments can be matched to load dimensions, pallet type and specific handling requirements.
04
Frequently Asked Questions
Why is the 5 ton electric forklift better suited for paper roll clamps than the 4 ton unit?
+
-
Heavy paper clamps add significant deadweight and push the load center forward. The 5 ton chassis provides the extra counterweight margin needed to carry heavy rolls without exceeding safety limits or experiencing severe capacity derating.
Can this 5-ton electric forklift replace the 5-ton diesel forklift in continuous 24/7 foundry or steel operations?
+
-
Yes. Combined with our high-capacity lithium battery and fast 1-hour charging, plus integrated thermal management, it handles non-stop heavy lifting in hot, dusty industrial environments.
What happens if the hydraulic system gets too hot during heavy attachment use?
+
-
The machine is equipped with thermal sensors that automatically engage high-speed cooling fans. If temperatures exceed safety thresholds, the BMS protects the electronics while maintaining essential steering and braking control.
Can the 5 ton electric forklift handle a full 5,000 kg load at any lift height?
+
-
Not necessarily. The rated capacity of a forklift is tied to its specified load centre and operating conditions. Load weight, load centre and lifting height all affect the actual capacity available at a particular operating condition. For a 5,000 kg application, provide the load dimensions, load centre and required lift height so the configuration can be checked against the manufacturer's capacity data.
What information do I need to provide for a 5 ton forklift quotation?
+
-
Provide the maximum and typical load weight, load dimensions, load centre, required lift height, pallet type, working environment, floor condition and expected daily operating hours. These details allow the supplier to determine whether the standard CPD50-B configuration is suitable or whether another configuration is required.
