Applications
Steel & Cast Iron・Heavy Machinery・Prefabricated Construction・Waste & Scrap・Port & Rail
Port Freight & Container Stuffing (CFS)
Loading/unloading heavy machinery, stone slabs, and machinery components inside standard ISO containers; confirm mast lowered clearance against container door height for each handling cycle.
Metal Processing & Steel Mills
Transporting heavy steel coils, sheet metals, and foundry molds using heavy boom attachments or coil rams.

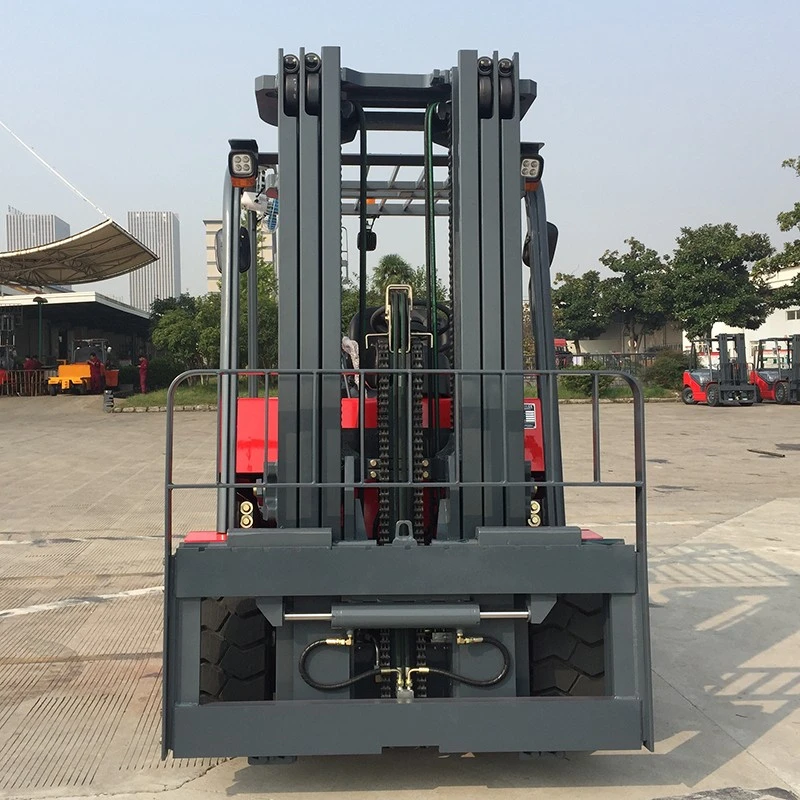

Heavy Machinery & Injection Mold Plants
Safely transferring multi-ton precision injection molds and heavy cast iron components between workshops.

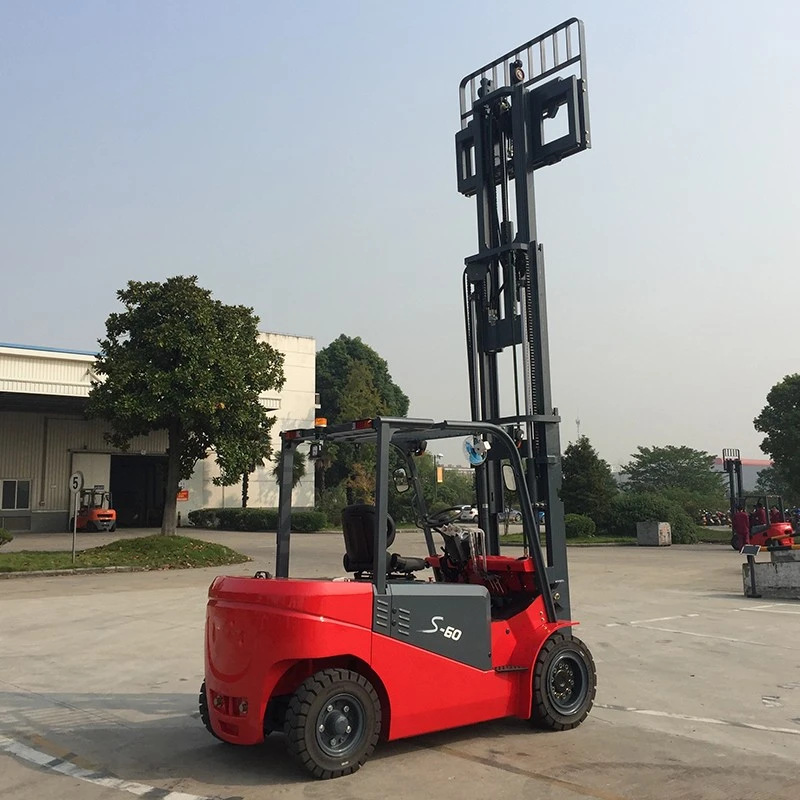

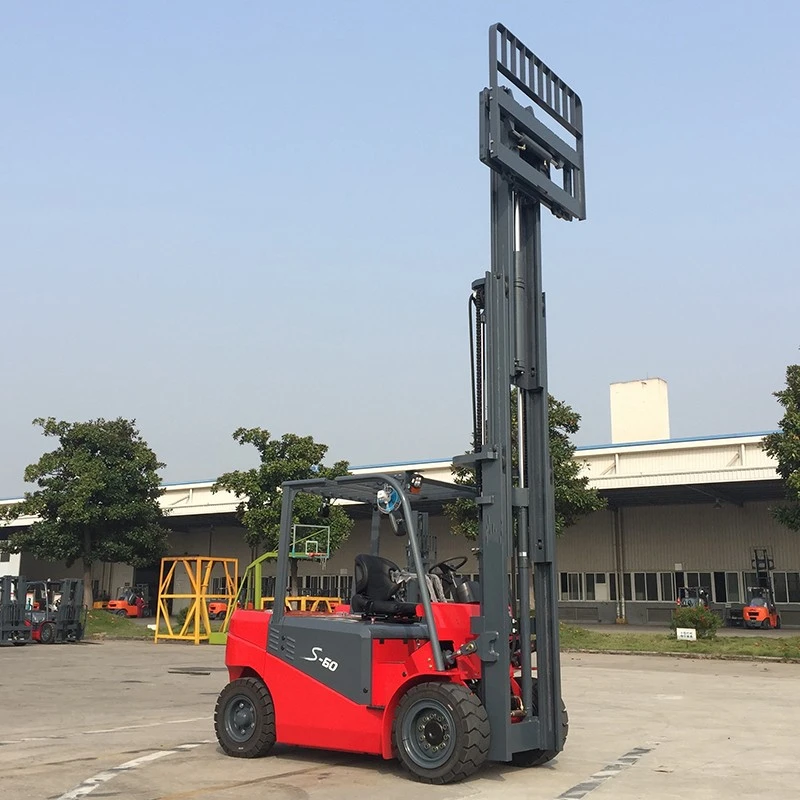

Prefabricated Construction Components
Moving precast concrete components and structural building products where load dimensions, ground conditions, and handling method are confirmed suitable.
Waste & Scrap Handling
Short-distance movement and loading/unloading of heavy scrap metal and recyclable materials where the working surface and operating conditions are suitable.
Product Parameters
- Basic & Performance

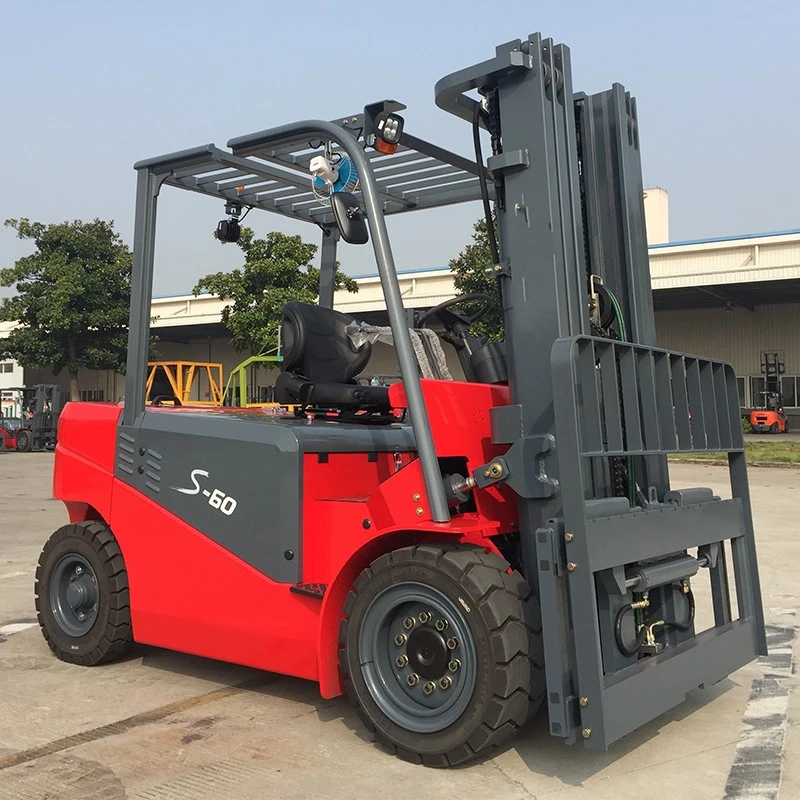

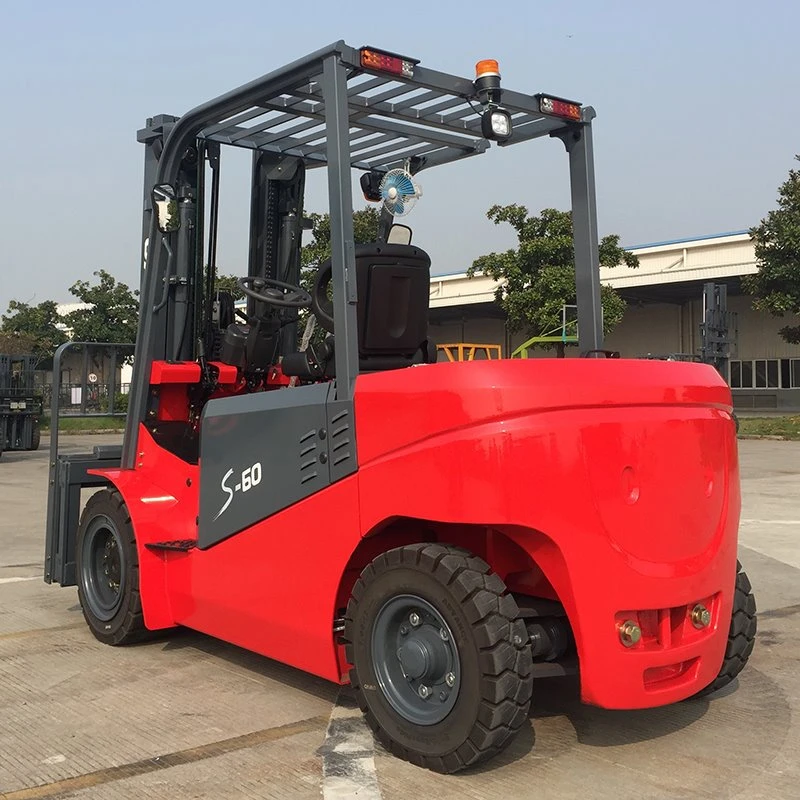

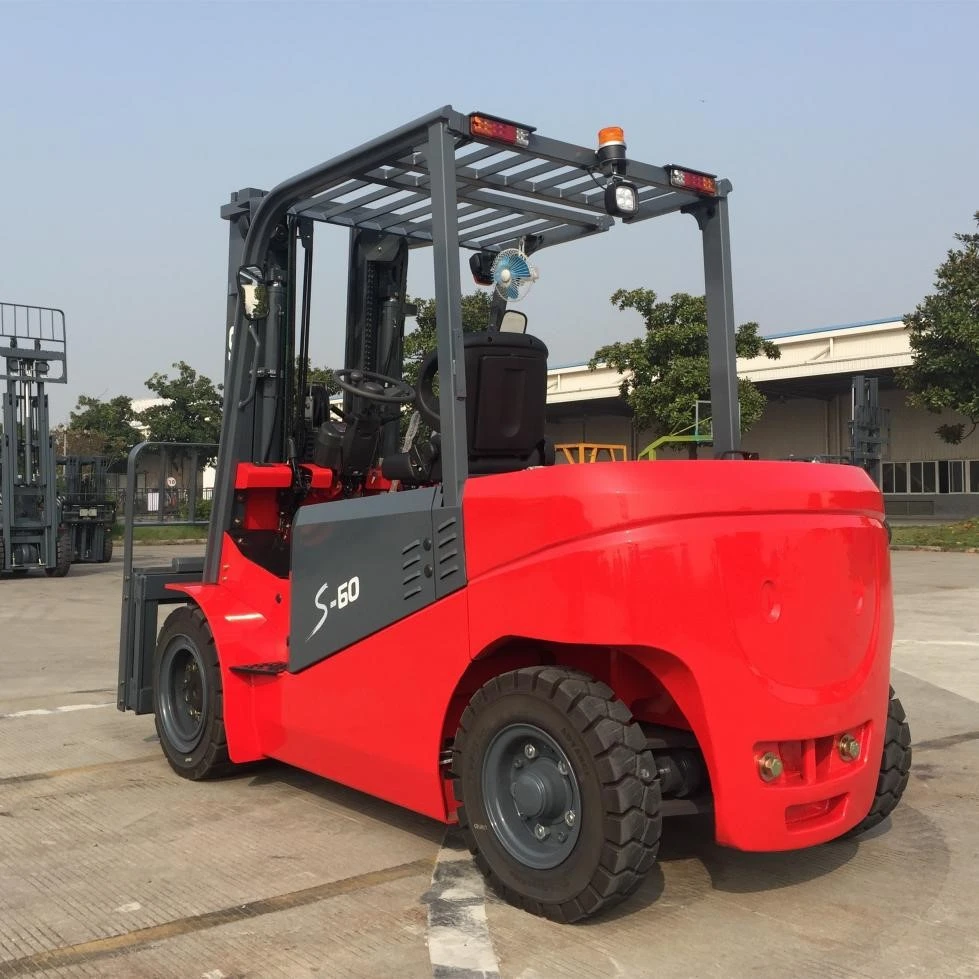

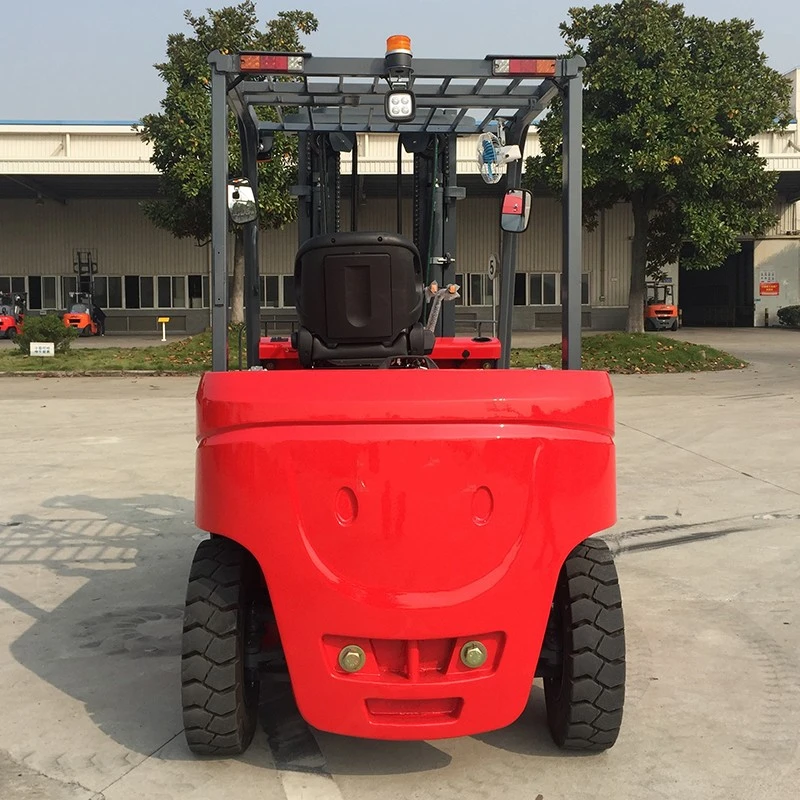

Model: CPD60-S
Rated Load Capacity: 6,000 kg
Load Center Distance (c): 500 mm
Travel Speed (Laden / Unladen): 12 / 13 km/h
Lifting Speed (Laden / Unladen): 250 / 280 mm/s
Max. Gradeability (Laden / Unladen): 12% / 20%
Service Brake / Parking Brake: Hydraulic / Mechanical
- Electrical Drive& Tires
Battery Voltage / Nominal Capacity: 80V / 500 Ah
Battery Weight: 1,100 kg
Drive Motor Rating (AC, 60min): 18 kW
Lift Motor Rating (AC, 15min): 25 kW
Controller Type (Drive / Lift): AC MOSFET Controller
Tire Type: Solid Tires
- Dimensions & Operating Capacity
Standard Lift Height: 3,000 mm
Mast Tilt Angle (Forward / Backward): 6° / 12°
Free Lift Height: 120 mm
Overall Length (without forks): 2,990 mm
Overall Width: 1,585 mm

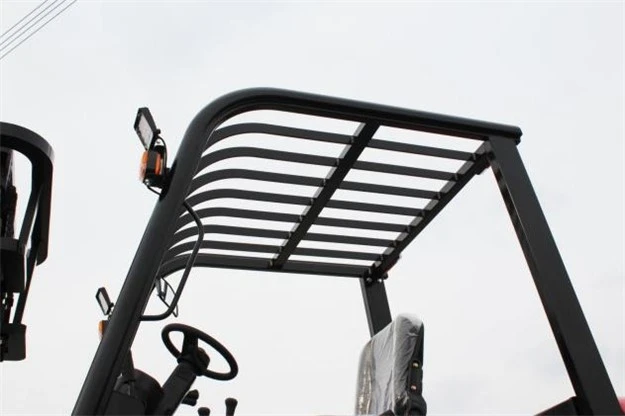

Overhead Guard Height: 2,350 mm

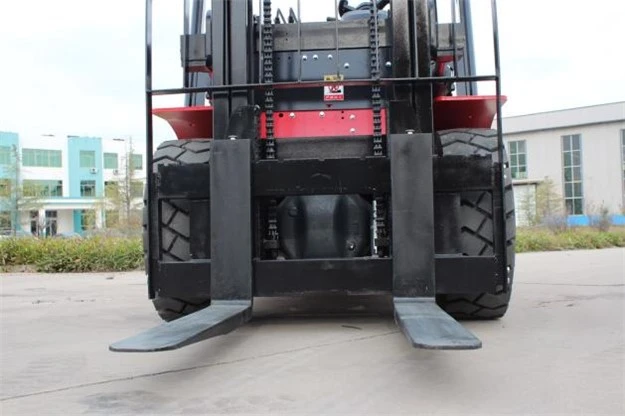

Fork Dimensions (L x W x T): 1,070 x 150 x 55 mm (Adjustment range: 300 - 1,240 mm)
Min. Turning Radius (Wa): 2,700 mm
- Weight & Axle Loads
Service Weight (with battery): 7,100 kg
Axle Load, Unladen (Front / Rear): 3,200 / 3,900 kg
Axle Load, Laden (Front / Rear): 10,850 / 1,250 kg
Key Features
The6-ton electric forklift built for the heaviest end of the range: a container-capable profile with full free-lift mast, a reinforced chassis for eccentric 6-ton loads, and thermally stable electrics for intense multi-shift duty-zero-emission power where diesel traditionally ruled.

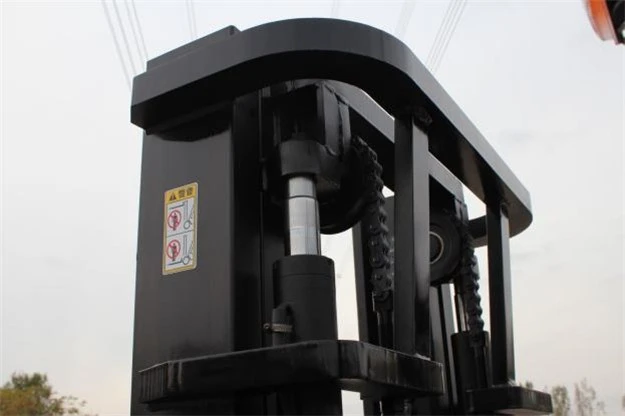

Container-Capable Profile & Full Free-Lift Mast Option
Optimized low overhead clearance with a triplex full free-lift mast lets the 6-ton truck drive into standard ISO containers for heavy cargo stuffing without mast height collision.
Extra-Reinforced Box-Type Chassis & Heavy-Duty Cast Axle
Thick high-tensile steel plates and an oversized planetary drive axle handle extreme axle load distribution and lateral stress when lifting 6-ton eccentric loads.
High-Pressure Hydraulic System for Heavy Attachments
Dedicated high-pressure pump with oversized oil lines delivers the continuous flow to run heavy rotators, coil rams, and large side-shifters without hydraulic lag.
Heavy-Duty Dual Solid Tires & Thermal Stability
Front dual solid tires maximize lateral stability during high-capacity lifts, backed by intelligent thermal management that keeps motors cool through intense multi-shift duty cycles.
Battery
Lead-acid / lithium-ion
01
Mast
Select lift height according to actual operation.
02
Forks & Attachments
Match the fork/attachment to cargo dimensions and handling method.
03
Tires
Select according to the working surface and operating conditions.
04
Frequently Asked Questions
What is the 6 ton electric forklift used for?
+
-
A 6 ton electric forklift is designed for high-capacity material handling involving heavy industrial loads such as steel components, machinery parts, construction components and heavy recyclable materials.
Can this 6-ton electric forklift drive into a standard 20ft/40ft ISO shipping container?
+
-
Yes. When configured with our low-overhead guard option and triplex full free-lift mast, the machine has the precise overall height profile required to enter shipping containers for heavy machinery or stone loading.
Can the 6 ton electric forklift be used outdoors?
+
-
It can be considered for suitable paved outdoor applications, but outdoor suitability depends on the surface, weather exposure, duty cycle, tires and other configuration requirements. Confirm the working conditions before ordering.
Is the 6-ton electric forklift stable enough when carrying heavy loads on front attachments like a coil ram?
+
-
Absolutely. The machine utilizes a heavy-duty chassis design with standard front dual solid tires and a heavy cast counterweight, ensuring high lateral stability and safety when carrying long or eccentric loads.
How does this 6-ton model differ from the 4-5 ton models?
+
-
While the 4-5 ton model is built for high-throughput yard and pallet logistics, the 6-ton model features a heavier chassis platform, planetary drive axle, higher hydraulic pressure (20MPa+), and optional low-clearance profiles specifically engineered for heavy industrial molds, steel, and container stuffing.
