Rated Capacity

4,000 kg

Load Center

500 mm

Power

80V / 300Ah

Drive

AC Electric Drive

Where Does a 4-Ton Electric Forklift Excel?

Machinery Manufacturing・Metal Processing・Industrial Warehousing・Food & Beverage

Beverage & Bottling Distribution

High-throughput handling of heavy liquid pallets (water, beer, soda), with dual-pallet attachment options to keep dock and line-side throughput up. Zero-emission electric operation also suits enclosed bottling and packaging environments where IC-engine exhaust must be avoided.

Building Material & Construction Yards

Outdoor transport of bagged cement, pavers, and tile pallets across rough yard surfaces. Specify pneumatic tires and battery capacity matched to your outdoor duty cycle.

Indoor/Outdoor Freight Depots

Seamless moves between indoor staging areas and outdoor flatbed trailers, without refueling stops or exhaust fumes in enclosed bays

Product Parameters

Basic & Performance

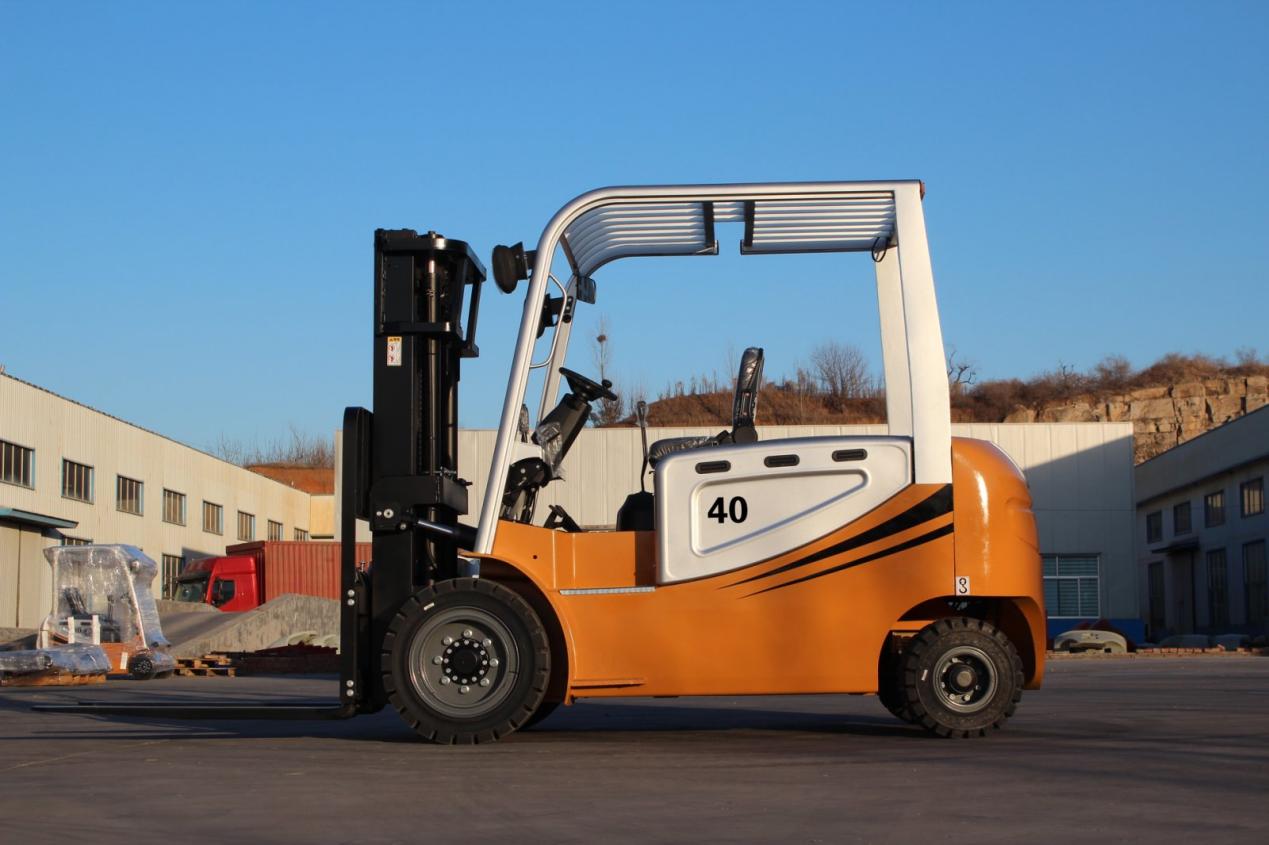

Model: CPD40-B

Driving Mode: Seated / Counterbalance

Rated Load Capacity: 4,000 kg

Load Center Distance : 500 mm

Travel Speed (Laden / Unladen): 12 / 13 km/h

Lifting Speed (Laden / Unladen): 280 / 300 mm/s

Lowering Speed (Laden / Unladen): 450 / 450 mm/s

Max. Gradeability (Laden / Unladen): 12% / 20%

Service Brake / Parking Brake: Hydraulic / Mechanical

Electrical Drive, Chassis & Tires

Battery Voltage / Nominal Capacity: 80V / 300 Ah

Battery Weight: 860 kg

Drive Motor Power (AC, 60min rating): 18 kW

Lift Motor Power (AC, 15min rating): 16.5 kW

Controller Type (Drive / Lift): AC MOSFET Controller

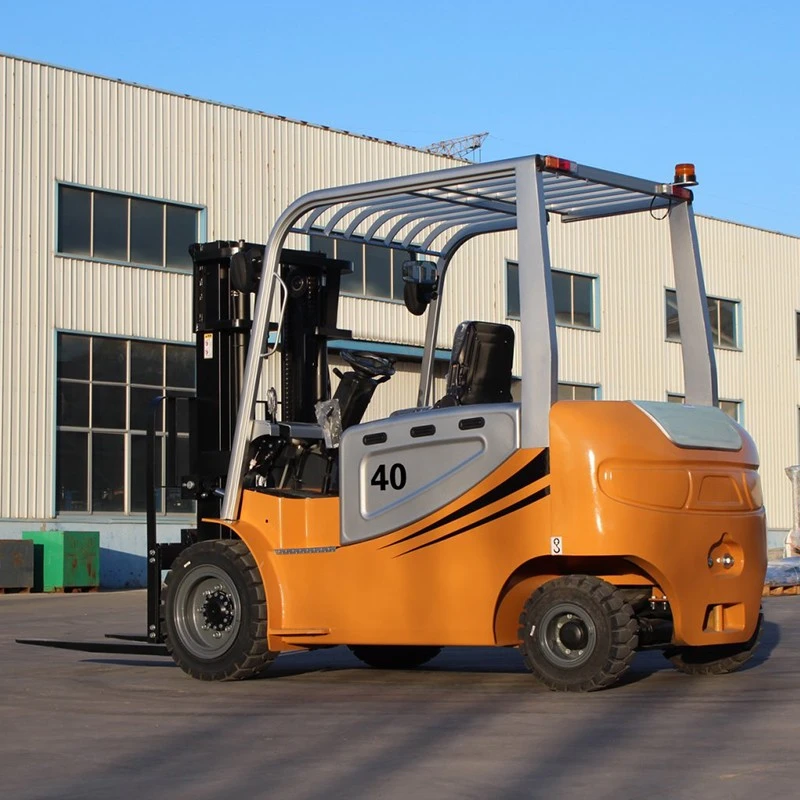

Tire Type: Solid Tires

Tire Size (Front / Rear): 250-15 / 21*8-9

Wheelbase: 2,040 mm

Track Width (Front / Rear): 1,310 / 1,100 mm

Dimensions & Capacity

Mast Tilt Angle (Forward / Backward): 6° / 12°

Mast Height, Retracted: 2,340 mm

Mast Height, Extended (with / without backrest): 4,220 / 3,790 mm

Free Lift Height: 120 mm

Overall Length (without forks): 2,990 mm

Overall Width: 1,585 mm

Overhead Guard Height: 2,350 mm

Fork Dimensions (L x W x T): 1,070 x 145 x 50 mm (Hook-type, adjustment range: 300-1240 mm)

Ground Clearance (Under mast / Center of wheelbase): 160 mm / 160 mm

Min. Turning Radius: 2,700 mm

Right-Angle Aisle Width (Pallet 1000x1000 mm, +200mm clearance): 4,543 mm

Right-Angle Aisle Width (Pallet 1200x1200 mm, +200mm clearance): 4,673 mm

Weight & Axle Loads

Service Weight (with battery): 6,660 kg

Axle Load, Unladen (Front / Rear): 3,230 / 3,430 kg

Axle Load, Laden (Front / Rear): 9,380 / 1,270 kg

Key Features

Dual-Drive AC Motors & High Travel Speed

Dual front-drive AC motors (18 kW travel / 16.5 kW lift) deliver fast acceleration and up to 18 km/h travel speed-matching diesel performance on long warehouse-to-yard routes, without carbon-brush wear or a traction transmission to service.

IPX4 All-Weather & Rough-Terrain Capability

Sealed controllers, waterproof wiring harnesses, and tire options matched to duty: pneumatic tires for mud and uneven yard gravel, solid tires for paved factory floors and warehouses.

80V Fast Lithium Charging for Two-Shift Duty

80V / 300Ah LiFePO4 battery supports ~1-hour fast opportunity charging during breaks, keeping a 4-ton fleet running across double shifts-no 8-hour lead-acid charging downtime.

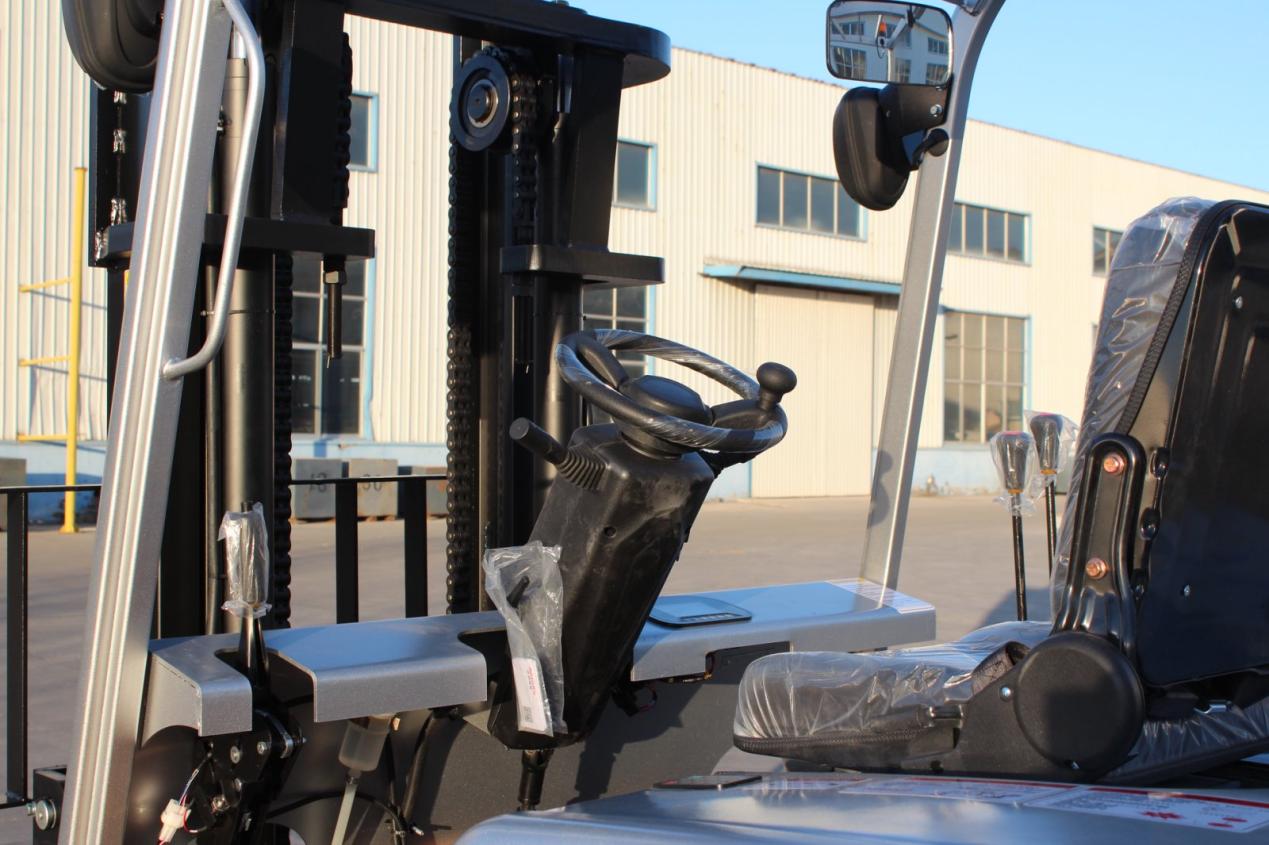

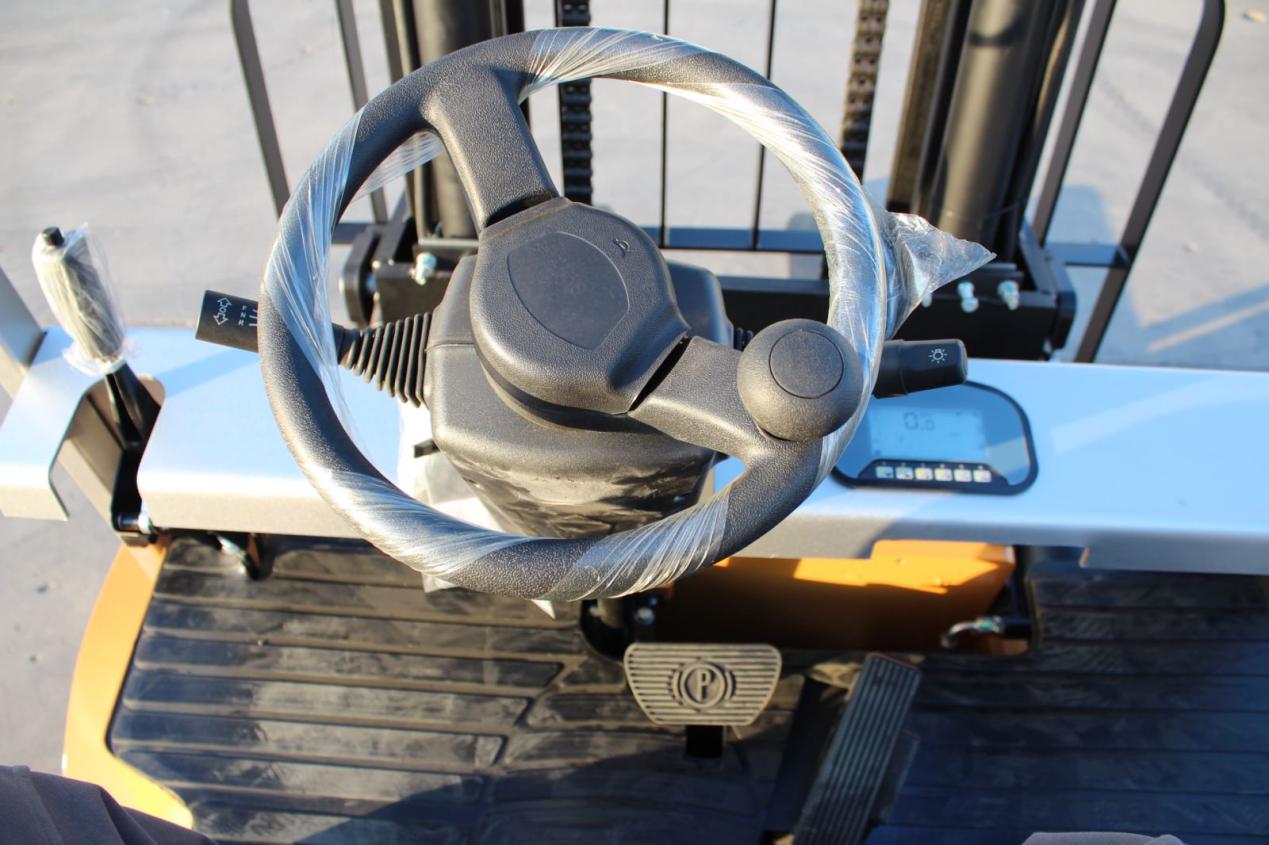

Ergonomic Operator Cabin & Clear-View Mast

Wide-view mast, floating cab with anti-vibration suspension, and full-color LCD display cut driver fatigue across 8-hour freight shifts.

Configuration

Battery

80V / 300Ah Lead-Acid Battery

Mast

Different mast configurations can be selected according to lifting height and overhead clearance requirements.

Fork

Fork dimensions should be confirmed according to the actual load size and pallet configuration.

Frequently Asked Questions

Can this 4-ton electric forklift really handle rainy outdoor yard conditions?

Yes. With an IPX4 waterproof rating, sealed drive motors, and enclosed electronics, it is specifically designed for outdoor loading in heavy rain and damp yard environments.

Can I use a double-pallet handler attachment on this 4-ton forklift?

Absolutely. The 80V hydraulic system provides high oil flow capacity, making it ideal for double-pallet handlers, side-shifters, or fork positioners commonly used in beverage distribution.

How does the turning radius compare to a 4-ton diesel forklift?

Thanks to rear-wheel steer axle geometry and dual front motors, this electric unit offers a tighter turning radius (~2450 mm) than most traditional 4-ton IC engine forklifts, allowing narrower aisle stacking.

What battery does the 4 ton electric forklift use?

The standard configuration uses an 80V / 300Ah lead-acid battery. The battery configuration can affect operating time, charging requirements and overall truck weight, so customers with long operating hours or multiple shifts should confirm their working schedule when requesting a quotation. Other battery options should be confirmed according to the actual truck configuration.

What information should I provide when requesting a 4 ton electric forklift?

For an accurate configuration and quotation, provide the maximum and typical load weight, load dimensions, load centre, required lifting height, pallet type, indoor or outdoor working conditions, floor condition and expected working hours per day. These details help determine whether the standard CPD40-B configuration is suitable or whether the mast, forks, tires or battery configuration should be adjusted.
