Rated Capacity

2,500 kg

Load Centre

500 mm

Battery

72V / 210Ah

Turning Radius

2,370 mm

Applications

The 2.5-ton model fits between the 2-ton and 3-ton classes: extra capacity for pallets in the 1.8–2.2-ton range that push a 2-ton truck close to its rated limit-without the larger footprint and cost of a 3-ton machine.

3PL Logistics & Medium Freight Warehousing

Stacking dense 1.8–2.2-ton pallets (canned goods, paper rolls, hardware) in high-racking systems.

Side-Shifter Integrated Stacking

Operating with built-in side-shifters or fork positioners without exceeding rated capacity limits.

Indoor-Outdoor Cross-Docking

Frequent transitions between indoor storage bays and outdoor loading docks, including ramp and slope handling.

Product Parameters

Basic & Performance

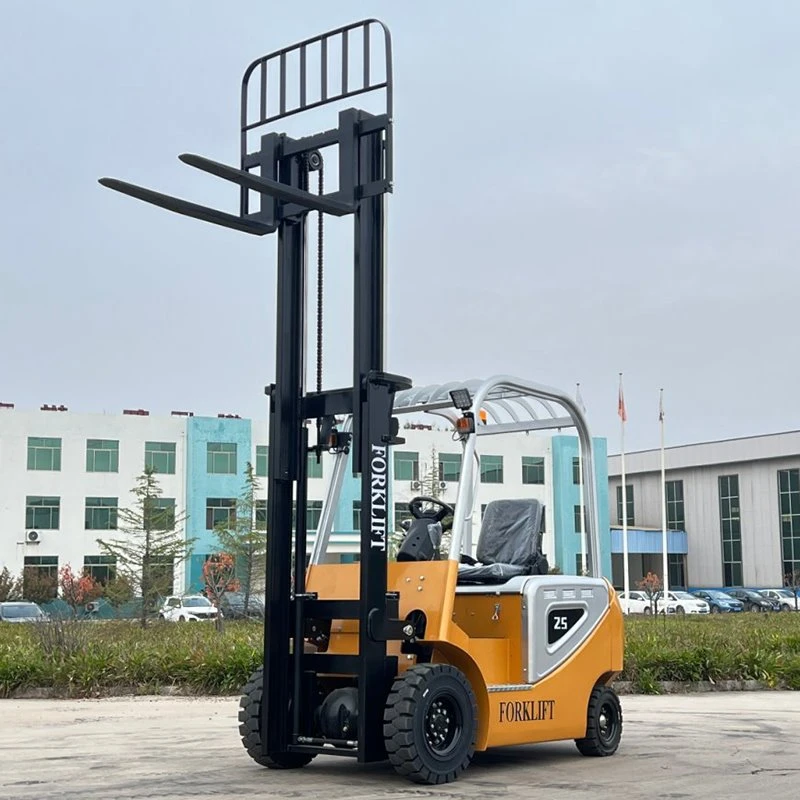

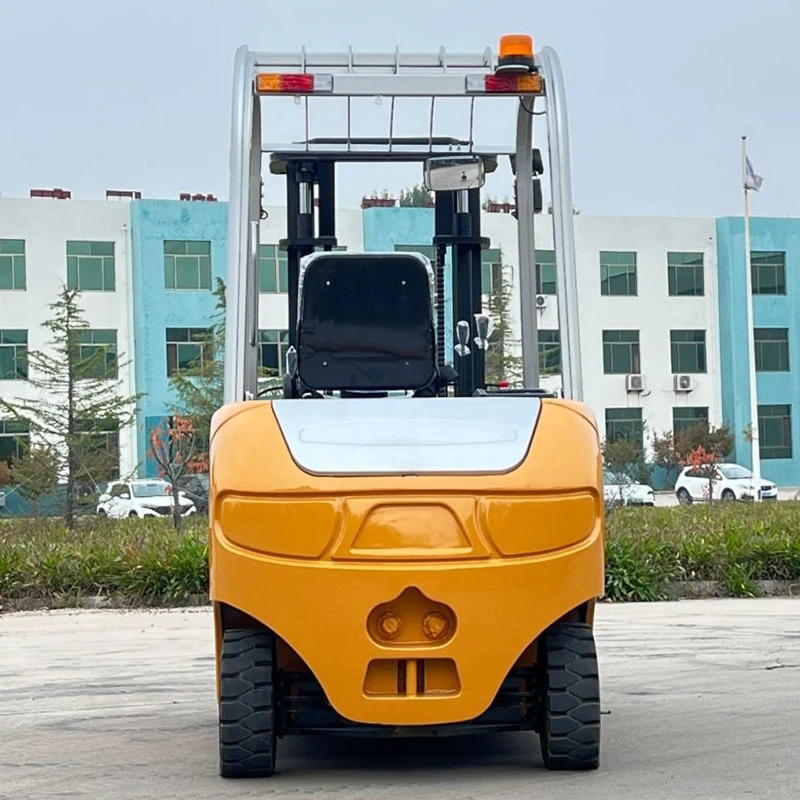

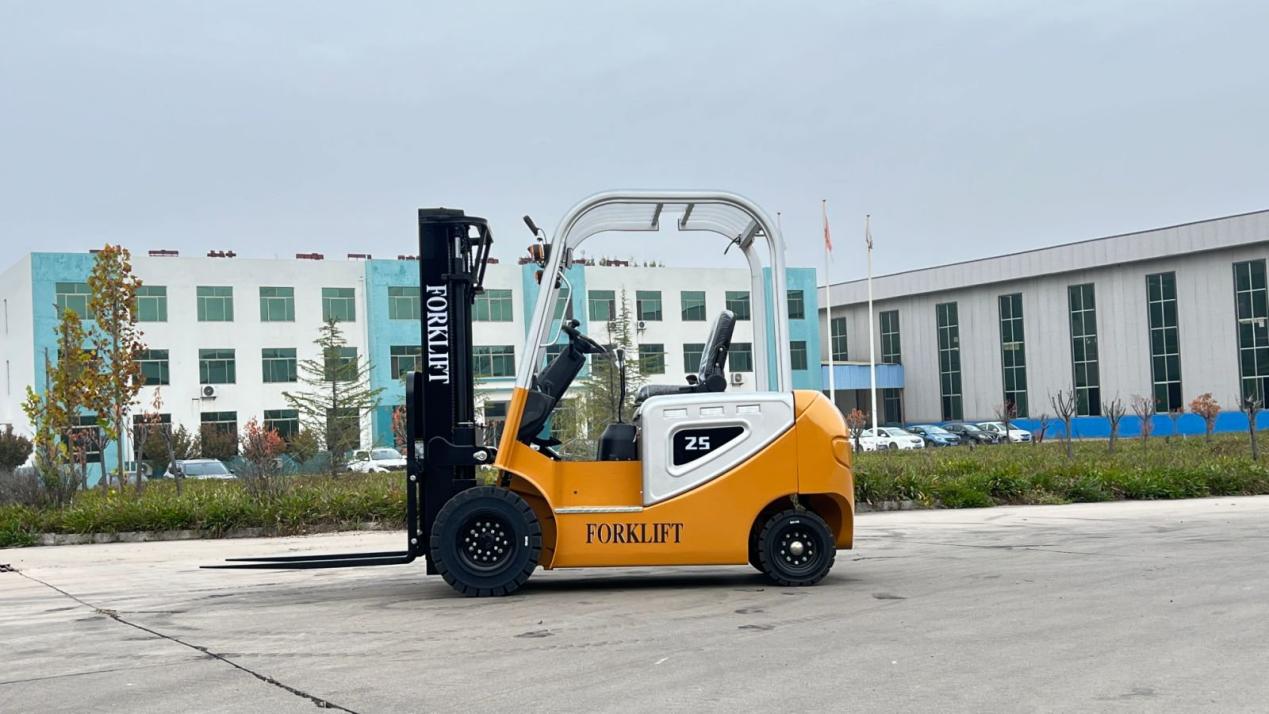

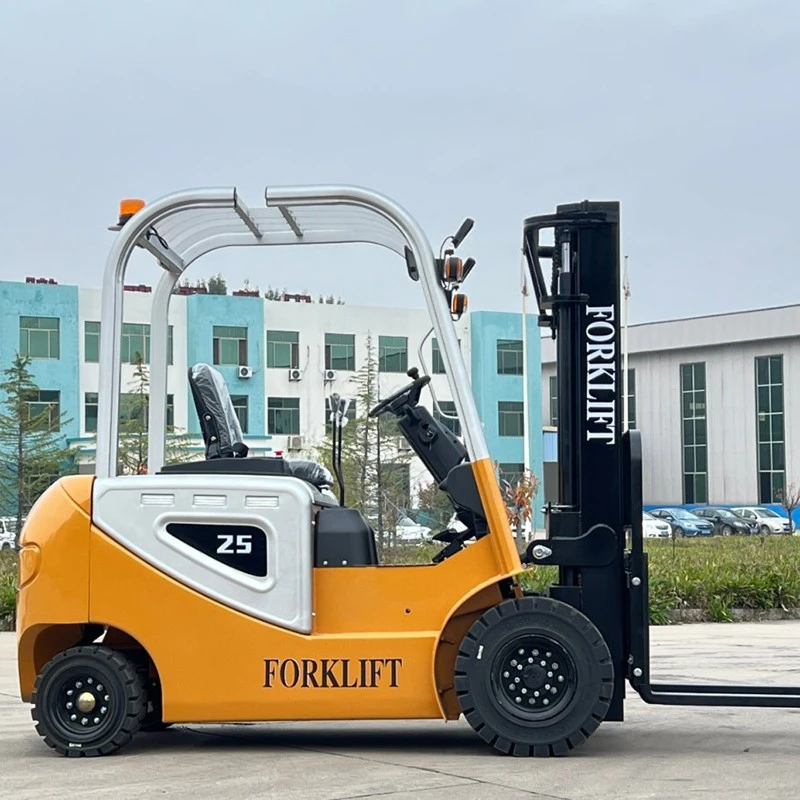

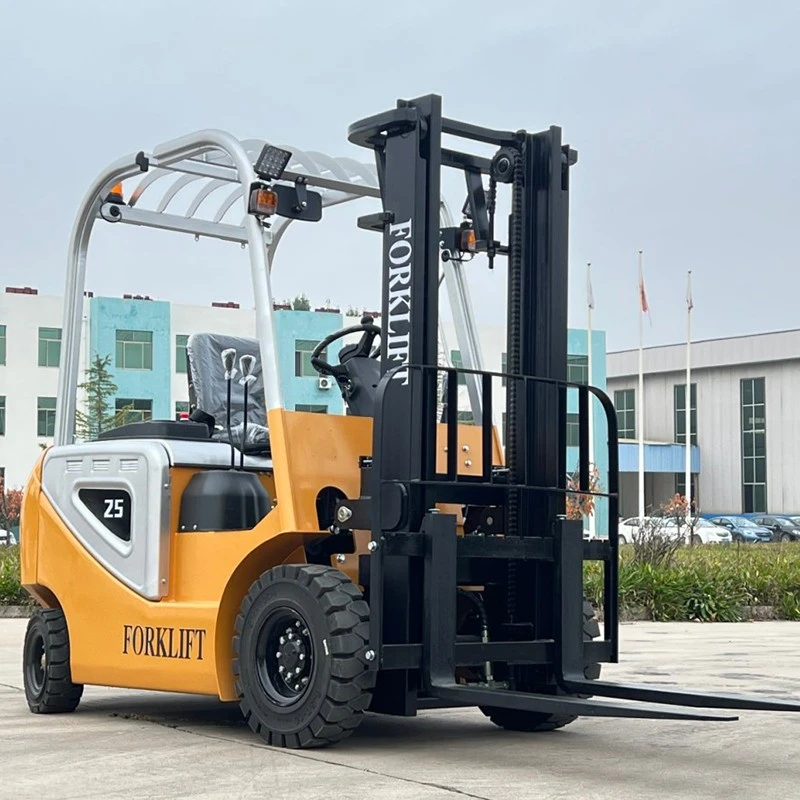

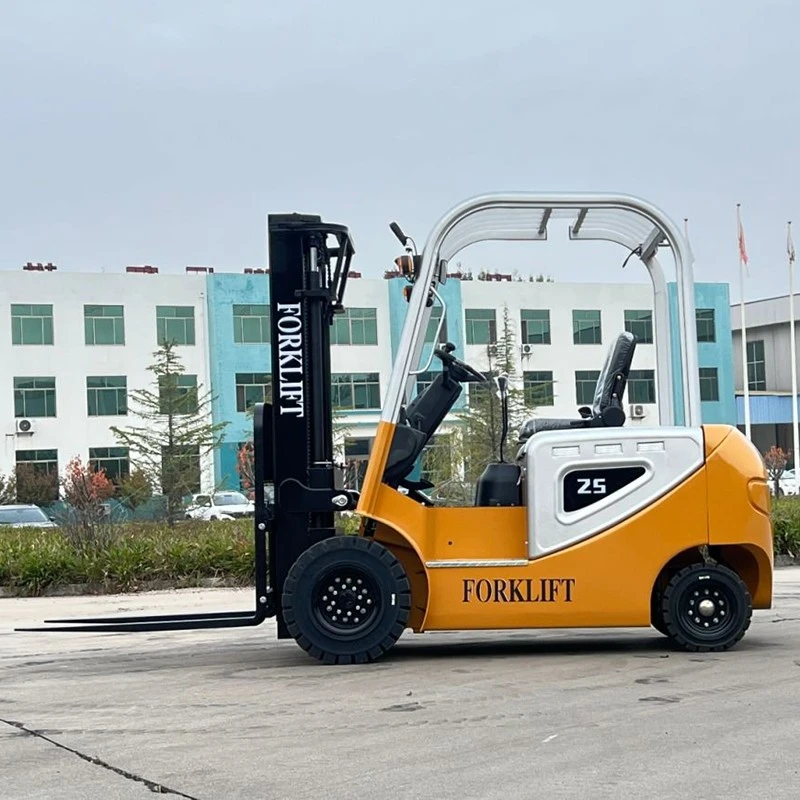

Model: CPD25-C

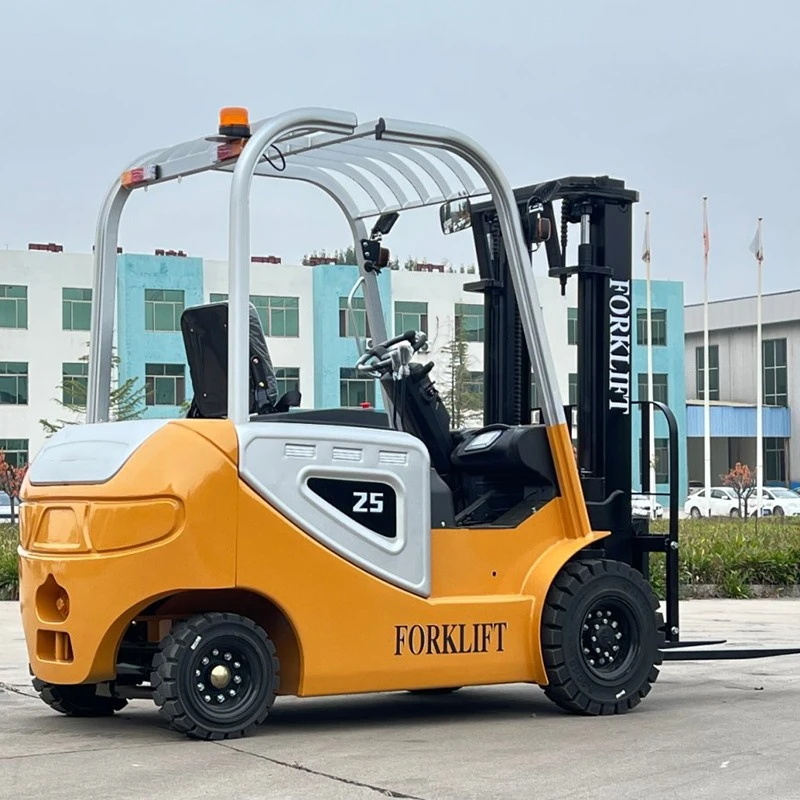

Driving Mode: Seated / Counterbalance

Rated Load Capacity: 2,500 kg

Load Center Distance (c): 500 mm

Travel Speed (Laden / Unladen): 9 / 10 km/h

Lifting Speed (Laden / Unladen): 210 / 250 mm/s

Max. Gradeability (Laden / Unladen): 15% / 20%

Service Brake / Parking Brake: Hydraulic / Mechanical

Power

Drive Motor Rating: 9.0 kW PMSM (Permanent Magnet Synchronous Motor)

Lift Motor Rating: 7.5 kW PMSM

Controller Type (Drive / Lift): MOSFET / AC Controller

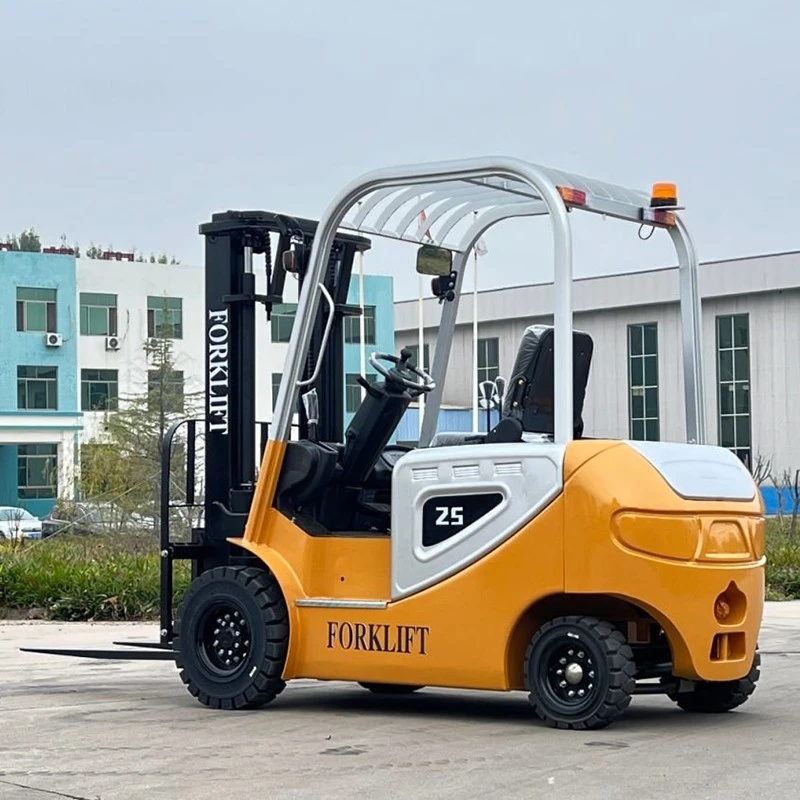

Battery Voltage / Nominal Capacity: 72V / 210 Ah

Battery Weight: 360 kg

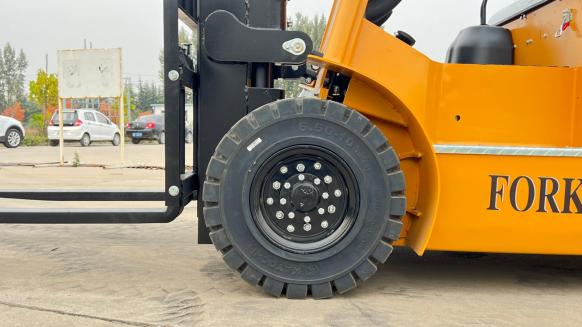

Tire Type: Solid Tires

Tire Size (Front / Rear): 6.5-10 / 16*6-8

Wheelbase: 1,600 mm

Track Width (Front / Rear): 1,010 / 880 mm

Dimensions & Operating Capacity

Standard Lift Height: 3,000 mm

Mast Tilt Angle (Forward / Backward): 5° / 10°

Mast Height, Retracted: 2,030 mm

Mast Height, Extended: 4,055 mm

Overall Length (without forks): 2,390 mm

Overall Width: 1,160 mm

Overhead Guard Height: 2,110 mm

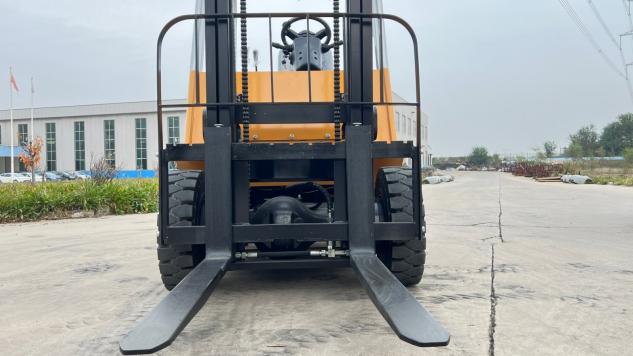

Fork Dimensions (L x W x T): 1,070 x 100 x 40 mm (Adjustment range: 100 - 1,040 mm)

Ground Clearance (Under mast / Center of wheelbase): 88 mm / 110 mm

Right-Angle Aisle Width (Pallet 1000x1000 mm, +200mm clearance): 3,750 mm

Right-Angle Aisle Width (Pallet 1200x1200 mm, +200mm clearance): 3,950 mm

Weight

Service Weight (with battery): 3,150 kg

Key Features

Engineered Capacity Reserve for Mid-Weight Pallets

A reinforced counterweight structure provides the essential safety buffer when carrying 1.8–2.2-ton pallets or operating with hydraulic side-shifters installed.

High-Lift Stability with Capacity Reserve at Height

Nested mast channels and wide-stance lift cylinders keep lifting stable while retaining useful residual capacity when stacking 1.8–2.2-ton pallets to 4.5–6.0 m rack levels.

High-Torque Dual AC Motor & Gradeability Boost

High-torque dual AC drive motors with automatic torque management deliver up to 18–20% full-load gradeability for smooth ramp climbing between indoor and outdoor bays.

Heavy-Duty Hydraulic Pump for Responsive Controls

An upgraded hydraulic gear pump with dedicated oil circuits enables fast, simultaneous lifting and side-shifting response under full load.

Match Forklift Capacity to the Actual Load

Load Weight

What is the heaviest regular load?

Load Centre

Is the load centre close to the standard 500 mm?

Lift Height

How high does the load need to be lifted?

Load Dimensions

Long or bulky loads may change the effective load centre.

Attachment

Side shifter, clamps or other attachments can affect residual capacity.

Rated capacity alone does not determine whether a forklift is suitable.

Frequently Asked Questions

Why should I choose the 2.5-ton forklift instead of the 2-ton model if my pallets weigh around 1.8 tons?

The 1.8-ton load leaves only a 10% safety margin on the 2-ton machine. Once you add a side-shifter or lift above 4 meters, capacity derating will overload a 2-ton machine. The 2.5-ton model provides the essential capacity reserve for safe, daily operation.

Can this 2.5-ton model handle outdoor dock ramps and slopes?

Yes. Fitted with high-torque dual AC drive motors and a heavy chassis, it handles up to 20% full-load gradeability, making it ideal for moving cargo between indoor racks and outdoor truck docks.

How does this 2.5-ton model differ from the 3-ton model?

The 2.5-ton model offers a slightly shorter turning radius (~2200mm) and lower service weight, making it more agile in medium-sized warehouses. The 3-ton model is built for continuous, heavy 2.0–2.5t pallet stacking in high-throughput logistics hubs.

Can the CPD25-C be used outdoors?

It can be considered for suitable outdoor surfaces and operating conditions, but site conditions, tire configuration, weather exposure and ground quality should be evaluated before selection.

What information should I provide for a quotation?

Maximum and typical load weight, load dimensions, load centre if known, required lift height, operating environment, daily operating hours and attachment requirements.
