Product Parameters
- Core Specifications

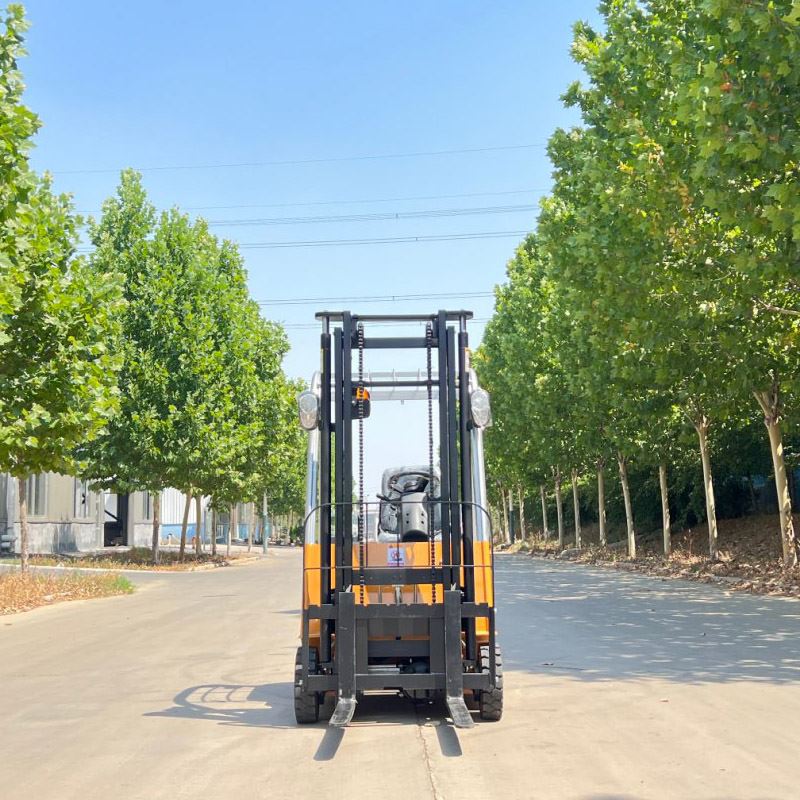

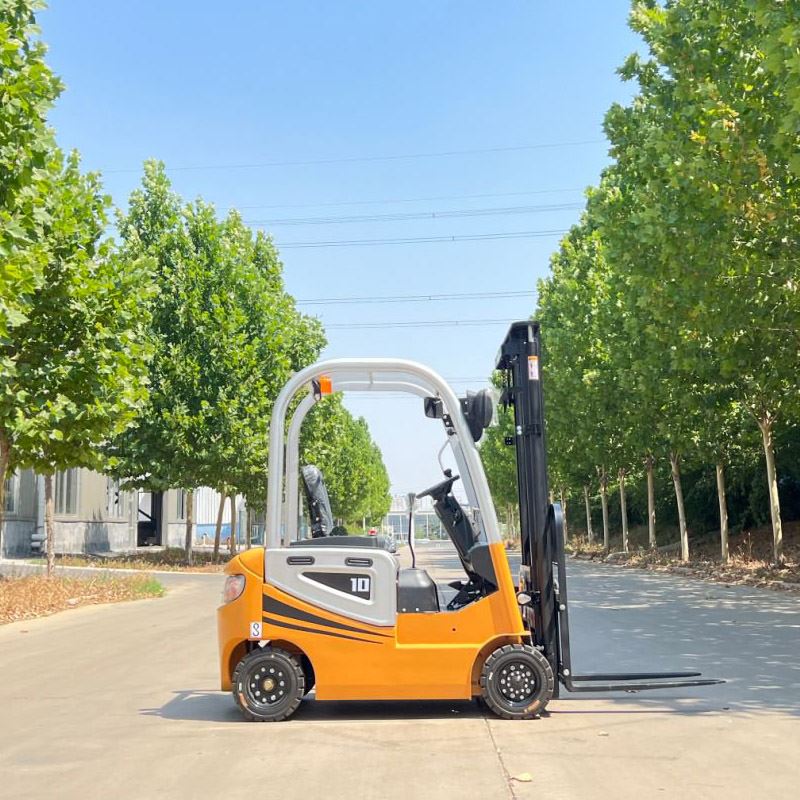

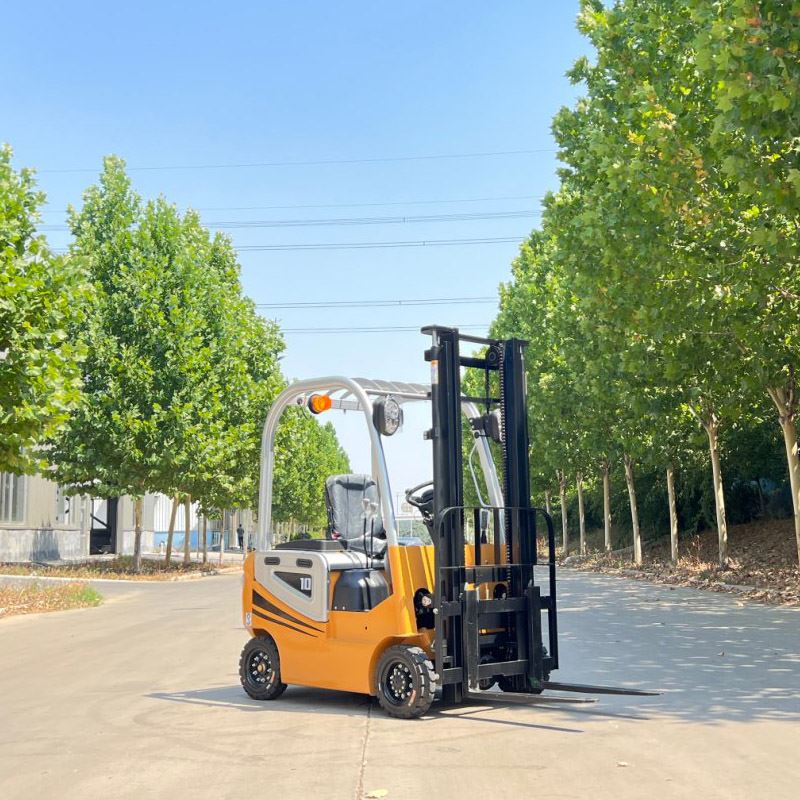

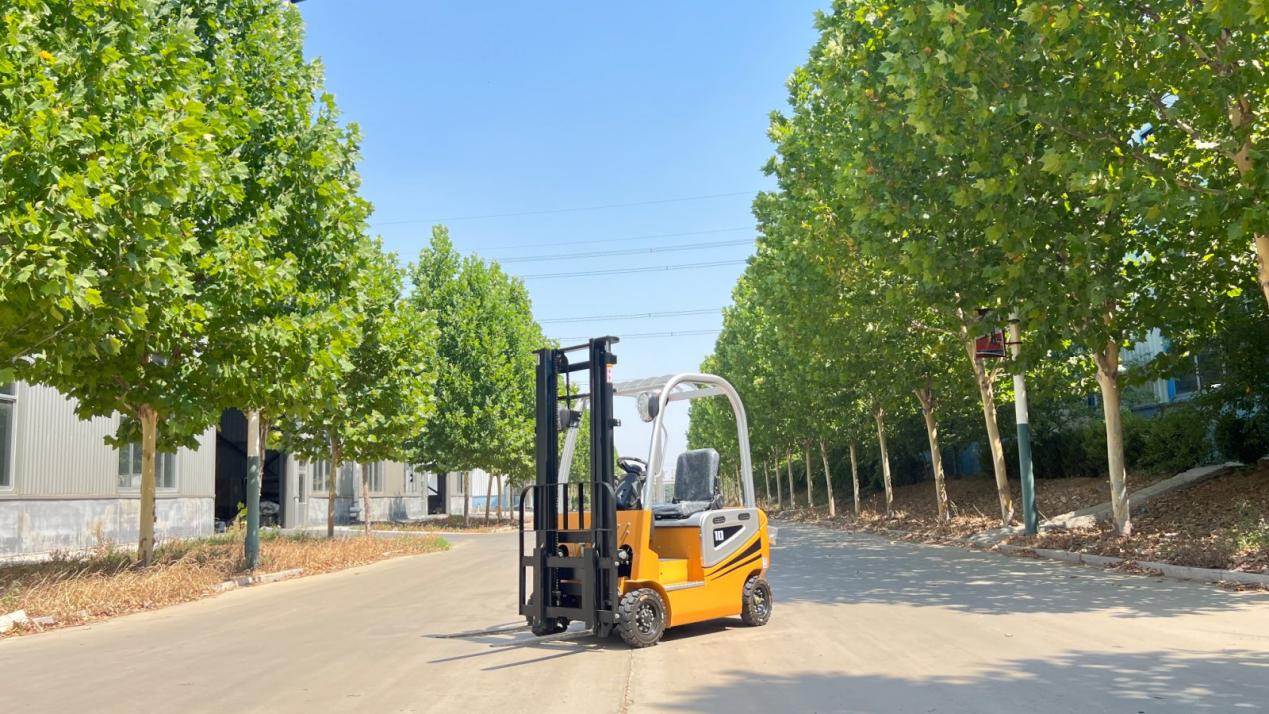

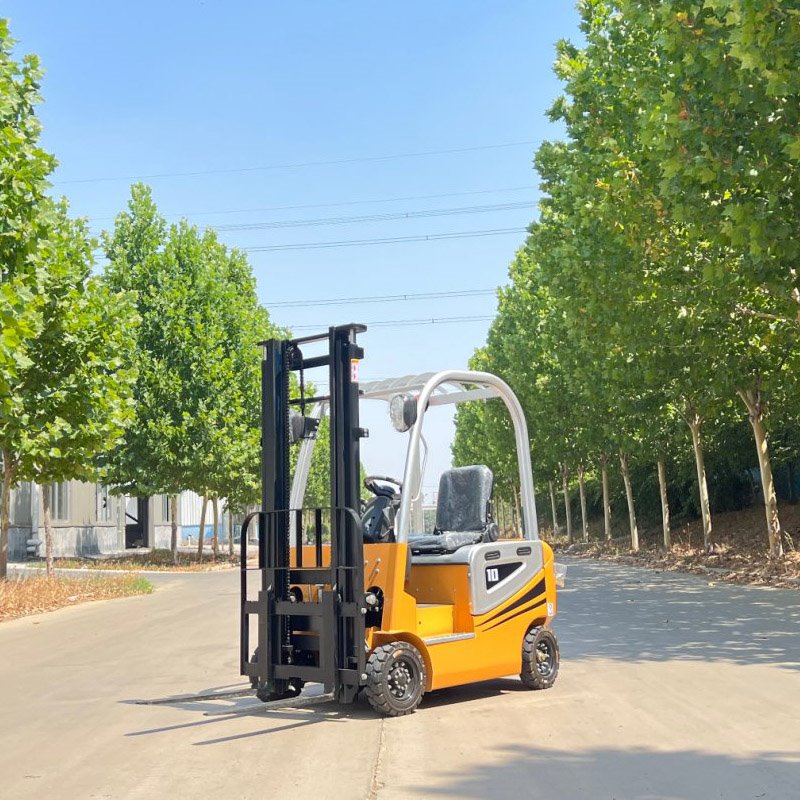

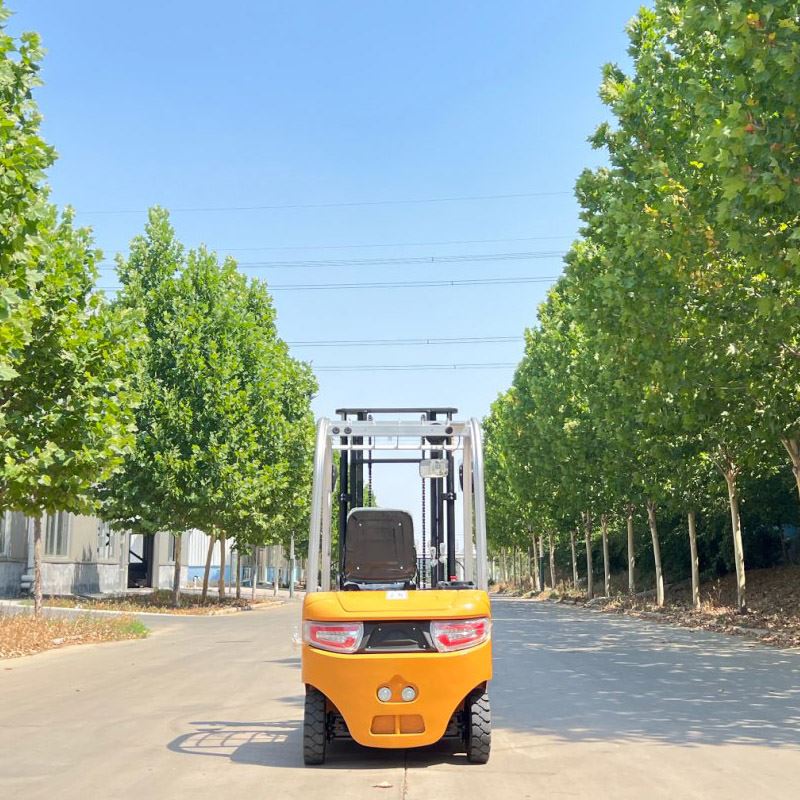

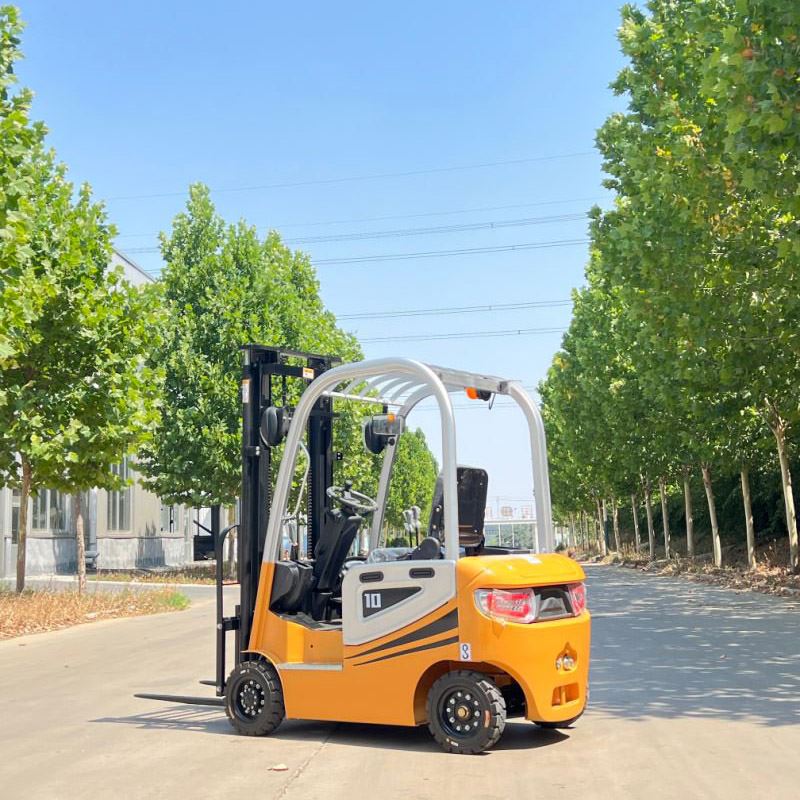

Model: CPD10‑B
Driving Mode: Seated‑operator
Power Mode: Lead‑acid battery
Rated Capacity: 1000 kg
Load Center: 500 mm

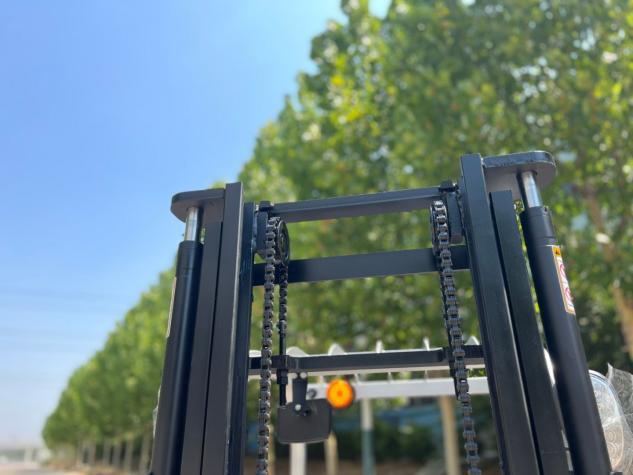

Max. Lift Height: 3000 mm
Mast Tilt Angle (F/R): 5° / 10°
Fork Size (L×W×T): 1070 × 100 × 32 mm
Fork Adjustment Range (Max/Min): 970 mm / 200 mm
- Performance Data
Travel Speed (Laden / Unladen): 11 km/h / 12 km/h
Lifting Speed (Laden / Unladen): 260 mm/s / 280 mm/s
Lowering Speed (Laden / Unladen): 550 mm/s
Max Gradeability (Laden / Unladen): 15% / 20%
- Dimensions & Chassis
Wheelbase: 1200 mm
Length to face of fork (without fork): 1870 mm
Overall Width: 1020 mm
Mast Lowered Height: 2017 mm
Mast Extended Height: 3957 mm
Overhead Guard Height: 1920 mm
Min. Turning Radius: 1850 mm
Ground Clearance (Mast / Wheelbase Center): 77 mm / 100 mm
Right‑Angle Stacking Aisle Width
‑ for 1000×1000 pallet (200mm clearance): 3400 mm
‑ for 1200×1200 pallet (200mm clearance): 3600 mm
Front Tread: 910 mm
Rear Tread: 865 mm
Service Mass (with battery): 1530 kg

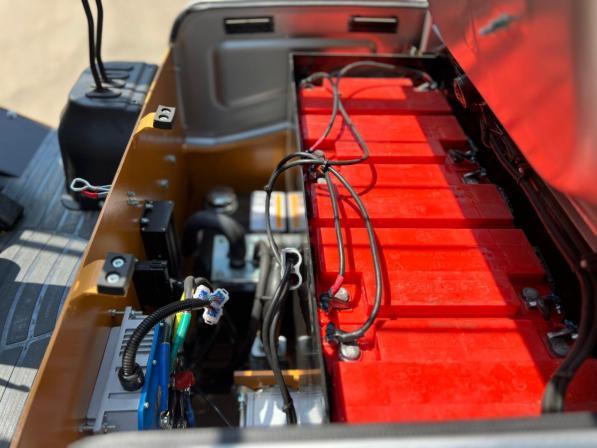

Battery Spec: 48V / 120Ah
- Powertrain & Braking
Drive Motor Rated Power (60min): 5 kW PMSM
Lift Motor Rated Power (15min): 4.5 kW PMSM
Motor Control: MOSFET / PMSM
Service Brake / Parking Brake: Hydraulic / Mechanical
Check Whether the CPD10-B Fits Your Operation
1. Powerful Performance, Efficient Operations
- 1000kg rated lifting capacity for light-duty palletised goods, boxed products and small equipment, with stable and precise load handling. Travel speed hits 14 km/h (empty / full load); max lifting speed 290 mm/s to shorten handling cycles. Dual high-performance motors deliver reliable power for full-load hill climbing and smooth lifting, stable for varied workplace conditions.
2. Compact Design, Flexible and Practical

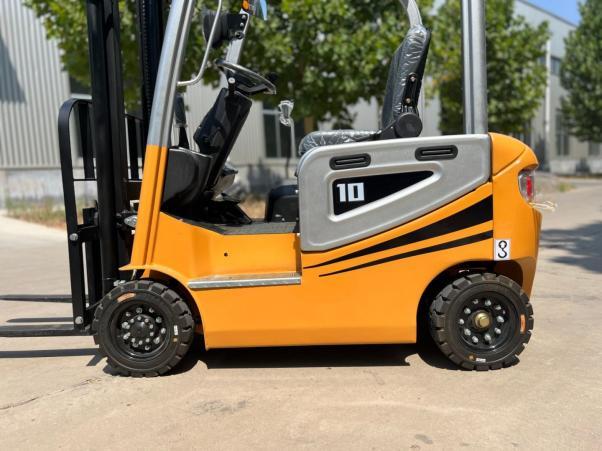

- Compact chassis with small turning radius for easy operation in narrow aisles and crowded workshops, optimising warehouse space usage. Ergonomic layout: adjustable-angle small steering wheel, 150mm sliding seat, ample legroom and improved visibility to reduce operator fatigue and improve safety. Tool-free pin-lock front floor panel for fast access to internal components, simplifying inspection and lowering maintenance time and expense.
3. Multiple safeguards for worry-free safety

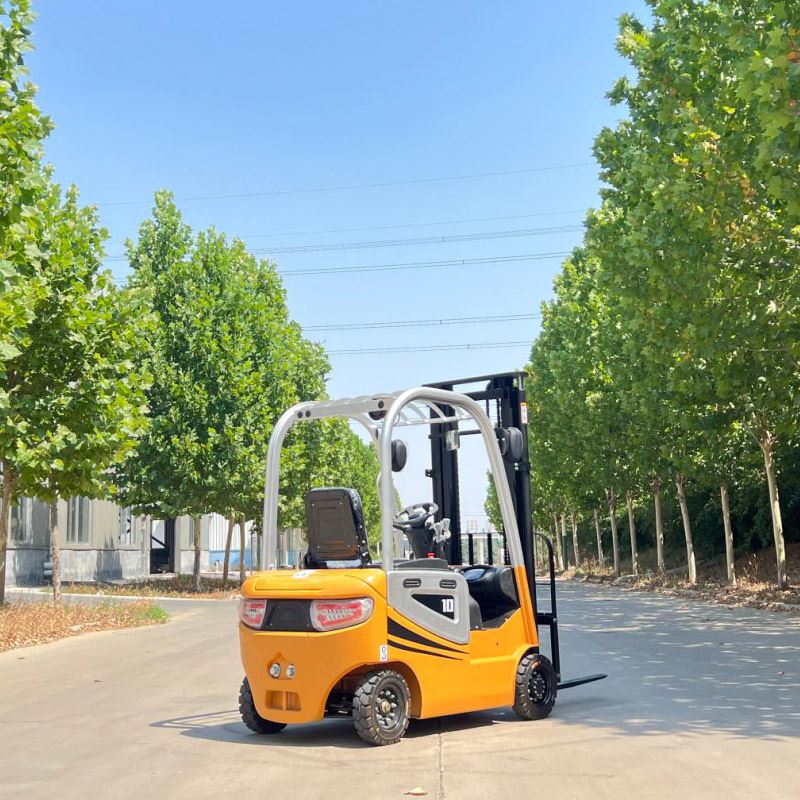

Roof Guard Reinforced rear legs enhance roof guard rigidity, protecting operators from falling objects.
Safety Locks Standard bonnet safety locks prevent accidental hood opening to eliminate visibility and operational hazards.
Intelligent Safety System Built-in electronic & hydraulic overload protection restricts lifting/travel under overload. Optional seat detection disables movement when the operator exits, stopping accidental operation.
4. Environmentally friendly and energy-efficient
- Lithium battery power delivers zero exhaust emissions and low noise, perfect for food, pharmaceutical and electronics facilities. High-density Li-ion battery supports long runtime per charge. No engine oil or filter replacements are needed, cutting energy and maintenance costs over the equipment lifecycle.
Frequently Asked Questions
Can this 1.0-ton forklift enter standard freight elevators?
+
-
Yes. With a compact overall body width under 1.0 meter and an overall height under 2.0 meters, it easily fits into most standard industrial freight elevators for multi-story transport.
Is this forklift safe for upper-floor mezzanine operations?
+
-
Absolutely. Its optimized total weight (approx. 2,100 kg with battery) distributes load evenly across wheels to comply with standard mezzanine floor weight load capacities.
What battery options are recommended for cleanroom or multi-shift use?
+
-
We recommend our 48V Lithium-ion battery system for cleanrooms and high-frequency shifts. It produces zero acid fumes, requires no watering maintenance, and allows opportunity fast-charging during shift breaks.
What aisle width does this forklift require?
+
-
The current specification lists 3,400mm for right-angle stacking with a 1000×1000mm pallet and 3,600mm for a 1200×1200mm pallet. Final aisle requirements depend on the actual truck, pallet and stacking conditions.
What information do you need for a forklift quotation?
+
-
Please provide the maximum load weight, pallet dimensions, load center, required lift height, aisle width, working environment, operating hours and any attachment requirements.
