Rated Capacity

2,000 kg

Load Centre

500 mm

Overall Width

1,096 mm

Turning Radius

2,070 mm

Application Scenario

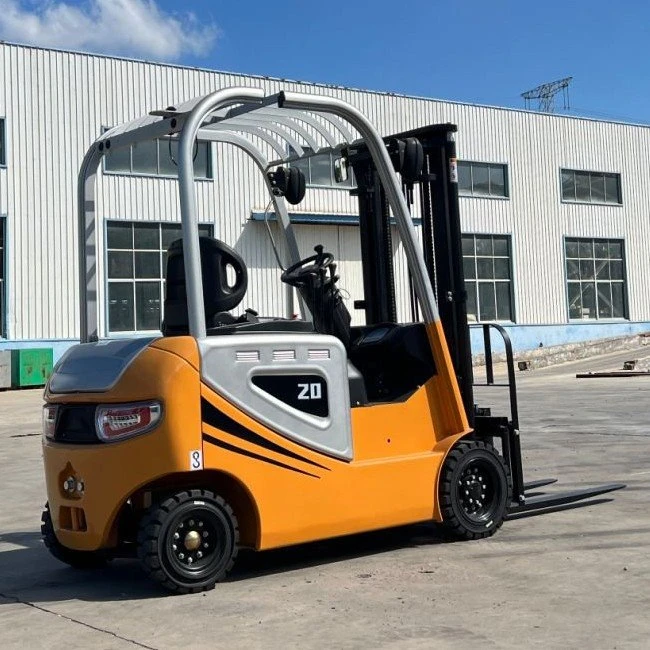

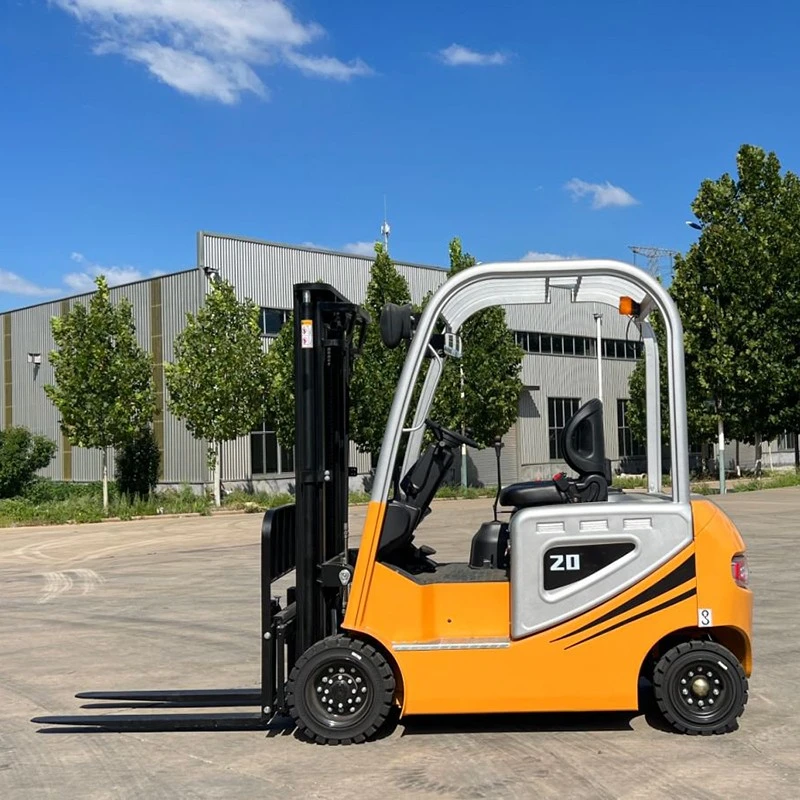

The 2-ton electric forklift is the compact indoor workhorse for facilities where larger counterbalance trucks can't go-moving light-to-medium loads between floors via freight elevators, through cleanroom staging areas, and inside 3.4 m rack aisles, with zero emissions throughout.

Multi-Level Warehouses & Freight Elevators

Moving goods between floors where building floor load capacity and elevator weight limits are strictly enforced.

Electronics, Pharma & Cleanroom Staging

High-frequency indoor handling of light-to-medium component racks (1.0–1.5 tons) with zero emissions for sensitive production environments.

Narrow-Aisle E-Commerce Logistics

A compact width and tight turning radius keep pallet movement efficient in space-constrained layouts: maneuvering smoothly inside 3.4 m rack aisles where larger counterbalance forklifts struggle to turn.

Technical Specifications

Basic & Performance

Model: CPD20-B

Rated Load Capacity: 2,000 kg

Load Center Distance : 500 mm

Travel Speed (Laden / Unladen): 11 / 12 km/h

Lifting Speed (Laden / Unladen): 220 / 250 mm/s

Max. Gradeability (Laden / Unladen): 12% / 15%

Service Brake / Parking Brake: Hydraulic / Mechanical

Electrical Drive, Chassis & Tires

Drive Motor Rating: 5.5 kW PMSM (Permanent Magnet Synchronous Motor)

Lift Motor Rating: 5.0 kW PMSM

Controller Type (Drive / Lift): MOSFET / PMSM Controller

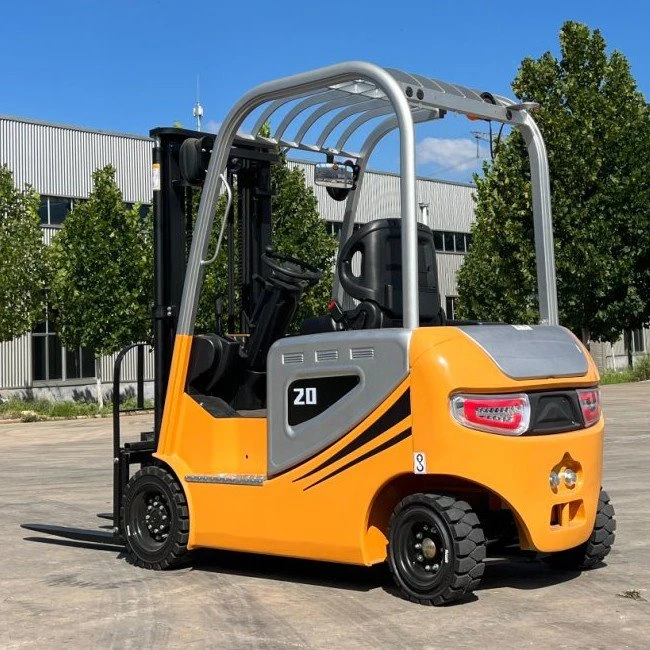

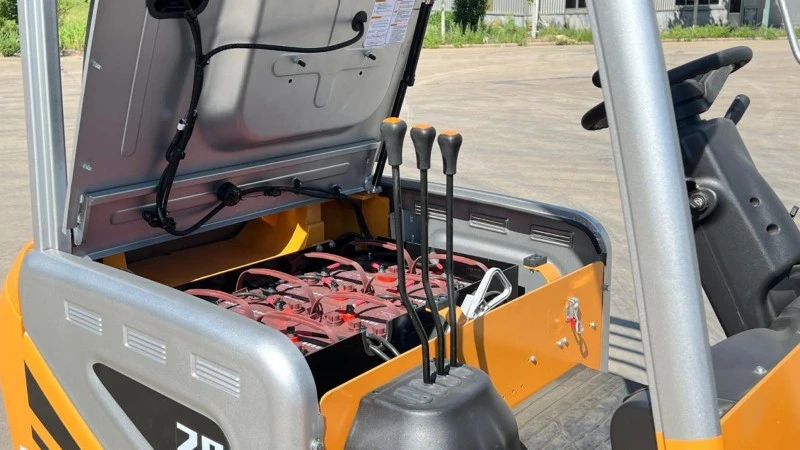

Battery Voltage / Nominal Capacity: 48V / 180 Ah

Tire Type: Solid Tires

Dimensions & Operating Capacity

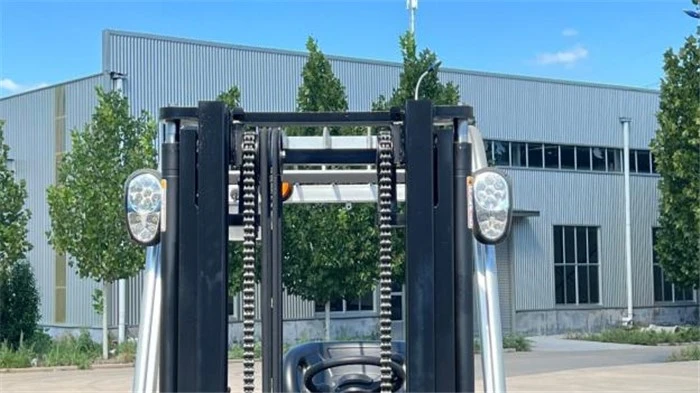

Standard Lift Height: 3,000 mm

Mast Tilt Angle (Forward / Backward): 5° / 10°

Mast Height, Retracted: 2,030 mm

Mast Height, Extended: 4,055 mm

Overall Width: 1,096 mm

Fork Dimensions (L x W x T): 920 x 100 x 35 mm (

Right-Angle Aisle Width (Pallet 1000x1000 mm, +200mm clearance): 3,655 mm

Right-Angle Aisle Width (Pallet 1200x1200 mm, +200mm clearance): 3,855 mm

Weight

Service Weight (with battery): 2,710 kg

Key Features

Optimized Weight Distribution for Floor Load Limits

Ultra-light chassis and optimized axle weight distribution significantly reduce static floor pressure, enabling safe operation on upper-floor mezzanines and inside standard freight elevators.

Short Wheelbase & Ultra-Tight Right-Angle Stacking (AST)

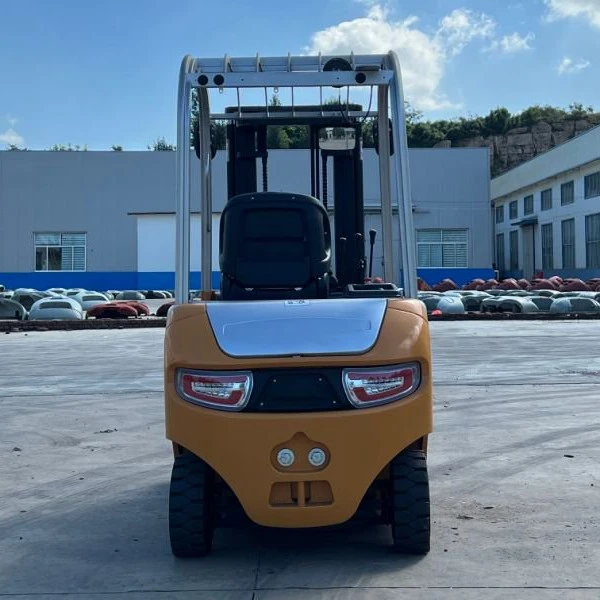

A compact wheelbase and 80° rear steer angle achieve an ultra-small turning radius (2,070 mm) on a 1,096 mm wide truck, stacking standard 1000×1200 mm pallets in rack aisles as narrow as 3.4 m.

Low-Step Ergonomics & High-Visibility Overhead Guard

Ultra-low entry step and angled overhead guard bars give operators fast mounting/dismounting and clear upward vision during repetitive indoor stacking cycles.

High-Efficiency 48V AC System & Low Maintenance

Maintenance-free 48V AC drive with an IP65 sealed controller minimizes power loss during frequent start-stop motions while delivering smooth throttle response on indoor epoxy floors.

What We Need to Match the Forklift to Your Operation

1. Maximum load

What is the heaviest load?

2. Typical load

What is the normal daily load?

3. Load dimensions

Length × width × height.

4. Load centre

Especially important for long or irregular loads.

5. Required lift height

3m? 4m? 5m?

6. Working environment

Indoor / outdoor / cold storage / dusty area etc.

7. Daily operating hours

Helps us recommend battery configuration.

Frequently Asked Questions

Can this 2-ton electric forklift enter standard industrial freight elevators?

Yes. With a total service weight under 3.4 tons (including battery) and a short chassis length, it fits comfortably within standard 4-ton or 5-ton industrial freight elevators for multi-level warehouse operations.

Is the 2-ton model enough if my pallets weigh between 1.0 and 1.5 tons?

Absolutely. For standard 1.0–1.5 ton pallets without heavy hydraulic attachments, the 2-ton model is the most cost-effective, energy-efficient, and maneuverable choice for indoor racking.

Is this 2 ton electric forklift suitable for narrow warehouse aisles?

Its 1,096 mm body width and 2,070 mm turning radius support maneuverability in relatively confined areas. However, the required aisle width should be checked against pallet dimensions, load size and operating clearance.

What battery options are available?

The current CPD20-B specification lists a 48V battery system with 180Ah, 220Ah, 300Ah and 400Ah capacity options. The appropriate capacity depends on operating hours, duty cycle and charging conditions.
