Application Scenario
The 4.5-ton electric forklift sits between the standard 4-ton and 5–6-ton classes: enough extra capacity to handle heavy pallets, metal products, and machinery parts without jumping to a larger truck-while staying compact enough for everyday maneuvering. For loads that are heavy, but not 5-ton-heavy every cycle, it's the capacity-versus-compactness sweet spot.
Beverage & Bottling Distribution
Rapid high-volume loading/unloading of multi-pallet beverage stacks from trucks to staging areas.
Building Materials & Lumber Yards
Transporting heavy packaged tiles, brick pallets, and timber bundles across outdoor yards.
Freight Logistics & Cross-Dock Hubs
Continuous cross-docking operations requiring fast travel speeds and outdoor ramp handling.
Product Parameters
- Basic & Performance

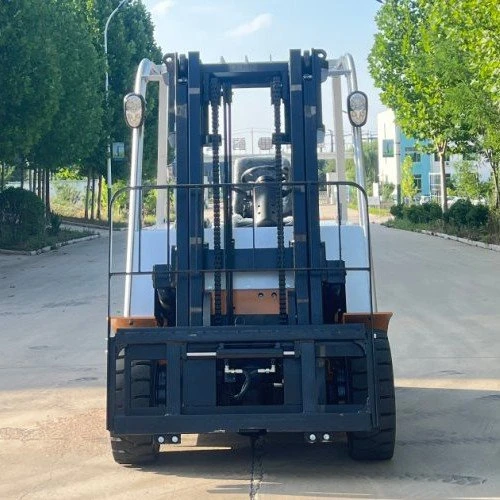

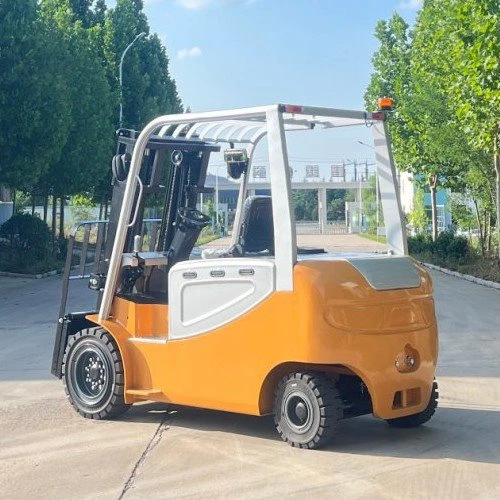

Model: CPD45-B
Driving Mode: Seated / Counterbalance
Rated Load Capacity: 4,500 kg
Load Center : 500 mm
Travel Speed (Laden / Unladen): 12 / 13 km/h
Lifting Speed (Laden / Unladen): 270 / 280 mm/s
Lowering Speed (Laden / Unladen): 450 / 450 mm/s
Max. Gradeability (Laden / Unladen): 15% / 20%
- Electrical Drive, Chassis & Tires
Battery Voltage / Nominal Capacity: 80V / 400 Ah
Drive Motor Rating (AC, 60min): 18 kW
Lift Motor Rating (AC, 15min): 25 kW
Controller Type (Drive / Lift): AC MOSFET Controller
Tire Type: Solid Tires
Tire Size (Front / Rear): 250-15 / 21*8-9
Wheelbase: 2,040 mm
- Dimensions & Operating Capacity
Standard Lift Height: 3,000 mm
Mast Tilt Angle (Forward / Backward): 6° / 12°
Mast Height, Retracted: 2,340 mm
Mast Height, Extended (with / without backrest): 4,220 / 3,790 mm
Overall Length (without forks): 2,990 mm
Overall Width: 1,585 mm
Overhead Guard Height: 2,350 mm
Fork Dimensions (L x W x T): 1,070 x 150 x 50 mm (Adjustment range: 300 - 1,240 mm)
Ground Clearance (Under mast / Center of wheelbase): 160 mm / 160 mm
Min. Turning Radius (Wa): 2,700 mm
- Weight
Service Weight (with battery): 6,850 kg
Key Features
The 4.5-ton electric forklift sits between the 4-ton and 5–6-ton classes: enough capacity margin for loads approaching the 4-ton limit, without stepping up to a larger, less maneuverable truck.
High-Torque 80V Dual-Drive AC Motor
Rapid acceleration and smooth gradeability on outdoor ramps, giving operators power and throttle response comparable to a 5-ton diesel forklift-without fuel costs or exhaust fumes.
LiFePO4 Fast Charging for Multi-Shift Operations
High-capacity 80V LiFePO4 battery with ~1–1.5 h full charge; top up during operator breaks to keep 2-shift or 3-shift workflows running without downtime.
All-Weather Enclosed Cabin & Outdoor Protection
Sealed electrical controllers, IP-rated connectors, and optional enclosed climate-controlled cabin for rain, dust, and cold-weather yard duty.
Optimized Turning Geometry for Tight Freight Bays
A robust 5-ton-class load chassis with compact steering geometry for efficient maneuvering inside congested loading docks and truck bays.
Products Description

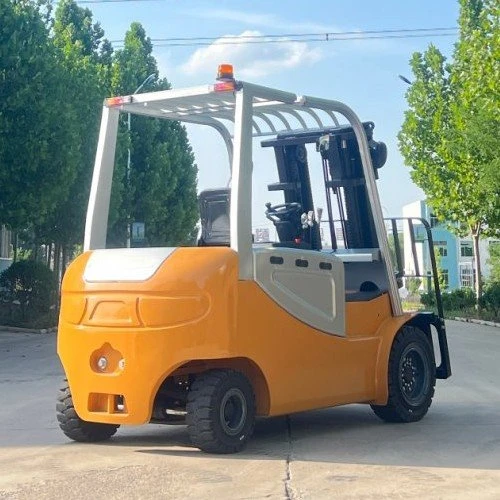

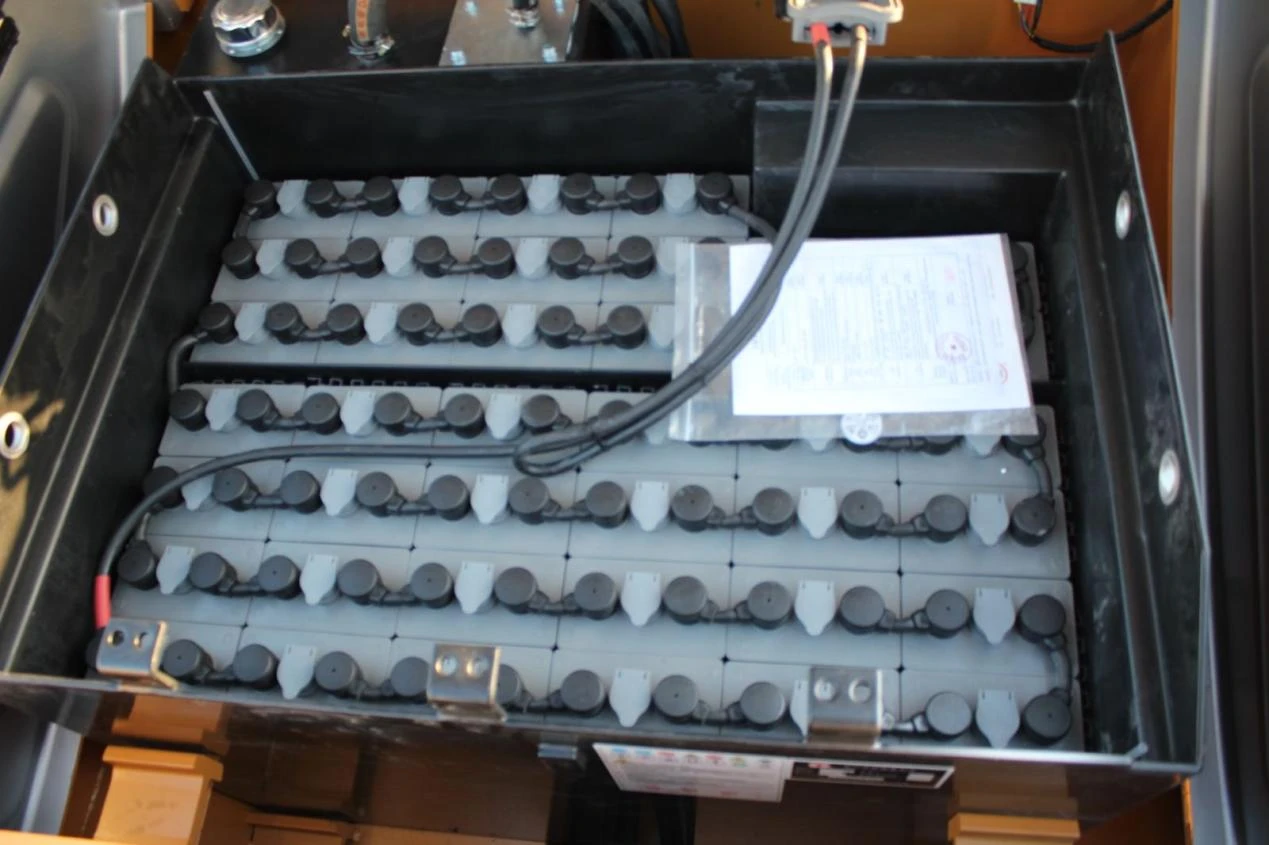

Battery System
80V / 400Ah
Power source for heavy-duty electric operation.
01
Lift System
25 kW AC Lift Motor
Built around repeated heavy-load lifting.
02
Chassis & Axle
Heavy-Duty Load Support
The chassis and axle system support the demands of counterbalance handling.
03

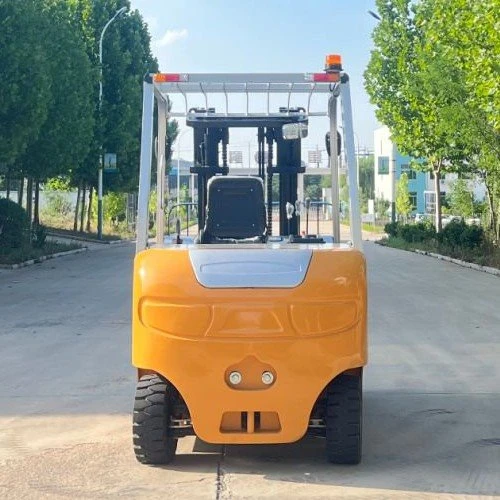

Forks & Load Interface
50 × 150 × 1070 mm
Fork dimensions matched to the standard configuration; attachment and fork options can be discussed according to the load.
04
Frequently Asked Questions
What is the 4.5 ton electric forklift used for?
+
-

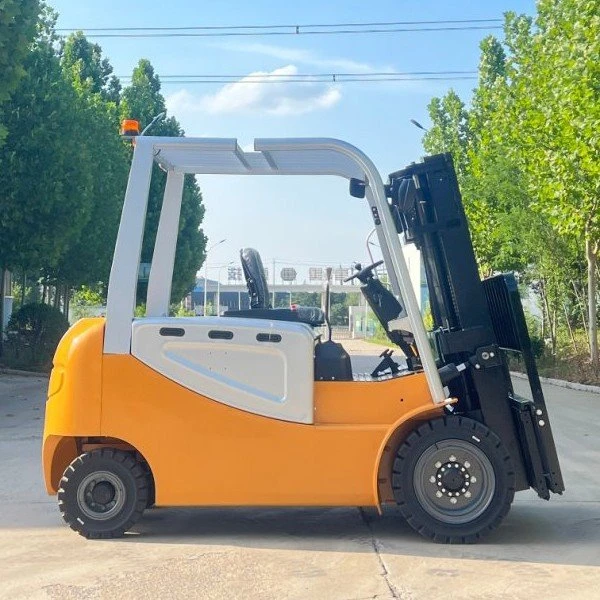

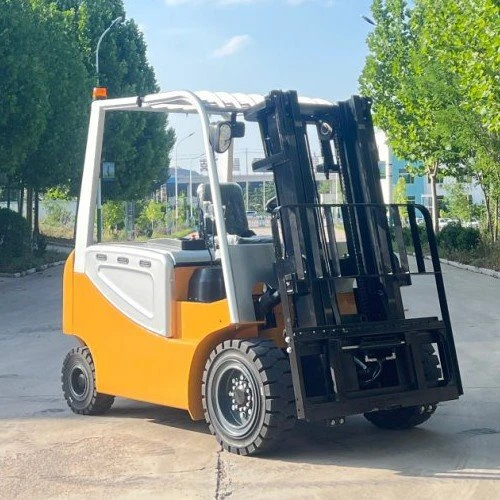

The 4.5 ton electric forklift is designed for industrial handling applications where loads commonly fall around the 4–4.5 ton range. Typical uses include machinery components, metal products, heavy pallets and production material transfer on suitable industrial surfaces.
Can this 4.5 ton electric forklift handle outdoor unpaved or rainy yards like a diesel forklift?
+
-
Yes. Equipped with puncture-proof solid tires, sealed IP-rated electrical components, and optional enclosed cabins, it is specifically built to handle outdoor loading docks, wet conditions, and uneven yard ramps.
Is the 80V lithium battery suitable for 24-hour multi-shift logistics?
+
-
Absolutely. Lithium batteries allow opportunity charging during 15–30 minute break periods without degrading battery life, eliminating the need for battery swapping between shifts.
Can the CPD45-B lift 4,500 kg at any height?
+
-
Not necessarily. Rated capacity depends on factors including load centre, lift height and attachment configuration. For loads close to the rated capacity, provide the load dimensions and required lift height so the correct capacity chart can be checked.
Need to Quote the Right 4.5 Ton Forklift?
Ready‑stock 4.5‑ton electric forklifts: lead‑acid/lithium‑ion batteries, 3‑6 m mast heights, same‑day shipping. Custom upgrades: explosion‑proof, anti‑slip (7‑12‑day lead time). Standard intelligent fault warning; lithium‑ion variant: 10‑12 h runtime.
Capabilities Flexible lines | 10k+ annual output | Urgent orders in 20 days
