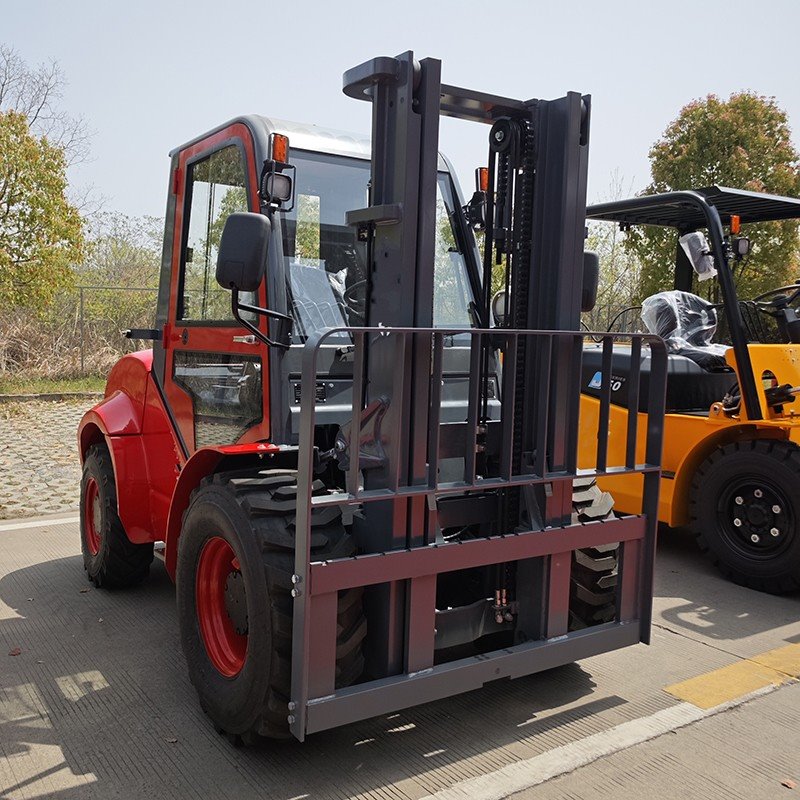

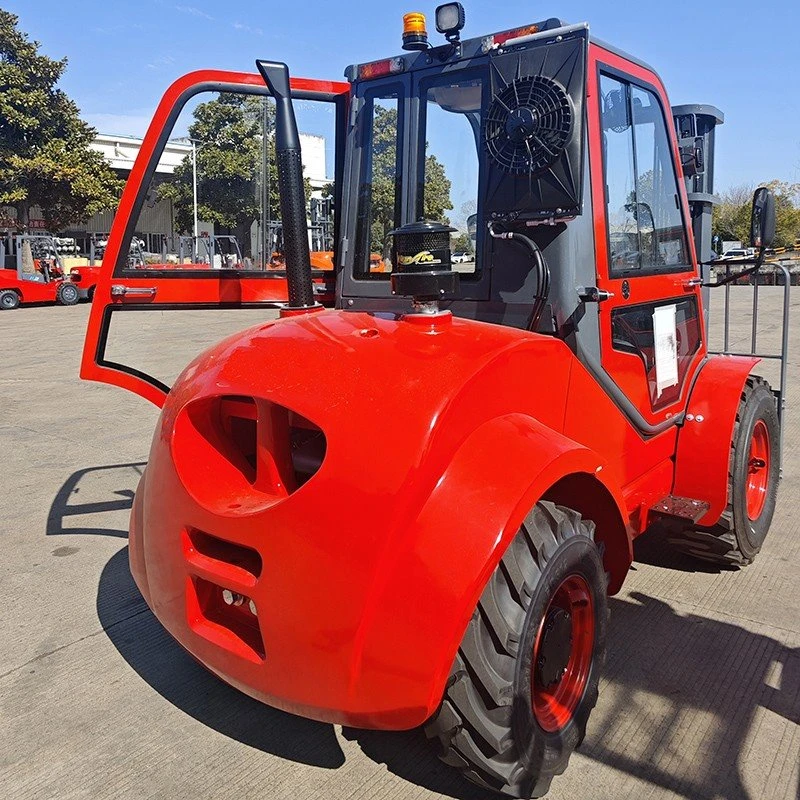

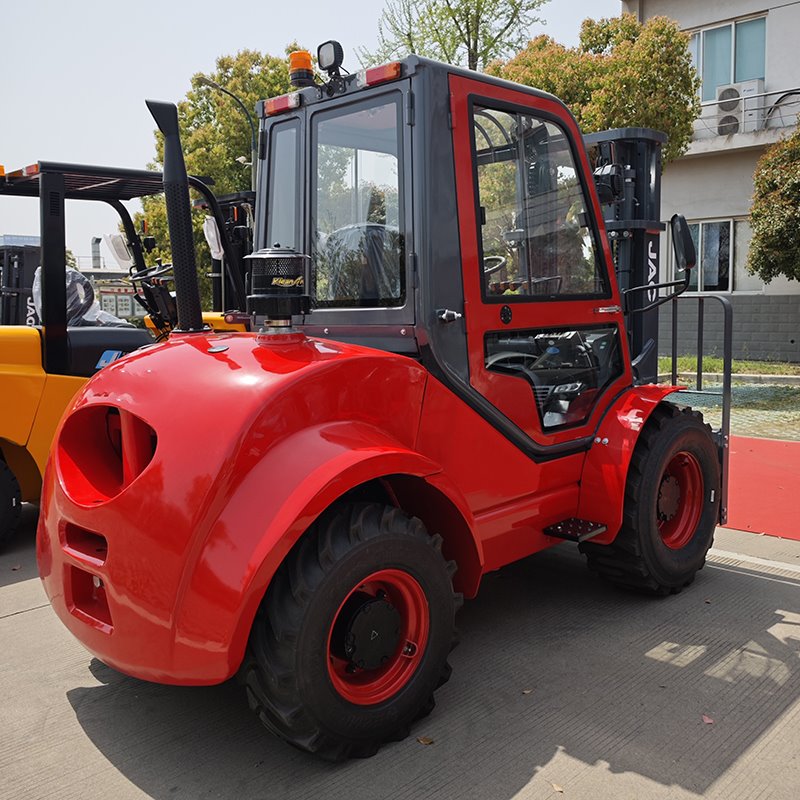

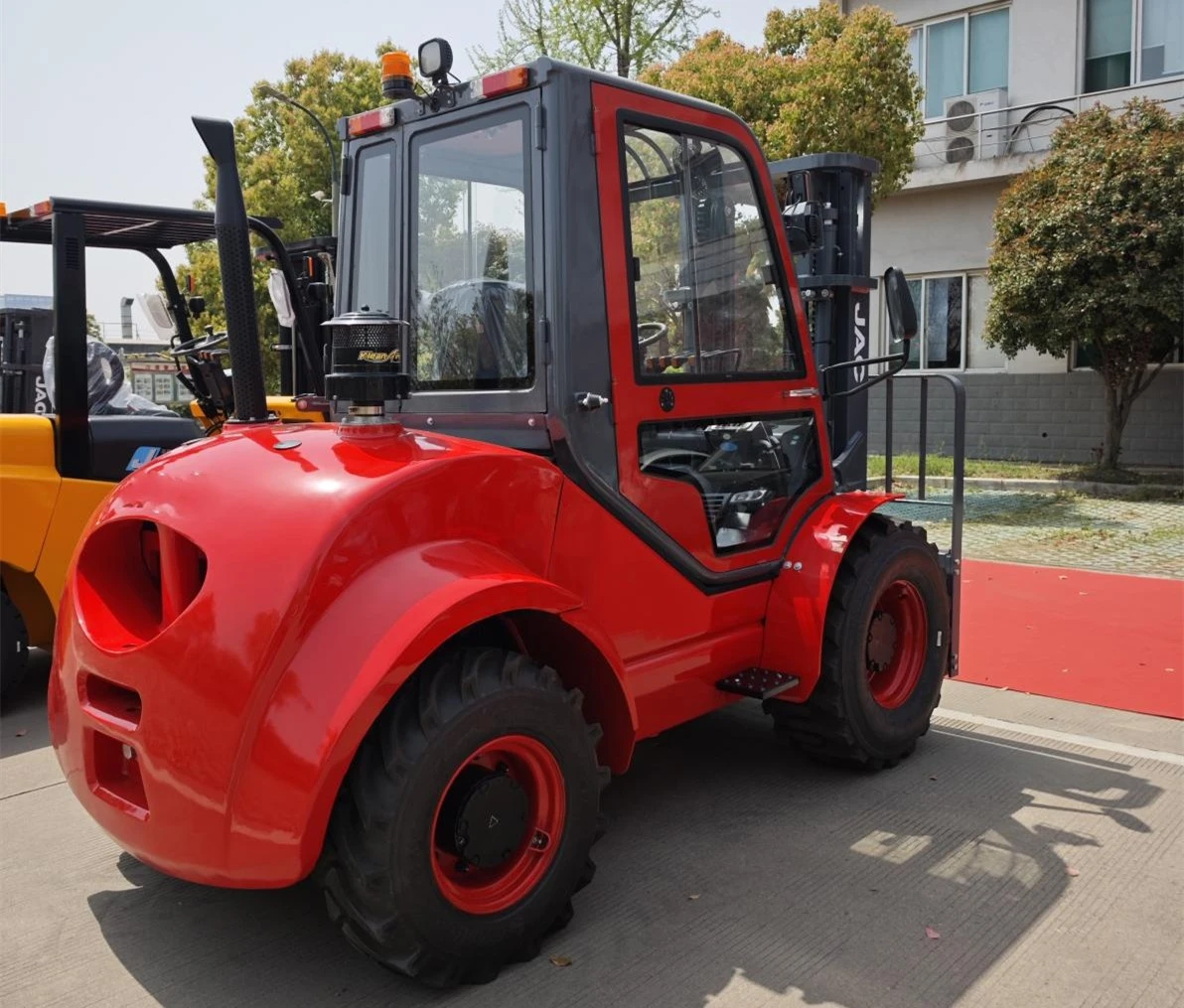

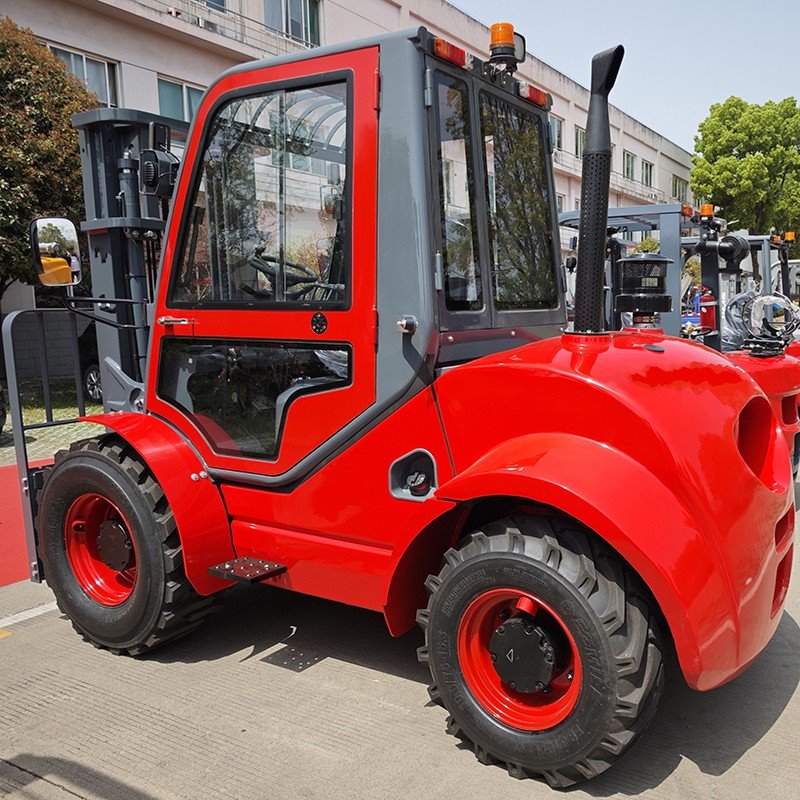

3.5 Ton Off-road Forklift: CPC35
The 3.5-ton forklift is suitable for handling medium and heavy goods, such as transporting metal raw materials and mechanical components in manufacturing workshops, loading and unloading heavy pallet goods in large logistics warehouses, connecting heavy goods in containers at ports and terminals, and handling steel, cement, and other building materials in the building materials market. Its 3.5-ton load capacity is suitable for heavier goods and can operate on flat indoor and outdoor surfaces, meeting the short distance transportation, stacking, and loading and unloading needs of medium and heavy goods, and is suitable for high load operation scenarios.
Product Parameters
- Identification
Model: CPC35- R
Power type: Diesel
Rated capacity(kg): 3500
Load center (mm): 500
Lift height(mm): 3000
Free lift height(mm): 244
Mast tilt angle F/R (Deg): 10°/12°
Min turning radius(mm): 2870
Min ground clearance(mm): 263
Height of overhand guard(mm): 2285
Overhang(FR)(mm): 587
- Performance
Max travel speed(Full)load(km/h): 23
Max lift speed(Full)load(mm/s): 530
Max drawbar pull(Full)load(kW): 20
Gradeability(%): 20
- Dimensions
Overall length(without forks)(mm): 3047
Overall width(mm): 1610
Fork height at max lift(with backrest)(mm): 4400
Mast height(mm): 2253
- Chassis
Tires(Front wheel): 14-17.5 14PR ESK 308
Tires(Rear wheel): 27*10-12 14PR
Wheel base(mm): 1880
Tread(Front wheel)(mm): 1250
Tread(Rear wheel)(mm): 1220
Self weight(without load)(kg): 5260
- Drive
Battery(Voltage/capacity)(V/ah): 12/105
Engine: YANMAR 4TNE 98
Rated output(kw/r.p.m): 42.1/2300
Rated torque(Nm/r.p.m): 177.6-196.3/1700±100
Bore*stroke(mm): 98*110
Number of cylinders: 4
Displacement(L): 3.319
Fuel tank capacity(L): 52
Transmissions(FWD/RWD): 2/2 manual shift
Operating pressure(Mpa): 18.5
- Supplement
Tire type(FR/RR): Pneumatic
Number of wheels(FR/RR)(pcs): 2/2
Lowering speed(full load)(mm/s): 355
Lowering speed(no load)(mm/s): 360
Axle load distribution(full load)(FR/RR)(kg): 7700/1060
Axle load distribution(no load)(FR/RR)(kg): 2060/3200
The advantages of a 3.5-ton forklift are significant: the 3.5-ton load is suitable for medium and heavy goods, meeting the heavy load requirements of metal raw materials, mechanical components, etc. Strong power (internal combustion/electric optional), efficient operation, and reduced cargo turnover time. Strong adaptability, can be operated on both indoor and outdoor flat surfaces, and has good ground compatibility. Flexible operation, precise steering, excellent stability under high-intensity operations, convenient maintenance, and reduced operating costs.
Four Highlights
No.1: High-grade configuration

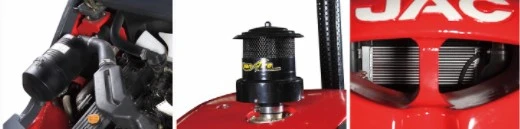

*Excellent system design
Inrel system provided with double air filters that prolong service life of engine while the working condition is poor.
*Independent radiator for engine and torque converter improves heat balance of the system and prolongs service life.
No.2: Excellent operating performance
*High performance engine
Regular YANMAR 4TNE98 engine featuring advanced technology, stable performance and has reached EURO Ⅲ emission regulation.
*Load sensing hydraulic system
Load-sensitive hydraulic system ensures the fork to lift with full load while the engine is running idly so as to reduce fuel consumption.

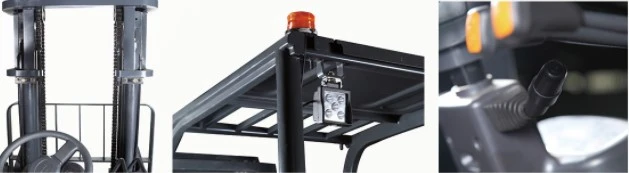

*Regular LED for outdoor operation at night
Double LED headlamp;
Single LED rear light;
Rear combined LED light;
Warning lights;
Elegant design and applicable to field operation where the lighting is poor;
*Large ground clearance
Min ground clearance reachs 263mm
*Off-road performance
The driving wheels feature large diameter,deep pattern and wide section for excellent off-road performance.
*Self-rescue
The transmission case is provided with a differential lock foe self-rescue in case the machine is trapped muddy ground.
No.3 High safety and reliability
*Integrated cover of fuel and oil to reduce leak
*OPS seat
The forklift fails in moving and mast fails in rising once the driver has left the seat.
*Manual brake for safety
The forklift will not move still the manual brake has been activated.
No.4 Convenient maintenance
*Return oil filter is located outside of the body for easy replacement and washing.
Inventory And Product Condition
Large scale intelligent manufacturing x scenario customization - your agile supply chain support
DAWNSHINE, with years of service experience, product innovation, and service network advantages, closely monitors customer needs, provides customers with more efficient and convenient solutions, and creates value for users.
We focus on producing and supplying efficient and reliable forklift products. With a mature production system and optimized supply chain management, our factory produces tens of thousands of forklifts annually, which can meet your continuous order needs.
At the same time, we can provide powerful customized forklift solutions for different work scenarios. We will provide you with products that meet your needs for any customized forklift. Strict quality control processes are implemented throughout to ensure excellent performance and durability of each forklift. Manufacturing strength guarantee:
Annual production of over 10000 flexible production lines, supporting delivery of urgent orders within 20 days.
