Applications
Night-Shift Warehouse Replenishment
Night replenishment, pallet positioning in front of racking, and short-distance transfer. Lighting conditions change during night operations, making supplementary illumination around the load area useful.
Underground Storage Areas
Pallet transfer, storage and retrieval in basement facilities where natural lighting is unavailable. Confirm ventilation, floor, lighting and equipment operating requirements before use.
Enclosed Workshops & Poorly Lit Transfer Areas
Internal material movement in enclosed workshops, short transfers between warehouse and production areas, and pallet positioning at loading zones where ambient lighting is limited.
Low-Clearance Transitions & Narrow Aisles
Passing through low doors, under mezzanines, or inside standard freight elevators, with a compact chassis for maximum turning flexibility in tight rack channels.
Product Parameters
- Basic & Performance

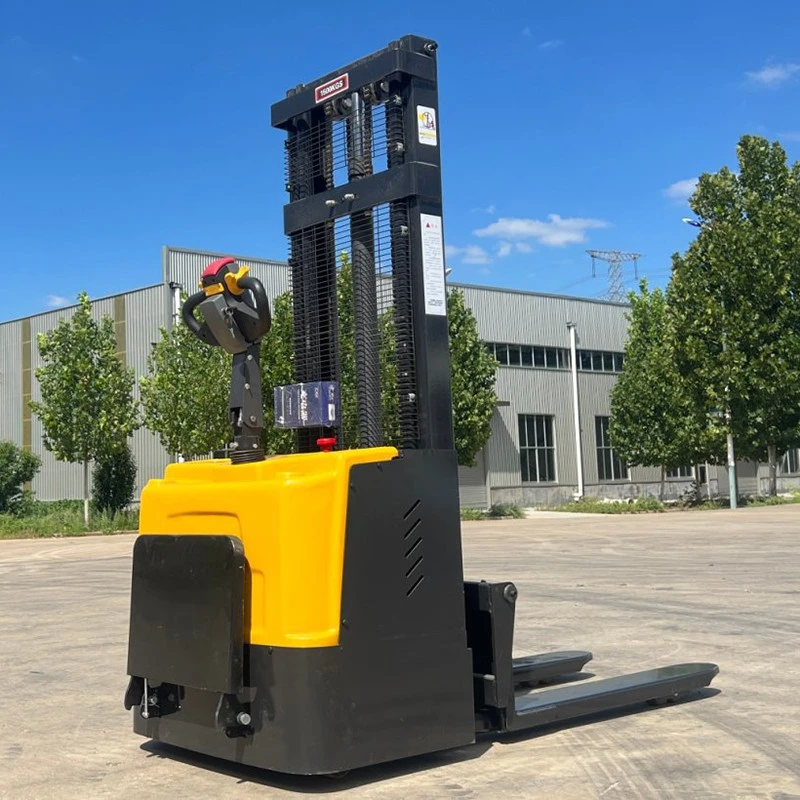

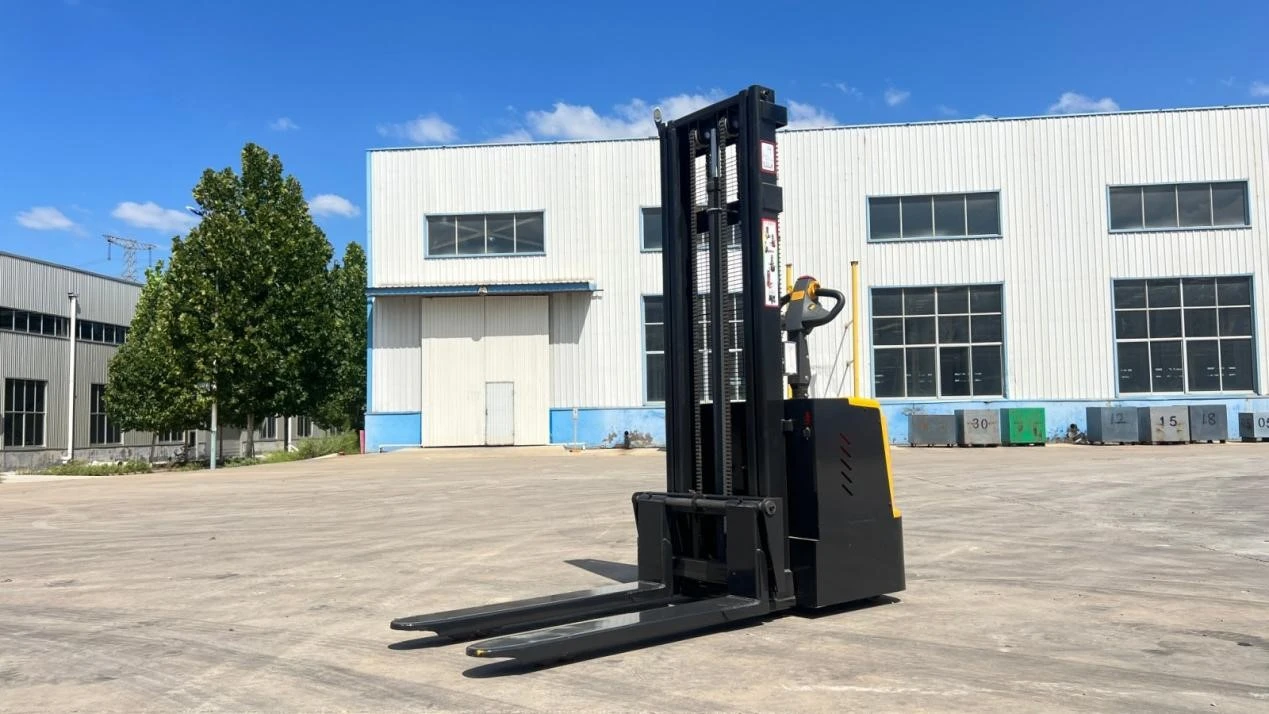

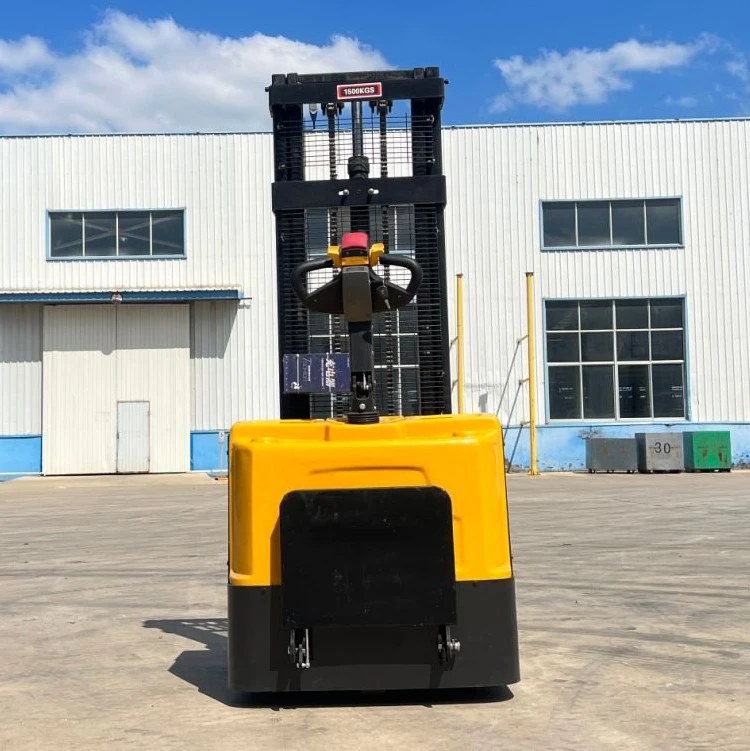

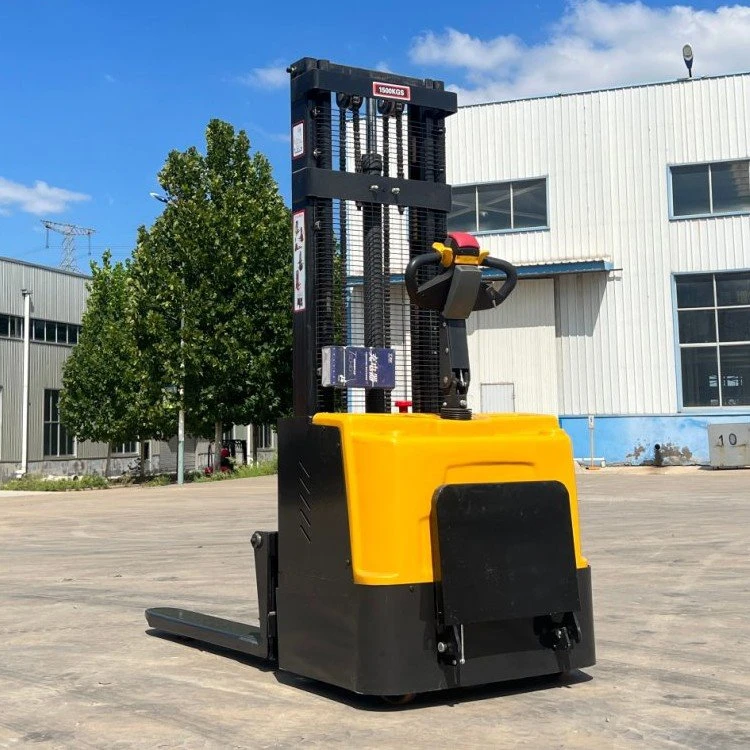

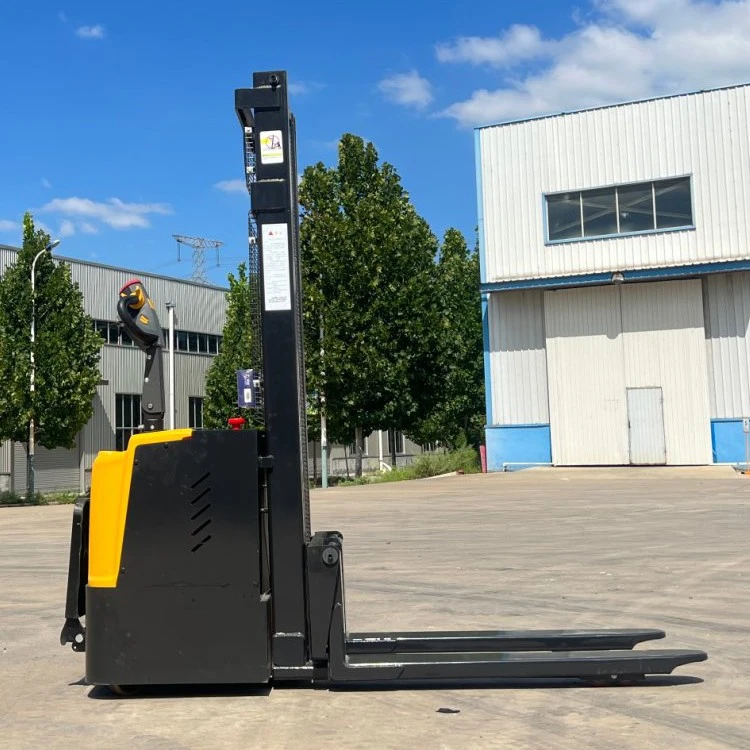

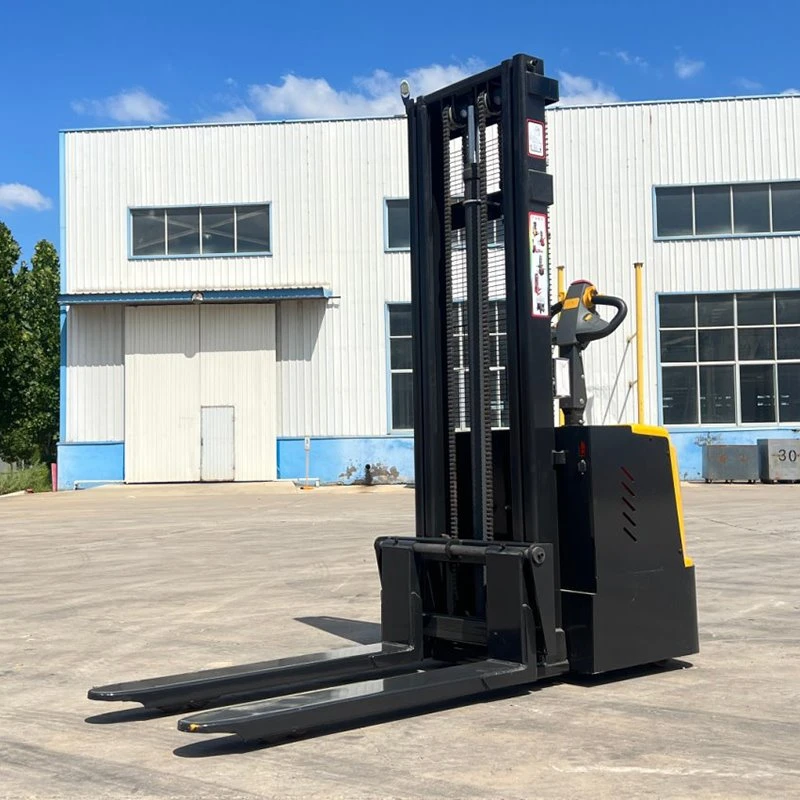

Model: CDD15 (Walk-behind with Light)
Power Type: Full Electric
Operator Type: Pedestrian (Walkie)
Rated Load Capacity: 1,500 kg
Load Center: 600 mm
Travel Speed (Laden / Unladen): 4.0 / 4.2 km/h
Lifting Speed (Laden / Unladen): 80 / 210 mm/s
Lowering Speed (Laden / Unladen): 152 / 160 mm/s
Gradeability (Laden / Unladen): 6% / 8%
Service Brake: Electromagnetic
- Drive, Battery & Chassis
Drive Control Type: AC Power Control
Drive Motor (60 min rating): AC 1.5 kW
Lift Motor Rating (S3 15%): DC 3.0 kW
Battery Voltage / Capacity: 24V / 240 Ah
Steering Type: Mechanical Steering
Tire Material: Polyurethane (PU)
Wheelbase: 1,384 mm
- Mast & Dimensions
Max. Lifting Height: 3,000 mm
Residual Capacity at Max. Height: 1,400 kg
Lowered Mast Height: 1,991 mm
Extended Mast Height: 3,408 mm
Free Lifting Height: 166 mm
Fork Dimensions (Thickness / Width / Length): 60 x 180 x 1,150 mm
Overall Fork Width (Outside): 570 / 695 mm
Overall Length: 2,022 mm
Overall Width: 795 mm
Handle Height in Drive Position (Min / Max): 870 / 1,200 mm
Turning Radius: 1,550 mm
Aisle Width for Pallets (1000×1200 Crossways): 2,435 mm
Aisle Width for Pallets (800×1000 Lengthways): 2,412 mm
Is a Light-Equipped Pallet Stacker Right for Your Workplace?
Key Features
In many warehouses, lighting is uneven, limited, or unavailable during certain working hours. The CDD15 combines electric travel and lifting for routine pallet movement with a built-in work light that provides supplementary illumination around the operating area - helping the operator observe the load and fork area more clearly without adding a second machine.
Supplementary Illumination Around the Load
A built-in light illuminates the area near the forks, the pallet zone, and loading positions in low-light work areas. The light supports visibility around the working area; it does not replace required warehouse lighting or safe operating procedures.
Support for Night-Shift Operations
Designed for night replenishment, night-shift warehouse transfer, and internal material movement outside business hours, where additional supplementary lighting is useful around the working area.

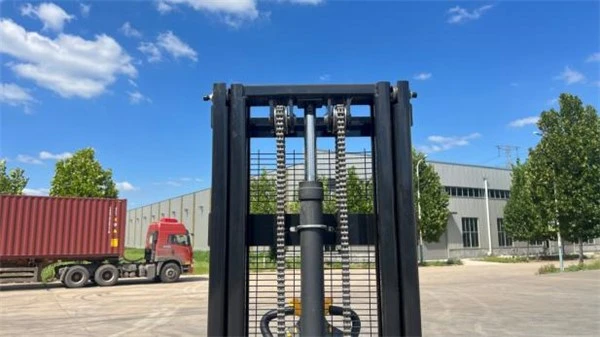

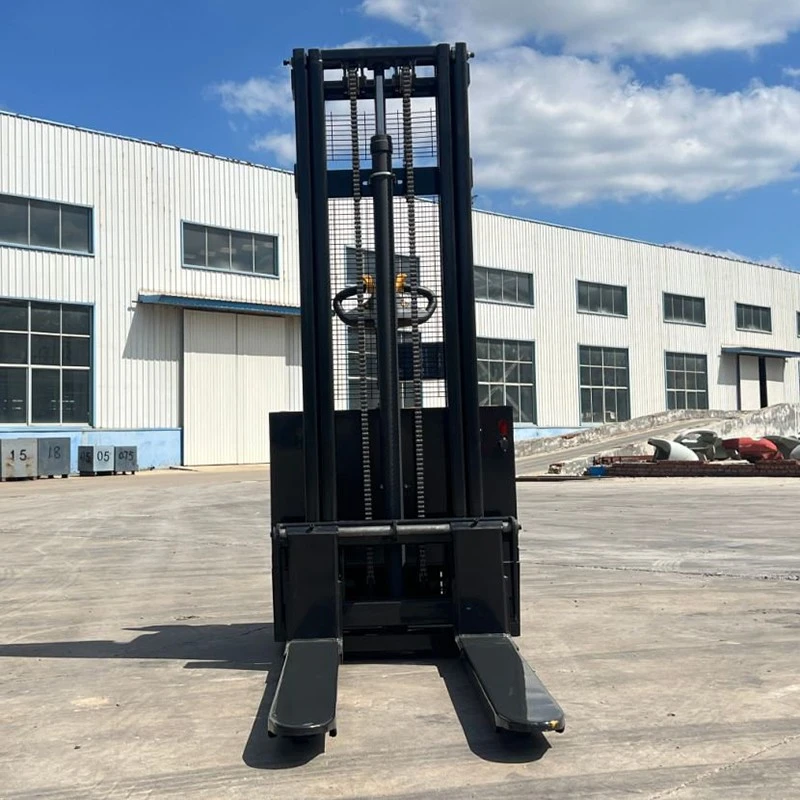

Clear-View Mast for Safe High-Bay Placement
Offset hydraulic cylinders and a wide-open mast window give operators a direct line of sight to the fork tips and pallet entry points, helping reduce cargo damage and neck strain during high-bay placement.

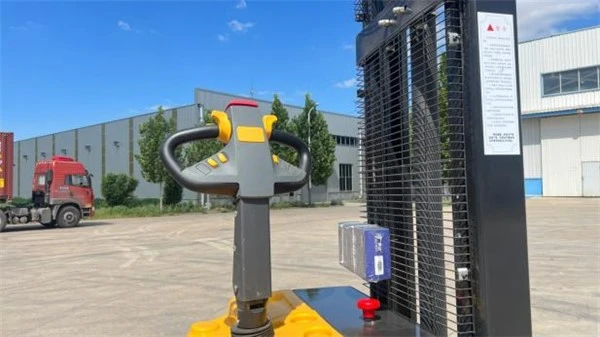

Handle-Upright Micro-Crawl for Extreme Micro-Spaces
A dedicated function disables the standard brake-lock when the tiller handle is fully upright, allowing millimeter-precise crawling inside confined elevator cabs and packed storage corners.
Does Your Working Environment Require Additional Lighting?
| Working Condition | Selection Consideration |
|---|---|
| Adequate lighting, mainly daytime operation | A standard electric stacker may be sufficient |
| Frequent night-time operation | Consider a model with lighting configuration |
| Underground or enclosed storage areas | Assess based on lighting conditions and on-site environment |
| Shadows frequently cast around the forks | Evaluate the practical value of auxiliary lighting |
| Hazardous-area operation | Verify equipment and lighting certifications - never rely on lighting features alone |
The light-equipped version should be selected based on the actual lighting conditions, pallet-handling tasks and site requirements-not simply because the light is available.
Frequently Asked Questions
Is this pallet stacker suitable for night-shift operations?
+
-
It can be considered for night-shift pallet handling where supplementary lighting is useful. The suitability of the complete machine depends on the site conditions, operating requirements and applicable safety procedures.
Does the light make the stacker suitable for hazardous areas?
+
-
Not automatically. Hazardous-area suitability depends on the complete equipment configuration and applicable certifications. A built-in light alone does not establish explosion-proof compliance.
Can this stacker enter standard freight elevators or refrigerated rooms?
+
-
Yes. Its compact 800mm overall width and light service weight make it fully compatible with most standard commercial freight elevators and low-floor capacity mezzanines.
Is it easy to operate in tight corners if I'm not an experienced driver?
+
-
Extremely easy. By pressing the Creep Speed button, the truck moves at a safe 1.5 km/h with the control handle completely upright, giving novice operators total control in tight quarters.
What information is needed to select this stacker?
+
-
Please provide the pallet weight and dimensions, required lift height, aisle conditions, working hours and lighting environment. This information helps determine whether the light-equipped configuration is appropriate.
