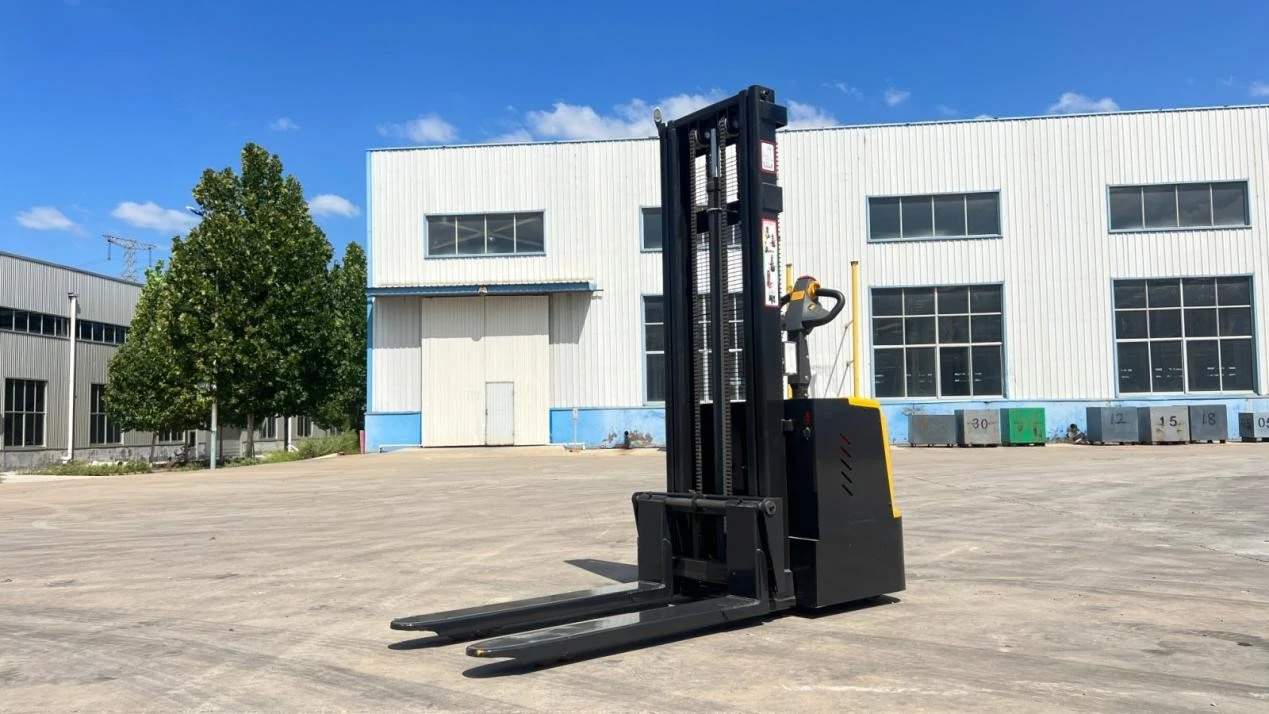

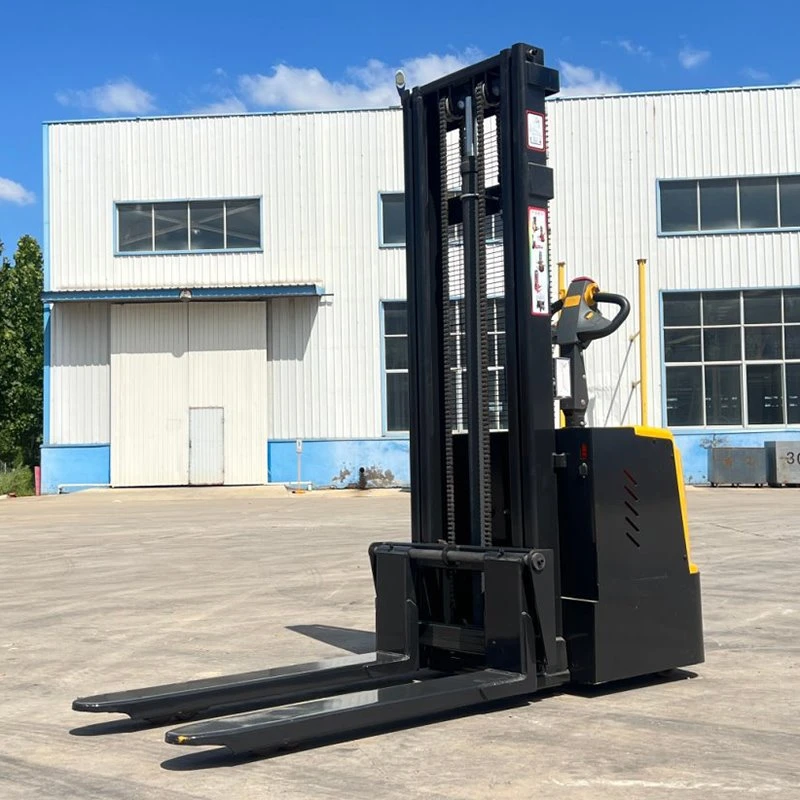

2 Ton Electric Pallet Stacker with 2-Stage Mast: CDD20
Electric Pallet Stacking for 4–6 m Warehouse Storage
The CDD20 is a 2 ton pedestrian electric pallet stacker designed for warehouses that need more than floor-level pallet movement. Its two-stage mast provides lifting heights from 4,000 to 6,000 mm, making it suitable for mid-level rack storage, pallet replenishment and vertical space utilization.
2,000 kg Rated Capacity | 4,000–6,000 mm Lift Height | 2-Stage Mast | 24V / 280Ah Battery
Everything You Need to Know

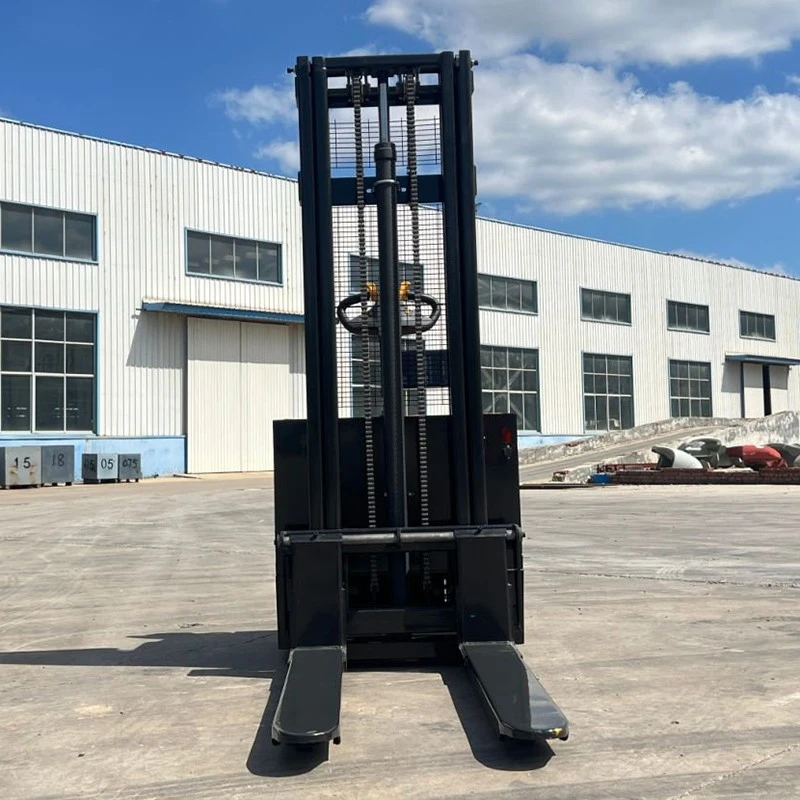

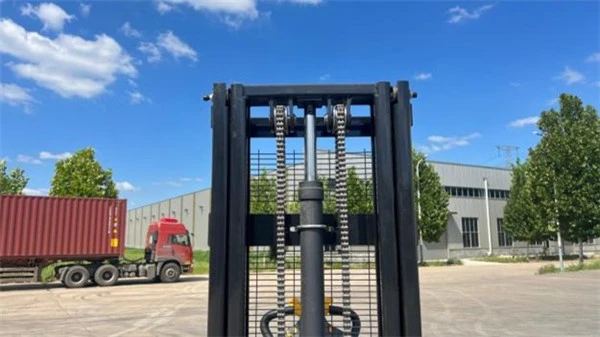

A two-stage mast sits between basic low-lift pallet handling and higher-reach warehouse equipment. It gives operators enough lifting height for mid-level rack storage without turning the machine into a full-size counterbalance forklift.
4–6 m Lifting Range
This range allows buyers to match the mast height to the actual rack layout instead of choosing a machine with more lifting height than the warehouse requires.
Electric Travel and Lifting
Electric travel and lifting reduce the physical effort required for repeated pallet handling. This makes the CDD20 more suitable than a manual pallet truck when pallets need to be moved and lifted repeatedly throughout the working day.

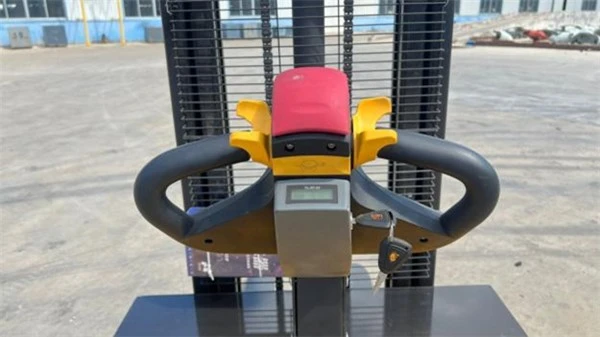

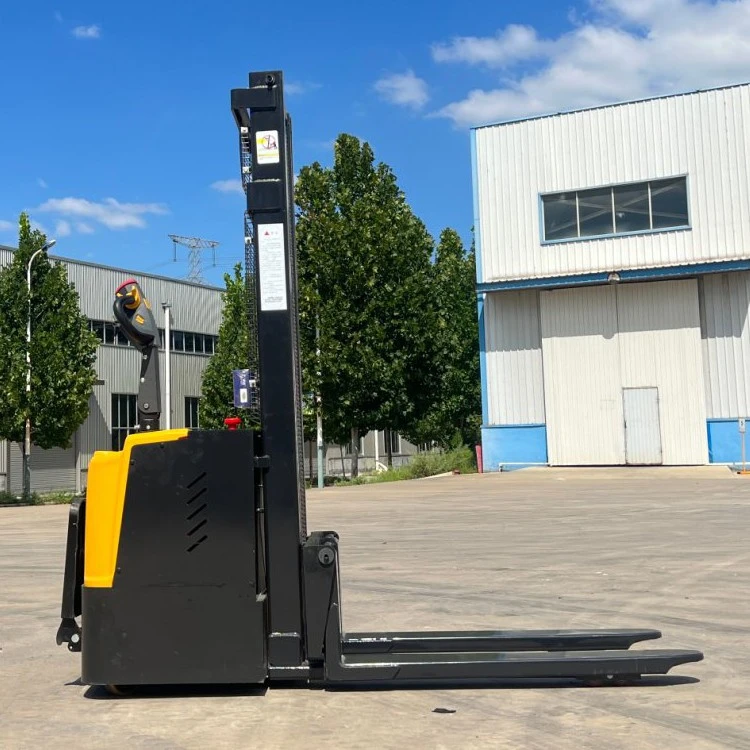

Pedestrian Operation
The pedestrian configuration allows the operator to walk with the machine during pallet handling. It is suited to warehouses where maneuverability and controlled positioning matter more than long-distance travel speed.
Rated Capacity Changes with Lifting Height
The 2,000 kg rated capacity should not be interpreted as 2,000 kg at every lifting height. As the forks rise, the allowable load decreases. For the listed configuration, the capacity at maximum lifting height ranges from 900 kg at 4,000 mm to 300 kg at 6,000 mm.
| Maximum Lift Height | Listed Capacity |
|---|---|
| 4,000 mm | 900 kg |
| 4,600 mm | 800 kg |
| 5,000 mm | 650 kg |
| 5,500 mm | 500 kg |
| 6,000 mm | 300 kg |
Always select the mast height according to the actual load weight and rack position.
Technical Specifications
|
Item |
Specification |
|
Model |
CDD20 |
|
Configuration |
2-Stage Mast |
|
Power Type |
Electric |
|
Operation |
Pedestrian |
|
Rated Capacity |
2000 kg |
|
Load Center |
600 mm |
|
Tire Type |
PU |
|
Battery |
24V / 280Ah |
|
Lift Height |
4,000–6,000 mm |
|
Lifting Speed, Loaded |
116 mm/s |
|
Lifting Speed, Unloaded |
74 mm/s |
|
Lowering Speed, Loaded |
104 mm/s |
|
Lowering Speed, Unloaded |
95 mm/s |
|
Drive Motor |
1.5 kW |
|
Lift Motor |
3.0 kW |
|
Travel Speed, Laden |
4.8 km/h |
|
Travel Speed, Unladen |
3.4 km/h |
|
Steering |
Mechanical |
The listed aisle widths give buyers a starting point for checking whether the CDD20 can operate within the existing warehouse layout. Actual aisle requirements should be confirmed against pallet dimensions, rack layout and operating conditions.
|
Item |
Specification |
|
Axle centre to fork face |
672 mm |
|
Wheel base |
1384 mm |
|
Service Weight |
1375 / 1420 / 1450 / 1510 / 1525 kg |
|
Driving wheels sizes/number(Φ*w) |
Φ250×80 mm |
|
Balance wheels sizes/number(Φ*w) |
Φ150×58 mm |
|
Front wheels sizes/number(Φ*w) |
Φ80×70 mm |
|
Extended mast height |
4500 / 5100 / 5500 / 6120 / 6500 mm |
|
Lowered mast height |
1898 / 2098 / 232 / 2438 / 2565 mm |
|
Lowered fork height |
86 mm |
|

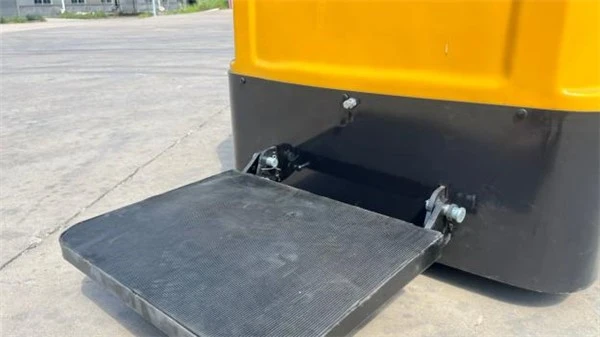

Overall length(with Pedal) |
1984 (2384) mm |
|
Overall width |
1050 mm |
|
Fork length |
1050 mm |
|
Single fork width |
1080 mm |
|
Overall fork width |
695 mm |
|
Fixed leg length |
875 mm |
|
Single fixed leg width |
124 mm |
|
Inside width between fixed legs |
391 mm |
|
Outside width between fixed legs |
639 mm |
|
Turning radius |
1620 mm |
|
Aisle width for pallets 1000×1200 cross ways |
2458 mm |
|
Aisle width for pallets 800×1200 length ways |
2398 mm |
Where Does a 2-Stage Electric Stacker Fit Best?
Mid-Level Rack Storage
Moving palletized goods from floor level to intermediate rack positions.
Pallet Replenishment
Replenishing goods from reserve storage to picking locations.
Warehouse Stock Relocation
Moving palletized inventory between different storage levels.
Manufacturing Material Handling
Delivering palletized components to elevated storage or production staging areas.
E-Commerce Warehouses
Handling palletized inventory where storage density and vertical space are important.
Food & Pharmaceutical Storage
Suitable for indoor pallet handling where controlled, relatively clean operation is required.
Products Description
1.Maximum pallet weight
2.Pallet dimensions
3.Required lifting height
4.Rack height
5.Pallet entry direction
6.Aisle width
7.Indoor / outdoor application
8.Daily operating frequency
With these details, the appropriate mast height and configuration can be confirmed before quotation.
Don't Choose a Stacker by Capacity Alone
A common mistake when purchasing a pallet stacker is to look only at the headline capacity. A 2,000 kg rated capacity does not mean the machine can lift 2,000 kg to every available mast height.
The actual load weight, load center, rack height and residual capacity at the required lifting height should all be considered before ordering.
Frequently Asked Questions
What is a 2-stage electric pallet stacker used for?
+
-
It is designed to move palletized goods and lift them to elevated storage positions, particularly mid-level warehouse racks.
How high can the CDD20 lift?
+
-
The available configurations listed on the page range from 4,000 mm to 6,000 mm.
Can it lift 2,000 kg to 6 meters?
+
-
The 2,000 kg rating should not be interpreted as the allowable capacity at maximum lift height. The listed capacity at 6,000 mm is 300 kg, so the actual load and required lifting height must be considered together.
Is the CDD20 suitable for warehouse racks?
+
-
Yes. Its two-stage mast and 4–6 m lifting configurations are intended for mid-level pallet storage applications.
Is it a ride-on forklift?
+
-
The current specification identifies the CDD20 as a pedestrian-operated electric stacker.
What battery does it use?
+
-
The listed configuration uses a 24V/280Ah battery.
How wide is the machine?
+
-
The listed overall width is 1,050 mm, while the turning radius is 1,620 mm. Actual aisle suitability should be checked against pallet dimensions and warehouse layout.
