Applications
The 2-ton walkie stacker combines powered travel and powered lifting in a compact footprint: high-frequency pallet cycles across warehouse aisles, narrow-aisle stacking up to 5.5m, and ramp transitions with electromagnetic braking - no rider forklift required in every aisle.
High-Frequency Daily Pallet Logistics
Handling dozens of pallets per hour with fast motor travel across long warehouse aisles.
Narrow-Aisle High-Bay Racking
Stacking standard 1.0–1.5t loads up to 3.5–5.5m in narrow racking corridors (~2.2m aisle width).
Mezzanine & Ramp Transitions
Moving loads over slight ramps and factory slope transitions using electromagnetic automatic braking.
Loading Area / Short-Distance Transfer
Moving palletized goods between nearby staging, storage, and loading areas where powered travel is helpful but a rider forklift is unnecessary.
Technical Specifications
Basic & Performance
Model: CDD20
Power Type: Full Electric
Operator Type: Pedestrian (Walkie)
Rated Load Capacity: 2,000 kg
Load Center : 600 mm
Travel Speed (Laden / Unladen): 4.0 / 4.2 km/h
Lifting Speed (Laden / Unladen): 80 / 210 mm/s
Gradeability (Laden / Unladen): 6% / 8%
Service Brake: Electromagnetic
Mast & Dimensions
Max. Lifting Height: 3,000 mm
Lowered Mast Height: 1,991 mm
Extended Mast Height: 3,408 mm
Free Lifting Height: 166 mm
Fork Dimensions (Thickness / Width / Length): 60 x 180 x 1,150 mm
Overall Length: 2,022 mm
Overall Width: 795 mm
Handle Height in Drive Position (Min / Max): 870 / 1,200 mm
Turning Radius : 1,550 mm
Drive, Battery & Chassis
Drive Control Type: AC Power Control
Drive Motor (60 min rating): AC 1.5 kW
Lift Motor Rating (S3 15%): DC 3.0 kW
Battery Voltage / Capacity: 24V / 240 Ah
Tire Material: Polyurethane (PU)
Wheel Setup (Drive / Balance / Front): Φ230×70 (x1) / Φ150×58 (x1) / Φ80×70 (x4)
Wheelbase: 1,384 mm
Key Features
Dual-Motor Powered Efficiency Without Manual Pushing
A heavy-duty AC traction drive motor paired with an independent hydraulic lift pump lets operators control speed and elevation via handle buttons, with no manual push force required.

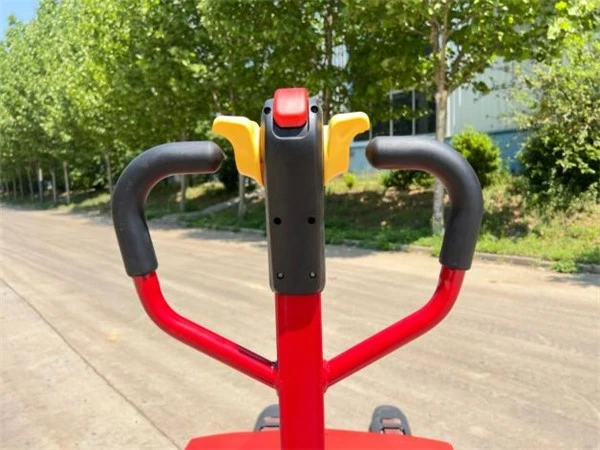

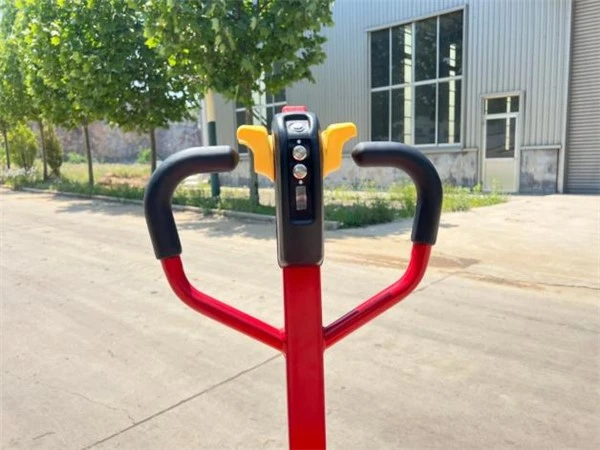

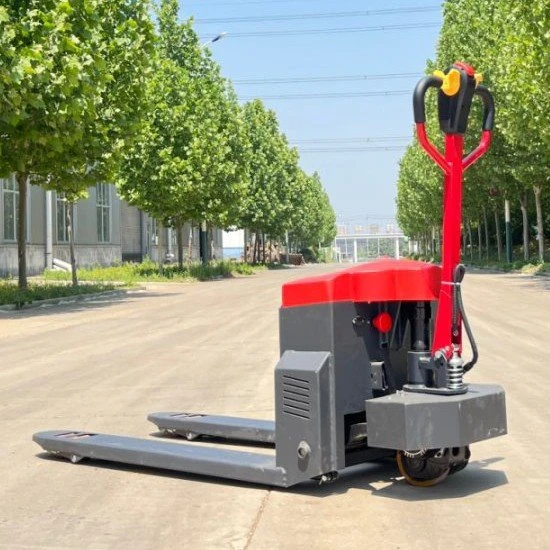

Advanced Multi-Protection Ergonomic Tiller Head
A belly-activated emergency reverse button prevents operator pinches in tight spots, paired with a "Turtle Speed" switch for micro-creeping in confined racking.
Intelligent Electromagnetic Slope Braking
Automatic electromagnetic brakes engage instantly when the tiller arm is released or placed in vertical/horizontal positions, preventing dangerous rollback on ramps.
Heavy-Gauge Mast Construction with High Free Lift
Thick interlocking steel profiles and dual lifting chains provide high structural rigidity during 2.0-ton high-elevation lifts.
One Powered Handling Cycle
01
Pick Up
02
Lift
03
Drive
04
Position
05
Stack
Frequently Asked Questions
Why Upgrade from a Semi-Electric Stacker to the 2.0-Ton Fully Electric Model?
+
-
Manually pushing a 1.5-ton or 2.0-ton semi-electric stacker across a 30-meter aisle drains operator energy and reduces daily pallet handling speed by over 60%. A fully electric walkie stacker automates transport, allowing one worker to accomplish the output of three manual handlers while eliminating fatigue-related injury risks.
Is a fully electric walkie stacker difficult to operate in narrow warehouse aisles?
+
-
Not at all. With a tight turning radius (~1,580mm) and our integrated "Turtle Speed" feature (which lets you maneuver with the handle locked straight up), operators can easily maneuver in aisles as narrow as 2.2 meters.
How long does the 24V industrial battery last on a single charge?
+
-
The standard 210Ah traction battery supports 5 to 6 hours of continuous high-duty cycling. For multi-shift operations, we offer quick-swap battery side-extraction or fast-charging Lithium-ion options.
What is the key operational difference between this 2.0t fully electric model and a semi-electric stacker?
+
-
A semi-electric stacker requires the operator to physically push and pull the machine (only the lift is electric). This 2.0-ton fully electric model features a drive motor-you simply press the handle butterfly switch to drive forward or backward effortlessly.
What aisle width does it require?
+
-
The listed aisle width is approximately 2,412–2,435 mm for the stated pallet configurations. Actual requirements depend on pallet size and warehouse layout.
Check Whether the CDD20 Fits Your Handling Cycle
Send us your pallet weight, pallet dimensions, required lift height and typical travel distance. We can help confirm whether a walk-behind stacker is suitable for your operation or whether a semi-electric or rider model would be a better fit.
