2 Ton Hand Pallet Truck: CDD20
2 Ton Hand Pallet Truck for Simple, Short-Distance Pallet Movement
The hand pallet truck is designed for moving palletized loads across warehouse floors, loading areas and production spaces where pallets do not need to be lifted to elevated storage positions. Its manual operating structure keeps the machine simple and independent of a battery-powered drive system, making it a practical choice for routine short-distance pallet transport.
2,000 kg Capacity | Manual Operation | No Battery Required | Short-Distance Pallet Transport
What Is a Hand Pallet Truck Designed to Do?
A hand pallet truck is primarily a horizontal transport tool. It picks up a pallet from floor level, allows the operator to move it over a short distance, and places it at another floor-level position. It is not intended to replace a pallet stacker when goods need to be lifted several meters onto storage racks.
Why Choose a Manual Pallet Truck?
No Battery or Charging Routine
A manual pallet truck does not depend on a traction battery or charging station for normal pallet movement. It can be used wherever basic manual pallet handling is required.
Simple Mechanical Structure
With no powered travel system, a manual pallet truck has fewer powered components to maintain. This makes it suitable for companies looking for straightforward equipment for routine pallet movement.
Direct Control for Short-Distance Handling
The operator controls the truck directly during positioning and movement, which is practical when pallets only need to travel a short distance between receiving, staging, storage and production areas.
When Should You Choose a Hand Pallet Truck?
Choose a Hand Pallet Truck if:
Pallets remain at floor level.
The main task is horizontal transport.
Travel distances are relatively short.
Handling frequency is low to moderate.
You do not need electric travel.
You do not need multi-meter lifting.
Simplicity and easy maintenance are priorities.
If pallets need to be lifted onto 3–6 meter storage racks, a pallet stacker is the better choice.
Technical Specifications
|
Item |
Specification |
|
Model |
CDD20 |
|
Power Type |
Manual |
|
Operation |
Stand on |
|
Rated Capacity |
2,000 kg |
|
Load Center |
600 mm |
|
Fork Length |
1150 mm |
|
Wheel base |
1384 mm |
|
Tire Type |
PU |
Choose Capacity According to Your Actual Load
Hand pallet trucks are available in different capacity ranges depending on the application. Capacity should be selected according to the actual pallet weight, load distribution and load center rather than simply choosing the highest available rating.
|
Item |
Specification |
|
Driving wheels sizes/number(Φ*w) |
Φ230×70 mm |
|
Balance wheels sizes/number(Φ*w) |
Φ150×58 mm |
|
Front wheels sizes/number(Φ*w) |
Φ80×70 mm |
|
Wheels, number front/rear(x=driven) |
1x+1/4 |
|
Travel speed, laden/unladen |
4.0 / 4.2 km/h |
|
Lifting speed, with/without load |
80 / 210 mm/s |
|
Lower speed, with/without load |
152 / 160 mm/s |
|
Max climbing ability with/without load |
6 / 8 % |
|
Height of mast, lowered |
1991 mm |
|
The max lifting height |
1400 mm |
|
Height of mast, extended |
3408 mm |
|
Overall height(with handle) |
870 / 1200 mm |
|
Lowered fork height |
86 mm |
|
Overall length |
2022 mm |
|
Length to fork face |
872 mm |
|
Overall width |
795 mm |
|

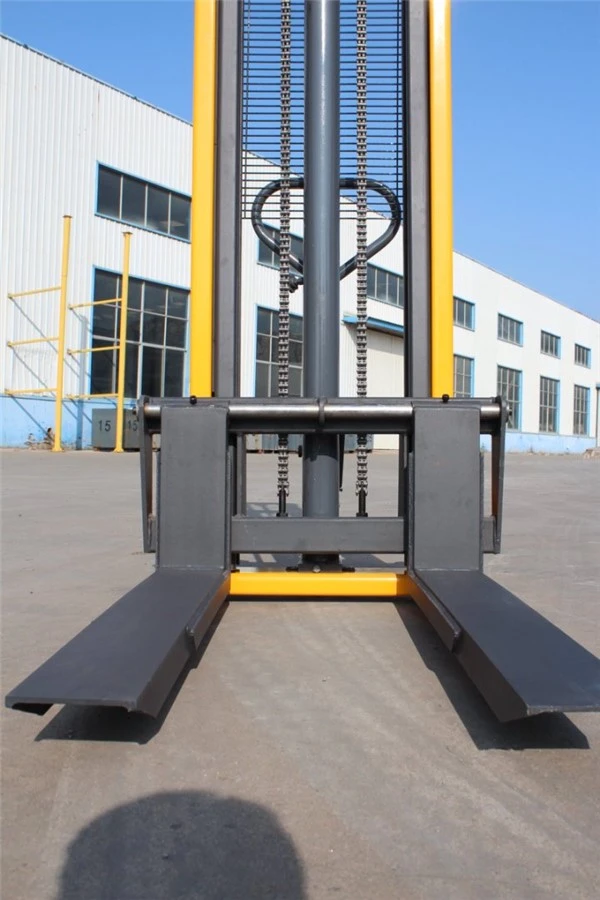

Fork dimensions s/e/l |
60 / 180 / 1150 mm |
|
Width of forks |
570 / 695 mm |
|
Min ground clearance |
26 mm |
|
Aisle width for pallets 1000×1200 cross ways |
2435 mm |
|
Aisle width for pallets 800×1000 length ways |
2412 mm |
|
Min turning radius |
1550 mm |
|
Load capacity on Max height |
2000 / 2000 / 2000 / 1500 / 1450 / 1400 / 1200 / 1000 kg |
|
Extended mast height |
2077 / 2277 / 2552 / 3112 / 3512 / 3752 / 4152 / 4552 mm |
|
Lowered mast height |
2077 / 2277 / 1562 / 1822 / 2022 / 2162 / 2362 / 2562 mm |
|
Lowered fork height |
86 mm |
Typical Applications
Receiving Areas
Warehouse Staging
Production Material Handling
Loading & Unloading
Retail Backrooms
Floor-Level Storage
How a Hand Pallet Truck Works
1. Approach the Pall→2. Insert the Forks→3. Raise the Load→4. Move and Position
Hand Pallet Truck vs Electric Pallet Stacker
| Hand Pallet Truck | Electric Pallet Stacker | |
|---|---|---|
| Main Function | Floor-level transport | Lifting & stacking |
| Travel | Manual | Electric |
| Lifting | Manual hydraulic | Electric |
| High-level storage | No | Yes |
| Battery | No | Yes |
| Equipment complexity | Low | Higher |
| Charging | Not required | Required |
| Best for | Short-distance movement | Vertical storage |
| Main question | Where do I need to move the pallet? | How high do I need to lift it? |
What Makes a Hand Pallet Truck Practical?
A hand pallet truck earns its place in a warehouse when the job is simple: pick up a pallet, move it a short distance, and put it down. There is no need for a traction battery, charging infrastructure or a powered drive system when the application does not require them.
This straightforward design makes the hand pallet truck particularly useful around loading docks, staging areas and floor-level storage zones where pallets are moved regularly but do not need to be lifted to high rack positions.
Frequently Asked Questions
What is a hand pallet truck used for?
+
-
A hand pallet truck is mainly used to move palletized goods horizontally over short distances, particularly when loads remain at floor level.
Does a hand pallet truck need electricity?
+
-
A traditional manual pallet truck does not require a battery-powered drive system or charging station for normal operation.
Can a hand pallet truck lift pallets onto warehouse racks?
+
-
No. It is primarily designed for floor-level pallet movement. If pallets need to be lifted several meters onto racks, a pallet stacker should be considered.
What is the difference between a hand pallet truck and a pallet stacker?
+
-
A hand pallet truck is mainly designed for horizontal pallet transport, while a pallet stacker is designed to lift pallets to elevated storage positions.
Is a 2 ton hand pallet truck suitable for standard pallets?
+
-
It can be suitable for standard pallet loads when the actual load weight, load center and pallet dimensions remain within the truck's rated specifications.
What should I provide when requesting a quotation?
+
-
Provide the pallet dimensions, maximum load weight, fork length requirement and expected handling environment. This allows the appropriate configuration to be confirmed.
