Where the double cylinder Makes Sense

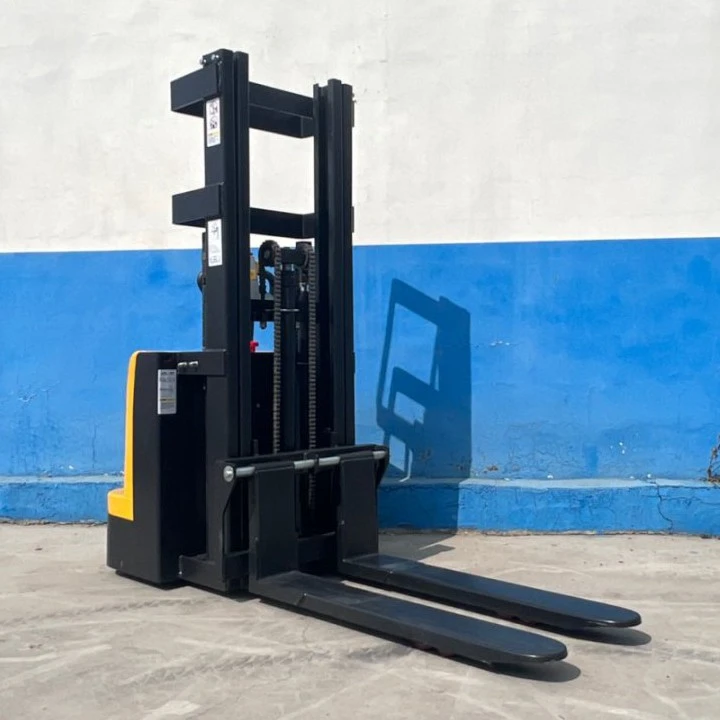

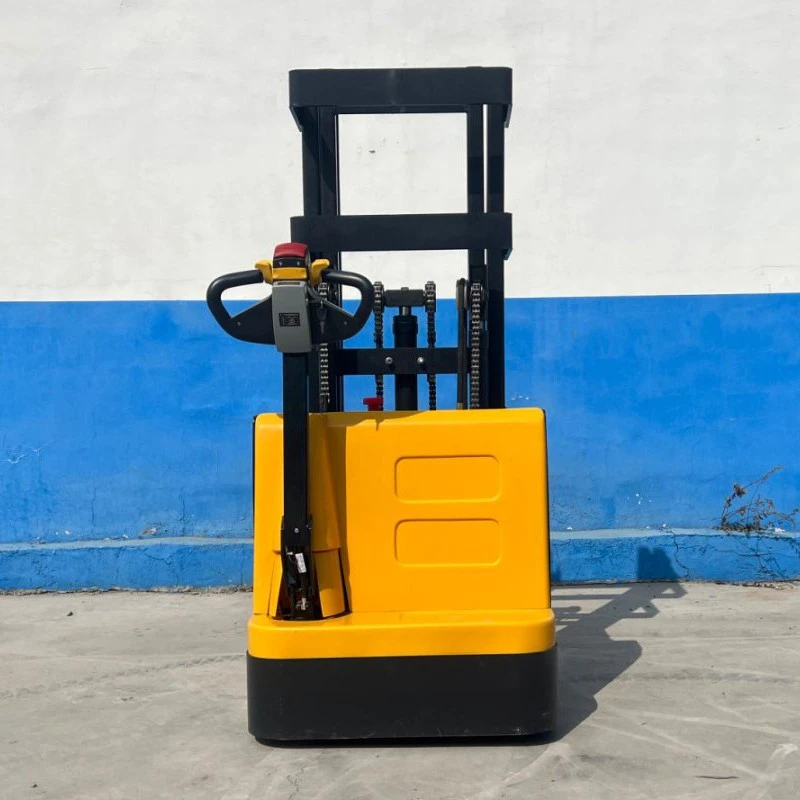

The 1.5-ton double-cylinder walkie stacker is built for precision in tight spaces: maneuver in rack aisles under 2.3 m wide, lift to 3.0–4.5 m, and handle fragile or high-value goods with close-up visual accuracy-at a fraction of a counterbalance forklift's cost and footprint.
High-Racking Storage (3.0m–4.5m Lift)
Precise pallet alignment at upper shelf levels without fork collision risks; configurable mast options match the truck to actual storage height rather than a single fixed configuration.
Fragile & High-Value Goods Handling
Electronics, glassware, or pharmaceutical warehouses where close-range visual accuracy prevents damage during repeated stacking and retrieval.
Tight Narrow-Aisle Warehousing (< 2.3m Aisle)
Compact walkie design allows precise maneuvering in dense storage lanes.
Pallet Storage & Retrieval Cycles
Repeated placement and retrieval where pallets need to be positioned at defined storage heights.
Product Parameters
Basic & Performance

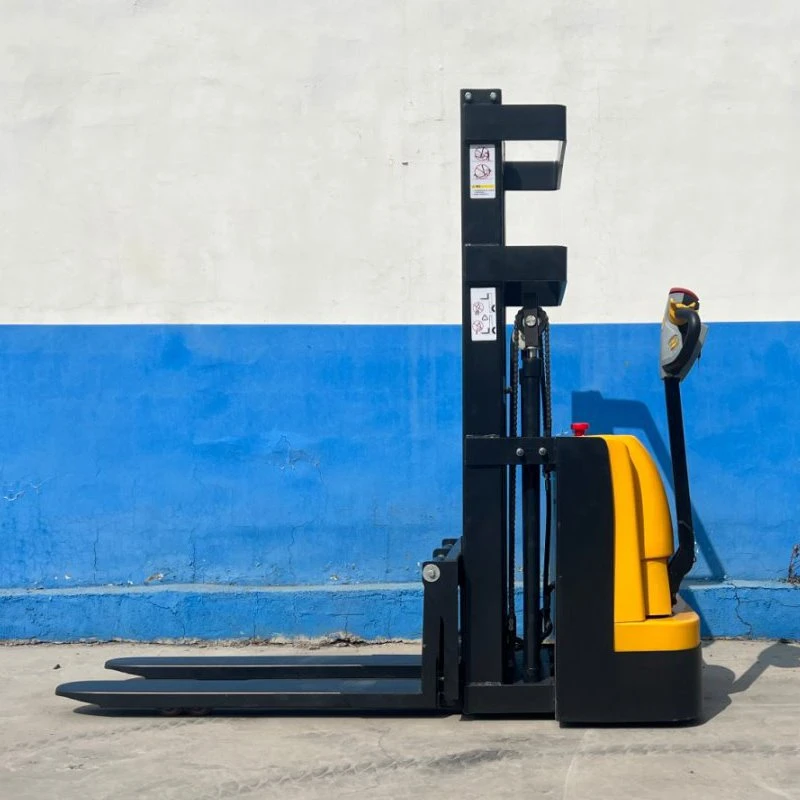

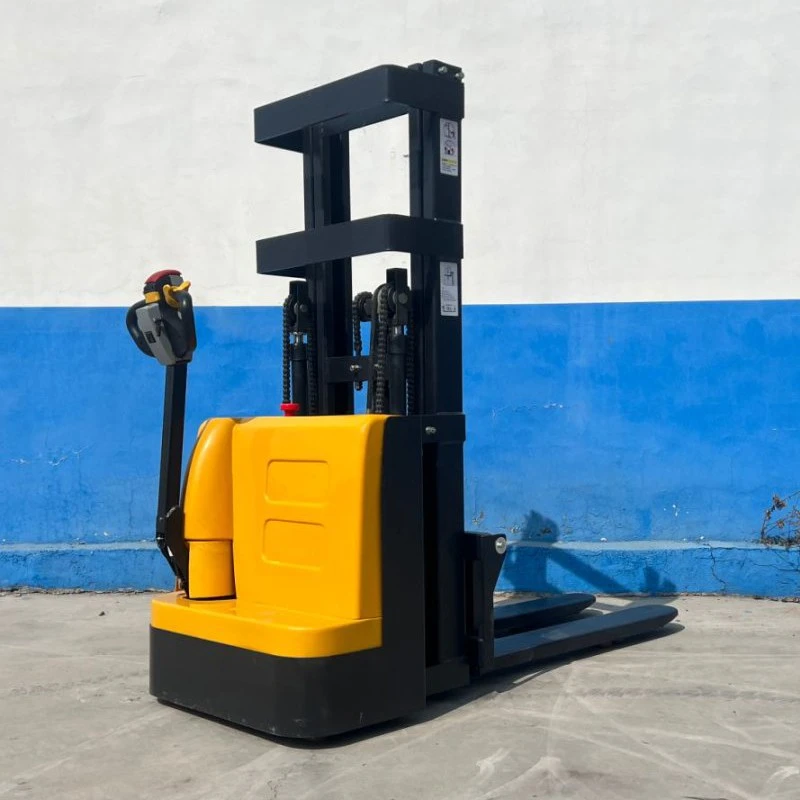

Model: CDD15 (Double Cylinder)
Power Type: Full Electric
Operator Type: Stand-on (Pedestrian compatible)
Rated Load Capacity: 1,500 kg
Load Center Distance : 600 mm
Travel Speed (Laden / Unladen): 4.8 / 3.4 km/h
Lifting Speed (Laden / Unladen): 140 / 132 mm/s
Lowering Speed (Laden / Unladen): 115 / 57 mm/s
Steering Type: Mechanical steering
General Dimensions & Operating Capacity
Overall Length (Pedal Folded / Unfolded): 1,914 mm / 2,314 mm
Overall Width: 805 mm
Fork Dimensions (L x W): 1,150 x 180 mm
Overall Fork Width: 570 / 695 mm
Fixed Leg Width (Inside / Outside): 266-391 mm / 514-639 mm
Turning Radius : 1,460 mm
Aisle Width for Pallet 1000×1200 Crossways: 2,232 mm
Aisle Width for Pallet 1000×1200 Lengthways: 2,302 mm
Drive System, Chassis & Battery
Drive Motor (60 min rating): AC 1.5 kW
Lift Motor (S3 15%): DC 3.0 kW

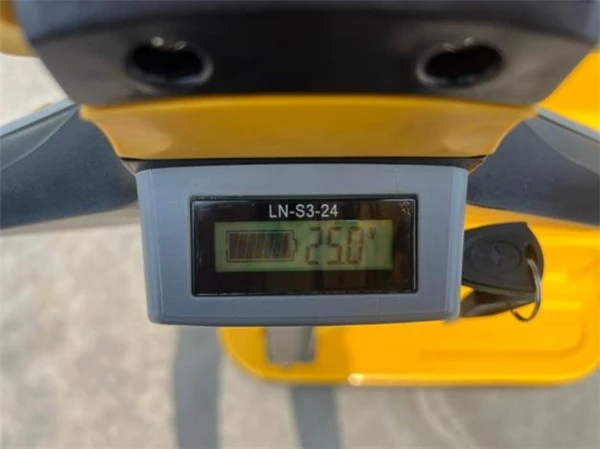

Battery Voltage / Capacity: 24V / 210 Ah
Tire Material: Polyurethane (PU)
| Lift Height (mm) | Max. Load Capacity (kg) | Lowered Mast Height (mm) | Extended Mast Height (mm) | Service Weight (kg) |
| 1,600 | 2,000 | 2,077 | 2,077 | 890 |
| 1,800 | 2,000 | 2,277 | 2,277 | 900 |
| 2,000 | 2,000 | 1,562 | 2,552 | 920 |
| 2,600 | 1,500 | 1,822 | 3,112 | 1,000 |
| 3,000 | 1,450 | 2,022 | 3,512 | 1,030 |
| 3,200 | 1,400 | 2,162 | 3,752 | 1,040 |
| 3,600 | 1,200 | 2,362 | 4,152 | 1,060 |
| 4,000 | 1,000 | 2,562 | 4,552 | 1,070 |
Key Features

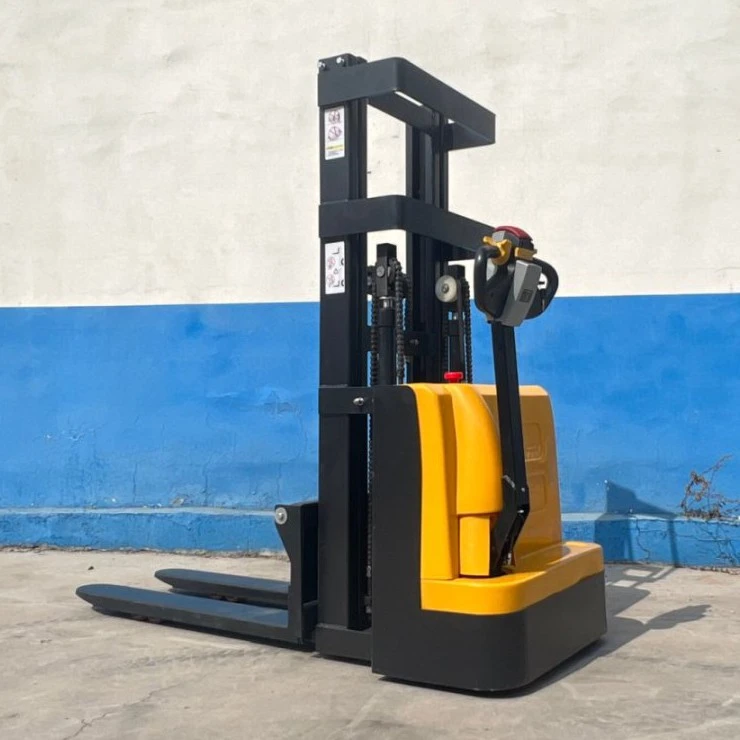

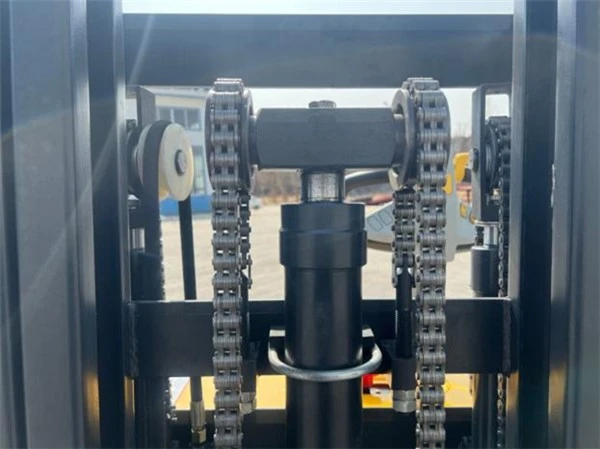

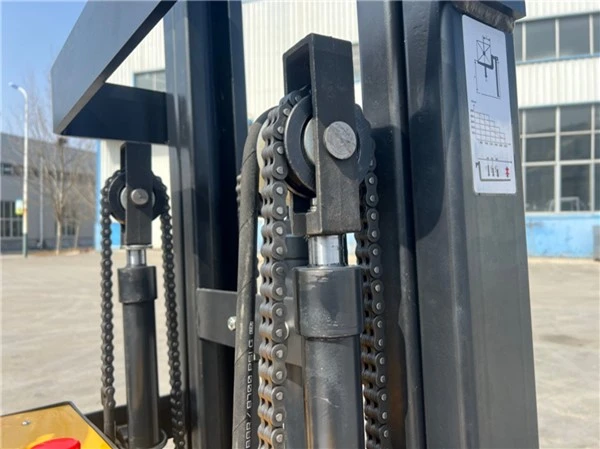

Dual Rear Cylinder Layout for Unobstructed Forward View
Lift cylinders repositioned to the outer sides of the mast give the operator a clear, unobstructed sightline to the fork tips and pallet pockets at high elevations.
Mast Rigidity & Reduced Sway at Height
Symmetrical dual-cylinder lifting force distributes thrust evenly, reducing mast deflection and load shaking when lifting 1.5-ton loads above 3.0 m.
Proportional Lowering & Soft Landing Valve
A precision hydraulic proportional valve delivers smooth, controlled fork descent with automatic cushioning of the final drop, protecting delicate cargo during repeated positioning at different storage heights.

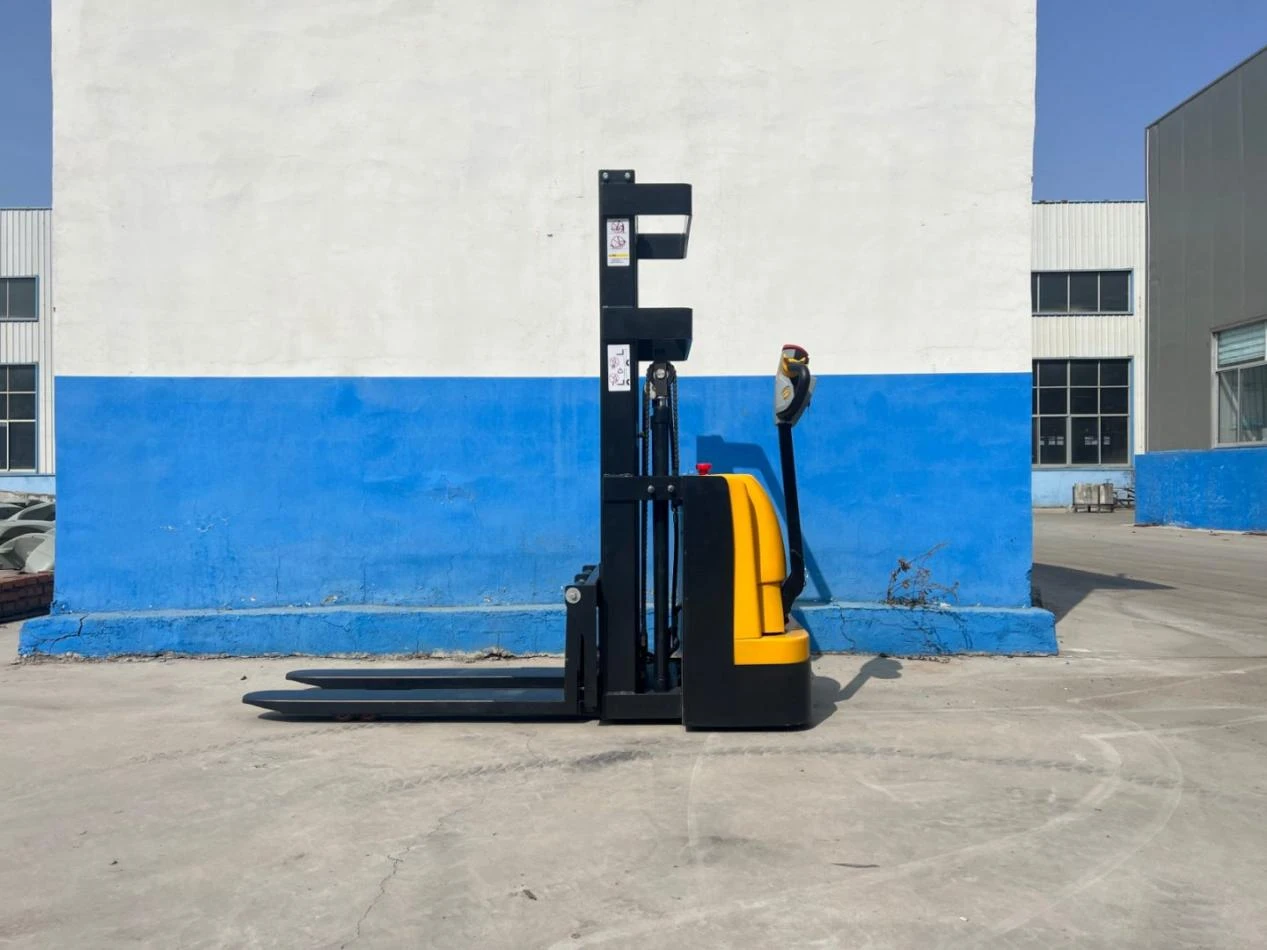

Ultra-Compact Walkie Chassis for Narrow Aisle Agility
A short head length and creep-speed drive option (tiller upright) enable pinpoint accuracy inside tight rack aisles and container interiors.
Before choosing the mast, confirm 3 things:
01 - Maximum Load
What is the heaviest pallet?
02 - Required Lift Height
How high must the pallet be placed?
03 - Load Center
How far is the load center from the fork face?
Frequently Asked Questions
What is the double-cylinder electric stacker?
+
-
A double-cylinder electric stacker uses two hydraulic lifting cylinders to support the mast lifting system. The CDD15 is designed for controlled pallet lifting and repeated stacking operations.
Why Upgrade to a Double-Cylinder Wide-View Stacker?
+
-
Over 60% of pallet damage during upper-level stacking stems from poor forward visibility and mast deflection. The double-cylinder design grants operators 100% clear line of sight to pallet entry points, preventing costly rack misalignments and reducing cargo damage costs by up to 40%.
What is the primary functional benefit of a Double-Cylinder mast over a single cylinder?
+
-
Traditional single cylinders sit right in the middle of the mast, blocking forward vision when inserting forks at upper rack heights. Double cylinders are placed symmetrically on the sides, giving operators a clear view and better structural rigidity.
Does the double-cylinder design reduce the machine's lift capacity at high elevations?
+
-
No. In fact, dual cylinders distribute hydraulic pressure evenly across both sides of the mast, reducing frame flex and offering higher residual load stability compared to single-cylinder models.
Why is the load center important when selecting the CDD15?
+
-
The load center describes how far the load's center of gravity is positioned from the fork face. A load that extends farther forward places greater leverage on the truck and can affect its usable lifting capacity.
For this reason, pallet weight alone is not enough to determine the correct configuration. When the load is unusually long, high or unevenly distributed, provide the actual load dimensions so the configuration can be checked.
Check Your Required Configuration
