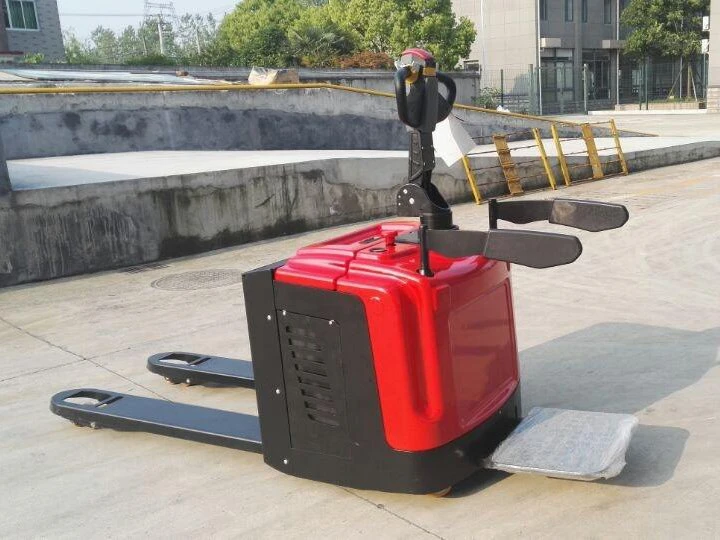

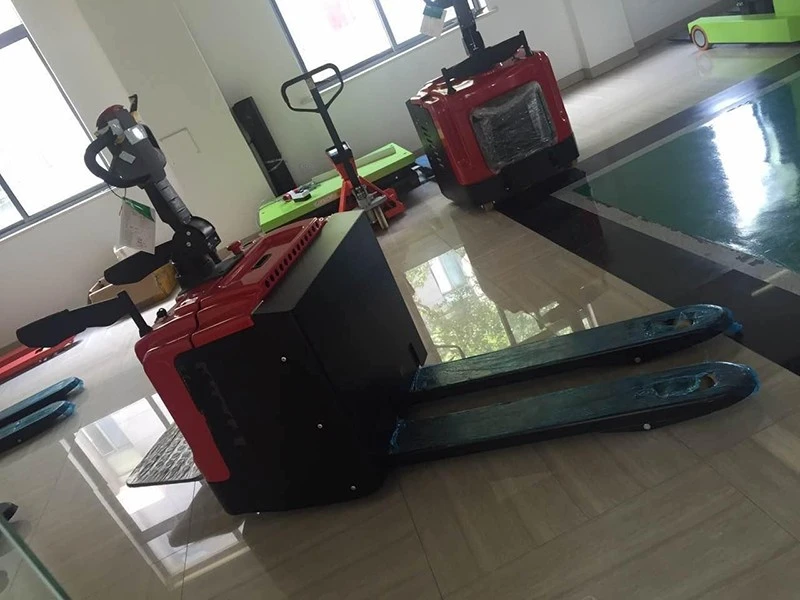

2 Ton Semi-Electric Pallet Truck for Cost-Effective Pallet Handling: CBD20

The CDD20 is a semi-electric pallet truck designed for operators who need powered lifting assistance without the cost and complexity of a fully electric drive system. With a 2,000 kg rated capacity, electric lifting and manual travel, it is suitable for short-distance pallet handling and moderate-frequency loading and unloading operations.

2,000 kg Rated Capacity | Electric Lifting | Manual Travel | 1,350 mm Turning Radius

Products Description

Electric Lifting Without Full Electric Drive

The CDD20 uses an electric lifting system while the truck is manually moved by the operator. This configuration reduces the physical effort required to raise pallet loads while keeping travel control simple and direct.

It is particularly suitable when pallets are moved over relatively short distances and the main requirement is to make lifting and loading operations easier rather than fully automate pallet transportation.

A Practical Alternative to a Full-Electric Pallet Truck

Not every warehouse needs a fully powered pallet truck. When travel distances are short and pallet movement is moderate, a semi-electric configuration can provide powered lifting assistance while avoiding the additional drive system required by a full-electric model.This makes the CDD20 a practical option for businesses looking to improve manual handling efficiency while keeping equipment investment under control.

Designed for Short-Distance Pallet Movement

The CDD20 is intended for operations where pallets are moved between nearby handling points rather than transported continuously across large warehouse areas. Manual travel gives operators direct control, while electric lifting reduces the effort required to raise the load.

Suitable for:

Receiving and unloading areas

Warehouse staging

Workshop material handling

Retail backrooms

Short-distance pallet transfers

Less suitable for:

Long-distance pallet transportation

Continuous high-frequency travel

Operations requiring fully powered driving

Applications where operators need stand-on travel

1,350 mm Turning Radius for Compact Handling Areas

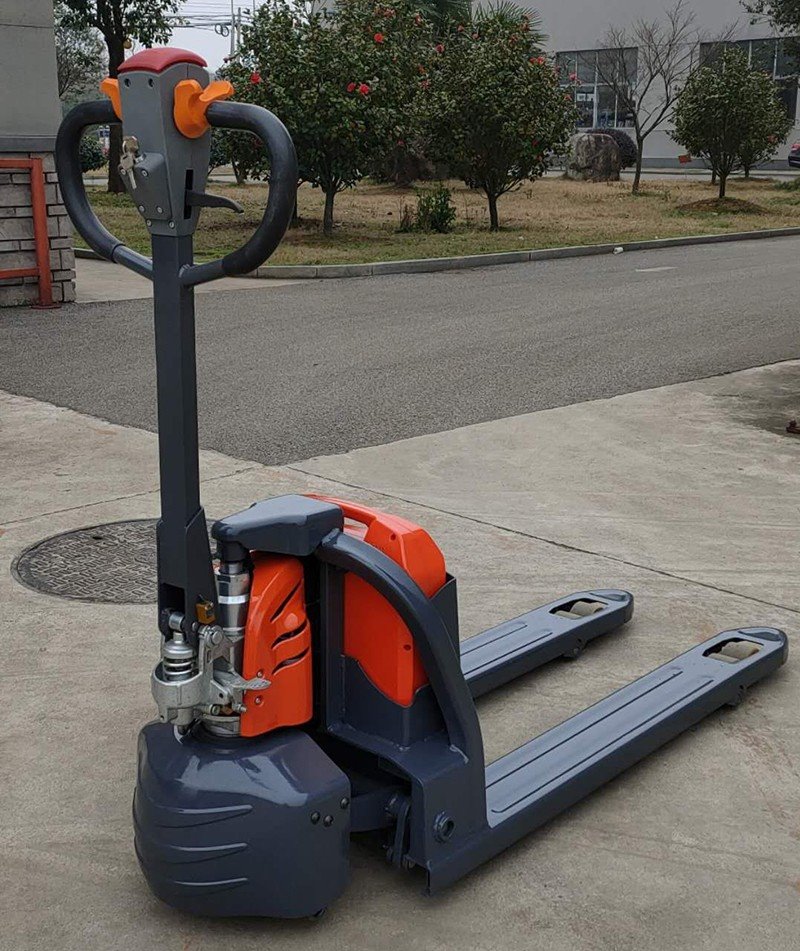

With a minimum turning radius of 1,350 mm, the CDD20 is designed for maneuvering in compact indoor handling areas. Its pedestrian configuration allows operators to control the truck directly when repositioning pallets around storage, loading and staging points.

Compact 760 mm Width for Indoor Handling

The 760 mm overall width allows the CDD20 to work in relatively compact indoor handling areas. The actual aisle requirement should be evaluated together with pallet dimensions, fork configuration and the planned operating layout.

Technical Specifications

Item	Specification
Model	CDD20
Power Type	Semi-Electric
Operation	Pedestrian
Rated Capacity	2000 kg
Load Center	450 mm
Travel Speed Laden/Unladen	4.0 / 4.2 km/h
Lifting Speed Laden/Unladen	92 / 136 mm/s
Lowering Speed	112 / 98 mm/s

Overall Width	760 mm
Fork Length	900 / 1100 mm
Fork Width	550 / 640 mm
Lowered Fork Height	85 mm
Turning Radius	1350 mm
Fixed Leg Length	875 mm
Outside Width Between Fixed Legs	490 / 590 mm
Service Brake	Electromagnetic
Single fork width	150 mm
Single fixed leg width	100 mm

Service Weight	325 / 380 / 455 / 475 kg
Extended mast height	2077 / 2567 / 3067 / 3567 mm
Lowered mast height	2077 / 1577 / 1827 / 2077 mm
Overall length(with pedal)	1600(900) / 1800(1100) mm
Aisle width for pallets 1000×1200 cross ways	2250 mm
Aisle width for pallets 800×1000 length ways	2040 mm
The charge	12V / 20A
Lift motor rating at S3 15%	3 kW

Max. Lifting Height	1600 / 2000 / 2500 / 3000 mm
Load Capacity at Max. Height	2000 / 1600 / 1400 / 1100 kg
Lift Motor	1.5 kW
Drive Motor	1.5 kW
Battery	12V / 150Ah
Steering	Mechanical
Tires	PU
Driving wheels sizes/number(Φ*w)	Φ250×75 /1 mm
Balance wheels sizes/number(Φ*w)	Φ150×58 /2 mm
Front wheels sizes/number(Φ*w)	Φ80×70 /4 mm

Capacity Changes with Lifting Height

The CDD20's rated capacity depends on the selected lifting height. The truck can handle up to 2,000 kg at a 1,600 mm lifting height, while the allowable load decreases as the mast height increases.

Lifting Height	Max. Load Capacity
1,600 mm	2,000 kg
2,000 mm	1,600 kg
2,500 mm	1,400 kg
3,000 mm	1,100 kg

Typical Applications

Warehouse Receiving

Useful for moving pallets from unloading points to nearby staging areas.

Workshop Material Handling

Suitable for moving components and materials between nearby workstations.

Retail Backrooms

Helps reduce manual lifting effort when receiving and repositioning palletized goods.

Warehouse Staging

Suitable for short-distance movement between storage and temporary staging locations.

Loading and Unloading

Electric lifting assists operators during repeated pallet loading and unloading tasks.

Suitable for Indoor Operations

As an electrically powered lifting solution, the CDD20 produces no exhaust emissions during operation and can be used in enclosed indoor areas where emission control and noise are considerations.

Frequently Asked Questions

What is a semi-electric pallet truck?

A semi-electric pallet truck uses an electric system for lifting while the truck is manually moved by the operator.

What is the capacity of the CDD20?

The rated capacity is 2,000 kg at the specified load center. The allowable capacity changes according to lifting height.

Is the CDD20 fully electric?

No. The CDD20 is a semi-electric model. Its lifting function is powered, while travel is controlled manually.

What is the turning radius?

The listed turning radius is 1,350 mm.

Is it suitable for narrow warehouse areas?

Its 760 mm width and 1,350 mm turning radius make it suitable for compact indoor handling areas, but actual aisle requirements should be checked against pallet dimensions and warehouse layout.

Why choose semi-electric instead of full-electric?

A semi-electric truck can be a practical choice when electric lifting assistance is needed but pallets do not need to be transported long distances under powered drive.

Can it lift 2 tons to 3 meters?

Not at its full rated capacity. The listed capacity at 3,000 mm lifting height is 1,100 kg. Always select the truck according to both load weight and required lifting height.

Looking for a Cost-Effective 2 Ton Pallet Truck?

Tell us your pallet weight, required lifting height, pallet dimensions and daily handling conditions. We can help determine whether the CDD20 semi-electric configuration is suitable for your operation.
