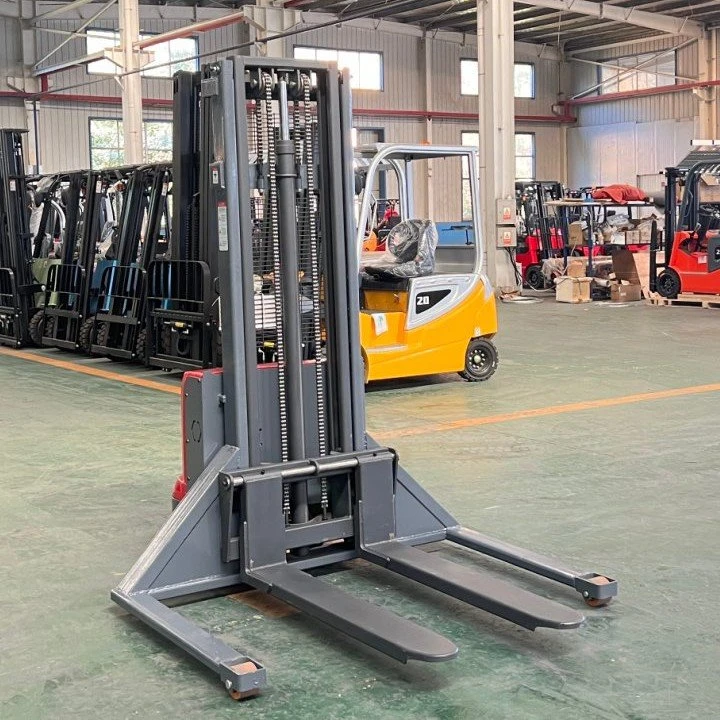

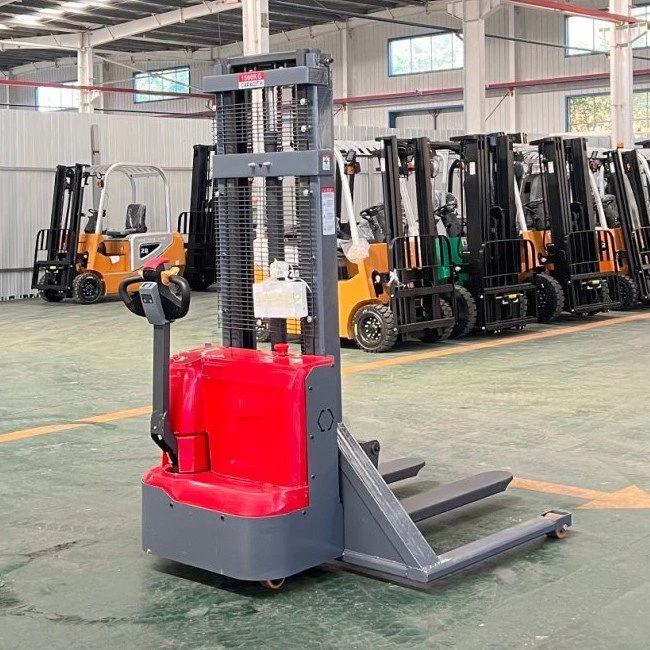

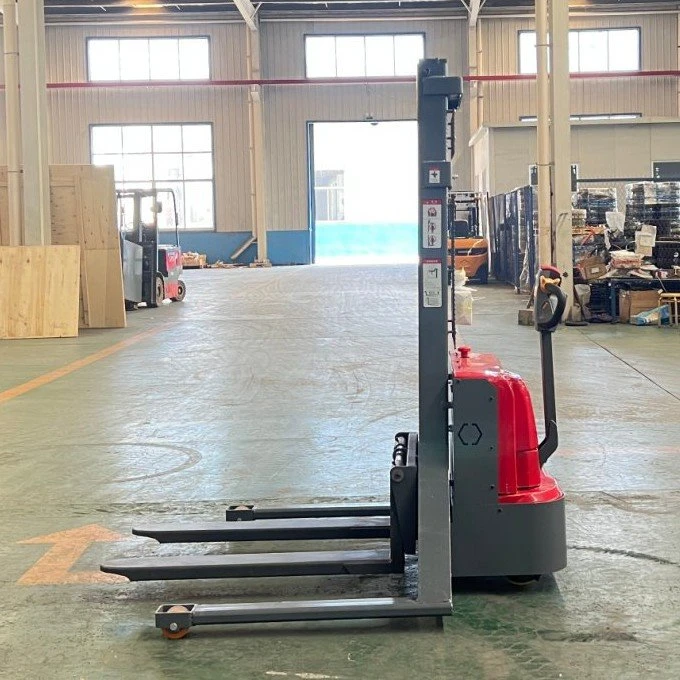

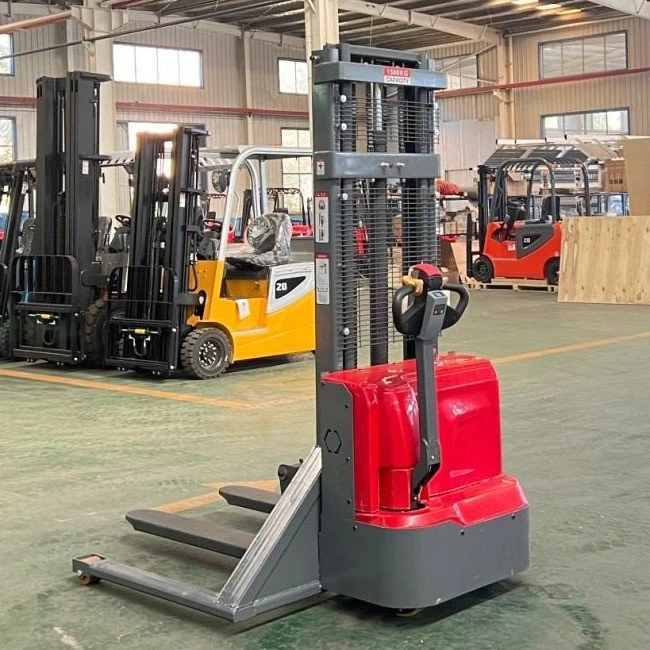

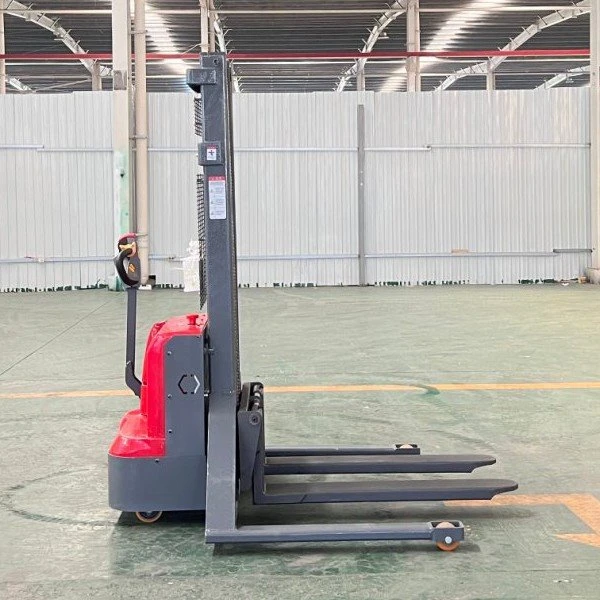

1.5 Ton Wide-Legged Stacker: CDD15

The CDD15 wide-legged stacker is designed for palletized goods and loads that require more clearance around the load base than a conventional stacker can provide. Its wide-leg configuration is suitable for handling wider pallets, large packaged goods and loads with non-standard bottom structures.

With a rated capacity of 1,500 kg, 600 mm load center and multiple mast configurations from 4,000 to 6,000 mm lifting height, the CDD15 can be configured for different stacking requirements. Fork width options of 570 mm and 695 mm are also available for different load dimensions.

1,500 kg Capacity | 600 mm Load Center | 570/695 mm Fork Width | Up to 6,000 mm Lift

When Do You Need a Wide-Legged Stacker?

A wide-legged configuration may be worth considering when:

Your pallets are wider than standard pallet configurations.

The load extends beyond the normal pallet footprint.

The bottom of the load requires additional clearance.

You handle large packaged products.

You need more flexibility around fork positioning.

Load stability is a concern when stacking wider goods.

If your pallets are standard-sized and your main concern is compact maneuverability, a conventional or walk-behind stacker may be a better fit.

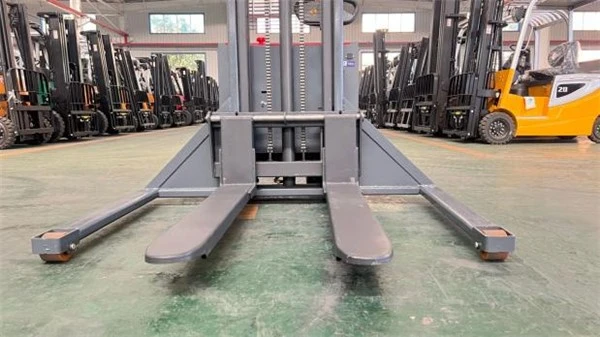

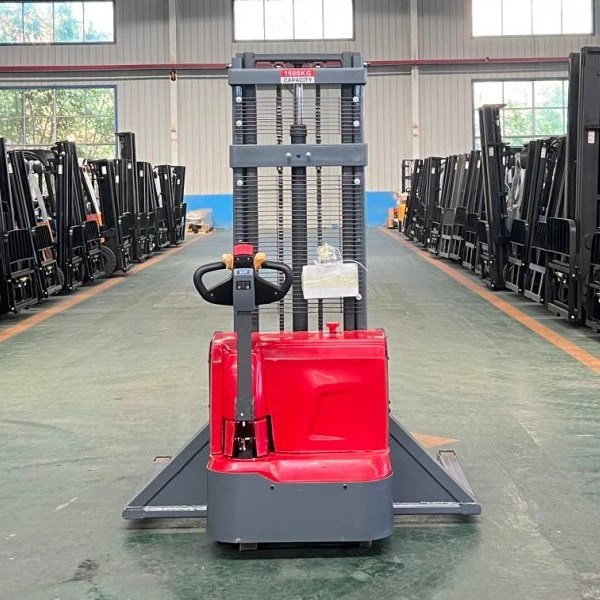

Wide-Leg Configuration Explained

Fixed Leg Dimensions

The CDD15 uses a wide-leg configuration with different inside and outside leg dimensions depending on the selected fork configuration. These dimensions should be checked against the pallet entry and load base before purchase.

1-5-tons-wide-legged-stacker

Technical Specifications

Item	Specification
Model	CDD15(Wideleg)
Power Type	Electric
Operation	Standon
Rated Traction Weight	1500 kg
Loader Center Distance	600 mm
Overall fork width	570 / 695 mm
Fork length	1150 mm
Fixed leg length	875 mm

Maximum Lifting Height	Capacity at Maximum Height
4,000 mm	1,000 kg
4,500 mm	800 kg
4,700 mm	700 kg
5,000 mm	600 kg
5,500 mm	500 kg
6,000 mm	300 kg

Important: Rated capacity and capacity at maximum lifting height are not the same. If you need to lift a heavy load to a high storage position, confirm the required load weight and lifting height with us before ordering.

Item	Specification
Service Weight	1230 / 1260 / 1280 / 1310 / 1340 / 1360 kg
Tires	PU
Driving Wheels (Φ×W)	Φ250×75 /1 mm
Balance Wheels (Φ×W)	Φ150×58 /2 mm
Front Wheels (Φ×W)	Φ80×70 /4 mm
Travel Speed (Laden / Unladen)	5.5 / 5.2 km/h
Lifting Speed (With / Without Load)	147 / 108 mm/s
Lowering Speed (With / Without Load)	110 / 175 mm/s
Drive motor,60 min rating	1.5 kw
Lift motor rating at 53 15%	3 kw
Battery voltage	24V / 240AH
Battery dimensions	790 / 210 / 520
Steering type	Mechanical steering
Extended mast height	4560 / 5060 / 5260 / 5560 / 6060 / 6560 mm
Lowered mast height	1888 / 2054 / 2120 / 2220 / 2386 / 2552 mm
Free lifting height	1396 / 1561 / 1627 / 1726 / 1894 / 2060 mm
Overall length(with pedal)	2085 (2485) mm
Overall width	1060 mm
Single fork length	180 mm
Lowered fork height	86 mm
Single fork leg length	124 mm
Inside width between fixed legs	266 / 391 mm
Outside width between fixed legs	514 / 639 mm
Aisle width for pallets 1000×1200 cross ways	2503 mm
Aisle width for pallets 800×1000 length ways	2480 mm
Turning radius	1620 mm

Check Your Aisle Width Before Ordering

The CDD15 requires approximately 2,480–2,503 mm of aisle width for the pallet configurations specified in the technical data. Actual aisle requirements should be checked against pallet dimensions, rack layout and operating conditions.

Send us your pallet size and aisle width for configuration confirmation.

Typical Applications for the CDD15 Wide-Legged Stacker

1. Wide Pallet Storage

For warehouses handling pallets or load carriers that require more clearance around the load base.

2. Large Packaged Goods

Suitable for large packaged products where the load footprint is wider than conventional pallet loads.

3. Home Appliance Storage

4. Production & Staging Areas

5. Building Material Handling

6.Non-Standard Palletized Loads

What Should You Confirm Before Ordering?

1. Pallet dimensions 2. Maximum load weight

3. Load center 4. Required lifting height

5. Aisle width 6. Load base structure

7. Required fork width

Frequently Asked Questions

What is a wide-legged stacker?

A wide-legged stacker is an electric stacking truck designed with wider support legs to provide additional clearance and support when handling wider pallets or loads with non-standard bottom structures.

What is the capacity of the CDD15?

The CDD15 has a rated capacity of 1,500 kg at a 600 mm load center. Actual capacity varies with lifting height and mast configuration.

Can the CDD15 handle wide pallets?

Yes. The wide-leg configuration is designed for applications involving wider pallets and load footprints. The available fork widths are 570 mm and 695 mm, but pallet dimensions should be confirmed before ordering.

What is the maximum lifting height?

The available maximum lifting heights range from 4,000 mm to 6,000 mm, depending on mast configuration.

Can it lift 1.5 tons to 6 meters?

No. The rated 1,500 kg capacity does not apply at every lifting height. At the maximum lifting heights listed for the available configurations, capacity decreases accordingly. For example, the listed capacity at 6,000 mm is 300 kg.

What fork widths are available?

The current configuration provides overall fork width options of 570 mm and 695 mm.

What aisle width does it require?

The listed pallet aisle requirements are approximately 2,480–2,503 mm, depending on pallet dimensions and travel direction. Actual warehouse clearance should be checked before purchase.

Is it suitable for standard pallets?

It can handle standard palletized loads within its rated specifications, but its main advantage is applications where wider or non-standard load dimensions require additional clearance.

What is the difference between a wide-legged and walk-behind stacker?

A wide-legged stacker is primarily selected for load and pallet configuration, while a walk-behind stacker is primarily selected for compact pedestrian operation and maneuverabilit
