Applicable Scenario

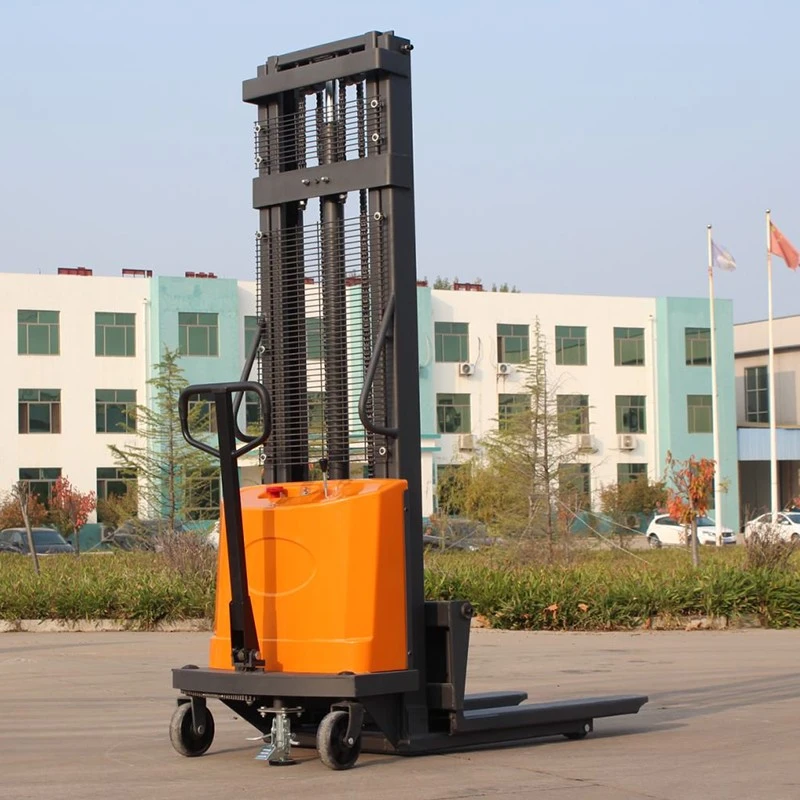

Double-Deck & Closed-Bottom Pallets
The counterbalanced design forks EUR 2/3, closed-bottom, or block pallets directly, without crushing bottom boards-no outrigger legs to slide underneath, so no deck clearance issues.
Flatbed & Container Edge Loading
Drive right up to truck edges or loading docks where an outrigger's base legs cannot enter underneath, cutting transfer steps at the dock.
Ramps & Incline Transitions
Motorized drive wheels handle warehouse ramps and uneven dock transitions; rated grade capacity should be confirmed with your local spec before use.
Tight Spots with Limited Front Clearance
No outriggers to extend means the forks reach cargo where space in front of the load is limited.
Production Lines & Mixed Pallet Handling
Handles varying pallet sizes and bottom structures on the same floor, including line-side and fixed-position handling.
Product Parameters
- Basic & Performance
Model: CDD15
Power Type: Electric
Operator Type: Pedestrian (Walkie)
Rated Load Capacity: 1,500 kg
Load Center Distance : 600 mm
Travel Speed (Laden / Unladen): 4.0 / 4.2 km/h
Lifting Speed (Laden / Unladen): 80 / 210 mm/s
Lowering Speed (Laden / Unladen): 152 / 160 mm/s
Max. Gradeability (Laden / Unladen): 6% / 8%
Service Brake: Electromagnetic braking
- Chassis, Weight & Wheels
Service Weight with Battery: 966 kg
Tire Type: Polyurethane (PU)
Drive Wheel Size: Φ230 x 70 mm (1x Driven)
Balance Wheel Size: Φ150 x 58 mm (1x)
Front Load Wheel Size: Φ80 x 70 mm (4x)
Wheelbase: 1,384 mm
Axle Center to Fork Face (x): 672 mm
Track Width (Front / Rear): 526 mm / 390 (515) mm
- Dimensions & Capacity Matrix
Max. Lift Height: 3,000 mm
Load Capacity at Max. Height: 1,400 kg
Lowered Mast Height: 1,991 mm
Extended Mast Height: 3,408 mm
Overall Length: 2,022 mm
Length to Fork Face: 872 mm
Overall Width: 795 mm
Fork Dimensions (s/e/l): 60 x 180 x 1,150 mm
Overall Fork Width: 570 / 695 mm
Lowered Fork Height: 86 mm
Min. Ground Clearance: 26 mm
Min. Turning Radius: 1,550 mm
Aisle Width for Pallets 1000×1200 Crossways: 2,435 mm
Aisle Width for Pallets 800×1000 Lengthways: 2,412 mm
- Drive & Electrical System
Drive Controller Type: AC Power Control
Drive Motor Rating (60 min): AC 1.5 kW
Lift Motor Rating (S3 15%): DC 3.0 kW
Battery Voltage / Capacity: 24V / 210 Ah
Battery Weight: 195 kg (±5%)
Steering Type: Mechanical steering
Noise Level at Operator's Ear: < 70 dB(A)
Key Features
Why Choose an Electric Counterbalanced Stacker?
Fully electric travel and lifting make everyday repositioning faster and less tiring, while the counterbalanced design-no front support legs-opens up pallet types and loading positions that straddle-leg stackers can't reach. A compact middle ground between a manual stacker and a full-size forklift.

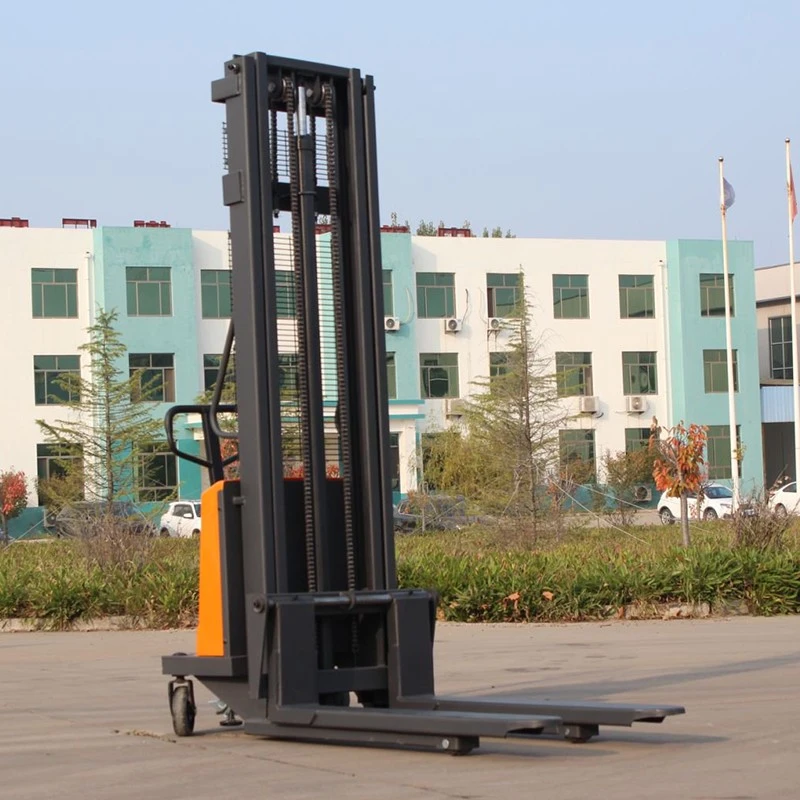

Cross-Pallet Freedom - Zero Base-Leg Obstruction
No front straddle arms extending forward. Fork directly into rack beams, double-deck pallets, and machinery spaces that leg-supported stackers can never reach.
Brushless AC Drive & Gradeability
Brushless AC traction motor delivers solid ramp performance without carbon-brush wear, with smooth, precise speed control. (Confirm the rated gradeability on the model data sheet before specifying for ramp-heavy sites.)
Heavy-Cast Counterweight, Low Center of Gravity
Thick solid-steel rear counterweight block keeps loads stable to the rated 3.5 m lift height without sacrificing compact maneuverability.
BMS Protection & Turtle-Speed Safety

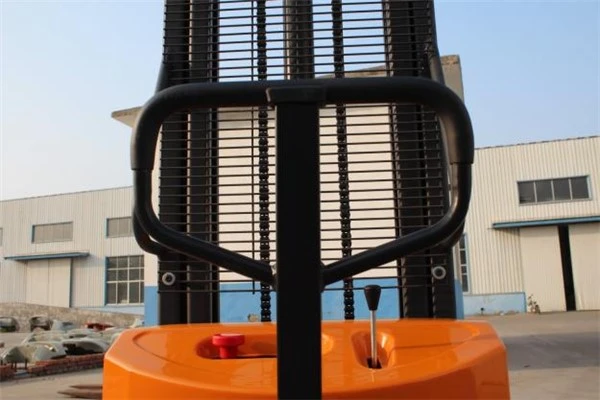

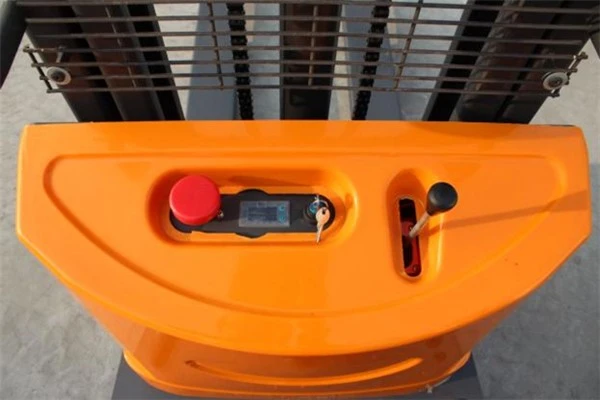

Ergonomic tiller with a "Turtle-Speed" slow-travel button for pinpoint positioning in tight spaces, backed by real-time BMS voltage and thermal protection.
A Compact Alternative to a Full-Size Forklift
Handles stacking tasks where a conventional forklift would be oversized, keeping floor space and equipment budget in check.
Key Design Elements
Counterweight Structure
Provides stability without relying on front support legs.
01
Electric Drive System
Supports powered travel for regular pallet movement.
02
Electric Lifting System
Allows controlled pallet lifting and positioning.
03

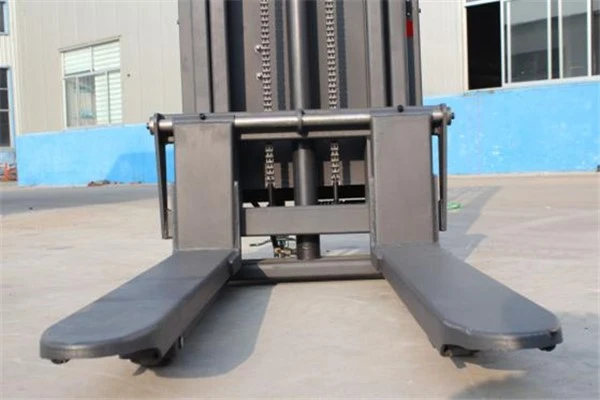

Fork Configuration
Fork dimensions should be matched to pallet size and application requirements.
04
Frequently Asked Questions
What is an electric counterbalanced stacker?
+
-
An electric counterbalanced stacker uses a counterweight design to support load handling without relying on front support legs
What is the main difference between a counterbalanced and straddle-leg stacker?
+
-
A straddle-leg stacker uses support legs around the pallet area, while a counterbalanced stacker provides fork access without front support legs.
Why does a counterbalanced stacker cost more than a standard straddle stacker?
+
-
Because it requires heavy cast-steel counterweights and a reinforced chassis to maintain stability without front support legs. You are paying for the freedom to handle ANY pallet type and load directly onto trucks.
Can this machine handle double-deck pallets on ramps?
+
-
Yes. Unlike straddle stackers whose bottom legs catch on ramp angles, the counterbalanced design provides high ground clearance and motorized traction to navigate incline transitions smoothly.
What battery type is recommended for multi-shift operations?
+
-
For heavy, continuous multi-shift use, we recommend upgrading to our LiFePO4 Lithium system for opportunity charging during break times.
Find the Right Stacker for Your Pallet Type
