Applicable Scenarios For Electric Pallet Trucks
Mega Logistics Distribution Centers
Shuttling pallets continuously across 100+ meter warehouse aisles; EPS steering eliminates operator arm strain on long linear runs, supporting daily ton-per-hour output.
High-Frequency Loading-Bay Operations
Rapidly loading and unloading multi-truck shipments at busy loading bays; high travel speed and smooth steering throttle enable fast cargo transfer between unloading docks and staging zones.
Heavy Industrial & Automotive Plants
Transporting heavy engine blocks, sheet metal, and tooling components; 2,000 kg payload stability ensures jerk-free horizontal transport across factory floor pathways.
Large-Scale Retail Distribution Depots
Nightly store order staging and long-haul pallet relocation across smooth epoxy floors; polyurethane load wheels combined with a low-noise EPS drive keep indoor transfers quiet and efficient
Technical Specifications
Safety & Operator Controls

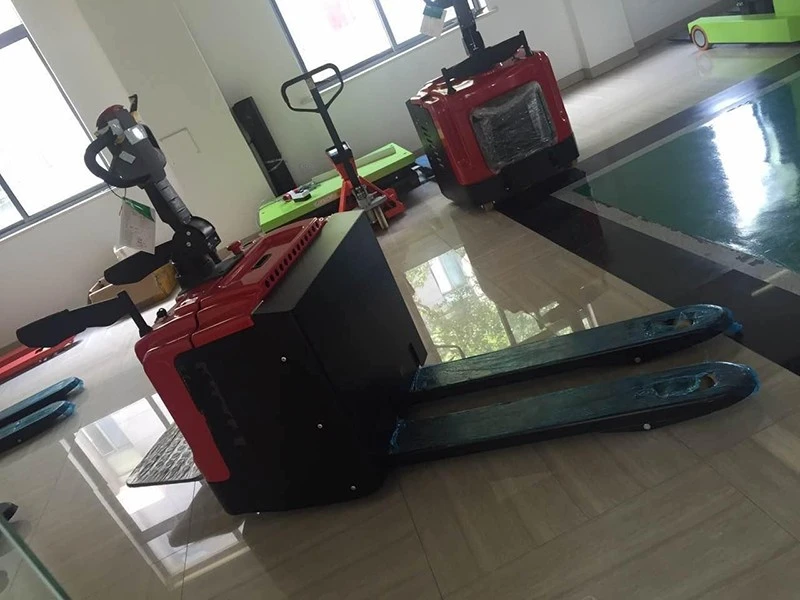

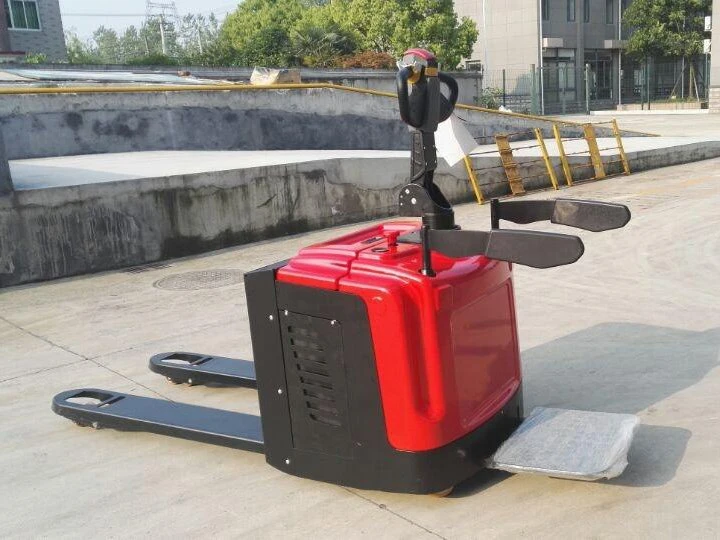

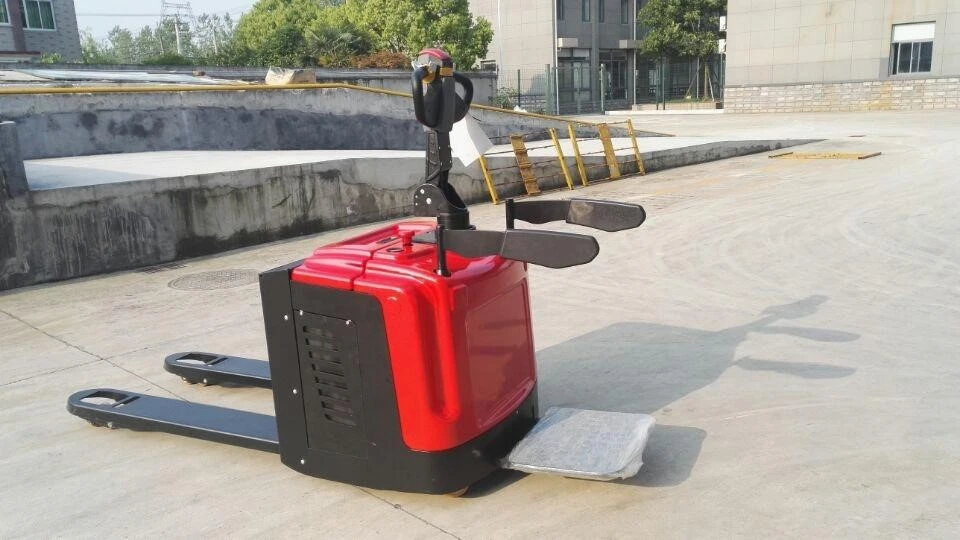

Model: CBD20 (Light)

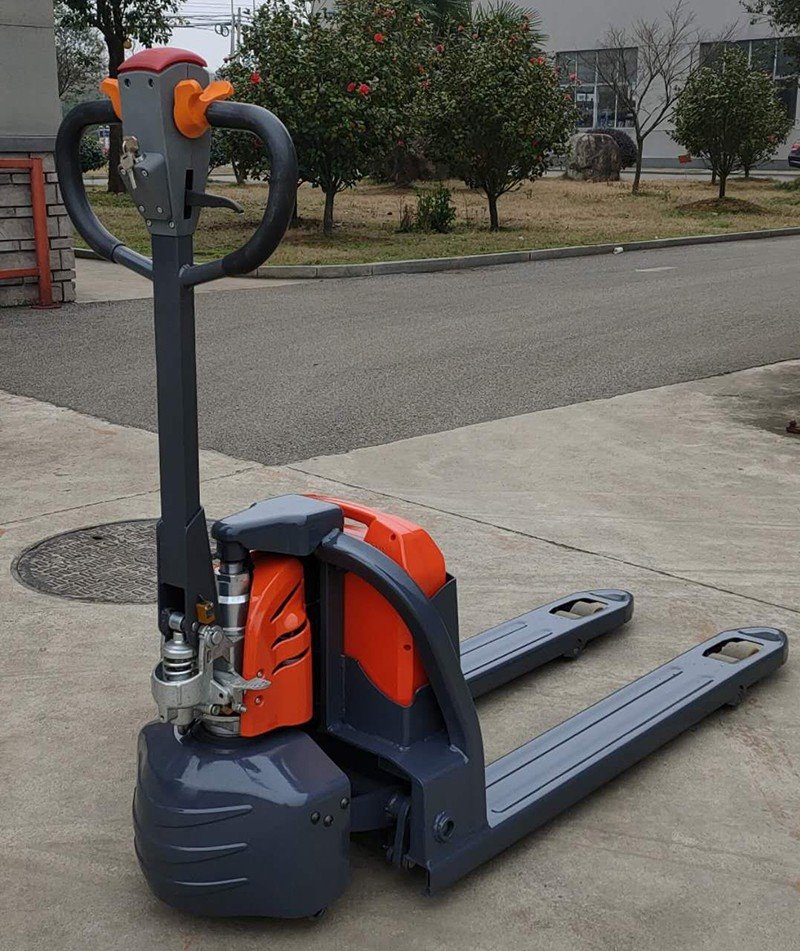

Operation Type: Stand‑on
Rider Power Type: Full‑electric
Rated Capacity: 2000 kg
Load Center: 600 mm
Service Brake: Electromagnetic
Steering Type: Electric steering
Tyre Type: PU
Vehicle & Fork Geometry
Wheelbase: 1384 mm
Overall Length: 1925 mm
Overall Width: 808 mm
Min. Turning Radius: 1746 mm
Fork Length: 1150 mm / 1220 mm
Fork Outer Width Adjustment: 540‑685 mm
Lowered Fork Height: 85 mm
Max. Lift Height: 2000 mm
Power Assembly & Vehicle Weight
Drive Motor: 24V / 1.5 kW
Lift Motor: 24V / 0.8 kW
Drive Control: DC Power
Battery Spec: 24V / 210Ah
Battery Weight: 6 kg
Service Weight (with battery): 810 kg
Working Performance
Travel Speed (Laden / Unladen): 5.0 km/h / 6.8 km/h
Lifting Speed (Laden / Unladen): 80 mm/s / 210 mm/s
Lowering Speed (Laden / Unladen): 152 mm/s / 160 mm/s
Max Gradeability (Laden / Unladen): 6% / 8%
Need a Pallet Truck for Low-Light Operations?
Send Your Pallet & Warehouse Details
Key Features
Light EPS Power Steering
High-Torque Drive Motor & High Travel Speed
Ramp Hold & Anti-Rollback Braking
Heavy-Gauge Reinforced Fork Architecture
Typical Handling Flow
Receiving
Move incoming pallets away from loading points.
Staging
Transfer pallets between temporary holding areas.
Storage
Move goods through enclosed warehouse zones.
Dispatch
Position finished pallets for outbound handling.
Frequently Asked Questions
What is a light EPS pallet truck?
+
-
It is an electric pallet truck equipped with integrated lighting to provide additional illumination during pallet handling in low-light environments.
Where is the CBD20 Light commonly used?
+
-
It is particularly suitable for underground warehouses, cold storage facilities, night-shift logistics and dimly lit workshops.
What are the main operational advantages of Light EPS compared to standard manual steering?
+
-
Standard manual steering requires physical shoulder and arm effort to turn a 2.0-ton load, leading to fatigue and slower cycle times. Light EPS uses an electronic motor actuator to provide instant, feather-light steering control, allowing faster maneuverability with near-zero operator physical strain.
Does this EPS electric pallet truck feature speed reduction during turning?
+
-
Yes. The integrated controller automatically reduces travel speed when taking sharp turns with heavy loads, preventing tip-over risks and keeping palletized cargo perfectly stable.
What type of maintenance does the EPS steering system require?
+
-
The Light EPS module is fully sealed and maintenance-free. Regular maintenance is limited to routine checking of drive wheel wear, hydraulic oil levels, and battery electrolyte fluid/charging cycles.
Inventory And Product Condition
Large-Scale Manufacturing · Scenario-Based Customization
DAWNSHINE combines manufacturing expertise, supply chain capabilities, and scenario-based customization to deliver reliable forklift solutions.
With mature production and quality control systems, we manufacture 10,000+ forklifts annually, supporting continuous orders and urgent delivery within 20 days.
From standard models to customized solutions, we provide forklifts tailored to different operating needs, backed by strict quality control for reliable performance and durability.
