Rated Capacity

1,500 kg

Lift Height

1.6–4.0 m

Overall Width

805 mm

Turning Radius

1,460 mm

Where It Works Best

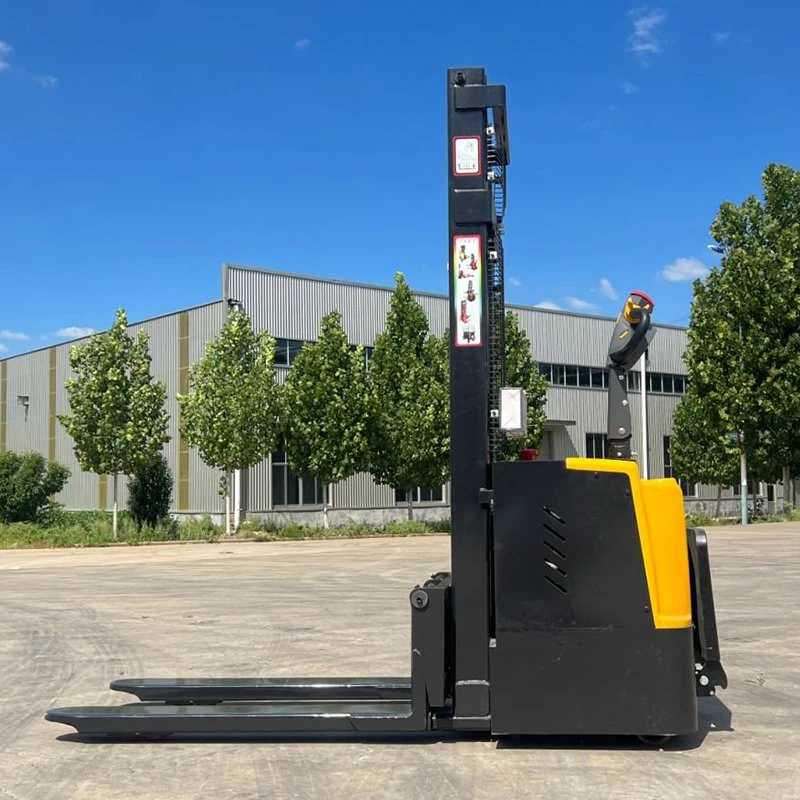

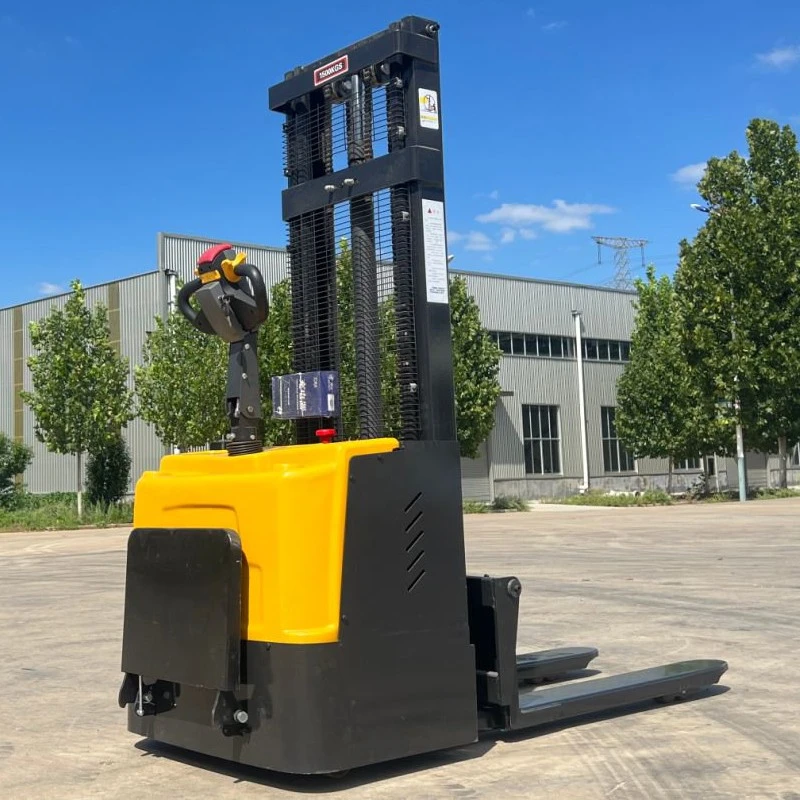

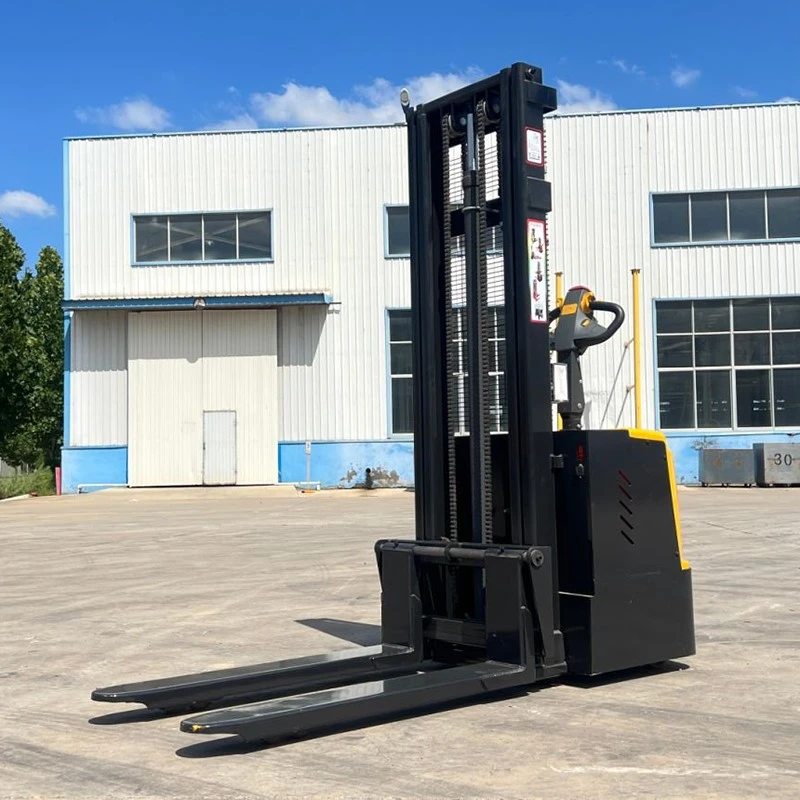

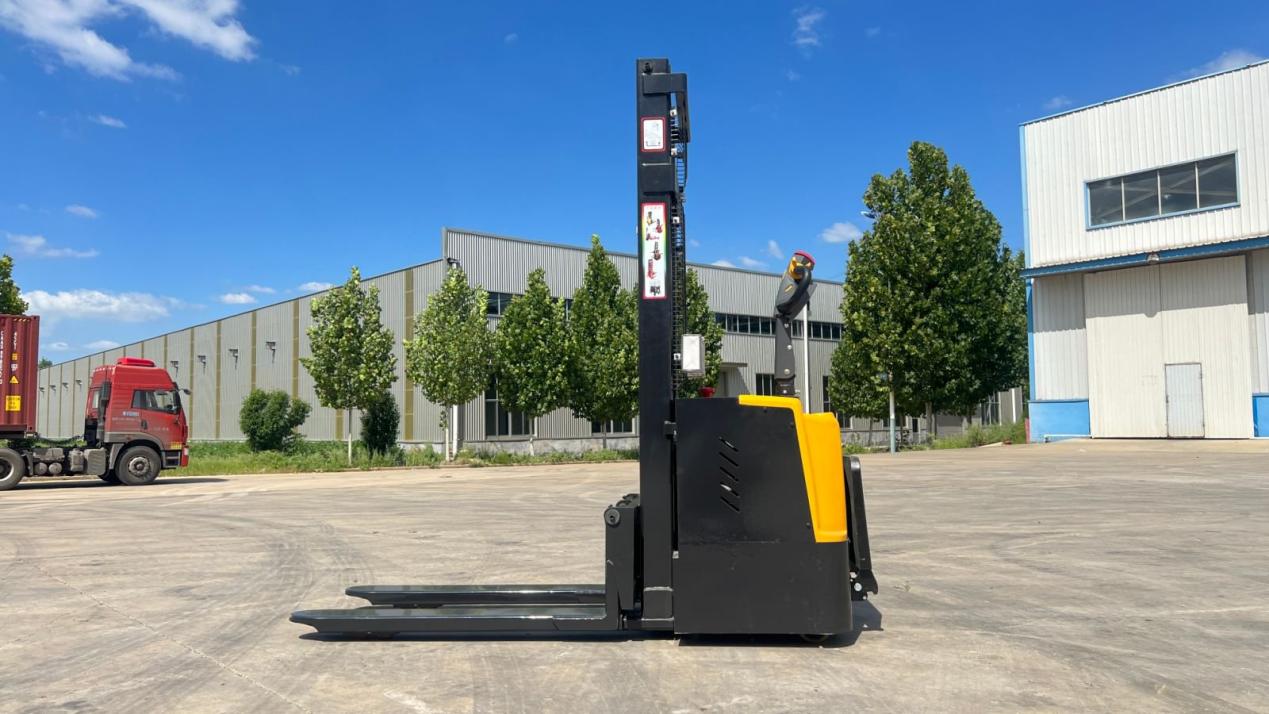

The 1.5-ton stand-on stacker bridges the gap between walkie pallet trucks and full counterbalance forklifts: operators ride instead of walk on transfer runs over 20 m, cutting fatigue across multi-shift operations at a fraction of a forklift's cost.

Large Logistics Hubs & Cross-Docking

Transporting pallets across distances over 20 meters between staging bays and shipping docks.

Multi-Shift High-Throughput Operations

Continuous pallet transfers where reducing operator walking fatigue is critical to productivity.

Warehouse Replenishment Cycles

Repeated storage → picking → replenishment → storage cycles performed throughout the shift.

E-Commerce & Distribution Staging

High-frequency short-distance pallet transfers between temporary staging, sorting zones, and dispatch preparation.

Technical Specifications

Basic & Performance

Model: CDD15

Power Type: Full Electric

Operator Type: Stand-on

Rated Load Capacity: 1,500 kg

Load Center : 600 mm

Travel Speed (Laden / Unladen): 4.8 / 3.4 km/h

Lifting Speed (Laden / Unladen): 140 / 132 mm/s

Lowering Speed (Laden / Unladen): 115 / 57 mm/s

Steering Type: Mechanical steering

General Dimensions & Operating Capacity

Overall Length (Pedal Folded / Unfolded): 1,914 mm / 2,314 mm

Overall Width: 805 mm

Fork Dimensions (L x W): 1,150 x 180 mm

Overall Fork Width: 570 / 695 mm

Lowered Fork Height: 86 mm

Turning Radius : 1,460 mm

Aisle Width for Pallet 1000×1200 Crossways: 2,232 mm

Aisle Width for Pallet 1000×1200 Lengthways: 2,302 mm

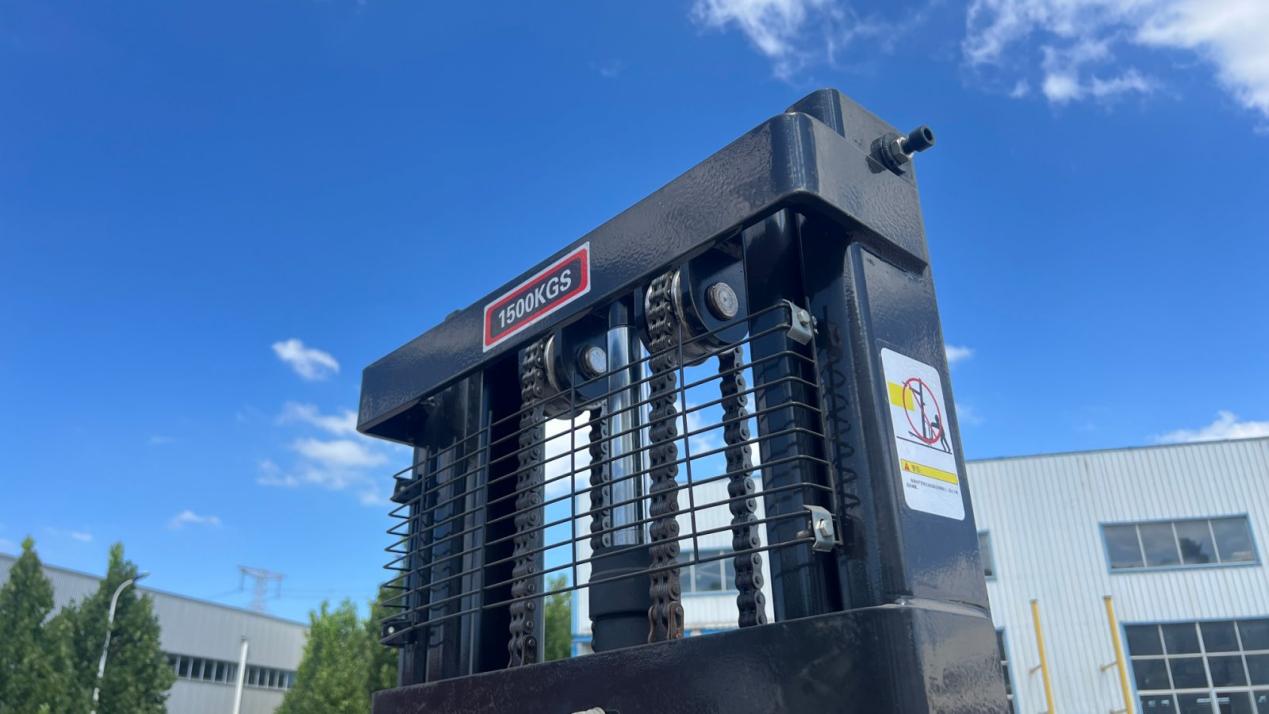

Mast, Capacity & Dimensions Matrix

Lift Height (mm)	Max. Load Capacity (kg)	Lowered Mast Height (mm)	Extended Mast Height (mm)	Service Weight (kg)
1600	2000	2077	2077	850
1800	2000	2277	2277	860
2000	1500	1577	2537	910
2600	1400	1877	3137	960
3000	1350	2027	3497	970
3200	1300	2127	3687	990
3600	1100	2327	4087	1010
4000	800	2527	4487	1030

Drive System, Chassis & Battery

Drive Motor (60 min rating): AC 1.5 kW

Lift Motor (S3 15%): DC 3.0 kW

Battery Voltage / Capacity: 24V / 210 Ah

Key Features

Foldable Shock-Absorbing Platform & Protective Side Arms

Heavy-duty ergonomic side arms and a cushioned ride-on platform absorb floor vibrations, protecting operators from strain during high-speed warehouse runs.

Dual-Mode Operation: Fast Ride-On & Compact Walkie

Switch from high-speed ride-on mode (up to 6.0 km/h) in main travel aisles to compact walkie mode (pedal folded) for maneuvering inside tight rack corners.

Standard EPS Electronic Power Steering

Smooth EPS power steering with automatic speed reduction during sharp turns offers effortless one-handed control and precise maneuverability without physical exertion.

High-Efficiency AC Drive & Fast Lithium Charging

A brushless AC drive motor delivers rapid acceleration, paired with a fast-charging LiFePO4 battery supporting opportunity charging during shift breaks.

Frequently Asked Questions

What is a stand-on electric stacker?

A stand-on electric stacker is a pallet-handling truck that allows the operator to ride on a platform while moving and stacking loads. Compared with a walk-behind stacker, it is better suited to operations where the operator repeatedly travels between pallet locations, storage areas and staging points.

The CDD15 combines a stand-on operating position with a 1,500 kg rated capacity and lift heights from 1.6 to 4.0 meters, making it suitable for routine pallet movement and replenishment in warehouses and production facilities.

When should I choose a Ride-On (Station-Mounted) stacker over a standard Walkie stacker?

If your warehouse transfer distance exceeds 20 meters per trip or if your operators move pallets continuously for more than 3 hours a day, a ride-on stacker significantly cuts travel time and fatigue, boosting overall facility efficiency.

Can this 1.5-ton ride-on stacker operate in narrow rack aisles?

Yes. By simply folding up the platform and protective side arms, the machine instantly converts into a compact walkie stacker, reducing its turning radius for tight aisle maneuvering.

Is the CDD15 suitable for my warehouse layout?

It can be suitable for compact warehouse operations, but aisle suitability should not be judged by truck width alone.

The CDD15 has an overall width of 805 mm and a turning radius of approximately 1,460 mm. Whether it can operate comfortably in a particular aisle also depends on pallet size, rack depth, aisle configuration, turning space and the clearance required by the operator.

If you are unsure, provide your aisle width, pallet dimensions, load weight and required lifting height when requesting a quotation. These details can be used to assess whether the CDD15 configuration matches your actual working conditions.
