Where It Works Best
Small warehouses moving off manual equipment
stacking frequency has outgrown what a hand pallet truck plus muscle can sustain; a manual stacker adds lifting capacity without the cost jump to a fully electric unit.
Production areas with short pallet transfers
pallets shuttled between workstations or storage bays, where runs are short but lifting is repeated throughout the day.
Retail backrooms and distribution storage
limited floor space, operators rarely need to carry a load across long distances.
Light-to-moderate daily stacking
under about 3 hours of active lifting a day (stockrooms, retail backrooms, light assembly lines, small distribution hubs), where a fully electric stacker can't be justified by duty alone.
Product Parameters
- Key specs
Rated Load Capacity:1,500 kg
Max. Lift Height:1,600 - 3,500 mm
Power Type:Semi-Electric (Manual Drive / Electric Lift)
Min. Aisle Width (Ast):2,040 mm
Battery Spec:12V / 120Ah
- Basic Performance & Operation
Model: CDD15
Drive / Lifting Type: Manual push / Electric lifting
Operator Type: Pedestrian / Stand-on
Travel Speed (Laden/Unladen): 4.0 / 4.2 km/h
Lifting Speed (Laden/Unladen): 92 / 136 mm/s
Lowering Speed (Laden/Unladen): 112 / 98 mm/s
Brake: Electromagnetic / Mechanical
- Dimensions
Overall Length (with/without pedal): 1,800 mm / 1,600 mm
Overall Width: 760 mm
Fork Dimensions (L x W x Thickness): 1,150 x 150 x 55 mm
Overall Fork Width: 550 / 640 mm
Turning Radius: 1,350 mm
Aisle Width for Pallets (1000x1200 crossways): 2,250 mm
Aisle Width for Pallets (800x1000 lengthways): 2,040 mm
- Configuration
Tire Type: Polyurethane (PU)
Wheel Setup: 1 Drive Wheel / 2 Balance Wheels / 4 Front Load Rollers
Lift Motor: DC 12V / 1.5 kW
Battery Voltage / Rated Capacity: 12V / 120 Ah
Charger: Built-in / External 12V Smart Charger
|
Lift Height (mm) |
Lowered Mast Height (mm) |
Extended Mast Height (mm) |
Capacity at Max. Height (kg) |
|
1,600 |
2,077 |
2,077 |
1,500 |
|
2,000 |
1,577 |
2,567 |
1,200 |
|
2,500 |
1,827 |
3,067 |
1,050 |
|
3,000 |
2,077 |
3,567 |
900 |
|
3,500 |
2,327 |
4,067 |
750 |
Key Features
Why Choose a Semi-Electric Stacker?
Powered lifting takes the strain out of repeated stacking, while manual push keeps the system-and the price-closer to a manual unit. A practical middle ground for facilities that want electric lift without full-electric cost and complexity.
Zero Drive-Motor Maintenance, Half the Cost
No drive motor, no electronic steering controller, no traction transmission to service-fewer wear parts than a fully motorized unit, cutting annual maintenance overhead by up to 60%.
Plug & Charge via Standard Wall Socket
Built-in charger works with standard 110V/220V single-phase outlets. No dedicated charging station or 3-phase industrial power required-lower setup cost for small facilities.

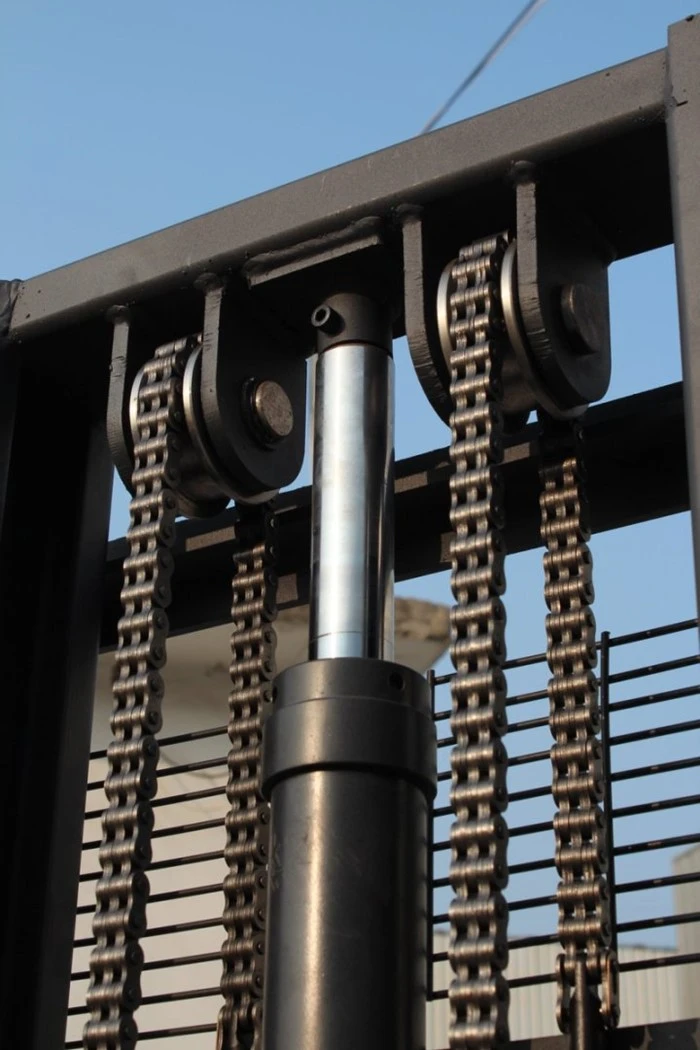

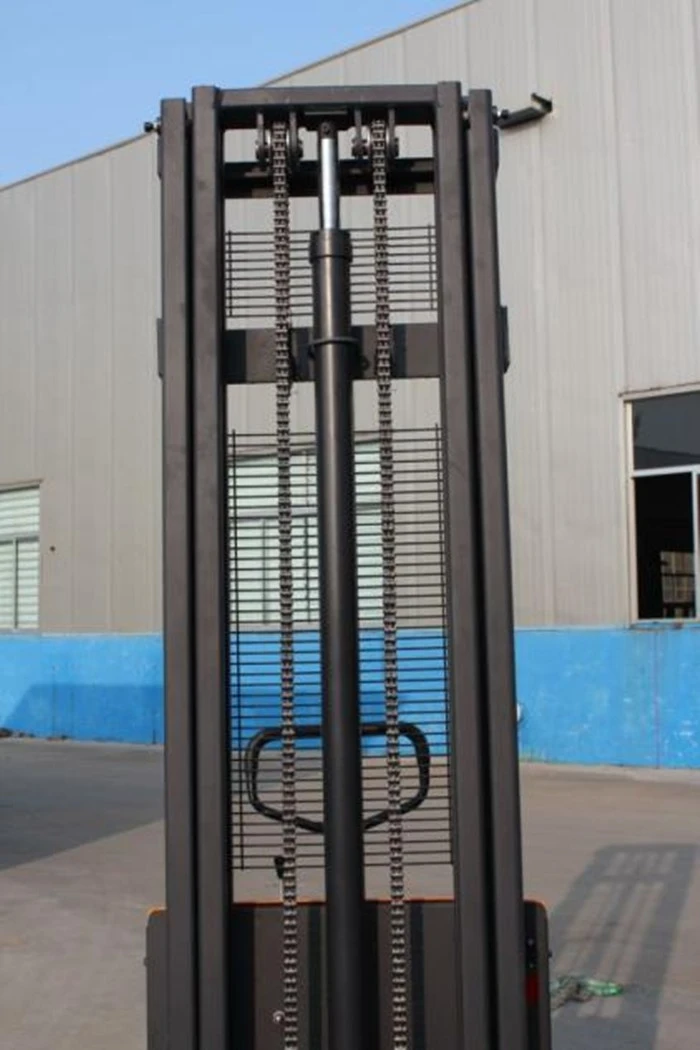

Precision Hydraulic Mast & Dual Chains
Heavy-duty C-section steel mast reinforced with high-tensile lifting chains delivers smooth vertical ascent up to 3.5 m without frame twisting.

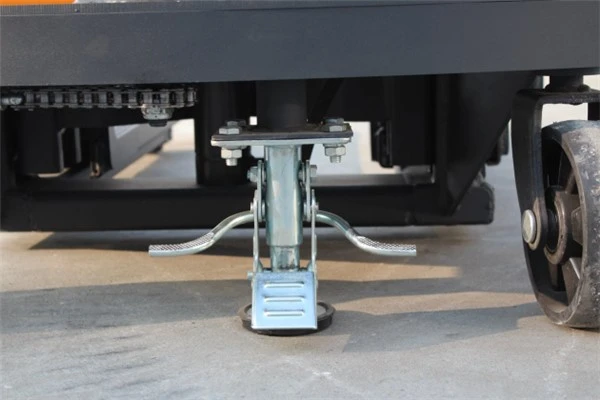

Locked & Floor-Safe
Mechanical foot-activated parking brake locks the wheels instantly on level ground; polyurethane-coated rear casters protect epoxy warehouse floors.
Key Components for Daily Warehouse Use
Electric Hydraulic Lifting System
Reduce manual lifting effort.
01

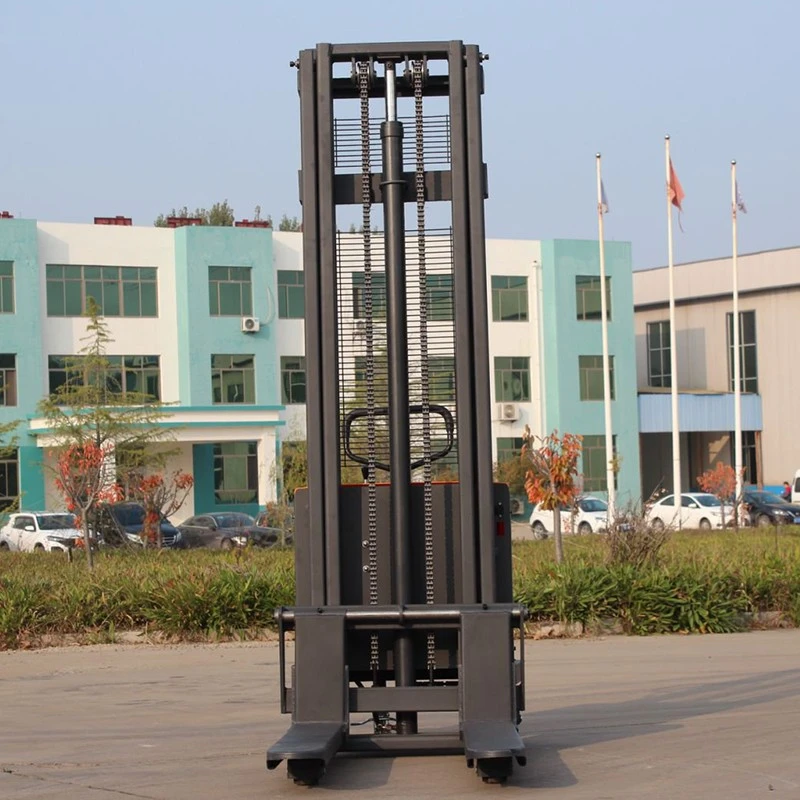

Mast Structure
Stable pallet positioning during stacking.
02

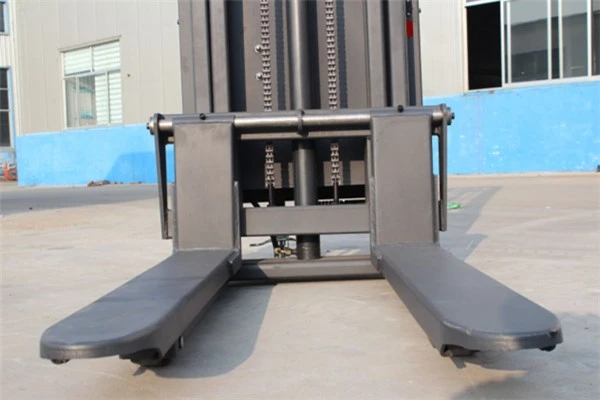

Fork Configuration
Suitable fork dimensions and adjustment options according to pallet requirements.
03
Battery System
Battery configuration should match daily lifting frequency and operating time.
04
Frequently Asked Questions
What is a semi electric stacker?
+
-
A semi electric stacker typically combines electric lifting with manual movement. It is designed for operations where lifting assistance is required but travel distances are relatively short.
When should I choose a semi electric stacker instead of a fully electric stacker?
+
-
A semi electric model is often suitable when pallet movement distances are short and daily stacking intensity does not require powered travel.
Can this stacker lift double-deck (bottom-board) pallets?
+
-
No. Because the front support legs run under the forks, it can only enter open-bottom pallets. If you handle closed-board EUR/US pallets, please view our Counterbalanced Electric Stacker Page.
How long can I operate on a single charge?
+
-
The 100Ah battery supports approximately 30–40 full-capacity lift cycles per charge. Since travel is manual, battery power is strictly conserved for lifting.
Is it difficult to push a 1.5-ton load manually?
+
-
The unit utilizes dual high-grade polyurethane casters with precision bearings. On flat, smooth concrete, rolling resistance is minimal. However, we recommend two-person operation or fully electric units for loads exceeding 1000 kg over long distances.
