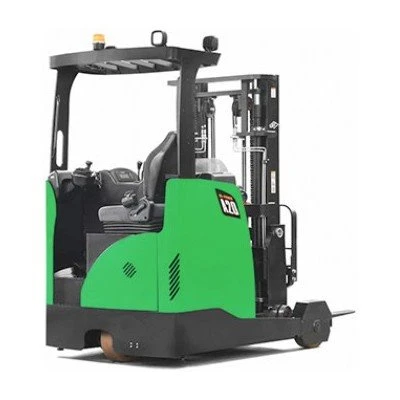

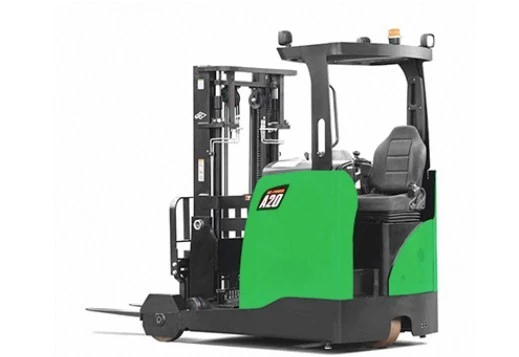

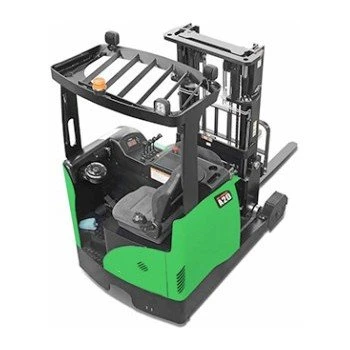

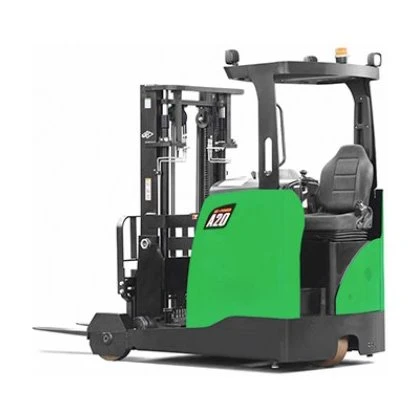

2.0 Ton Reach Forklift Truck: CDA20
The 2.0-ton forward moving forklift is suitable for places with compact space and dense shelves, such as large three-dimensional warehouses, e-commerce high volume ratio storage areas, manufacturing raw material/finished product storage workshops, etc. Its gantry can move forward and operate flexibly in narrow channels, suitable for goods weighing up to 2.0 tons, and has a high lifting height, making it suitable for the storage and retrieval of goods on multiple shelves. It is especially suitable for scenarios that require efficient use of vertical space and limited channel width, improving the efficiency of warehousing operations.
Product Parameters
- Characteristics
Model: CDA20(Forward-moving forklift truck)
Power type: Electric
Operation: stand-on
Rated traction weight(kg): 2000
Loader center distance(mm): 500
Axle centre to fork face(mm): 324 / 324 / 324 / 324 / 324 / 324 / 324 / 324
Wheel base(mm): 1550 / 1550 / 1550 / 1550 / 1550 / 1550 / 1550 / 1550
- Weights
Service Weight(kg): 2720 / 2750 / 2790 / 2807 / 3070 / 3123 / 3150
Tires: PU
Driving wheels sizes / number(g*w)(mm): Φ250*127
Balance wheels sizes / number(g*w)(mm): Φ149*60
Front wheels sizes / number(g*w)(mm): Φ250*120
Wheels, number front / rear (x = driven): 1x+1 / 4
Track width drive end (mm): 665
Track width load-bearing end(mm): 976
- Performance
Travel speed, laden / unladen(km / h): 5.2 / 5.5
Lifting speed, with / without load(mm / s): 130 / 180
Lower speed, with / without load(mm / s): 130 / 210
Maximum climbing ability, with / without load(%): 5 / 8
Service brake: Electromagnetic braking
- Dimensions
The max lifting height(mm): 2500 / 3000 / 3700 / 4000 / 4500 / 5500 / 6000
Extended mast height(mm): 3360 / 3860 / 4560 / 4860 / 5420 / 6420 / 6920
Lowered mast height(mm): 1740 / 1990 / 2340 / 2490 / 2190 / 2523 / 2690
Free lifting height(mm): 0 / 0 / 0 / 0 / 1520 / 1854 / 2020
Height of handle in drive position min / max(mm): 1075 / 1502
Lowered fork height(mm): 40
Overall length(mm): 2540
Length to fork face(mm): 1470
Overall width(mm): 1106 / 940
Fork dimensions, Thickness / Width / Length s / e / l (mm): 40 / 120 / 1070
Adjustable width over forks(mm): 240-715
Reach distance(mm): 500
Aisle width for pallets 1000*1200 cross ways(mm): 2900
Aisle width for pallets 800*1000 length ways(mm): 2960
Min turning radius(mm): 1800
Mast / Fork carriage tilt forward / backward(°): 3 / 5
- Drive/Battery
Drive motor, 60 min rating(kw): 2.5
Lift motor rating at 53 15%(kw): 3
Battery according to DIN 43531 / 35 / 36 A, B, C: no
Battery voltage(V / Ah): 24V / 280(400)AH
Battery weight (± 5%)(kg): 150
- Other
Type of drive control: CURTIS AC
Noise level at operator's ear(dB(A)): ＜75
The advantages of a 2.0-ton forward moving forklift are prominent: the gantry can move forward and operate flexibly in narrow passages, greatly improving the utilization of storage space. A load capacity of 2.0 tons is suitable for most goods, and the lifting height is relatively high, meeting the storage and retrieval needs of multi-layer shelves. Electric drive is environmentally friendly, low-noise, easy to operate, flexible in steering, and reduces blind spots during operation. Balancing load-bearing and mobility, suitable for dense warehousing scenarios, efficiently completing cargo loading and unloading, stacking, reducing manual labor intensity, and improving operational efficiency.
Inventory And Product Condition
Large scale intelligent manufacturing x scenario customization - your agile supply chain support
DAWNSHINE, with years of service experience, product innovation, and service network advantages, closely monitors customer needs, provides customers with more efficient and convenient solutions, and creates value for users.
We focus on producing and supplying efficient and reliable forklift products. With a mature production system and optimized supply chain management, our factory produces tens of thousands of forklifts annually, which can meet your continuous order needs.
At the same time, we can provide powerful customized forklift solutions for different work scenarios. We will provide you with products that meet your needs for any customized forklift. Strict quality control processes are implemented throughout to ensure excellent performance and durability of each forklift. Manufacturing strength guarantee:
Annual production of over 10000 flexible production lines, supporting delivery of urgent orders within 20 days.
