Where Semi-Electric Handling Fits Best
Workshop storage・Small warehouse storage・Retail /backroom replenishment
Low-Frequency Daily Stacking (< 15–20 Pallets/Day)
Stacking pallets intermittently, where the machine sits idle between uses and a fully electric model would not pay for itself.
Short Internal Transport Distances (< 5–10 m)
Moving loads just a few steps from the delivery truck to nearby racking.
Tight Procurement & Maintenance Budgets
Small businesses needing automated lifting without complex electronic servicing costs.
Technical Specifications
Basic & Performance
Model: CDD20
Power Type: Full Electric
Operator Type: Pedestrian (Walkie)
Rated Load Capacity: 2,000 kg
Load Center Distance: 600 mm
Travel Speed (Laden / Unladen): 4.0 / 4.2 km/h
Lifting Speed (Laden / Unladen): 80 / 210 mm/s
Lowering Speed (Laden / Unladen): 152 / 160 mm/s
Gradeability (Laden / Unladen): 6% / 8%
Service Brake: Electromagnetic
Mast & Dimensions
Max. Lifting Height: 3,000 mm
Residual Capacity at Max. Height: 1,400 kg
Lowered Mast Height: 1,991 mm
Extended Mast Height: 3,408 mm
Overall Length: 2,022 mm
Overall Fork Width (Outside): 570 / 695 mm
Lowered Fork Height: 86 mm
Handle Height in Drive Position (Min / Max): 870 / 1,200 mm
Turning Radius: 1,550 mm
Aisle Width for Pallets (1000×1200 Across Forks): 2,435 mm
Aisle Width for Pallets (800×1200 Across Forks): 2,412 mm
Drive, Battery & Chassis
Drive Control Type: AC Power Control
Drive Motor (60 min rating): AC 1.5 kW
Lift Motor Rating (S3 15%): DC 3.0 kW
Battery Voltage / Capacity: 24V / 210 Ah
Battery Weight: 195 kg
Service Weight (with Battery): 966 kg
Tire Material: Polyurethane (PU)
Wheelbase: 1,384 mm
Products Description

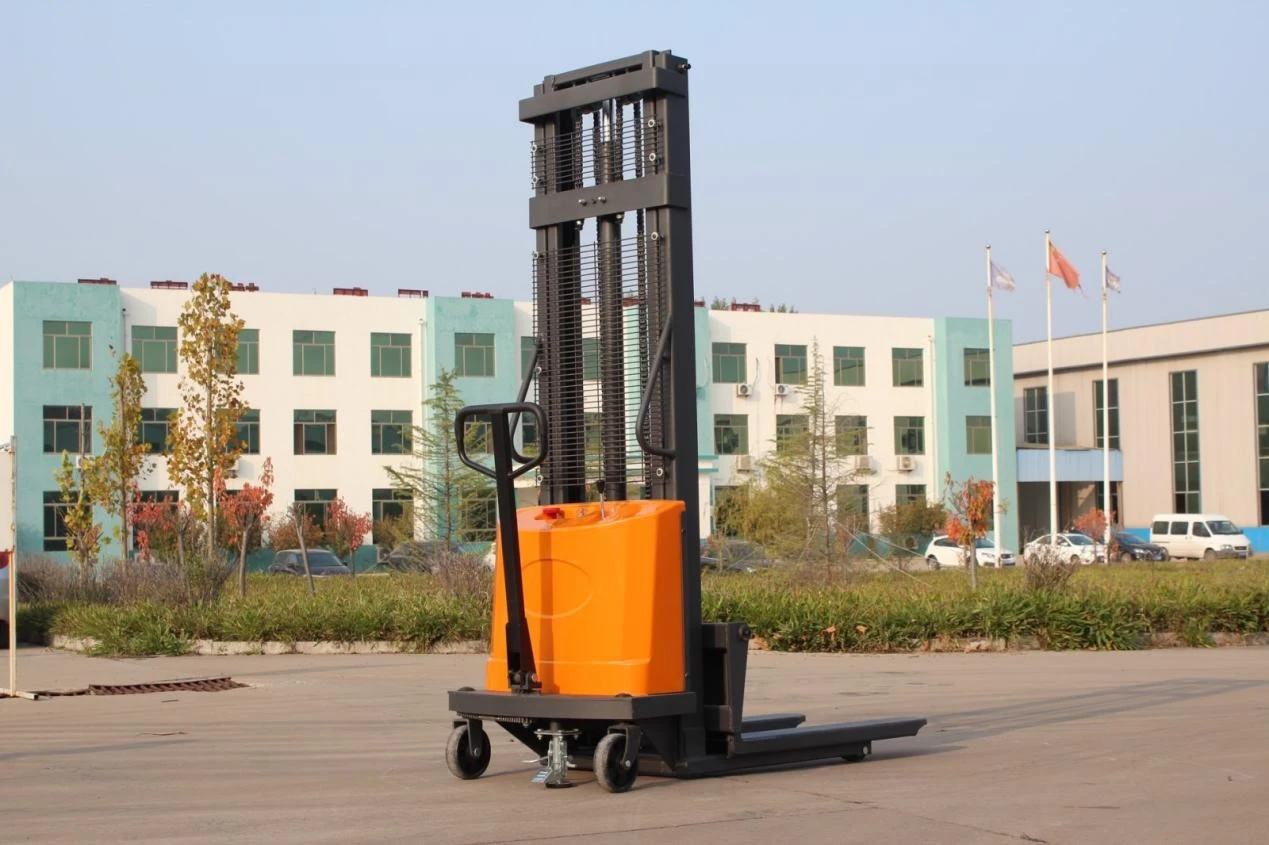

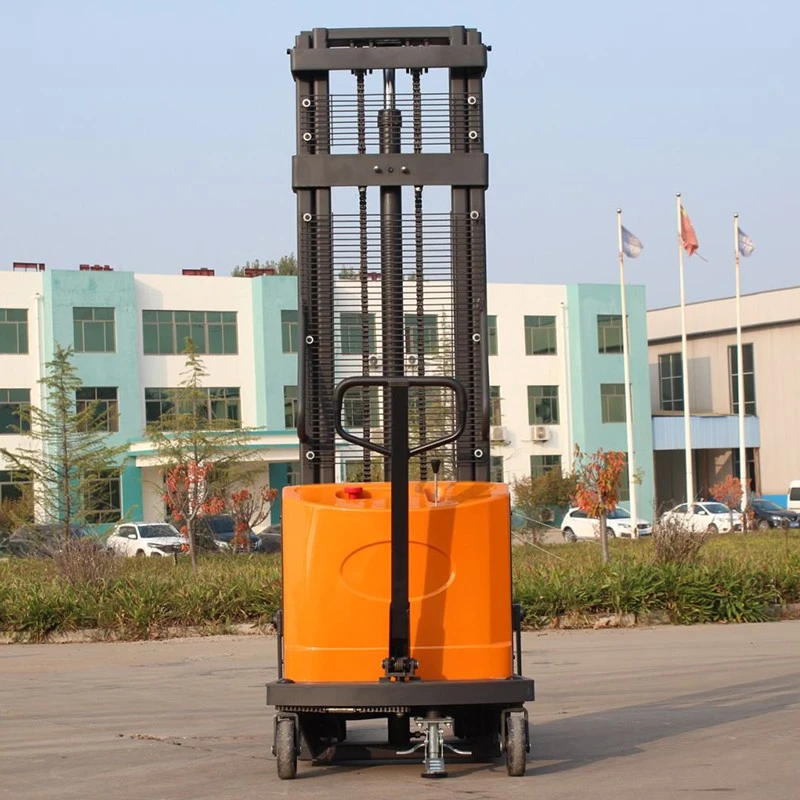

The 1.0–2.0t semi-electric pallet stacker puts electric lifting where it matters most: lifting is the main physical effort in low-frequency, short-distance operations. A DC hydraulic pump raises 2,000 kg at the push of a button, while manual travel keeps the machine simple, affordable, and serviceable by any local technician.

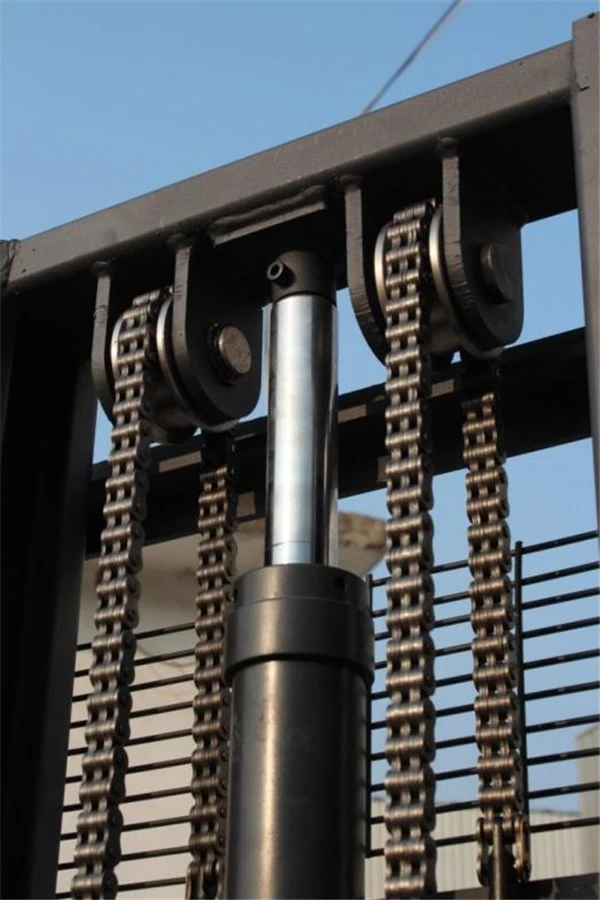

Electric Hydraulic Lift System - No Manual Pumping
Powered by a high-torque DC hydraulic lift pump, operators raise 2,000 kg smoothly by button or lever, protecting workers from back injuries during high-level stacking.

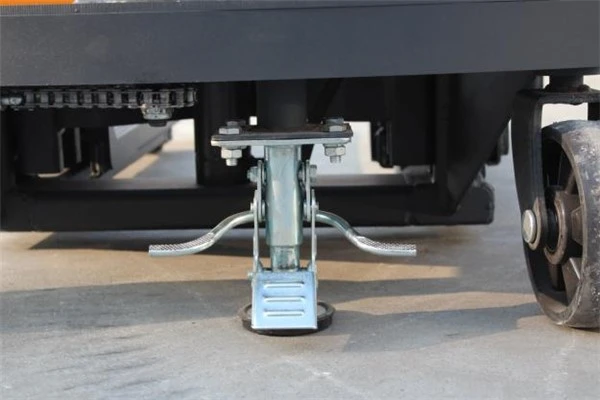

Heavy-Duty Mechanical Wheel Brakes for Safe Stationary Lifting
Dual mechanical foot brakes on the rear steering casters lock the machine firmly in position once kicked down, for stable overhead racking operations.
Simplified Electrical Architecture - Low Servicing Friction
No expensive drive controllers or complex CAN-bus wiring; standard relay-based circuitry and accessible hydraulic valves let any local technician handle maintenance with off-the-shelf parts.
Integrated On-Board Charger & Battery Indicator
An integrated charger plugs directly into standard 110V/220V wall outlets, with a bright LED battery indicator to monitor charge status at a glance.
Before Choosing a Stacker, Check These 4 Things
Load Weight
What is the heaviest pallet?
Load Center
Is the load centered around the specified 600 mm load center?
Lift Height
How high does the pallet actually need to go?
Travel Distance
How far does the operator move the pallet during a normal cycle?
How a Semi-Electric Stacker Fits Into Daily Work
1. Position Manually → 2. Insert the Forks → 3. Lift Electrically → 4. Move and Position Manually
Frequently Asked Questions
Why Spend 3x More When You Only Need Electric Lifting?
+
-
If your facility only stacks 10 to 15 pallets a day and moves them short distances, buying a full-electric drive stacker means paying for drive motors and controllers that sit unused 90% of the day. A semi-electric stacker cuts your equipment purchase cost by up to 70% while solving 100% of the heavy lifting fatigue.
Is it difficult for one operator to push a 1.5-ton loaded semi-electric stacker?
+
-
On smooth, level concrete floors, the high-grade Polyurethane (PU) casters reduce rolling resistance significantly. Pushing a loaded stacker short distances (< 5m) is comfortable for standard warehouse personnel.
How do I charge the battery, and do I need special industrial power?
+
-
No special wiring needed. The stacker features a built-in charger-simply plug the included cord into any standard 110V/220V wall outlet overnight, and it's ready for the next day's work.
What is the main maintenance requirement for this model?
+
-
Maintenance is minimal. Keep the mast chains lubricated, check hydraulic oil levels once every 6 months, and keep the battery charged. Without drive motors or complex controllers, downtime is virtually zero.
Is it suitable for narrow aisles?
+
-
The machine has a listed overall width of 795 mm and aisle requirements of approximately 2,412–2,435 mm for the stated pallet configurations. Actual aisle suitability depends on pallet size, rack layout and operator clearance.
