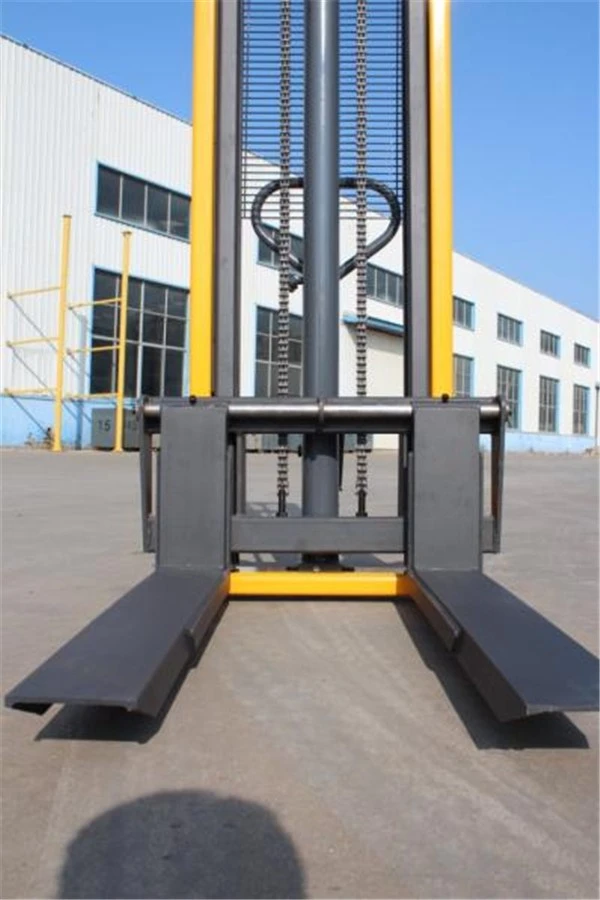

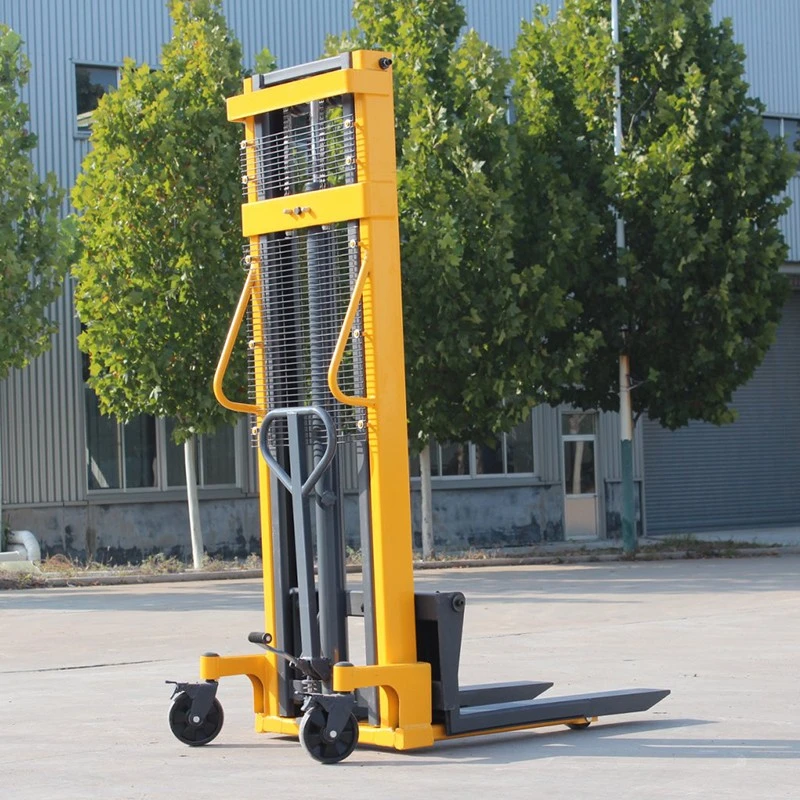

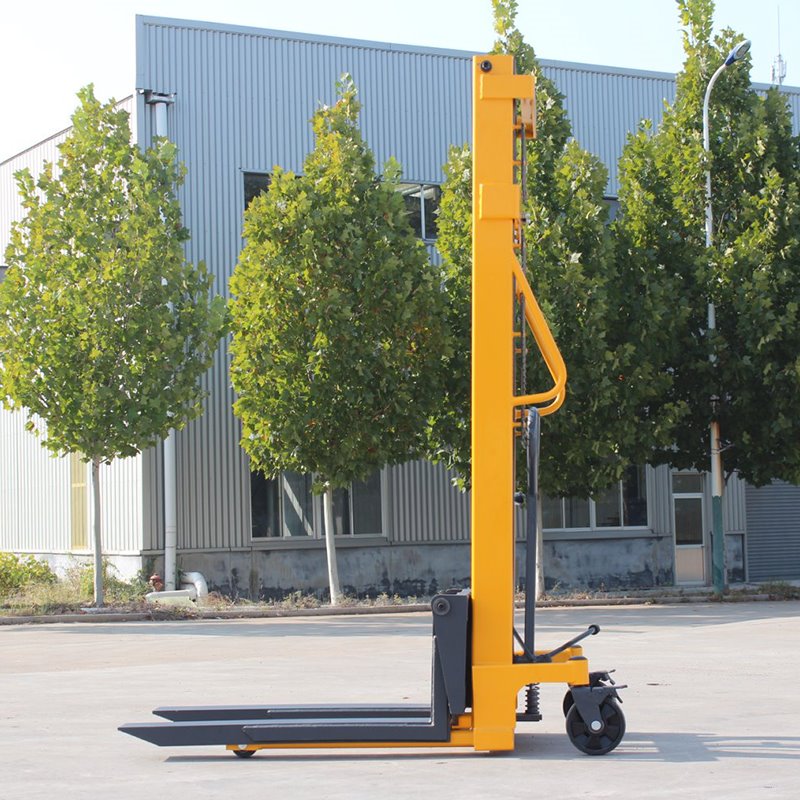

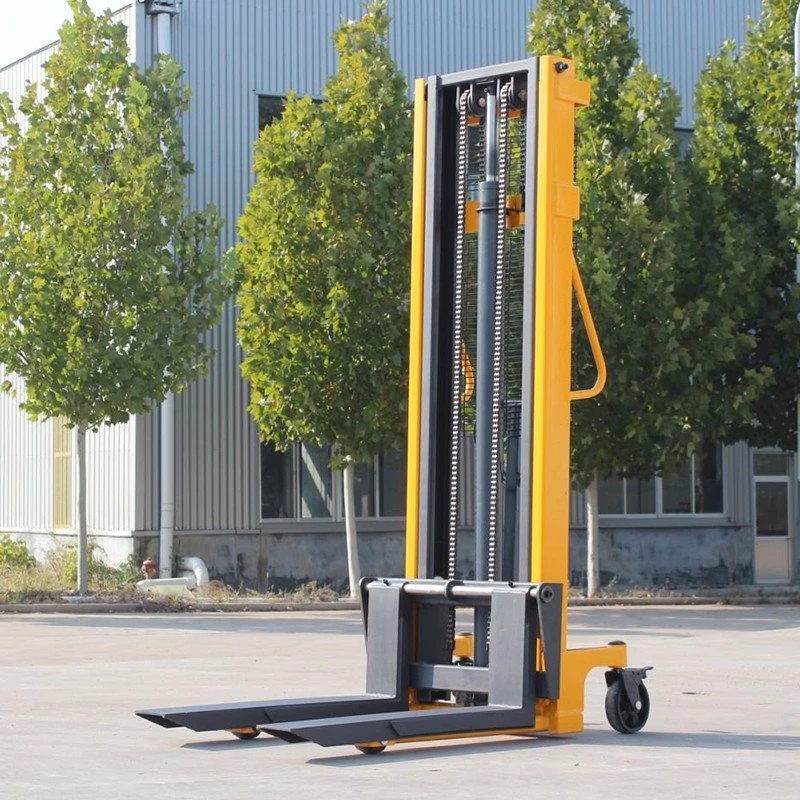

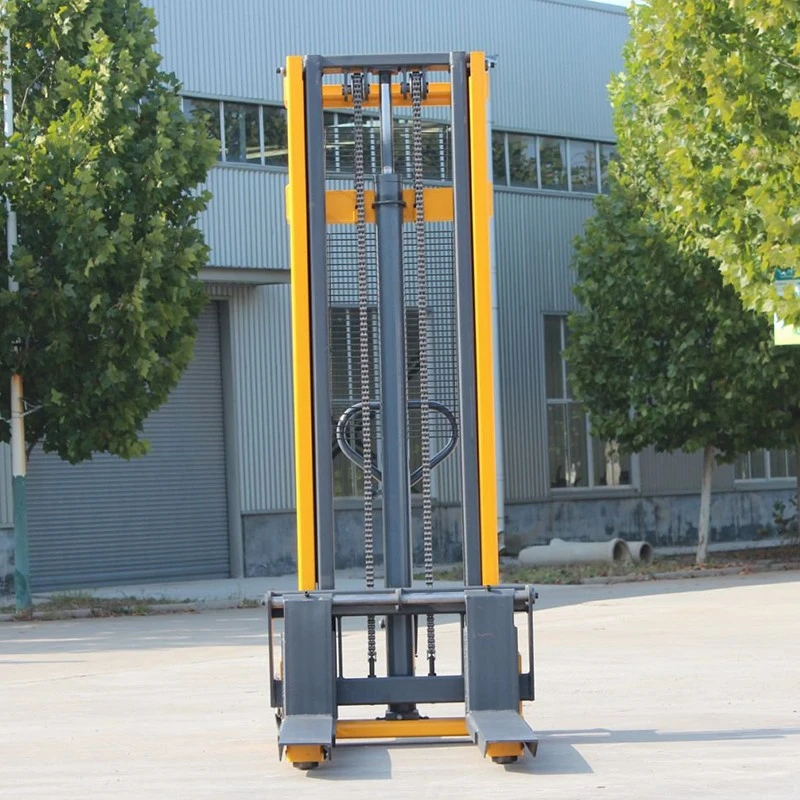

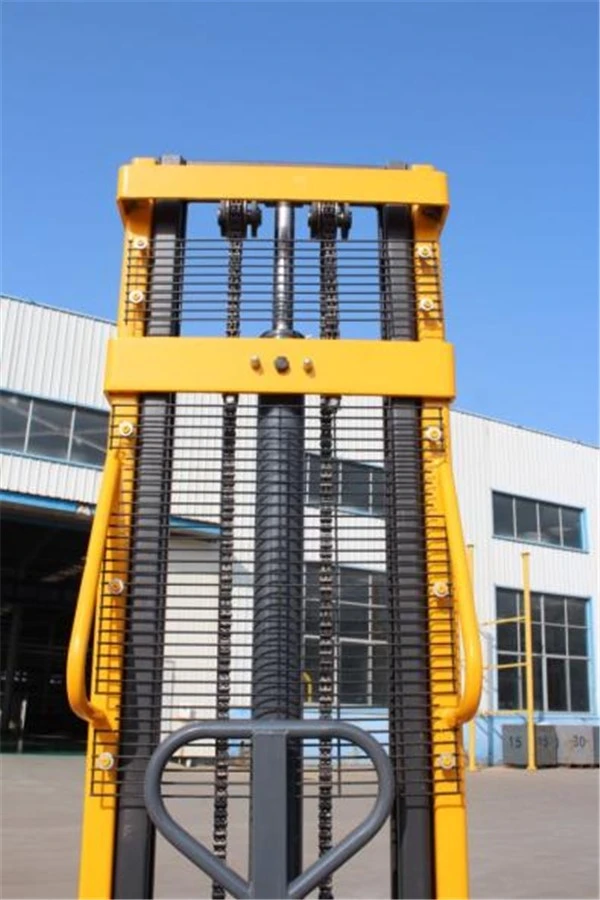

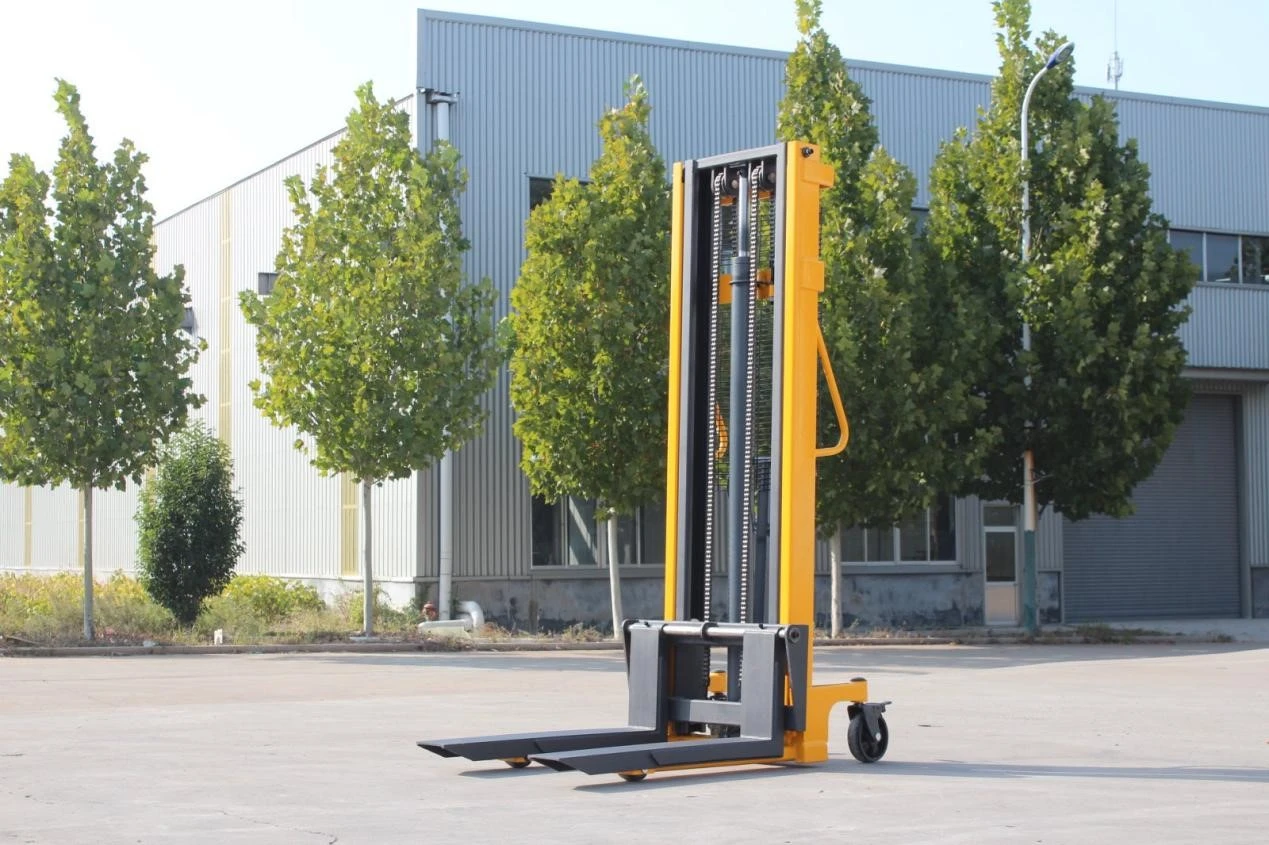

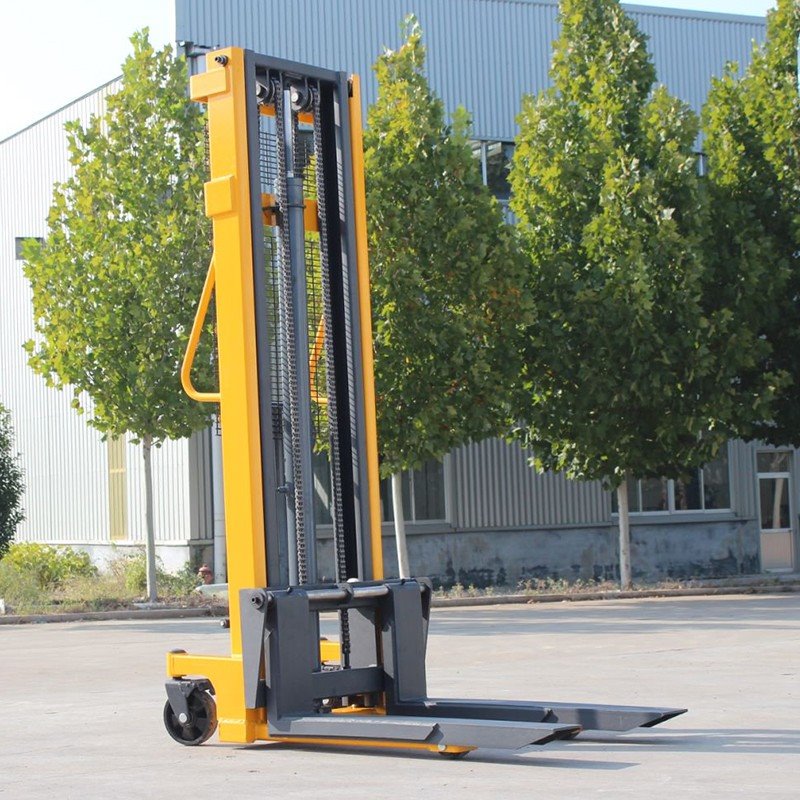

1.0–2.0 Ton Hand Pallet Stacker: CDD10/20
Flexible Manual Pallet Handling for Different Load Requirements
The 1.0–2.0 ton hand pallet stacker range is designed for businesses that need a straightforward solution for lifting, positioning and stacking palletized goods without relying on powered travel. Different capacity options allow the equipment to be matched to the actual weight of the load and the requirements of the working environment.
The stacker is suitable for pallet handling in warehouses, workshops, retail storage areas and other facilities where travel distances are relatively short and handling frequency is moderate or low.
Before selecting a configuration, buyers should consider pallet weight, load center, required lifting height, pallet dimensions and available aisle space.
1.0–2.0 Ton Capacity Range | Manual Operation | Pallet Handling | Multiple Lifting Configurations
Choose the Right Capacity for Your Load
Suitable for lighter palletized goods, smaller loads and applications where the required lifting capacity is relatively low.
lightweight palletized goods
small storage areas
lighter packaged products
occasional material movement
A practical option for general warehouse and workshop applications involving standard pallet loads within the rated capacity.
general warehouse goods
workshop materials
standard palletized products
routine storage and retrieval
Designed for heavier palletized loads where a higher rated capacity is required.
heavier pallets
denser goods
production materials
heavier packaged products
The required capacity should always be selected according to the actual load weight, load center and lifting height rather than rated capacity alone.
Technical Specifications
|
Item |
Specification |
|
Model |
CDD20 |
|
Power Type |
Manual |
|
Operation |
Stand-on |
|
Rated Capacity |
2000 kg |
|
Load Center |
600 mm |
|
Fork Length |
1150 mm |
|
Fork Width |
570 / 695 mm |
|
Overall Width |
795 / 805 mm |
Handling Performance
Performance figures should be considered together with load condition, floor condition and operating environment.
|
Travel Speed (Laden / Unladen) |
4.0 / 4.2 km/h |
|
Lifting Speed (With / Without Load) |
80 / 210 mm/s |
|
Lowering Speed (With / Without Load) |
152 / 160 mm/s |
|
Max Climbing Ability (With / Without Load) |
6 / 8 % |
Dimensions for Warehouse Maneuverability
The compact dimensions are intended for storage and pallet handling areas where operators need to maneuver around racks, workstations and temporary staging areas.
|
Overall Length |
2022mm |
|
Overall Width |
795 / 805 mm |
|
Fork Length |
1150 mm |
|
Turning radius |
1550mm |
|
Maximum Lifting Height |
Available Load Capacity |
|
2077 mm |
2000 kg |
|
2277 mm |
2000 kg |
|
2552 mm |
2000 kg |
|
3112 mm |
1500 kg |
|
3512 mm |
1450 kg |
|
3752 mm |
1400 kg |
|
4152 mm |
1200 kg |
|
4552 mm |
1000 kg |

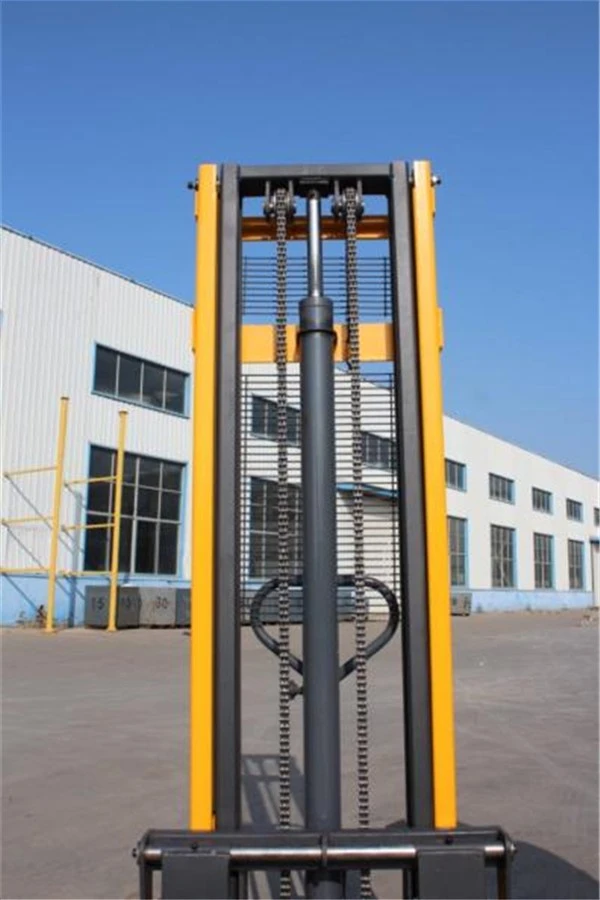

Match Load Capacity to Lifting Height
A hand pallet stacker should not be selected by rated capacity alone. The available capacity can decrease as lifting height increases, depending on the mast configuration.
If your application involves heavy pallets at higher storage levels, provide the required lifting height and maximum pallet weight when requesting a quotation.
Typical Applications
Pallet Storage and Retrieval
For manually positioning palletized goods into designated storage locations where handling frequency is moderate or low.
Workshop Material Handling
Suitable for moving and positioning palletized components and materials between storage and production areas.
Retail and Backroom Storage
Useful for handling palletized goods in back-of-store areas where equipment use is periodic.
Small Distribution Areas
Can support pallet movement between receiving, temporary storage and dispatch areas where travel distances are limited.
General Pallet Handling
Suitable for businesses that need lifting and stacking capability without requiring continuous powered travel.
|
Hand Pallet Stacker |
Powered Stacker |
|
|
Lifting |
Manual/hydraulic |
Powered |
|
Travel |
Manual |
Powered |
|
Initial cost |
Lower |
Higher |
|
Handling frequency |
Moderate/low |
Moderate/high |
|
Operator effort |
Higher |
Lower |
|
Maintenance |
Simpler |
More systems |
|
Best use |
Short-distance pallet handling |
Frequent handling |
Choose a hand pallet stacker when simplicity and occasional pallet handling are more important than travel productivity.
Is a Hand Pallet Stacker Right for Your Operation?
Choose a hand pallet stacker if:
Loads are within the required capacity
Travel distances are relatively short
Pallet movement is not continuous
Manual operation is acceptable
Storage and stacking are the main requirements
The warehouse has firm, level floors
Consider a powered stacker if:
Operators travel long distances
Pallets are moved continuously
Daily handling volume is high
Operator physical effort needs to be minimized
Higher travel productivity is required
Frequently Asked Questions
What is a hand pallet stacker?
+
-
A hand pallet stacker is a manually operated pallet-handling machine designed to lift and position palletized goods for storage and short-distance handling.
What capacity is available?
+
-
The range is available from 1.0 to 2.0 tons, depending on the selected configuration.
How do I choose between 1.0, 1.5 and 2.0 tons?
+
-
Select the capacity according to the maximum pallet weight, load center and required lifting height. The rated capacity should provide sufficient margin for your actual working load.
Can it lift a 2-ton pallet to the maximum lifting height?
+
-
Not necessarily. Available load capacity can decrease as lifting height increases. The specific capacity must be checked against the selected mast configuration.
Does lifting height affect capacity?
+
-
Yes. Maximum capacity may vary according to mast configuration and lifting height. Always confirm the load chart before purchase.
What pallet sizes can it handle?
+
-
Compatibility depends on pallet dimensions, fork length, fork spacing and fork entry. Please provide your pallet dimensions when requesting a quotation.
Is it suitable for narrow aisles?
+
-
Its compact dimensions can support operation in space-conscious layouts, but actual aisle suitability should be calculated according to pallet size, racking configuration and turning clearance.
Should I choose a hand pallet stacker or an electric stacker?
+
-
A hand pallet stacker is generally suitable for shorter travel distances and moderate or low handling frequency. Electric equipment is more appropriate when pallets need to be moved continuously or over longer distances.
