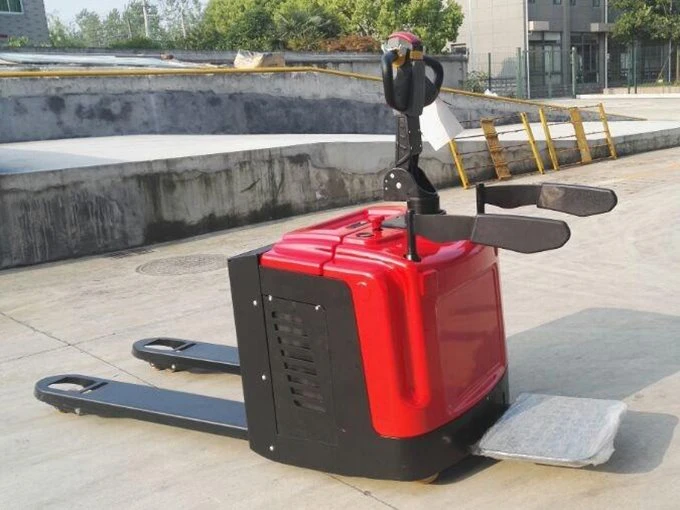

2 Ton Electric Pallet Truck with Machinery Steering for Frequent Direction Changes: CBD20
The CBD20 Machinery Steering is a 2 ton stand-on electric pallet truck designed for operations where pallets need to be repositioned frequently. Its steering configuration is intended to support smoother directional adjustments during repeated warehouse handling, making it suitable for staging, loading, sorting and short-distance pallet transportation.
2,000 kg Capacity | Stand-On Operation | Machinery Steering | 5.0 / 6.8 km/h Travel Speed
Products Description
Designed for Frequent Directional Adjustments
Warehouse pallet handling often involves more than moving loads in a straight line. Operators may need to approach pallets from different angles, reposition the truck at staging areas, turn between handling points and repeatedly adjust the travel direction.
The CBD20 Machinery Steering configuration is designed for these operations where steering and truck positioning are part of the daily handling process.
Better Control When Positioning Pallets
In receiving areas, dispatch zones and warehouse staging locations, operators often need to align the truck with pallets before lifting and moving them. Repeated positioning requires continuous steering adjustments rather than simple straight-line travel.
The CBD20 is designed for operations where controlled maneuvering and repeated pallet positioning are important parts of the handling workflow.
For Warehouses with Repeated Handling Movements
The truck is suitable for operations where pallets move between several nearby points throughout the day. For example, goods may be received, moved to a staging area, transferred to storage and later repositioned for dispatch.
In these workflows, operators frequently need to change direction and reposition the truck rather than simply travel along one straight route.

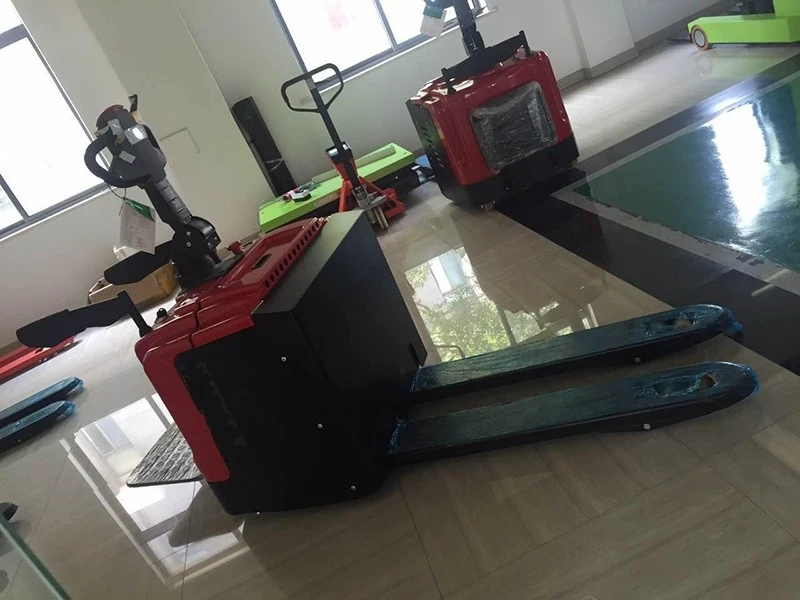

Stand-On Operation for Repeated Pallet Transport
The stand-on operating position allows the operator to travel with the truck during repeated pallet movements. With a listed maximum travel speed of 5.0 km/h when loaded and 6.8 km/h when unloaded, the CBD20 is suited to regular indoor pallet transportation between warehouse handling points.

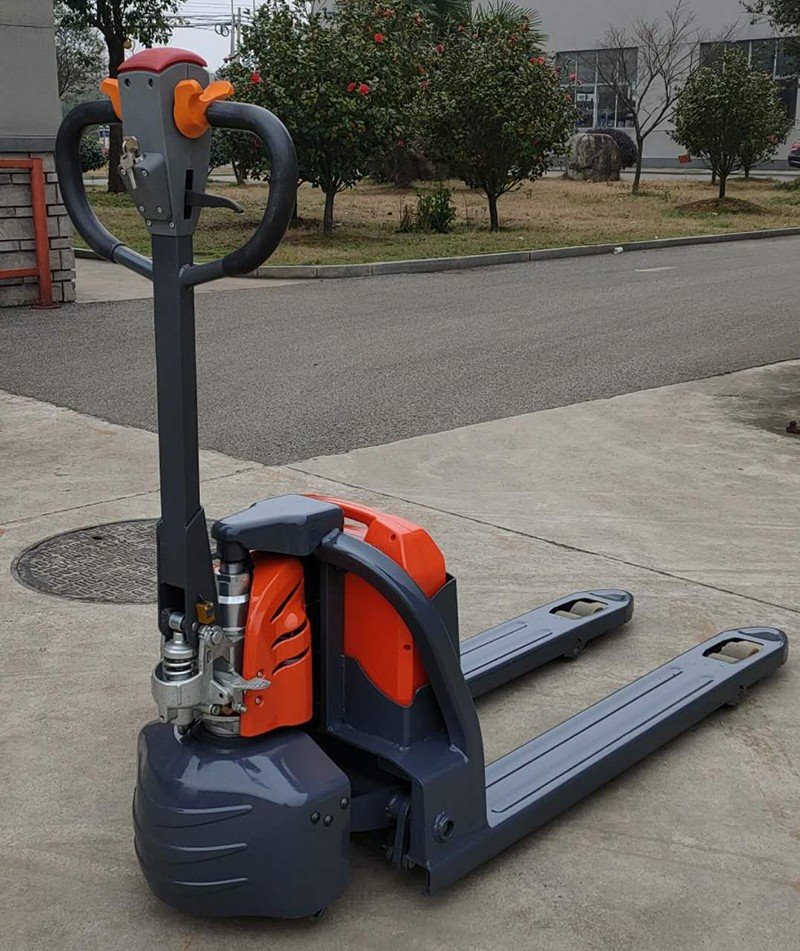

Controlled Maneuvering in Warehouse Handling Areas
With a listed minimum turning radius of 1,746 mm, the CBD20 can be used for maneuvering between warehouse handling points and staging areas. Actual aisle requirements should always be evaluated based on pallet dimensions, rack layout and the operating environment.
Technical Specifications
|
Item |
Specification |
|
Model |
CBD20 Machinery Steering |
|
Power Type |
Electric |
|
Operation |
Stand-on |
|
Rated Capacity |
2,000 kg |
|
Load Center |
600 mm |
|
Wheelbase |
1,384 mm |
|
Gradeability Laden/Unladen |
6% / 8% |
|
Service Brake |
Electromagnetic |
|
Overall Length |
1,925 mm |
|
Overall Width |
808 mm |
|
Fork Width |
540 / 685 mm |
|
Fork Length |
1,150 / 1,220 mm |
|
Lowered Fork Height |
85 mm |
|
Lift Height |
2,000 mm |
|
Minimum Turning Radius |
1,746 mm |
|
Travel Speed Laden/Unladen |
5.0 / 6.8 km/h |
|
Lifting Speed Laden/Unladen |
80 / 210 mm/s |
|
Lowering Speed Laden/Unladen |
152 / 160 mm/s |
|
Axle centre to fork face |
672 mm |
|
Single fork width |
185 mm |
|
Battery weight |
6 kg |
|
Steering type |
Mechanical |
|
Drive Motor |
24V / 1.5 kW |
|
Lift Motor |
24V / 0.8 kW |
|
Battery |
24V / 210Ah |
|
Drive Control |
DC Power |
|
Tires |
PU |
|
Operator Ear Noise |
67 dB |
|
Service Weight with battery |
810 kg |
|
Driving wheels sizes/number(Φ*w) |
Φ250×75 mm |
|
Balance wheels sizes/number(Φ*w) |
Φ115×55 mm |
|
Front wheels sizes/number(Φ*w) |
Φ80×80 mm |
Typical Applications
Warehouse Staging Areas
Pallets often need to be repositioned repeatedly before storage or dispatch.
Loading and Dispatch Zones
Useful when operators need to approach different pallets and change direction frequently.
Logistics Sorting Areas
Suitable for pallet movement between multiple sorting and staging points.
Manufacturing Workshops
Materials may need to move between production lines, storage areas and temporary workstations.
Distribution Centers
Suitable for regular indoor pallet movement where frequent positioning is required
Frequently Asked Questions
What is the rated capacity?
+
-
The CBD20 has a rated capacity of 2,000 kg at the specified load center.
What type of operation does it use?
+
-
The product page lists a stand-on operating configuration.
What is the maximum travel speed?
+
-
The listed travel speed is 5.0 km/h with load and 6.8 km/h without load.
What type of work is this pallet truck designed for?
+
-
It is designed for indoor pallet handling where operators regularly reposition pallets and make frequent directional adjustments.
Is it suitable for narrow aisles?
+
-
Actual aisle requirements depend on pallet size, warehouse layout and operating conditions. The listed minimum turning radius is 1,746 mm.
When should I choose Machinery Steering instead of a standard electric pallet truck?
+
-
It is a suitable option when repeated steering adjustments and pallet positioning are an important part of daily handling operations.
What is the difference between this model and the Light EPS model?
+
-
The Machinery Steering model focuses on maneuvering and directional control during repeated handling, while the Light EPS model is designed around additional illumination for low-light working environments.
Need a Pallet Truck for Frequent Direction Changes?
Tell us your pallet weight, travel distance, handling frequency and warehouse layout. We can help determine whether the CBD20 steering configuration is suitable for your operation.
