Where This Double-Pallet Stacker Fits Best
E-commerce sorting centers (batch pallet collection)・Logistics transfer stations・Distribution warehouses・Large warehouse stocking areas
Cross-Docking & High-Volume Transit
Transporting two pallets per trip over medium-to-long warehouse distances to cut operator travel cycles by up to 50%.
Truck, Trailer & Container Loading
Navigating ramps, dock levelers, and uneven transitions where low chassis clearance would cause standard stackers to scrape.
Cold Storage & Fast Logistics Hubs
High-tempo environments where fast dock clearance and maximum throughput per shift are critical KPIs.
Product Parameters
- Basic & Performance

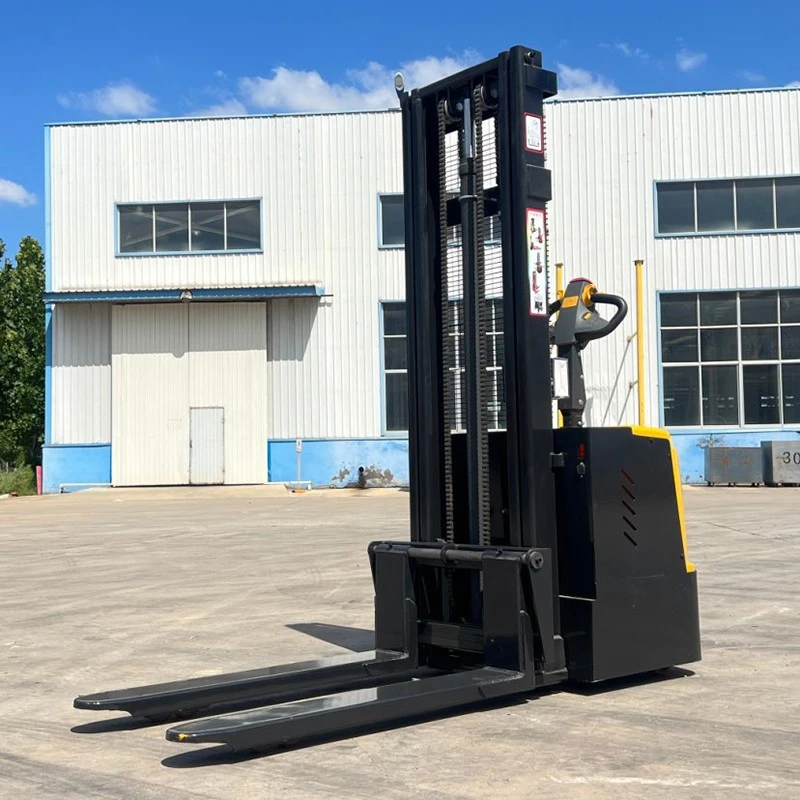

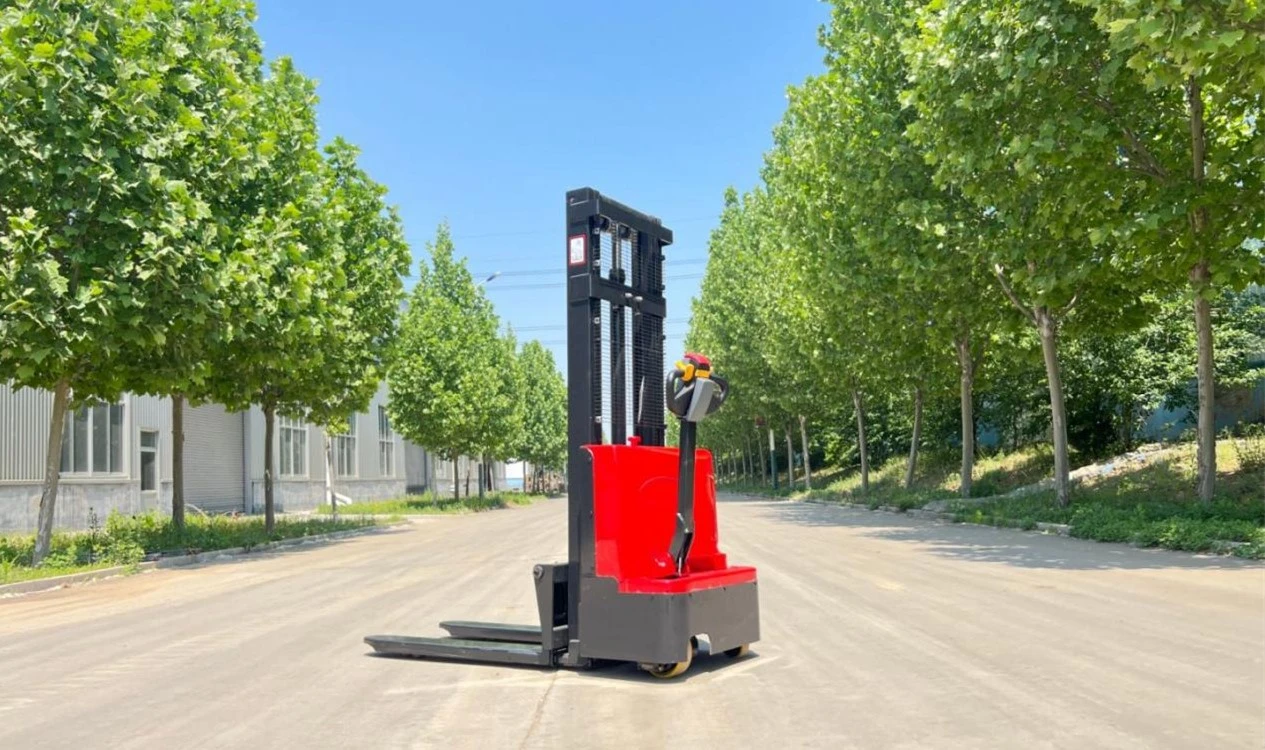

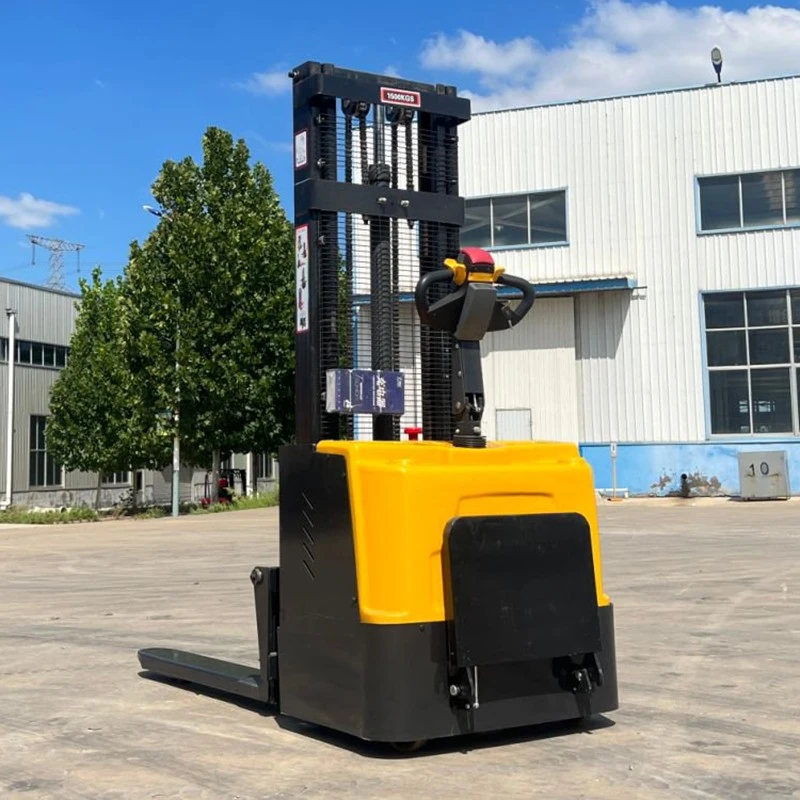

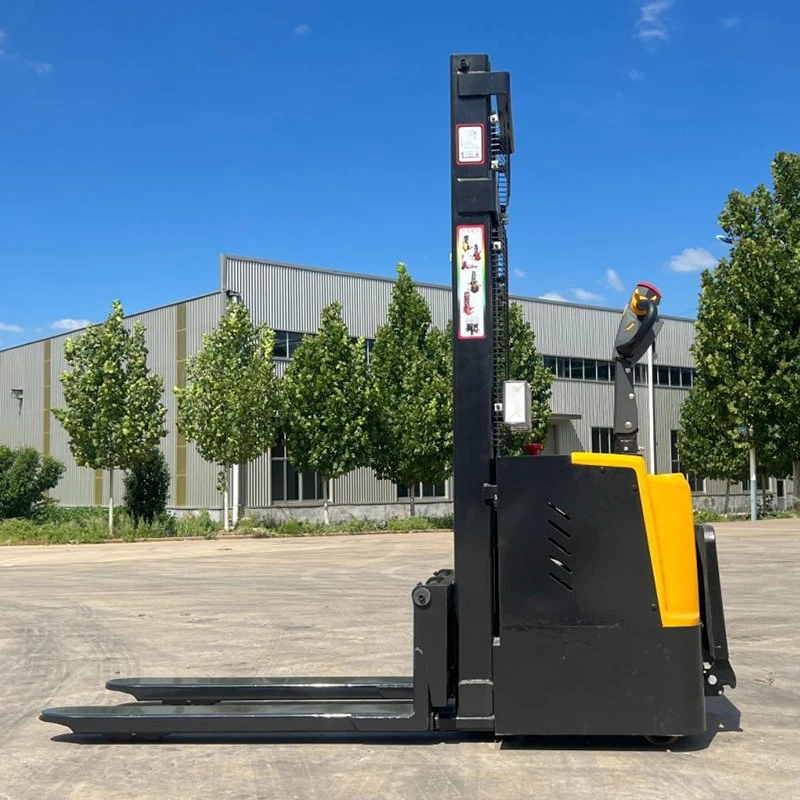

Model: CDD15 (Double Tray)
Power Type: Full Electric
Rated Load Capacity: 1,500 kg
Load Center Distance: 600 mm
Travel Speed (Laden / Unladen): 4.0 / 4.2 km/h
Gradeability (Laden / Unladen): 6% / 8%
Service Brake: Electromagnetic
- Power
Drive Control Type: AC Power Control
Drive Motor (60 min rating): AC 1.5 kW
Lift Motor Rating (S3 15%): DC 3.0 kW
Battery Voltage / Capacity: 24V / 240 Ah
Battery Weight: 150 kg
- Dimensions
Fork Dimensions (T x W x L): 60 x 180 x 1,150 mm
Overall Fork Width (Outside): 570 / 695 mm
Overall Length: 2,022 mm
Overall Width: 795 mm
Handle Height in Drive Position (Min / Max): 870 / 1,200 mm
Turning Radius : 1,550 mm
Aisle Width for Pallets (1000×1200 Crossways): 2,435 mm
Aisle Width for Pallets (800×1000 Lengthways): 2,412 mm
Steering Type: Mechanical Steering
Tire Material: Polyurethane (PU)
Wheel Setup (Drive / Balance / Front): Φ230×70 (x1) / Φ150×58 (x1) / Φ80×70 (x4)
Wheelbase: 1,384 mm

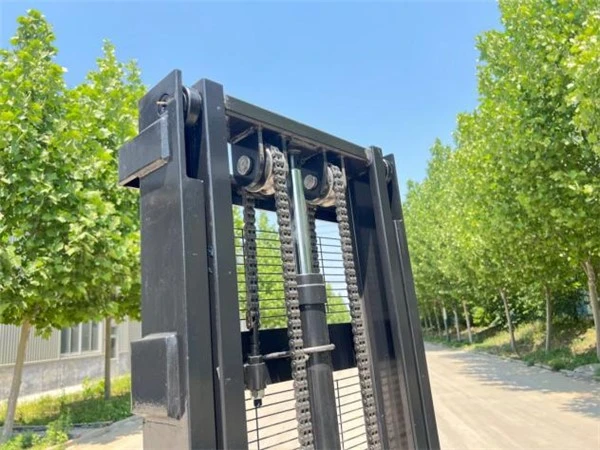

- Mast Configuration Matrix

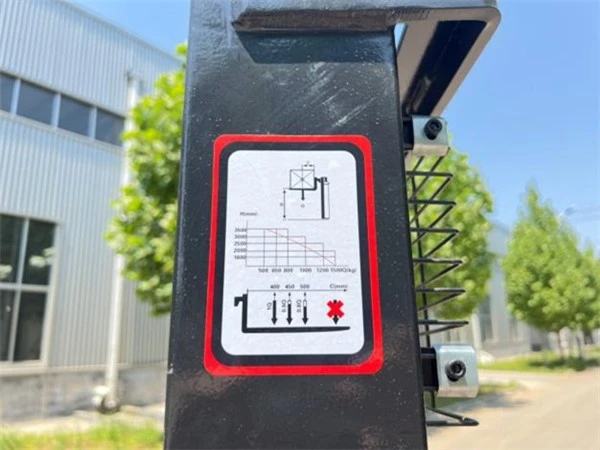

| Max. Lift Height | Mast Type | Residual Capacity | Extended Mast Height | Free Lift |
| 3,000 mm | Standard Duplex | 1,300 kg | 3,408 mm | 166 mm |
| 3,600 mm | Standard Duplex | 1,100 kg | 4,008 mm | 166 mm |
| 3,600 mm | Full Free Duplex | 1,100 kg | 4,024 mm | 1,331 mm |
| 4,500 mm | Triplex Mast | 750 kg | 5,024 mm | 1,686 mm |
Key Features
The 1.5-ton double-pallet electric pallet stacker is a batch-oriented machine: it carries two compatible pallets per trip for up to 2x operational throughput, while remaining a focused configuration for pallet-based workflows rather than a universal handling solution.
Dual-Pallet Synchronous Transport for Up to 2x Throughput

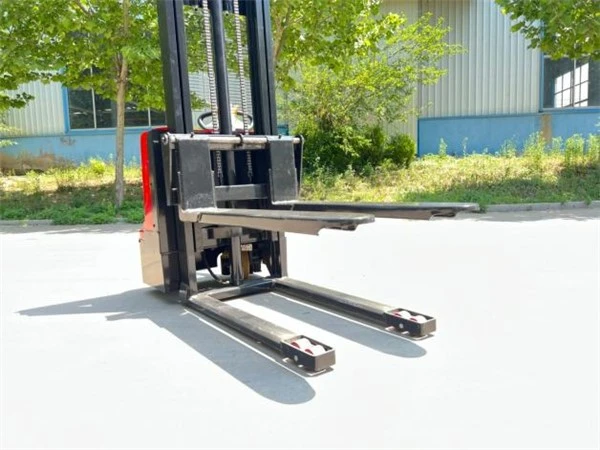

Initial Leg Lift for Ramp & Dock Leveler Navigation
Automatic Anti-Rollback on Slopes
| Working Requirement | Suggested Direction |
|---|---|
| Occasional stacking | Standard electric stacker |
| Repeated batch pallet handling | Double-pallet configuration |
| Longer transport distances | Consider platform or ride-on equipment |
| Limited space | Check width, turning radius and pallet dimensions |
Frequently Asked Questions
Can this machine be used as a standard single-pallet stacker when needed?
+
-
Absolutely. The initial lift and mast lift operate independently. You can use it as a standard stacker for high racks, or activate the base legs only when crossing ramps or carrying two loads
Can it carry two fully loaded pallets at the same time?
+
-
The applicable load arrangement must be confirmed according to the actual double-pallet structure, rated capacity and load distribution. Please contact us with your pallet dimensions and individual load weights before placing an order.
How does the initial lift prevent bottoming out on dock ramps?
+
-
By raising the bottom support legs by 120-200mm, the breakover angle between the drive unit and the load wheels is significantly increased, preventing the frame from catching on the peak of steep ramps.
Can the double-pallet stacker be customized?
+
-
Configuration options should be discussed according to the required pallet dimensions, lifting height, load arrangement and working conditions. Customization availability depends on the requested modification and technical confirmation.
What if my main goal is stacking pallets into 3.5m+ high narrow-aisle racks?
+
-
If you don't need to transport two pallets at once or load trucks over ramps, our [1.0-1.5 Ton Standard Compact Stacker] offers a tighter turning radius and a lighter chassis optimized for narrow aisles..
Discuss Your Pallet Handling Requirements
Share your pallet dimensions, load arrangement and required lifting height. We can help check whether the CDD15 configuration fits your handling workflow.
