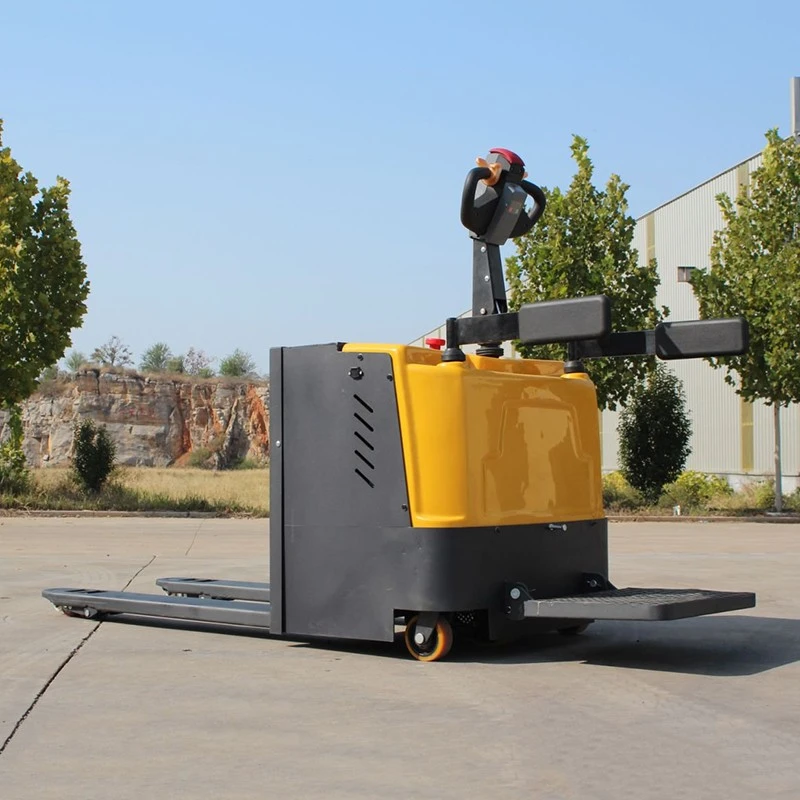

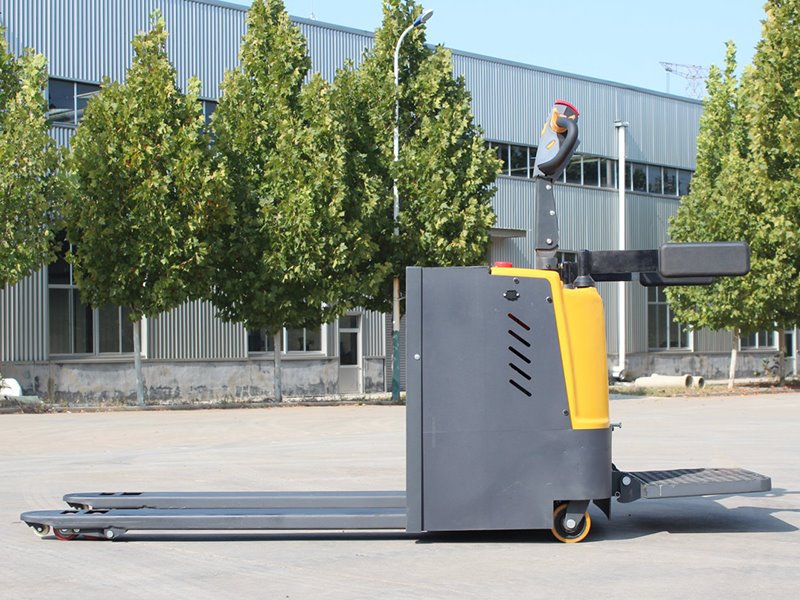

2 Ton Lithium Pallet Truck for Compact Indoor Handling:CBD20

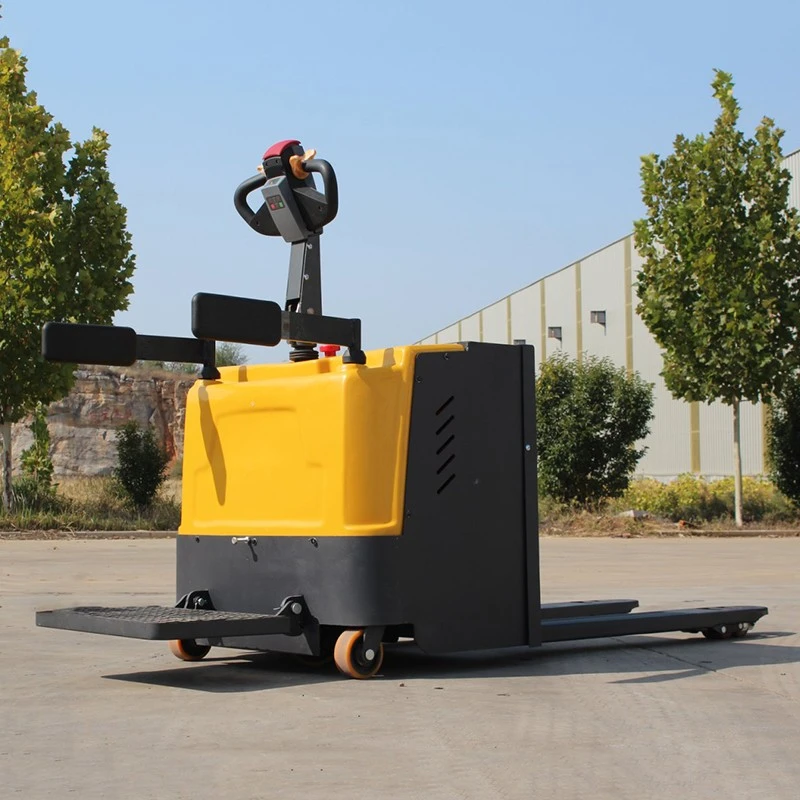

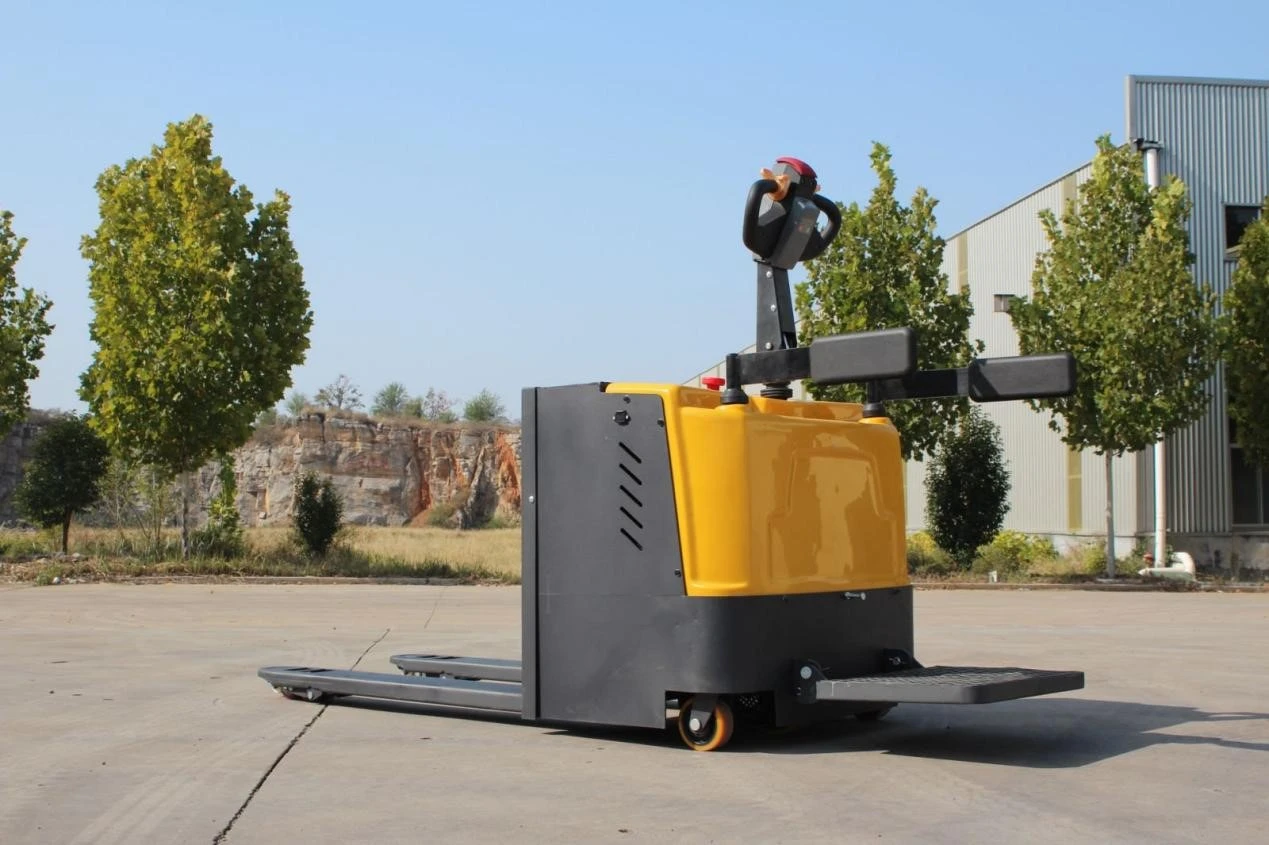

The CBD20 is a walk-behind lithium pallet truck designed for indoor pallet movement where both load capacity and available space matter. With a 2,000 kg rated capacity and a 700 mm overall width, it provides a practical combination of high load capacity and compact dimensions for warehouses, backroom storage areas and other space-limited applications.
2,000 kg Rated Capacity | 24V / 210Ah Lithium Battery | 700 mm Overall Width | 2,012 mm Turning Radius
Why Choose a 2 Ton Lithium Pallet Truck?
When pallet loads regularly approach 2 tons, a higher-capacity pallet truck can provide more practical working capacity than a standard 1.5-ton model. The CBD20 combines a 2,000 kg rated capacity with a compact 700 mm overall width, making it suitable for operations where both load weight and available floor space need to be considered.
2,000 kg Rated Capacity
For palletized goods approaching the upper end of the electric pallet truck range.
700 mm Overall Width
A compact body for indoor areas where space is limited
Walk-Behind Operation
Suitable for short-distance pallet movement between receiving, storage and staging areas.

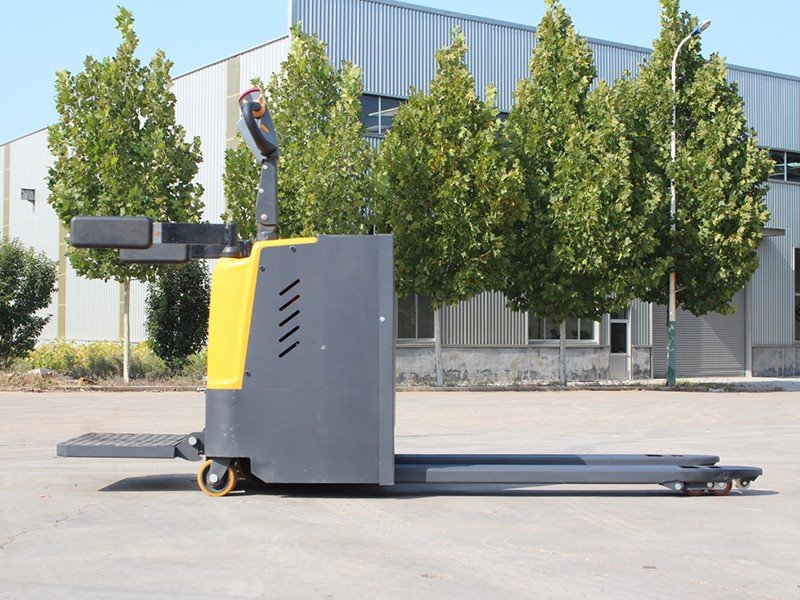

700 mm Wide for Space-Limited Indoor Areas
The CBD20 has an overall width of 700 mm, helping it fit into indoor handling areas where floor space is limited. It is suitable for pallet movement in compact storage areas, retail backrooms, production-side storage and other indoor environments where equipment dimensions need to be considered carefully.
Walk-Behind Operation for Short-Distance Pallet Movement
The pedestrian operating configuration keeps the truck simple and compact for short-distance pallet movement. It is particularly practical for moving pallets between receiving areas, storage locations, staging zones and production workstations.
Technical Specifications
|
Item |
Specification |
|
Model |
CBD20 |
|
Power Type |
Electric |
|
Operation |
Pedestrian |
|
Rated Capacity |
2000 kg |
|
Load Center |
600 mm |
|
Wheelbase |
1348 mm |
|
Gradeability Laden/Unladen |
8% / 15% |
|
Service Brake |
Electromagnetic |
|
Overall Length |
1742 mm |
|
Overall Width |
700 mm |
|
Length to Fork Face |
592 mm |
|
Fork Width |
550 / 685 mm |
|
Lowered Fork Height |
85 mm |
|
Lifting Height |
2000 mm |
|
Minimum Turning Radius |
2012 mm |
|
Travel Speed Laden/Unladen |
4.2 / 4.5 km/h |
|
Lifting Speed Laden/Unladen |
21 / 27 mm/s |
|
Lowering Speed |
38 / 38 mm/s |
|
Battery |
Lithium |
|
Voltage / Capacity |
24V / 210Ah |
|
Drive Motor |
1.3 kW |
|
Lift Motor |
0.8 kW |
|
Service Weight with Battery |
520 kg |
|
Tires |
PU |
|
Axle centre to fork face |
920 mm |
|
Driving wheels sizes/number(Φ*w) |
Φ230×70 mm |
|
Balance wheels sizes/number(Φ*w) |
Φ100×40 mm |
|
Front wheels sizes/number(Φ*w) |
Φ80×80 mm |
24V / 210Ah Lithium Battery
The CBD20 uses a 24V/210Ah lithium battery configuration for regular indoor pallet handling. Lithium-ion power eliminates routine lead-acid watering and supports convenient charging for operations that require frequent equipment use.
Clean Electric Operation
The electric drive produces no exhaust emissions during operation, making the CBD20 suitable for enclosed areas and other indoor environments where local emission control is important.
Balanced Drive Performance for Indoor Handling
The CBD20 provides a maximum travel speed of 4.2 km/h with load and 4.5 km/h without load. Its 1.3 kW drive motor and electromagnetic braking system are configured for controlled indoor pallet movement rather than high-speed transport.
2,012 mm Minimum Turning Radius
The 2,012 mm minimum turning radius supports maneuvering between storage and handling points in indoor facilities. Actual aisle requirements should be checked against pallet dimensions and the planned operating layout.
|
Item |
Specification |
|
Wheels, number front/rear (x = driven) |
1x+2/4 |
|
Track width |
390 / 525 mm |
|
Lifting height |
2000 mm |
|
The height of handle in the operation position min/max |
825 / 1278 mm |
|
Lowered fork height |
85 mm |
|
Battery according to DIN 43531/35/36 A, B, C |
no |
|
Battery voltage/rated capacity |
24V / 210Ah |
|
Battery weight (± 5%) |
195 kg |
|
Type of drive control |
DC power |
|
Noise level at operator's ear |
68 dB(A) |
|
Steering type |
Mechanical steering |
Typical Applications

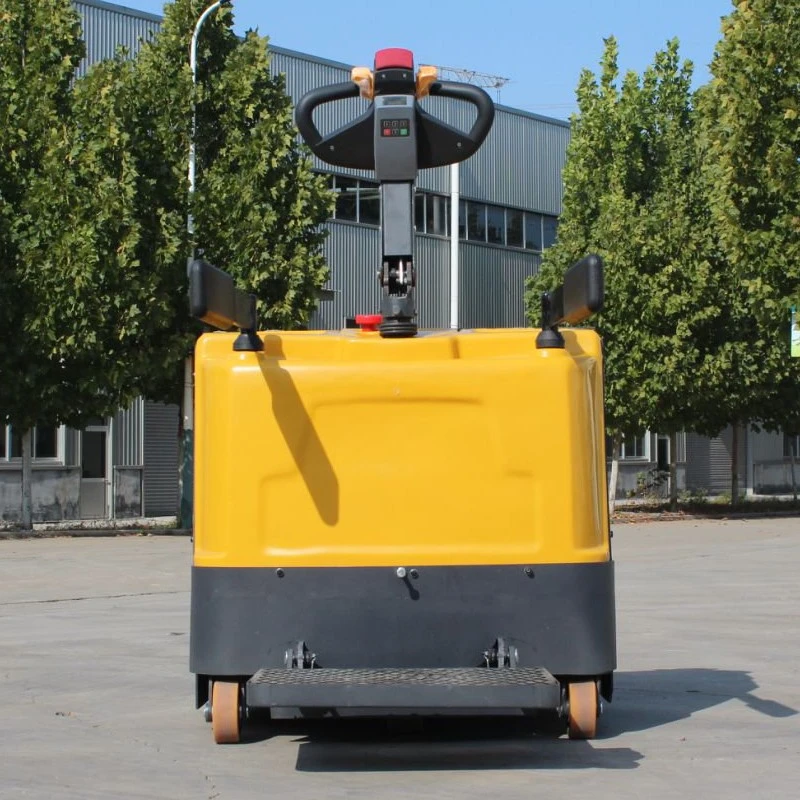

Compact Warehouses
For pallet movement in storage areas where equipment width needs to be controlled.

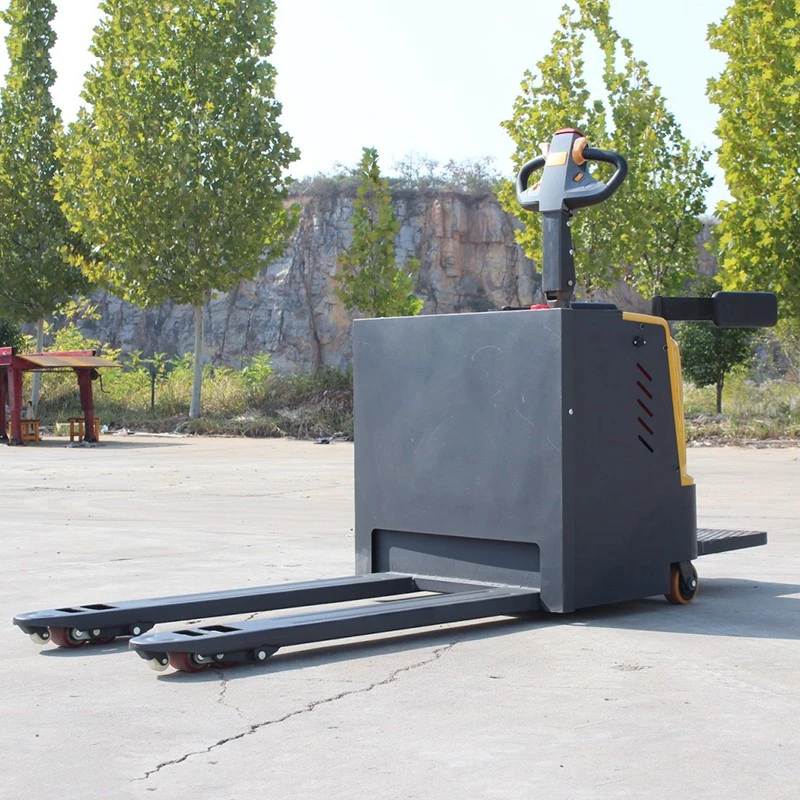

Retail Backrooms
Moving palletized goods between receiving areas and backroom storage.
Production-Side Storage
Short-distance material movement between production lines and nearby storage areas.
Food & Pharmaceutical Facilities
Suitable for clean indoor handling where exhaust emissions from internal-combustion equipment are undesirable.
Cold Storage
Suitable for appropriate low-temperature applications, subject to battery and operating-condition requirements.
Is the CBD20 the Right Pallet Truck for Your Operation?
Choose CBD20 if:
Your regular pallet loads approach 2 tons.
You need a walk-behind pallet truck.
Available floor space is limited.
Most operations are indoors.
You prefer lithium battery power.
Pallets mainly move over short distances.
Consider another configuration if:
Loads regularly exceed 2 tons.
Operators need to travel long distances continuously.
You require a ride-on or stand-on configuration.
Pallet dimensions require a different fork configuration.
The truck will operate on uneven outdoor surfaces.
Frequently Asked Questions
What is the capacity of the CBD20?
+
-
The CBD20 has a rated capacity of 2,000 kg at a 600 mm load center.
Is the CBD20 a walk-behind pallet truck?
+
-
Yes. The CBD20 uses a pedestrian operating configuration and is designed for short-distance pallet movement.
How wide is the CBD20?
+
-
The listed overall width is 700 mm.
What battery does the CBD20 use?
-
It is equipped with a 24V/210Ah lithium battery.
Is the CBD20 suitable for cold storage?
+
-
It can be used in appropriate cold-storage applications, but battery performance and operating conditions should be confirmed according to the actual temperature range.
Is a 2 ton pallet truck better than a 1.5 ton model?
+
-
It depends on the load. If pallets regularly approach 1.5 tons, the 2-ton CBD20 provides additional rated capacity. If loads are lighter and handling frequency is the priority, a 1.5-ton stand-on model may be more suitable.
Need a Compact 2 Ton Lithium Pallet Truck?
Send us your pallet weight, pallet dimensions, available operating space and working environment. We can help confirm whether the CBD20 is suitable for your application.
