Where This Electric Pallet Truck Fits into Daily Handling Work
Warehouse pallet transfer・Workshop & backroom movement・Food & pharmaceutical storage
Tail-Lift Delivery & Freight Trucks
Carried directly inside delivery vans or trucks for unloading pallets at customer sites via tail-lift, combining route delivery with on-site handling.
Retail Supermarkets & Grocery Backrooms
Operating in ultra-narrow aisles and back-of-store spaces with floor-friendly movement on delicate indoor surfaces.
Mezzanine Floors & Cargo Elevators
With an ultra-light service weight of ~120–160 kg, suitable for mezzanine platforms, cargo lifts, and other floor-load-restricted areas.
E-Commerce Picking & Sorting Areas
Repositioning incoming goods, replenishing picking areas, and moving packed orders over short distances in e-commerce workflows that require repeated indoor pallet movement rather than long-distance transport.
Technical Specifications
Basic & Performance

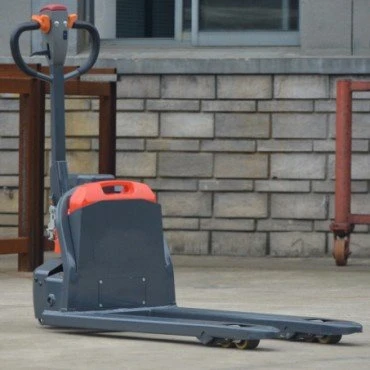

Model: CBD15
Power Type: Full Electric
Operator Type: Stand-on (with Platform)
Rated Load Capacity: 1,500 kg
Load Center: 600 mm
Travel Speed (Laden / Unladen): 5.0 / 6.8 km/h
Lowering Speed (Laden / Unladen): 152 / 160 mm/s
Drive, Battery & Electrics
Drive Control Type: DC Controller
Drive Motor Rating: 24V / 1.5 kW
Lift Motor Rating: 24V / 0.8 kW
Battery Voltage / Capacity: 24V / 210 Ah
Service Brake: Electromagnetic
Gradeability (Laden / Unladen): 6% / 8%
Dimensions & Chassis
Max. Lift Height: 2,000 mm
Fork Dimensions (Width × Length Options): 540 / 685 mm × 1,150 / 1,220 mm
Overall Length: 1,925 mm
Overall Width: 808 mm
Turning Radius : 1,746 mm
Service Weight (with Battery): 760 kg
Steering Type: Electric Power Steering (EPS)
Tire Material: Polyurethane (PU)
Wheelbase: 1,300 mm
Key Features
The compact 1.5–1.7-ton electric pallet truck combines a hand-pallet-size frame (head length under 400 mm) with a plug-and-play lithium battery - fast-swap energy for continuous shift work, and electric drive for repeated short-distance pallet transfers.
Ultra-Compact "Hand-Pallet-Size" Frame
A head length (L2) of under 400 mm with a compact turning radius fits into standard cargo elevators, narrow retail aisles, and loaded truck beds where standard forklifts cannot enter. (Compact turning radius figure to be confirmed with factory.)
Plug-and-Play Lithium Battery System
A lightweight (~5–8 kg) removable lithium-ion battery module enables fast battery swaps for continuous shift work, with flexible opportunity charging via standard 110V/220V wall outlets.

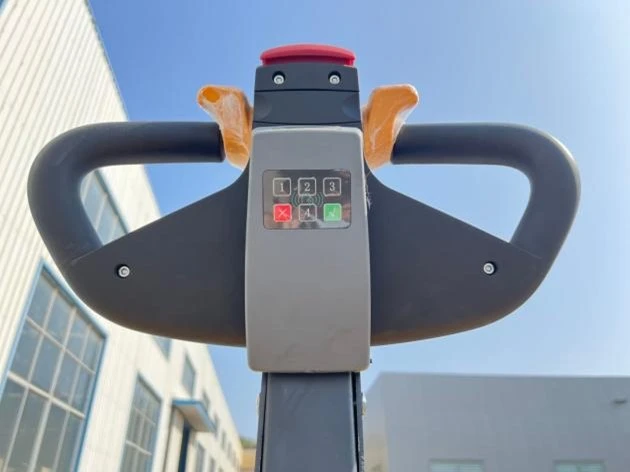

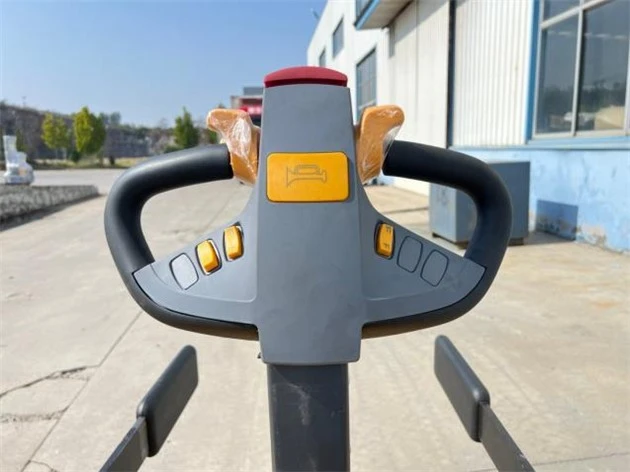

Ergonomic Handle with Creep Speed Mode
A low-speed creep function supports millimeter-precise maneuvering in dead-end corners and crowded delivery environments without sacrificing safety.
Electric Drive for Repeated Pallet Handling
The electric drive system reduces the physical effort of repeated pallet transfers during a shift, especially when goods are moved several times between storage and staging areas.
Frequently Asked Questions
Can this 1.5-ton electric pallet truck be carried inside a delivery van or tail-lift truck?
+
-
Yes! Weighing only around 125–150 kg with an ultra-short head length, it is specifically designed to fit on truck tail-lifts and be stowed inside commercial delivery vehicles without consuming critical cargo space.
How does the "Plug-and-Play" Lithium battery work during daily operations?
+
-
The battery pack weighs under 6 kg and features an ergonomic handle. You can lift it out in 10 seconds and plug it directly into a standard wall charger or swap in a spare battery for continuous 24/7 operation.
Is this pallet truck suitable for narrow warehouse areas?
+
-
Its overall width is listed as 808mm, with a minimum turning radius of 1,746mm. Whether it can operate in a specific aisle depends on pallet size, aisle width, turning clearance and the warehouse layout. We recommend providing your aisle dimensions for confirmation.
What type of work is this model designed for?
+
-
It is intended for routine indoor pallet movement, including storage transfer, picking-area replenishment, staging and short-distance material handling. The suitable application should be assessed according to load weight, operating frequency and floor conditions..
What pallet sizes can it handle?
+
-
The listed fork lengths are 1,150mm and 1,220mm, with overall fork width options of 540mm and 685mm. The correct configuration should be selected according to pallet entry direction, pallet dimensions and load distribution.
Need a Stand-On Pallet Truck for Frequent Handling?
Tell us your pallet weight, daily handling frequency, travel distance and warehouse layout. We can help determine whether the CBD15 is the right configuration for your operation.
